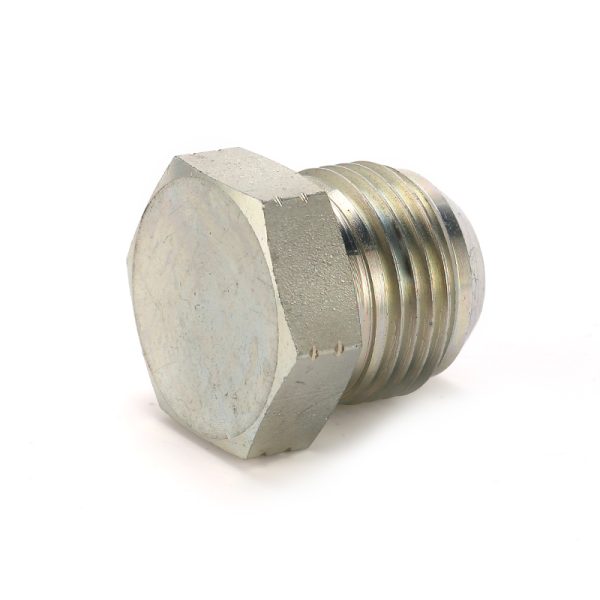

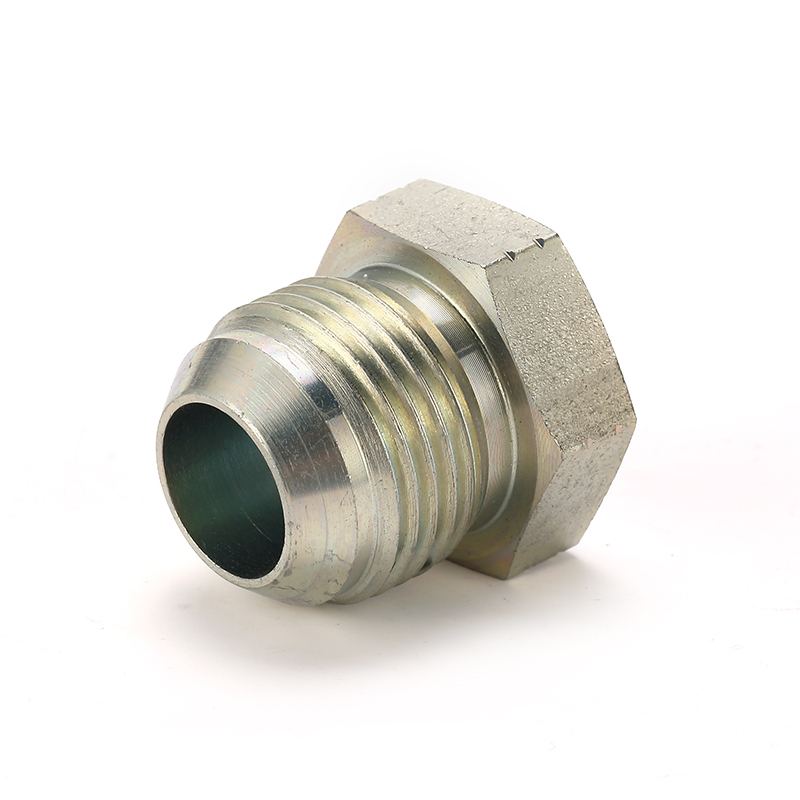

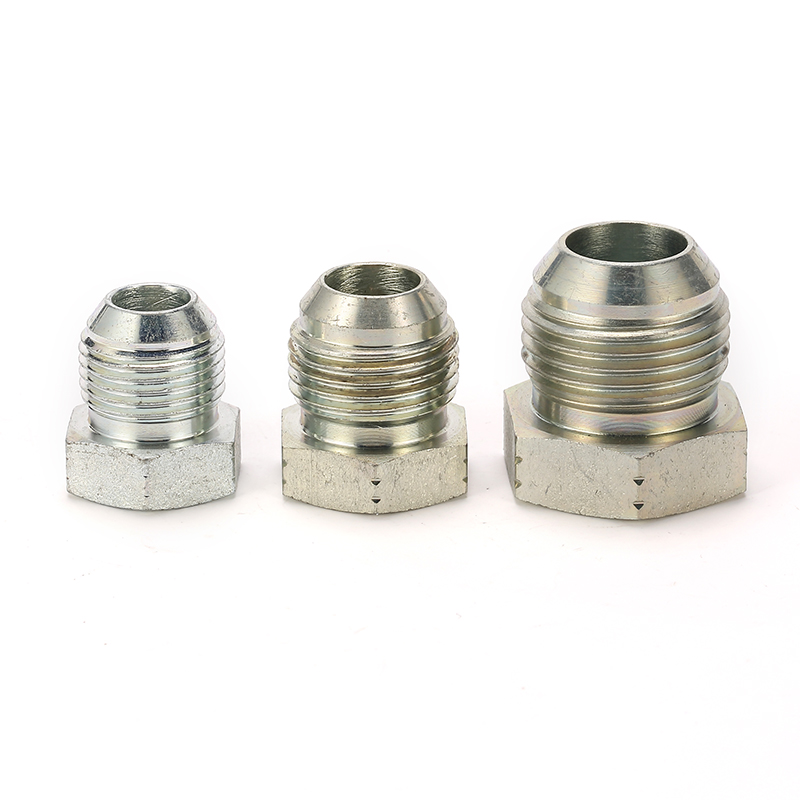

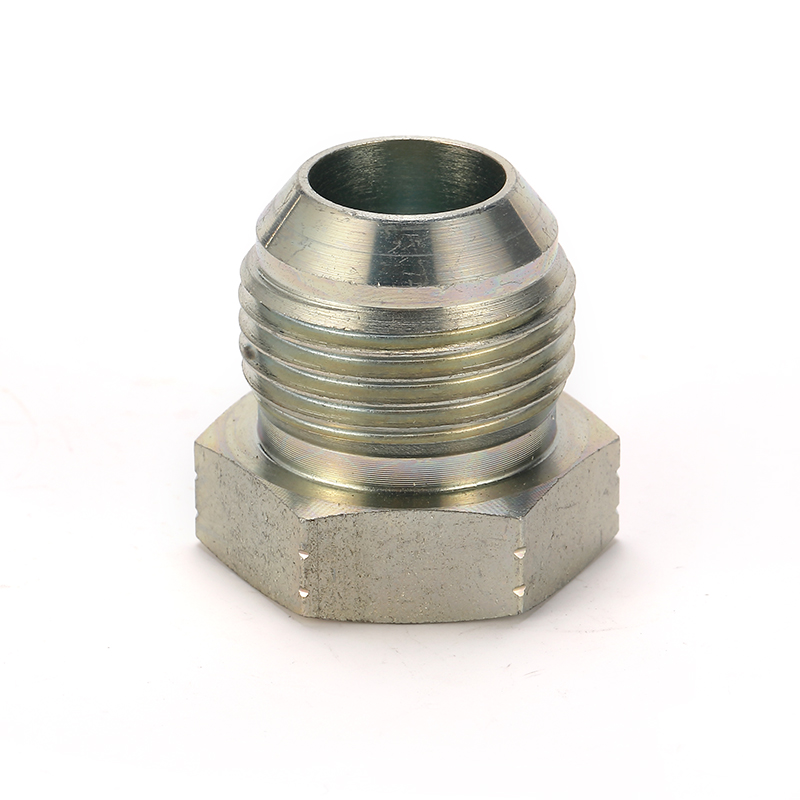

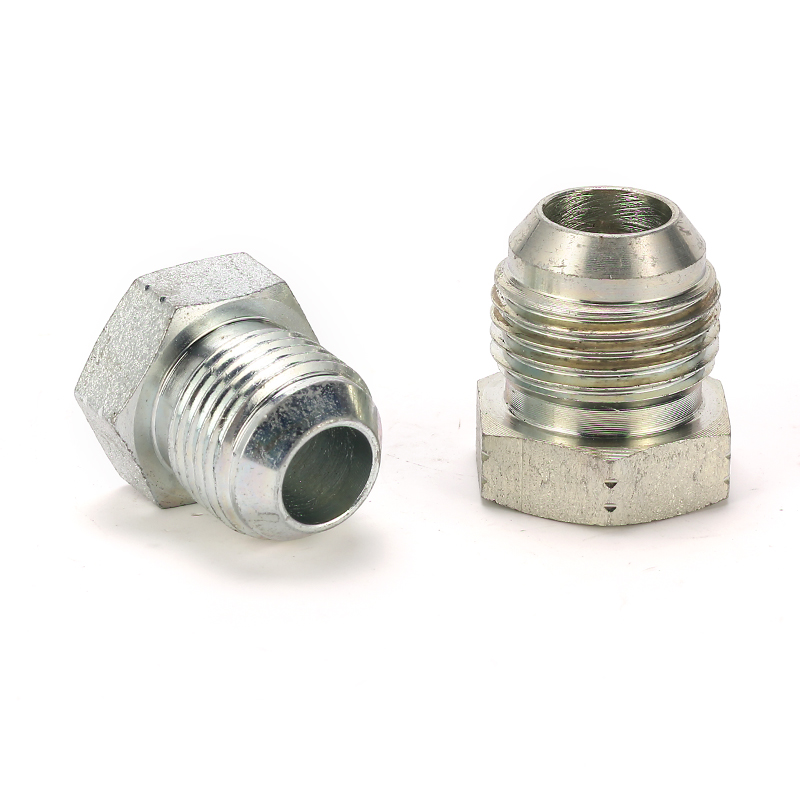

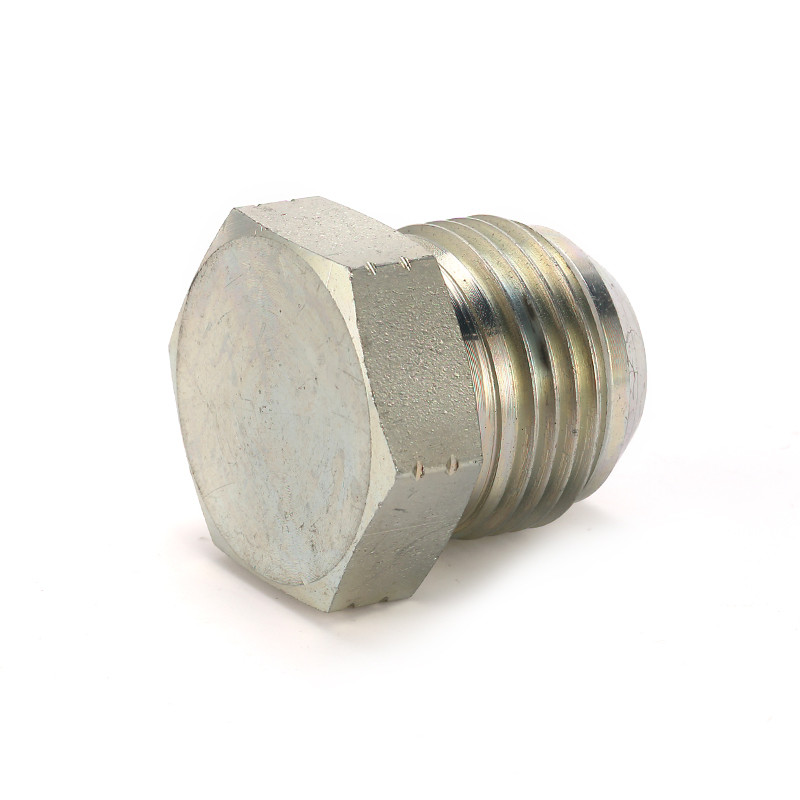

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

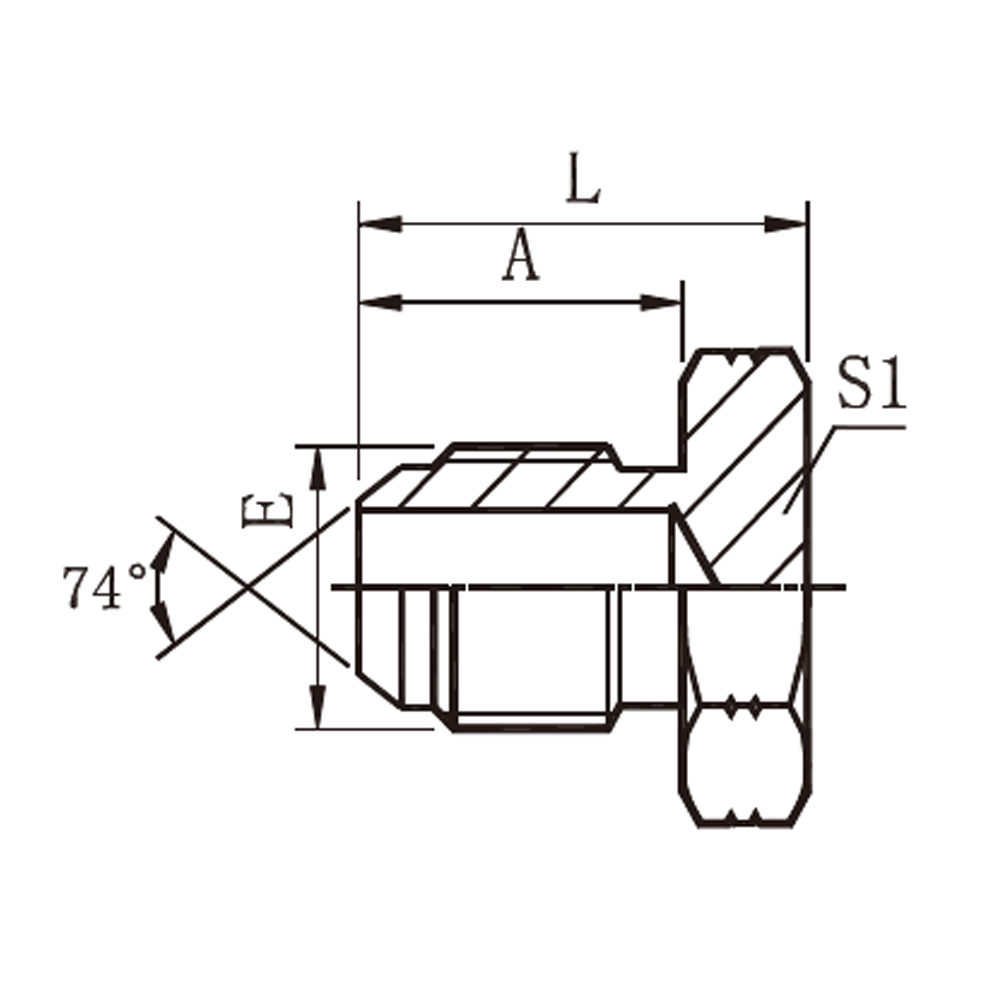

| PART NO. | THREAD | DIMENSIONS | ||
| E | A | L | S1 | |
| 4J-04 | 7/16″X20 | 14 | 20 | 12 |
| 4J-05 | 1/2″X20 | 14 | 20 | 14 |
| 4J-06 | 9/16″X18 | 14.1 | 20 | 17 |
| 4J-08 | 3/4″X16 | 16.7 | 25 | 22 |
| 4J-10 | 7/8″X14 | 19.3 | 27.5 | 24 |
| 4J-12 | 1.1/16″X12 | 21.9 | 32 | 30 |
| 4J-14 | 1.3/16″X12 | 22.6 | 33.5 | 32 |
| 4J-16 | 1.5/16″X12 | 23.1 | 34 | 36 |
| 4J-20 | 1.5/8″X12 | 24.3 | 38 | 46 |
| 4J-24 | 1.7/8″X12 | 27.5 | 44.5 | 50 |
| 4J-32 | 2.1/2″X12 | 33.9 | 51 | 65 |
