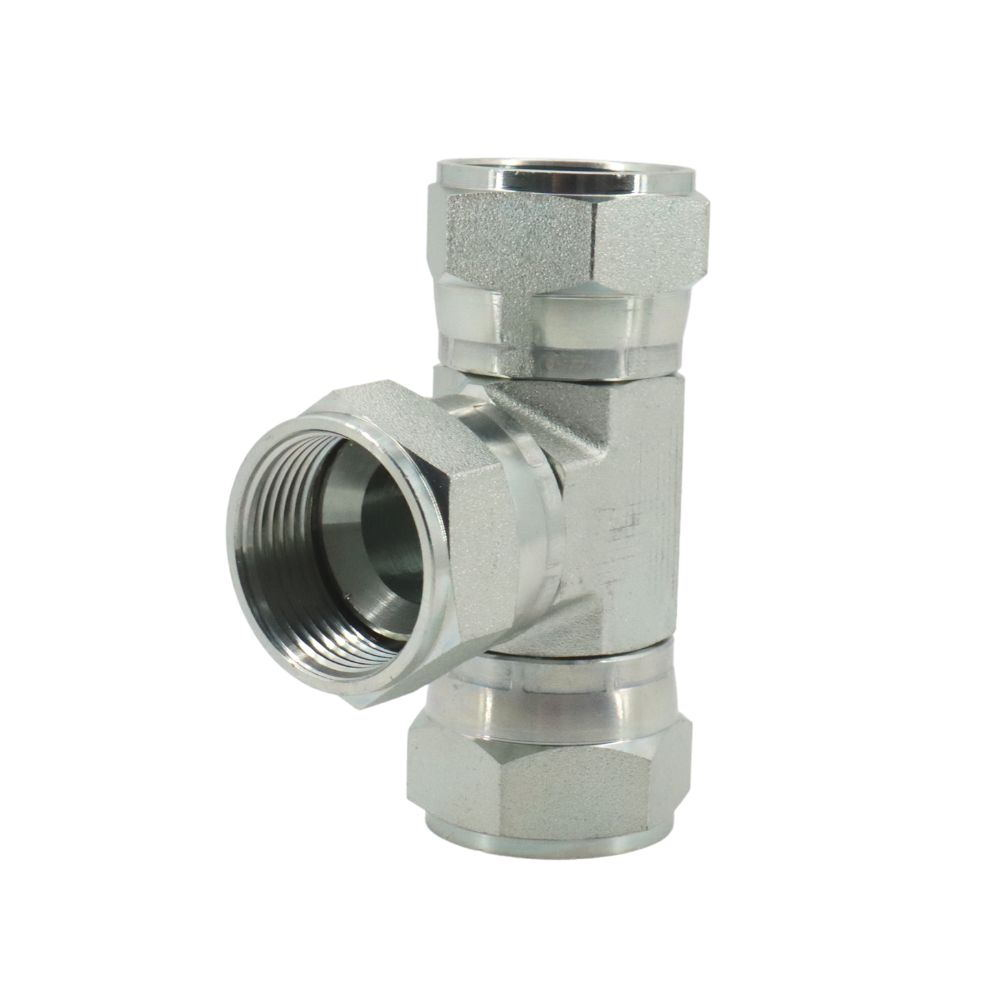

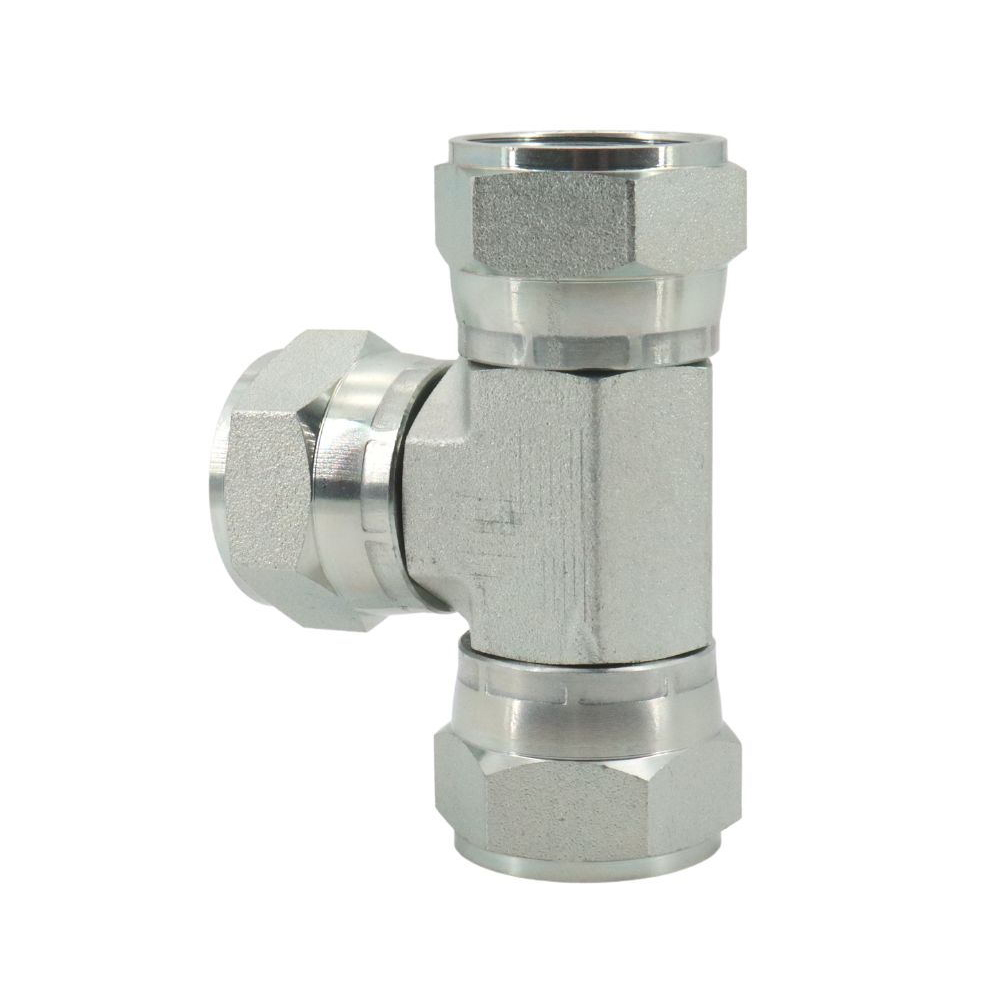

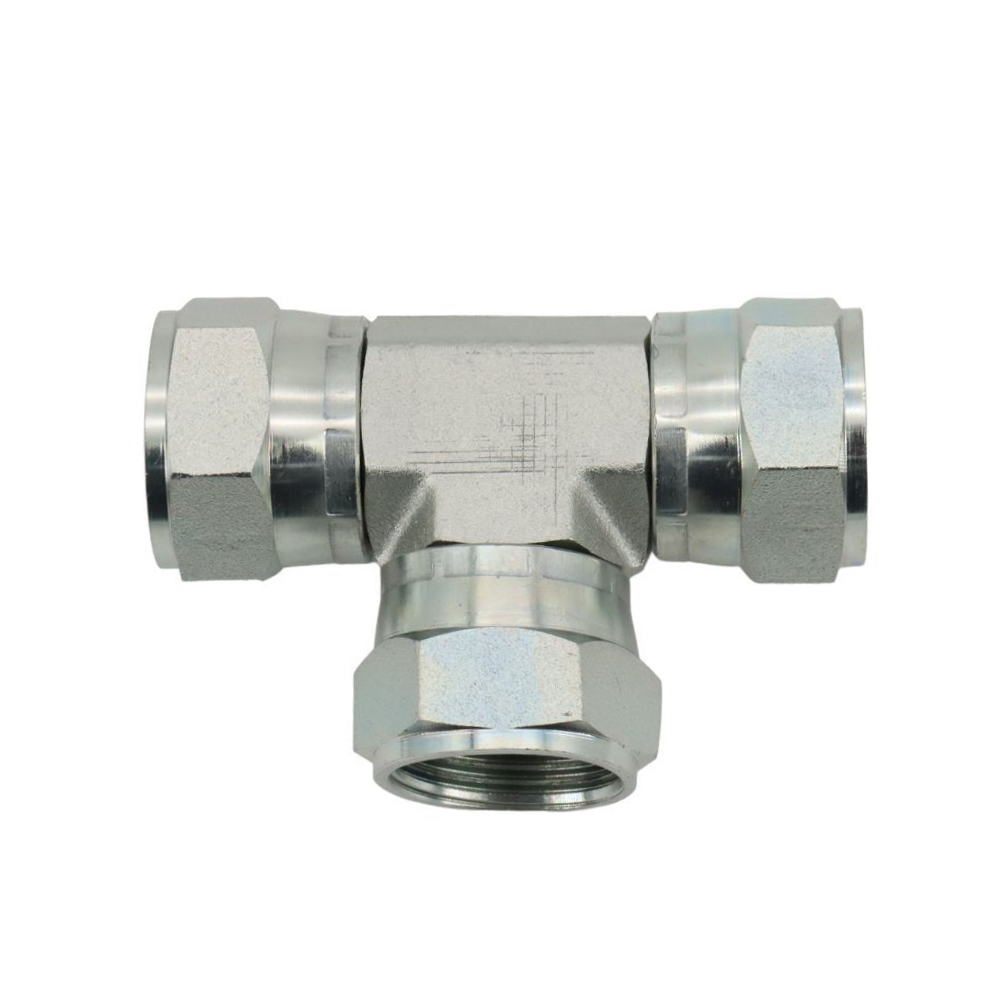

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

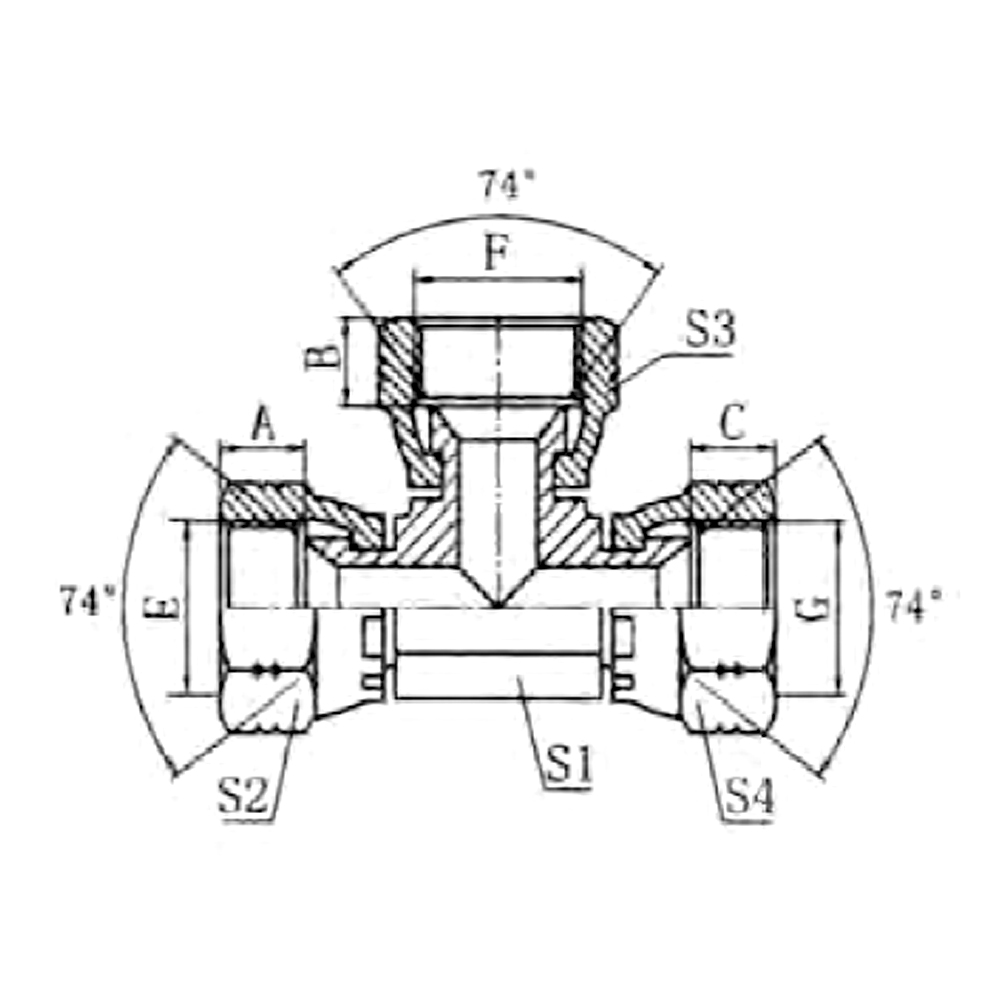

| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | G | A,B,C | S1 | S2,S3,S4 | |
| DJ-04 | 7/16″X20 | 7/16″X20 | 7/16″X20 | 9.5 | 11 | 17 |
| DJ-05 | 1/2″X20 | 1/2″X20 | 1/2″X20 | 9 | 14 | 19 |
| DJ-06 | 9/16″X18 | 9/16″X18 | 9/16″X18 | 9.5 | 14 | 19 |
| DJ-08 | 3/4″X16 | 3/4″X16 | 3/4″X16 | 10.8 | 16 | 24 |
| DJ-10 | 7/8″X14 | 7/8″X14 | 7/8″X14 | 12 | 22 | 27 |
| DJ-12 | 1.1/16″X12 | 1.1/16″X12 | 1.1/16″X12 | 13 | 24 | 32 |
| DJ-16 | 1.5/16″X12 | 1.5/16″X12 | 1.5/16″X12 | 14 | 33 | 41 |
