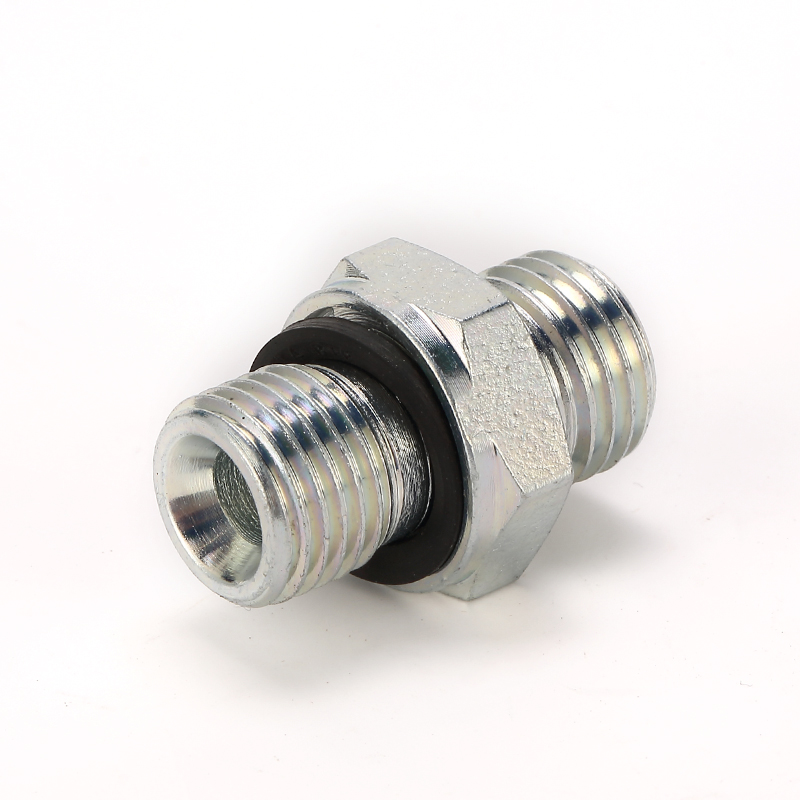

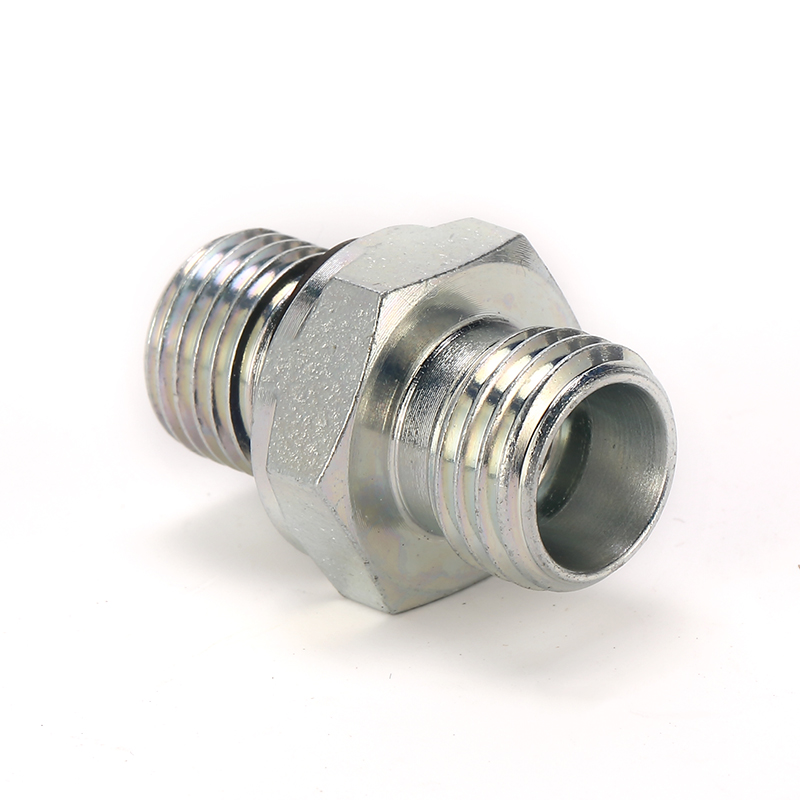

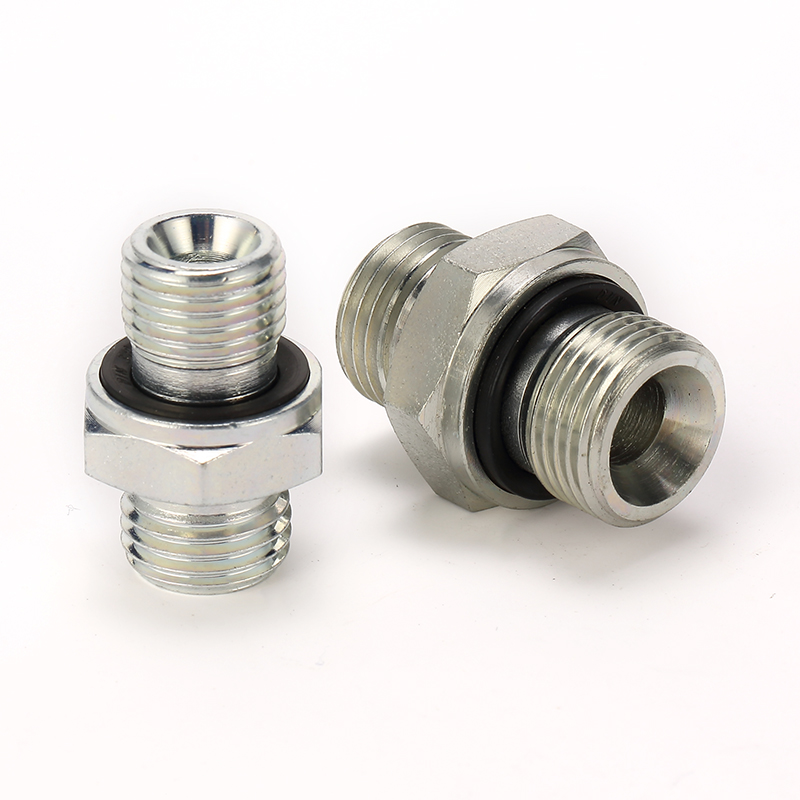

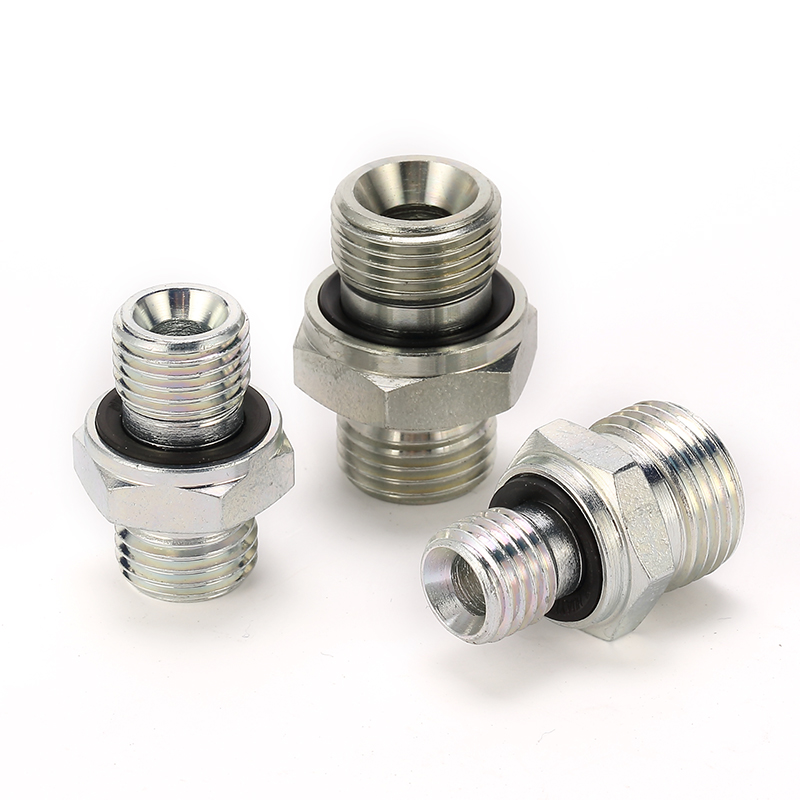

1CB/1DB-WD Metric BSPP Thread With Captive Seal

Description:

1CB/1DB-WD BSP compression hydraulic fitting is a fitting with captive O-ring seal.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	THREAD		TUBE O.D.	SEAL	DIMENSIONS					MPa

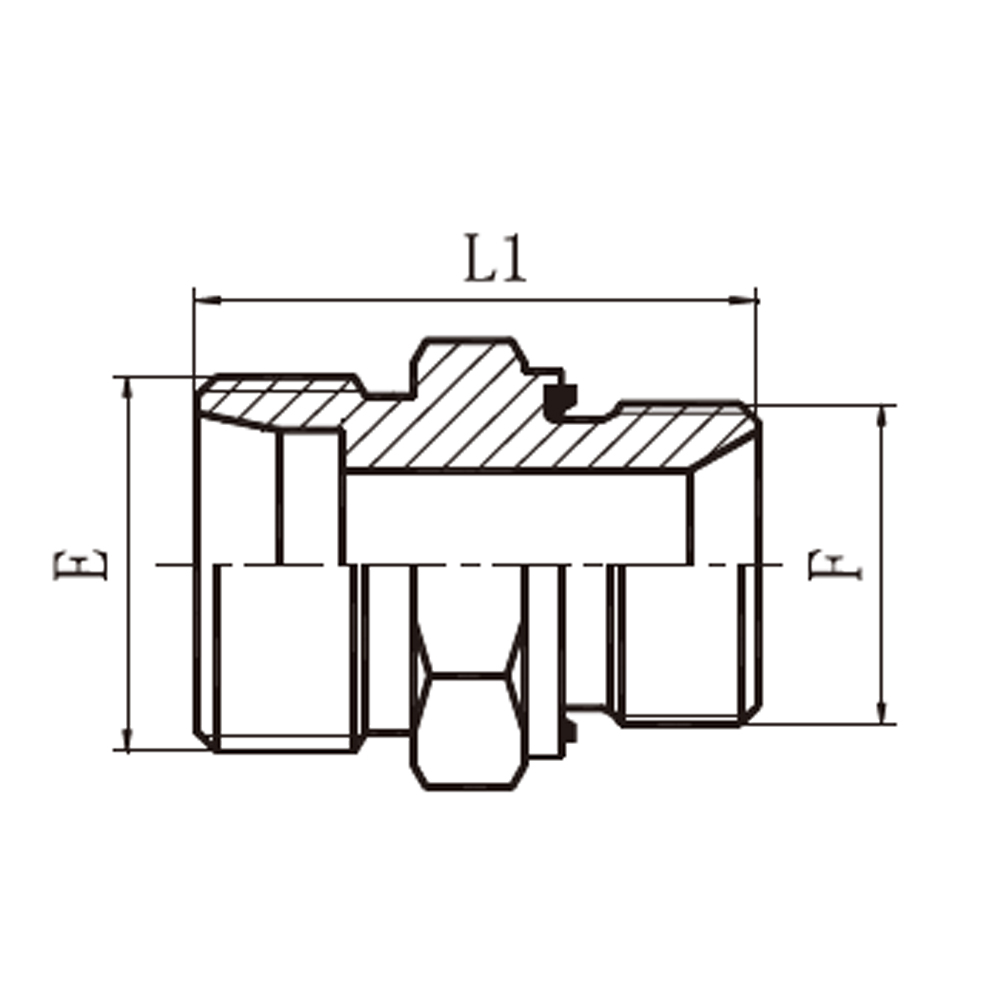

PART NO.	E	F	TUBE O.D.	SEAL	B	I1	L1	S1	S2	MPa
1CB-12-02WD	M12X1.5	G1/8″X28	6	WD-B02	8	9.5	24.5	14	14	31.5 L series
1CB-12-04WD	M12X1.5	G1/4″X19	6	WD-B04	12	10	29	19	14
1CB-12-06WD	M12X1.5	G3/8″X19	6	WD-B06	12	11.5	30.5	22	14
1CB-14-02WD	M14X1.5	G1/8″X28	8	WD-B02	8	9.5	24.5	14	17
1CB-14-04WD	M14X1.5	G1/4″X19	8	WD-B04	12	10	29	19	17
1CB-14-06WD	M14X1.5	G3/8″X19	8	WD-B06	12	11.5	30.5	22	17
1CB-16-04WD	M16X1.5	G1/4″X19	10	WD-B04	12	11	30	19	19
1CB-16-06WD	M16X1.5	G3/8″X19	10	WD-B06	12	12.5	31.5	22	19
1CB-16-08WD	M16X1.5	G1/2″X14	10	WD-B08	14	14	35	27	19
1CB-18-04WD	M18X1.5	G1/4″X19	12	WD-B04	12	11	30	19	22
1CB-18-06WD	M18X1.5	G3/8″X19	12	WD-B06	12	12.5	31.5	22	22
1CB-18-08WD	M18X1.5	G1/2″X14	12	WD-B08	14	14	35	27	22
1CB-22-04WD	M22X1.5	G1/4″X19	15	WD-B04	12	13	32	24	27
1CB-22-06WD	M22X1.5	G3/8″X19	15	WD-B06	12	13.5	32.5	24	27
1CB-22-08WD	M22X1.5	G1/2″X14	15	WD-B08	14	15	36	27	27
1CB-22-12WD	M22X1.5	G3/4″X14	15	WD-B12	16	15	38	32	27
1CB-26-08WD	M26X1.5	G1/2″X14	18	WD-B08	14	14.5	36	27	32
1CB-26-12WD	M26X1.5	G3/4″X14	18	WD-B12	16	14.5	38	32	32
1CB-30-12WD	M30X2	G3/4″X14	22	WD-B12	16	16.5	40	32	36	16 L series
1CB-36-16WD	M36X2	G1″X11	28	WD-B16	18	17.5	43	41	41
1CB-45-20WD	M45X2	G1.1/4″X11	35	WD-B20	20	17.5	48	50	50
1CB-52-24WD	M52X2	G1.1/2″X11	42	WD-B24	22	19	52	55	60
1DB-14-04WD	M14X1.5	G1/4″X19	6	WD-B04	12	15	34	19	17	63 S series
1DB-16-04WD	M16X1.5	G1/4″X19	8	WD-B04	12	15	34	19	19
1DB-16-06WD	M16X1.5	G3/8″X19	8	WD-B06	12	15.5	34.5	22	19
1DB-18-04WD	M18X1.5	G1/4″X19	10	WD-B04	12	14.5	34	19	22
1DB-18-06WD	M18X1.5	G3/8″X19	10	WD-B06	12	15	34.5	22	22
1DB-18-08WD	M18X1.5	G1/2″X14	10	WD-B08	14	17.5	39	27	22
1DB-20-04WD	M20X1.5	G1/4″X19	12	WD-B04	12	14.5	34	22	24
1DB-20-06WD	M20X1.5	G3/8″X19	12	WD-B06	12	15	34.5	22	24
1DB-20-08WD	M20X1.5	G1/2″X14	12	WD-B08	14	17.8	39.3	27	24
1DB-22-08WD	M22X1.5	G1/2″X14	14	WD-B08	14	19.3	41.3	27	27
1DB-24-06WD	M24X1.5	G3/8″X19	16	WD-B06	12	18.5	39	27	30	40 S series
IDB-24-08WD	M24X1.5	G1/2″X14	16	WD-B08	14	18.8	41.3	27	30
1DB-24-12WD	M24X1.5	G3/4″X14	16	WD-B12	16	20.5	45	32	30
1DB-30-12WD	M30X2	G3/4″X14	20	WD-B12	16	20.5	47	32	36
1DB-36-08WD	M36X2	G1/2″X14	25	WD-B08	14	23	49	38	46
1DB-36-12WD	M36X2	G3/4″X14	25	WD-B12	16	23	51	38	46
1DB-36-16WD	M36X2	G1″X11	25	WD-B16	18	23	53	41	46
1DB-42-20WD	M42X2	G1.1/4″X11	30	WD-B20	20	23.5	57	50	50
1DB-52-24WD	M52X2	G1.1/2″X11	38	WD-B24	22	26	64	55	60	31.5 S series
