Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

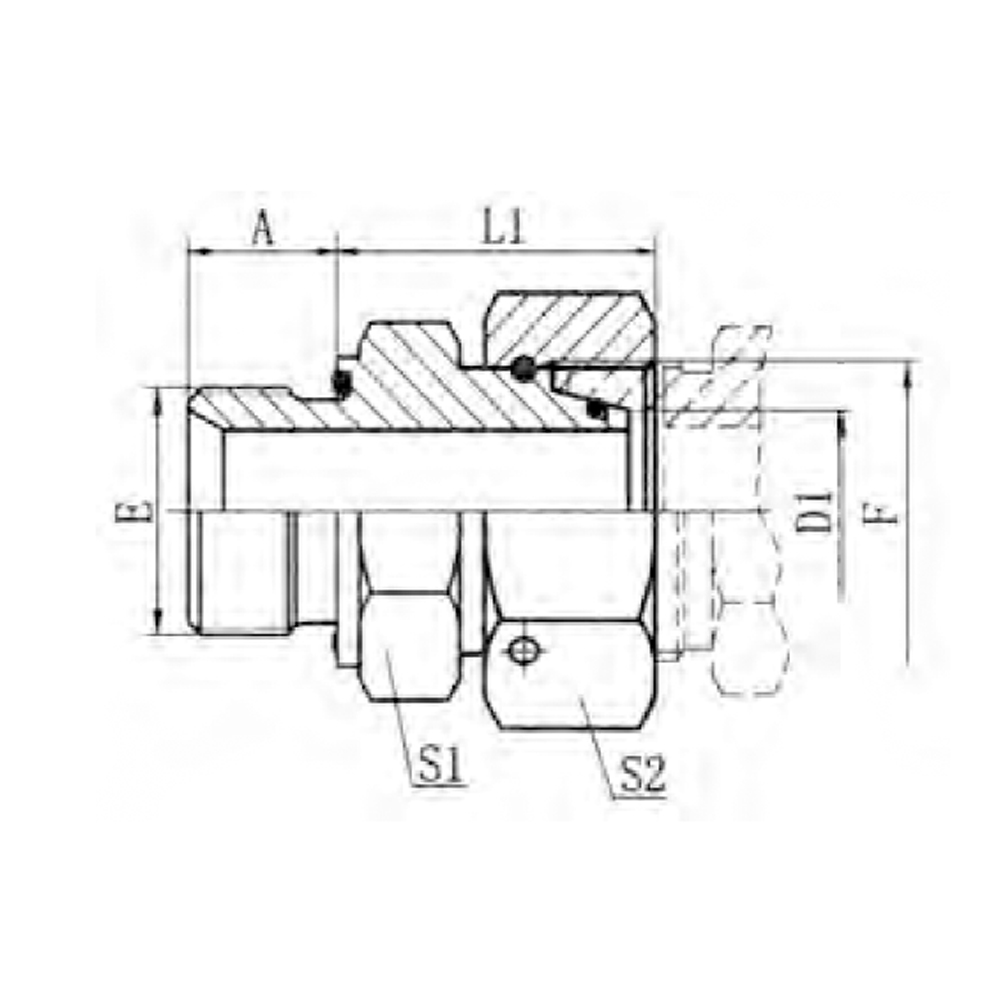

| PART NO. | THREAD | TUBE O.D. | SEAL | DIMENSIONS | MPa | ||||
| E | F | A | L1 | S1 | S2 | ||||
| 2BC-02-12WD | G1/8″X28 | M12X1.5 | 6 | WD-B02 | 8 | 22 | 14 | 14 | 31.5 L Series |
| 2BC-04-14WD | G1/4″X19 | M14X1.5 | 8 | WD-B04 | 12 | 23.6 | 19 | 17 | |
| 2BC-04-16WD | G1/4″X19 | M16X1.5 | 10 | WD-B04 | 12 | 24.7 | 19 | 19 | |
| 2BC-06-18WD | G3/8″X19 | M18X1.5 | 12 | WD-B06 | 12 | 29.1 | 22 | 22 | |
| 2BC-08-22WD | G1/2″X14 | M22X1.5 | 15 | WD-B08 | 14 | 30.4 | 27 | 27 | |
| 2BC-08-26WD | G1/2″X14 | M26X1.5 | 18 | WD-B08 | 14 | 34 | 27 | 32 | |
| 2BC-12-30WD | G3/4″X14 | M30X2 | 22 | WD-B12 | 16 | 34 | 32 | 36 | 16 L Series |
| 2BC-16-36WD | G1″X11 | M36X2 | 28 | WD-B16 | 18 | 36.8 | 41 | 41 | |
| 2BC-20-45WD | G1.1/4″X11 | M45X2 | 35 | WD-B20 | 20 | 44.6 | 50 | 50 | |
| 2BC-24-52WD | G1.1/2″X11 | M52X2 | 42 | WD-B24 | 22 | 46.5 | 55 | 60 | |
| 2BD-04-14WD | G1/4″X19 | M14X1.5 | 6 | WD-B04 | 12 | 26.1 | 19 | 17 | 63 S Series |
| 2BD-04-16WD | G1/4″X19 | M16X1.5 | 8 | WD-B04 | 12 | 26.7 | 19 | 19 | |
| 2BD-06-18WD | G3/8″X19 | M18X1.5 | 10 | WD-B06 | 12 | 28.8 | 22 | 22 | |
| 2BD-06-20WD | G3/8″X19 | M20X1.5 | 12 | WD-B06 | 12 | 30.5 | 22 | 24 | |
| 2BD-08-22WD | G1/2″X14 | M22X1.5 | 14 | WD-B08 | 14 | 32.9 | 27 | 27 | |
| 2BD-08-24WD | G1/2″X14 | M24X1.5 | 16 | WD-B08 | 14 | 35.1 | 27 | 30 | 40 S Series |
| 2BD-12-30WD | G3/4″X14 | M30X2 | 20 | WD-B12 | 16 | 35.5 | 32 | 36 | |
| 2BD-16-36WD | G1″X11 | M36X2 | 25 | WD-B16 | 18 | 42.4 | 41 | 46 | |
| 2BD-20-42WD | G1.1/4″X11 | M42X2 | 30 | WD-B20 | 20 | 47.5 | 50 | 50 | |
| 2BD-24-52WD | G1.1/2″X11 | M52X2 | 38 | WD-B24 | 22 | 49.45 | 55 | 60 | 31.5 S Seriers |
