Home Hydraulic Hose Adapters DIN Hose Adapters 6C/6D Metric 24-Degree Cone Bulkhead Adapter
9C/9D Female 24° Cone Metric Hydraulic Plug
Back to products
6C9 90-Degree Elbow Metric Bulkhead Fitting
Click to enlarge

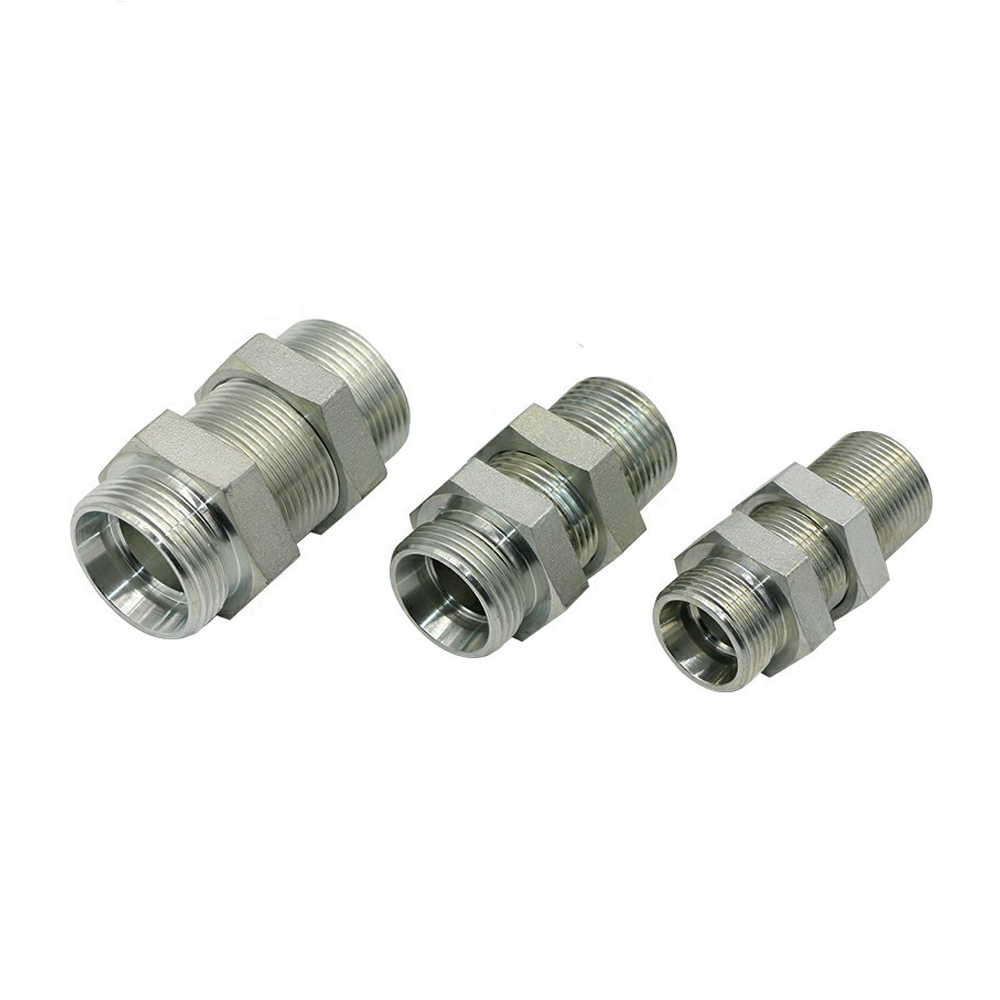

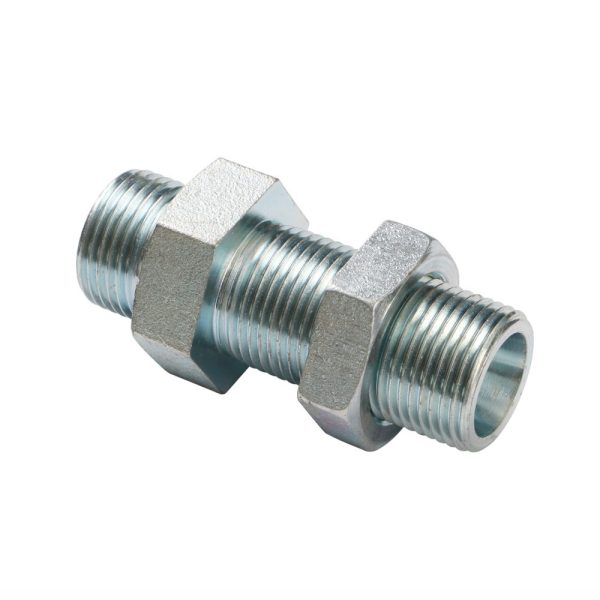

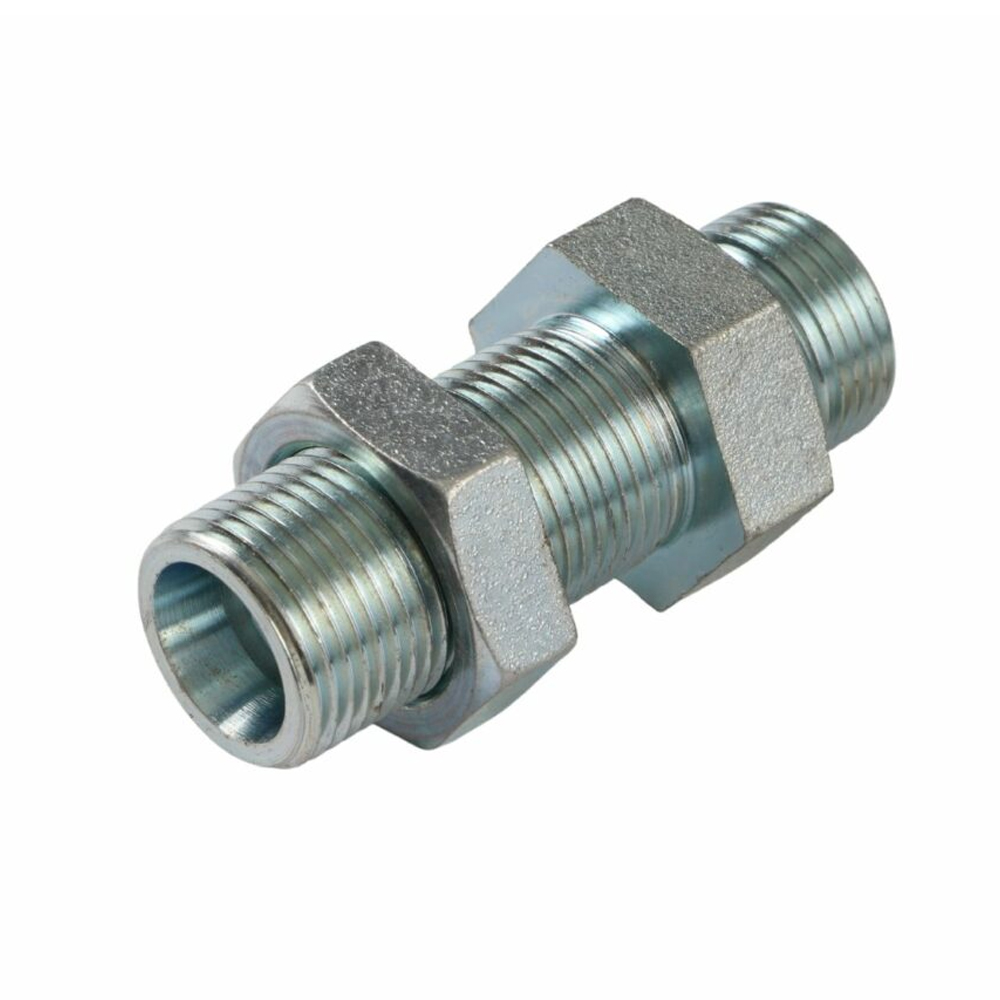

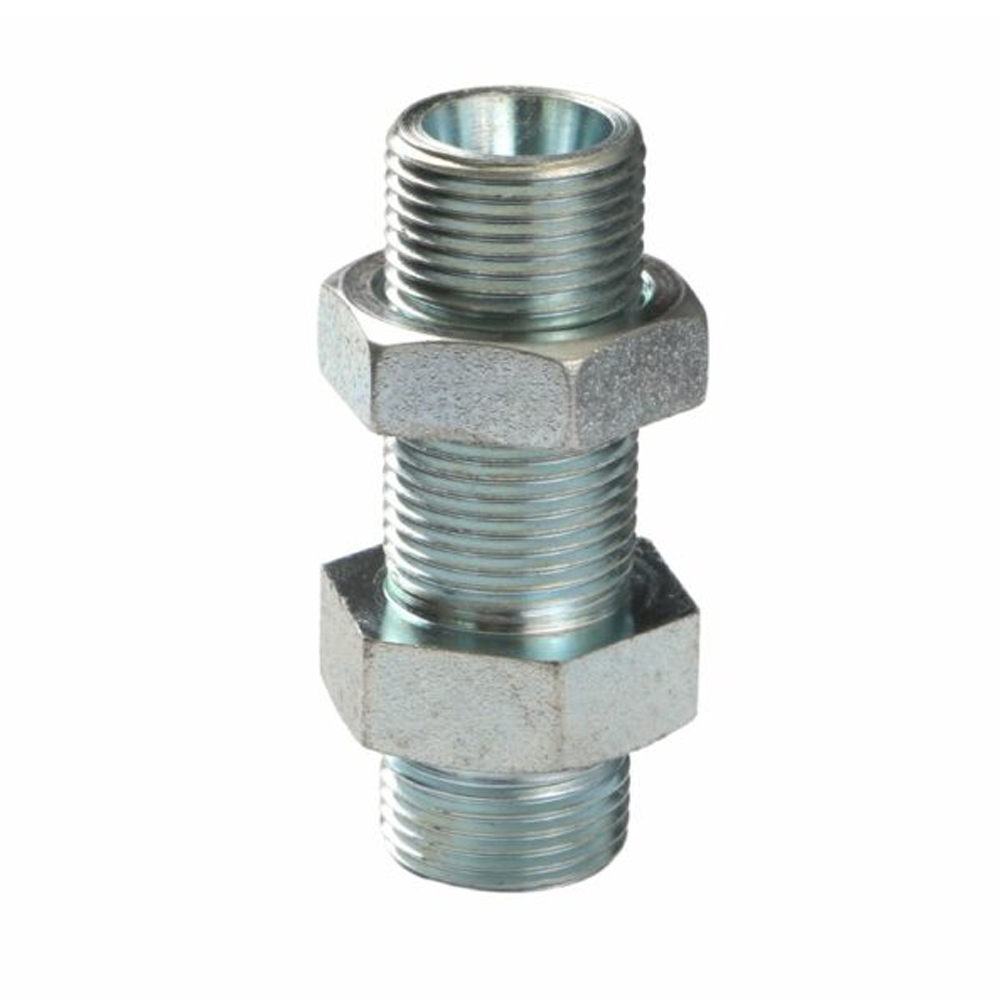

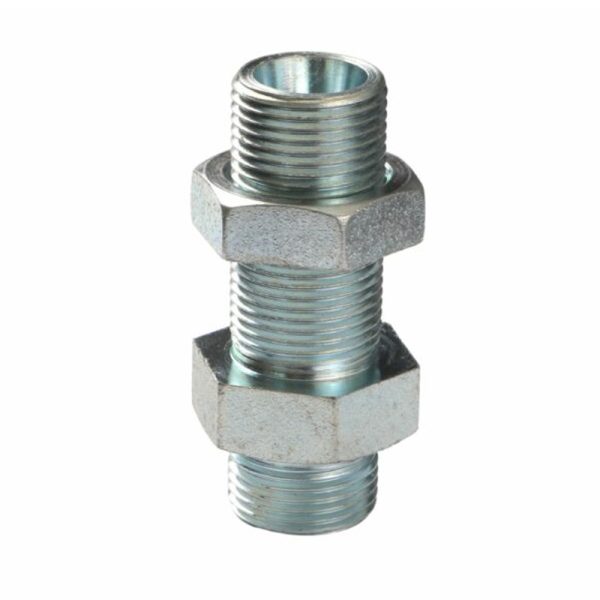

6C/6D Metric 24-Degree Cone Bulkhead Adapter

Description:

6C metric 24-degree cone bulkhead adapter is a straight hydraulic adapter that connects pipes or hoses through a bulkhead or panel.

INQUIRE NOW

"*" indicates required fields

Category: DIN Hose Adapters Tags: Carbon Steel, Metric, Plug, 6C 6D
Share:
  • Description
  • Package& Shipping
Description

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

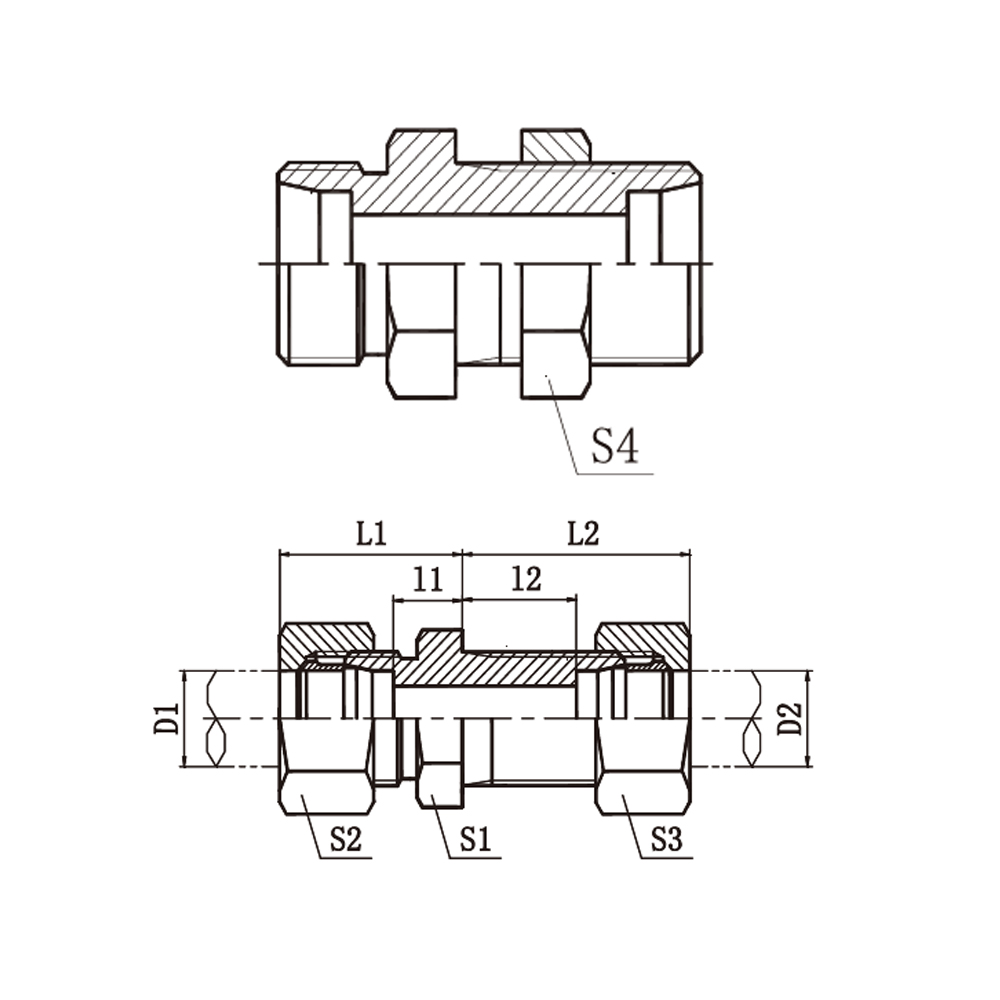

PART NO. THREAD TUBE O.D. DIMENSIONS MPa
E F D1 D2 I1 I2 L1 L2 S1 S2,S3 S4
6C-12 M12X1.5 M12X1.5 6 6 7 27 14 34 17 14 17 31.5
L series
6C-14 M14X1.5 M14X1.5 8 8 8 27 15 34 19 17 19
6C-16 M16X1.5 M16X1.5 10 10 10 28 17 35 22 19 22
6C-18 M18X1.5 M18X1.5 12 12 10 29 17 36 24 22 24
6C-22 M22X1.5 M22X1.5 15 15 12 31 19 38 27 27 27
6C-26 M26X1.5 M26X1.5 18 18 13.5 32.5 21 40 32 32 32
6C-30 M30X2 M30X2 22 22 16.5 34.5 24 42 36 36 36 16
L series
6C-36 M36X2 M36X2 28 28 18.5 35.5 26 43 41 41 41
6C-45 M45X2 M45X2 35 35 18.5 36.5 29 47 50 50 55
6C-52 M52X2 M52X2 42 42 19 36 30 47 60 60 60
6D-14 M14X1.5 M14X1.5 6 6 12 29 19 36 19 17 19 63
S series
6D-16 M16X1.5 M16X1.5 8 8 13 29 20 36 22 19 22
6D-18 M18X1.5 M18X1.5 10 10 14.5 29.5 22 37 24 22 24
6D-20 M20X1.5 M20X1.5 12 12 14.5 30.5 22 38 27 24 27
6D-22 M22X1.5 M22X1.5 14 14 17 32 25 40 30 27 27
6D-24 M24X1.5 M24X1.5 16 16 16.5 31.5 25 40 32 30 30 40
S series
6D-30 M30X2 M30X2 20 20 17.5 33.5 28 44 41 36 36
6D-36 M36X2 M36X2 25 25 20 35 32 47 46 46 41
6D-42 M42X2 M42X2 30 30 21.5 37.5 35 51 50 50 50
6D-52 M52X2 M52X2 38 38 22 37 38 53 65 60 60 31.5
S series
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

Related products

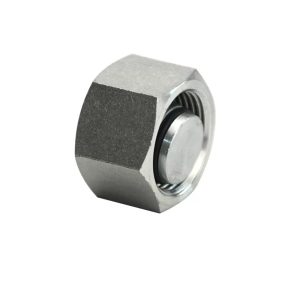

9C/9D Female 24° Cone Metric Hydraulic Plug

DIN Hose Adapters

1C9 90° Elbow Metric DIN Union Fittings

DIN Hose Adapters

1ET Metric To BSPT O-ring Seal Adapters

DIN Hose Adapters

1EL Metric O-ring Male Pipe Adapter

DIN Hose Adapters

6E Metric Male O-Ring Bulkhead Adapters

DIN Hose Adapters

CE Metric Male O-Ring Female Run Tee

DIN Hose Adapters

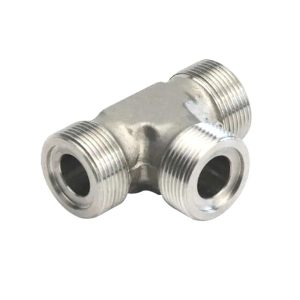

AE Metric Tee O-ring 3 Way Adapter
