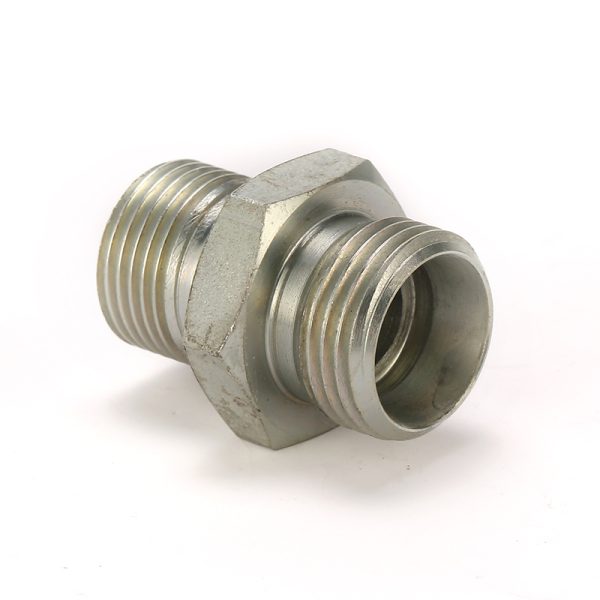

1CB/1DB Metric BSP Thread 60° Cone Adapter

Description:

1CB/1DB metric to BSP adapter is a male adapter that has a male 60-degree cone metric thread, and a 60-degree cone BSP thread with bond seal stud ends.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	B	I1	L1	S1	S2	MPa
1CB-12-02	M12X1.5	G1/8″X28	6	10	9	26	14	14	31.5 L series
1CB-12-04	M12X1.5	G1/4″X19	6	12	9	28	19	14
1CB-14-02	M14X1.5	G1/8″X28	8	10	8	25	14	17
1CB-14-04	M14X1.5	G1/4″X19	8	12	9	28	19	17
1CB-14-06	M14X1.5	G3/8″X19	8	13.5	9	29.5	22	17
1CB-16-04	M16X1.5	G1/4″X19	10	12	10	29	19	19
1CB-16-06	M16X1.5	G3/8″X19	10	13.5	12	32.5	22	19
1CB-16-08	M16X1.5	G1/2″X14	10	16	11	34	27	19
1CB-18-04	M18X1.5	G1/4″X19	12	12	10	29	19	22
1CB-18-06	M18X1.5	G3/8″X19	12	13.5	10	30.5	22	22
1CB-18-08	M18X1.5	G1/2″X14	12	16	11	34	27	22
1CB-22-06	M22X1.5	G3/8″X19	15	13.5	13	33.5	24	27
1CB-22-08	M22X1.5	G1/2″X14	15	16	12	35	27	27
1CB-26-08	M26X1.5	G1/2″X14	18	16	11.5	35	27	32
1CB-26-12	M26X1.5	G3/4″X14	18	18.5	11.5	37.5	32	32
1CB-30-12	M30X2	G3/4″X14	22	18.5	13.5	39.5	32	36	16 L series
1CB-36-16	M36X2	G1″X11	28	20.5	14.5	42.5	41	41
1CB-45-20	M45X2	G1.1/4″X11	35	20.5	16.5	47.5	50	50
1CB-52-24	M52X2	G1.1/2″X11	42	23	16	50	55	60
1DB-14-04	M14X1.5	G1/4″X19	6	12	11	30	19	17	63 S series
1DB-16-04	M16X1.5	G1/4″X19	8	12	11	30	19	19
1DB-16-06	M16X1.5	G3/8″X19	8	13.5	15	35.5	22	19
1DB-18-04	M18X1.5	G1/4″X19	10	12	12.5	32	19	22
1DB-18-06	M18X1.5	G3/8″X19	10	13.5	14.5	35.5	22	22
1DB-18-08	M18X1.5	G1/2″X19	10	16	14.5	38	27	22
1DB-20-04	M20X1.5	G1/4″X19	12	12	14.5	34	22	24
1DB-20-06	M20X1.5	G3/8″X19	12	13.5	14.5	35.5	22	24
1DB-20-08	M20X1.5	G1/2″X14	12	16	14.5	38	27	24
1DB-22-08	M22X1.5	G1/2″X14	14	16	16	40	27	27
1DB-24-06	M24X1.5	G3/8″X19	16	13.5	15.5	37.5	27	30	40 S series
1DB-24-08	M24X1.5	G1/2″X14	16	16	15.5	40	27	30
1DB-24-12	M24X1.5	G3/4″X14	16	18.5	17.5	44.5	32	30
1DB-30-12	M30X2	G3/4″X14	20	18.5	17.5	46.5	32	36
1DB-36-08	M36X2	G1/2″X14	25	16	20	48	41	46
1DB-36-12	M36X2	G3/4″X14	25	18.5	20	50.5	41	46
1DB-36-16	M36X2	G1″X11	25	20.5	20	52.5	41	46
1DB-42-20	M42X2	G1.1/4″X11	30	20.5	21.5	55.5	50	50
1DB-52-24	M52X2	G1.1/2″X11	38	23	23	62	55	60	31.5 S series

Click to enlarge

Category: DIN Hose Adapters Tags: Carbon Steel, Metric, 1CB, 1DB

Description
Package& Shipping

Description

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	B	I1	L1	S1	S2	MPa
1CB-12-02	M12X1.5	G1/8″X28	6	10	9	26	14	14	31.5 L series
1CB-12-04	M12X1.5	G1/4″X19	6	12	9	28	19	14
1CB-14-02	M14X1.5	G1/8″X28	8	10	8	25	14	17
1CB-14-04	M14X1.5	G1/4″X19	8	12	9	28	19	17
1CB-14-06	M14X1.5	G3/8″X19	8	13.5	9	29.5	22	17
1CB-16-04	M16X1.5	G1/4″X19	10	12	10	29	19	19
1CB-16-06	M16X1.5	G3/8″X19	10	13.5	12	32.5	22	19
1CB-16-08	M16X1.5	G1/2″X14	10	16	11	34	27	19
1CB-18-04	M18X1.5	G1/4″X19	12	12	10	29	19	22
1CB-18-06	M18X1.5	G3/8″X19	12	13.5	10	30.5	22	22
1CB-18-08	M18X1.5	G1/2″X14	12	16	11	34	27	22
1CB-22-06	M22X1.5	G3/8″X19	15	13.5	13	33.5	24	27
1CB-22-08	M22X1.5	G1/2″X14	15	16	12	35	27	27
1CB-26-08	M26X1.5	G1/2″X14	18	16	11.5	35	27	32
1CB-26-12	M26X1.5	G3/4″X14	18	18.5	11.5	37.5	32	32
1CB-30-12	M30X2	G3/4″X14	22	18.5	13.5	39.5	32	36	16 L series
1CB-36-16	M36X2	G1″X11	28	20.5	14.5	42.5	41	41
1CB-45-20	M45X2	G1.1/4″X11	35	20.5	16.5	47.5	50	50
1CB-52-24	M52X2	G1.1/2″X11	42	23	16	50	55	60
1DB-14-04	M14X1.5	G1/4″X19	6	12	11	30	19	17	63 S series
1DB-16-04	M16X1.5	G1/4″X19	8	12	11	30	19	19
1DB-16-06	M16X1.5	G3/8″X19	8	13.5	15	35.5	22	19
1DB-18-04	M18X1.5	G1/4″X19	10	12	12.5	32	19	22
1DB-18-06	M18X1.5	G3/8″X19	10	13.5	14.5	35.5	22	22
1DB-18-08	M18X1.5	G1/2″X19	10	16	14.5	38	27	22
1DB-20-04	M20X1.5	G1/4″X19	12	12	14.5	34	22	24
1DB-20-06	M20X1.5	G3/8″X19	12	13.5	14.5	35.5	22	24
1DB-20-08	M20X1.5	G1/2″X14	12	16	14.5	38	27	24
1DB-22-08	M22X1.5	G1/2″X14	14	16	16	40	27	27
1DB-24-06	M24X1.5	G3/8″X19	16	13.5	15.5	37.5	27	30	40 S series
1DB-24-08	M24X1.5	G1/2″X14	16	16	15.5	40	27	30
1DB-24-12	M24X1.5	G3/4″X14	16	18.5	17.5	44.5	32	30
1DB-30-12	M30X2	G3/4″X14	20	18.5	17.5	46.5	32	36
1DB-36-08	M36X2	G1/2″X14	25	16	20	48	41	46
1DB-36-12	M36X2	G3/4″X14	25	18.5	20	50.5	41	46
1DB-36-16	M36X2	G1″X11	25	20.5	20	52.5	41	46
1DB-42-20	M42X2	G1.1/4″X11	30	20.5	21.5	55.5	50	50
1DB-52-24	M52X2	G1.1/2″X11	38	23	23	62	55	60	31.5 S series

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
