15611 NPT Male Hose Pipe Fittings

Description:

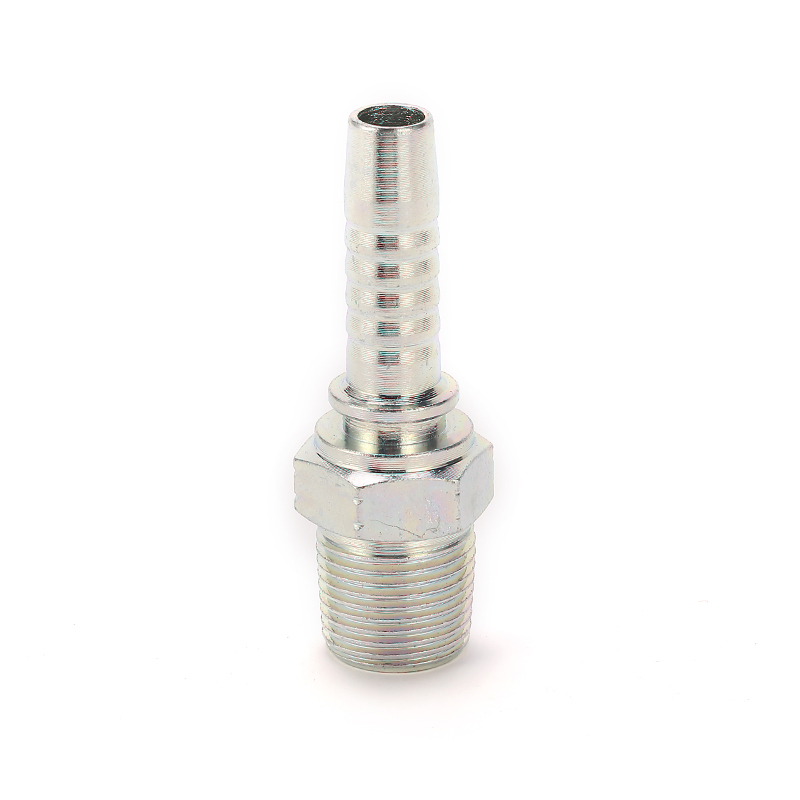

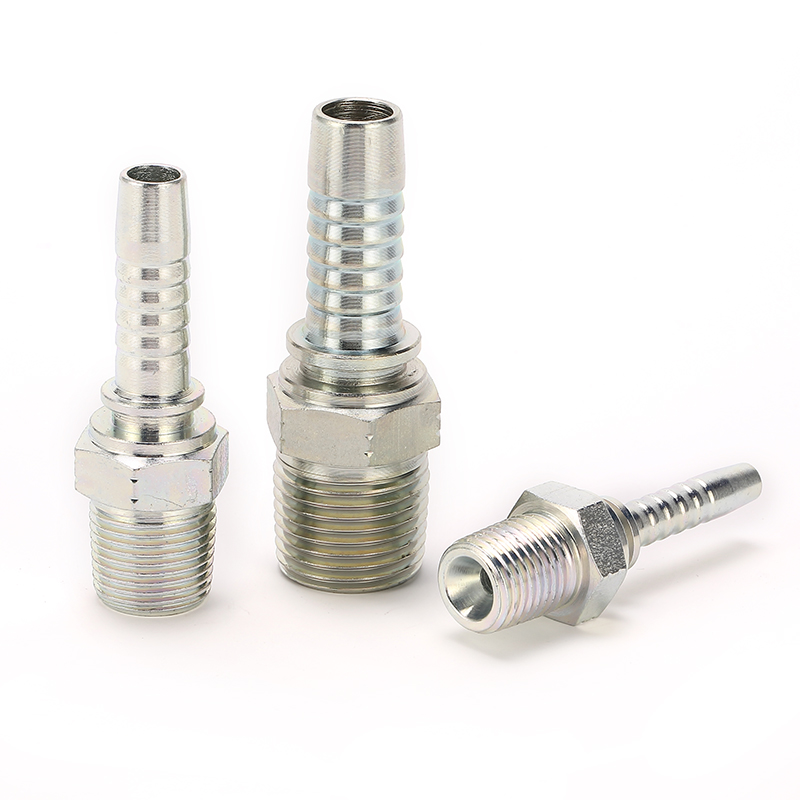

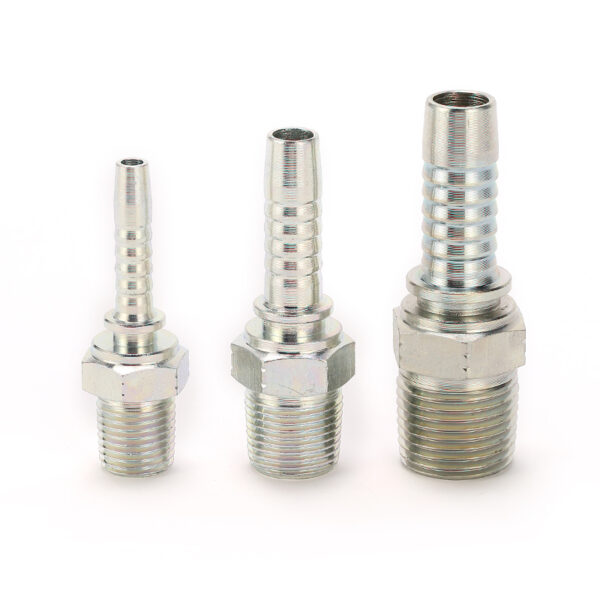

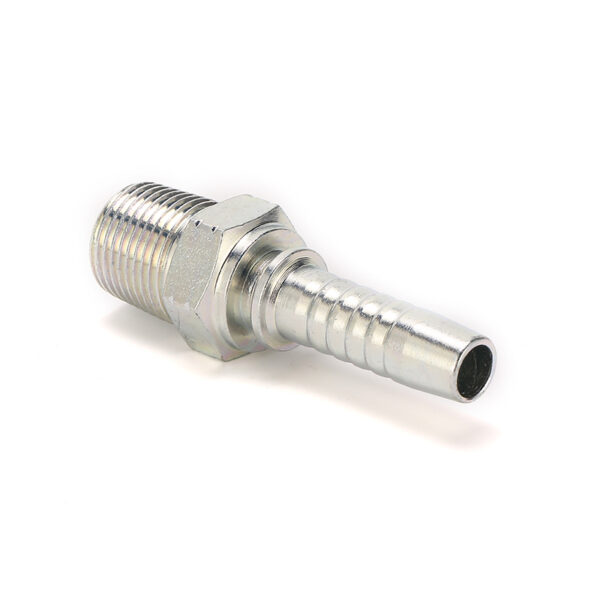

The 15611 hydraulic NPT fitting features a straight design with a male NPT thread on one end and a hose barb on the other. The male thread allows for connection to a female NPT thread, while the hose barb end ensures a secure attachment to a hydraulic hose.

"*" indicates required fields

Topol Power can supply all types and sizes of NPT hydraulic fittings. All of those fittings are available in many types of materials and can be designed for high-performance and durability.

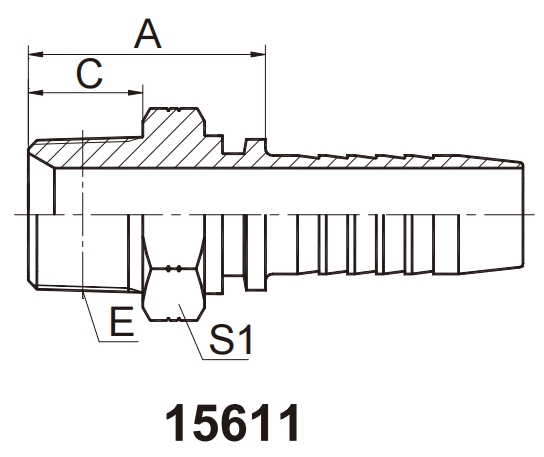

PART NO.	THREAD E	HOSEBORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1
15611-02-03	Z1/8″X27	5	03	21.5	10.5	12
15611-02-04	Z1/8″X27	6	04	22.5	10.5	12
15611-04-03	Z1/4″X18	5	03	27	15	17
15611-04-04	Z1/4″X18	6	04	28	15	17
15611-04-05	Z1/4″X18	8	05	28	15	17
15611-04-06	Z1/4″X18	10	06	28	15	17
15611-06-04	Z3/8″X18	6	04	28	16	19
15611-06-05	Z3/8″X18	8	05	29	16	19
15611-06-06	Z3/8″X18	10	06	29	16	19
15611-06-08	Z3/8″X18	12	08	30.5	16	19
15611-08-06	Z1/2″X14	10	06	34	19.5	22
15611-08-08	Z1/2″X14	12	08	34.5	19.5	22
15611-08-10	Z1/2″X14	16	10	35.5	19.5	22
15611-12-08	Z3/4″X14	12	08	37.5	19.5	27
15611-12-10	Z3/4″X14	16	10	37.5	19.5	27
15611-12-12	Z3/4″X14	20	12	38.5	19.5	27
15611-12-16	Z3/4″X14	25	16	39.5	19.5	32
15611-16-10	Z1″X11.5	16	10	45	25.5	36
15611-16-12	Z1″X11.5	20	12	45	25.5	36
15611-16-16	Z1″X11.5	25	16	46.5	25.5	36
15611-20-16	Z1.1/4″X11.5	25	16	49	26.5	46
15611-20-20	Z1.1/4″X11.5	32	20	50.5	26.5	46
15611-24-24	Z1.1/2″X11.5	40	24	51	27.5	50
15611-32-32	Z2″X11.5	50	32	55	27.5	65

Click to enlarge

Category: NPT Hose Fittings Tags: Female, Carbon Steel, NPT

Description
Package& Shipping

Description

PART NO.	THREAD E	HOSEBORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1
15611-02-03	Z1/8″X27	5	03	21.5	10.5	12
15611-02-04	Z1/8″X27	6	04	22.5	10.5	12
15611-04-03	Z1/4″X18	5	03	27	15	17
15611-04-04	Z1/4″X18	6	04	28	15	17
15611-04-05	Z1/4″X18	8	05	28	15	17
15611-04-06	Z1/4″X18	10	06	28	15	17
15611-06-04	Z3/8″X18	6	04	28	16	19
15611-06-05	Z3/8″X18	8	05	29	16	19
15611-06-06	Z3/8″X18	10	06	29	16	19
15611-06-08	Z3/8″X18	12	08	30.5	16	19
15611-08-06	Z1/2″X14	10	06	34	19.5	22
15611-08-08	Z1/2″X14	12	08	34.5	19.5	22
15611-08-10	Z1/2″X14	16	10	35.5	19.5	22
15611-12-08	Z3/4″X14	12	08	37.5	19.5	27
15611-12-10	Z3/4″X14	16	10	37.5	19.5	27
15611-12-12	Z3/4″X14	20	12	38.5	19.5	27
15611-12-16	Z3/4″X14	25	16	39.5	19.5	32
15611-16-10	Z1″X11.5	16	10	45	25.5	36
15611-16-12	Z1″X11.5	20	12	45	25.5	36
15611-16-16	Z1″X11.5	25	16	46.5	25.5	36
15611-20-16	Z1.1/4″X11.5	25	16	49	26.5	46
15611-20-20	Z1.1/4″X11.5	32	20	50.5	26.5	46
15611-24-24	Z1.1/2″X11.5	40	24	51	27.5	50
15611-32-32	Z2″X11.5	50	32	55	27.5	65

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
