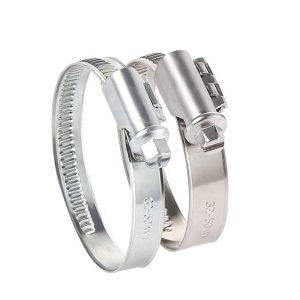

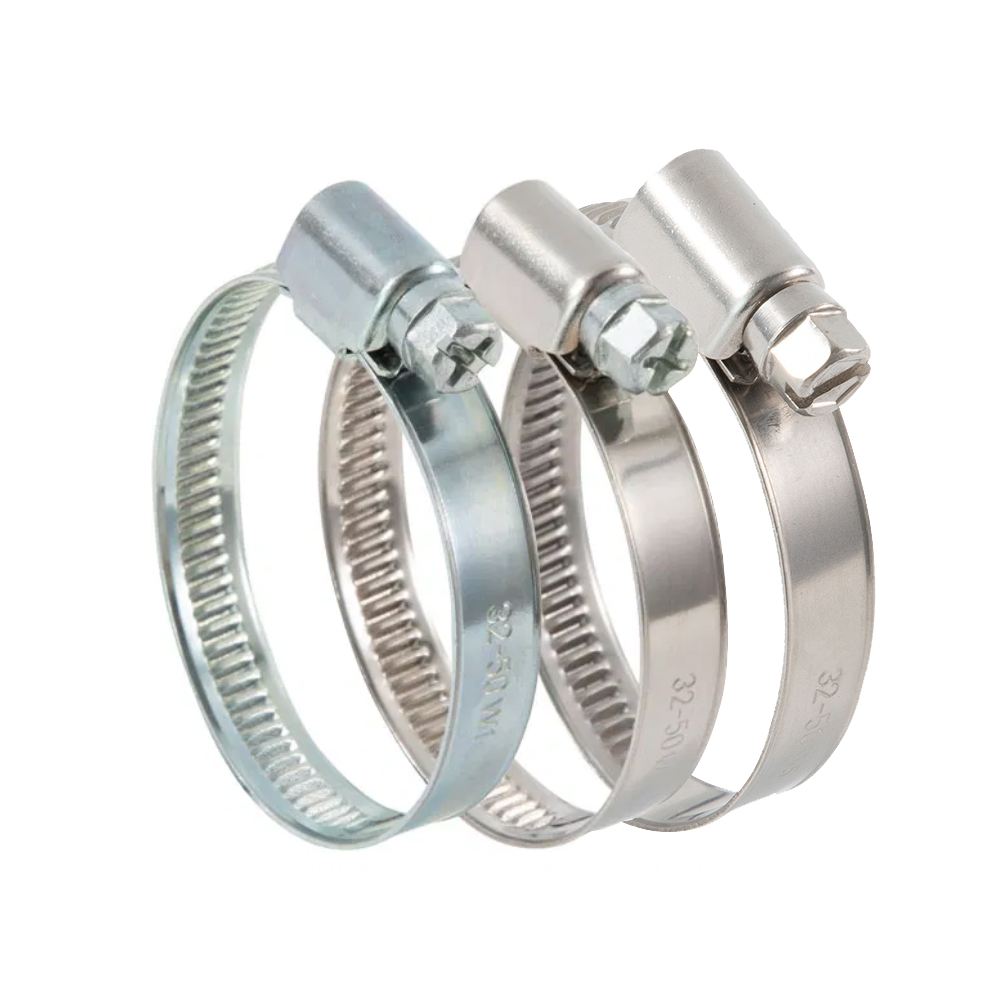

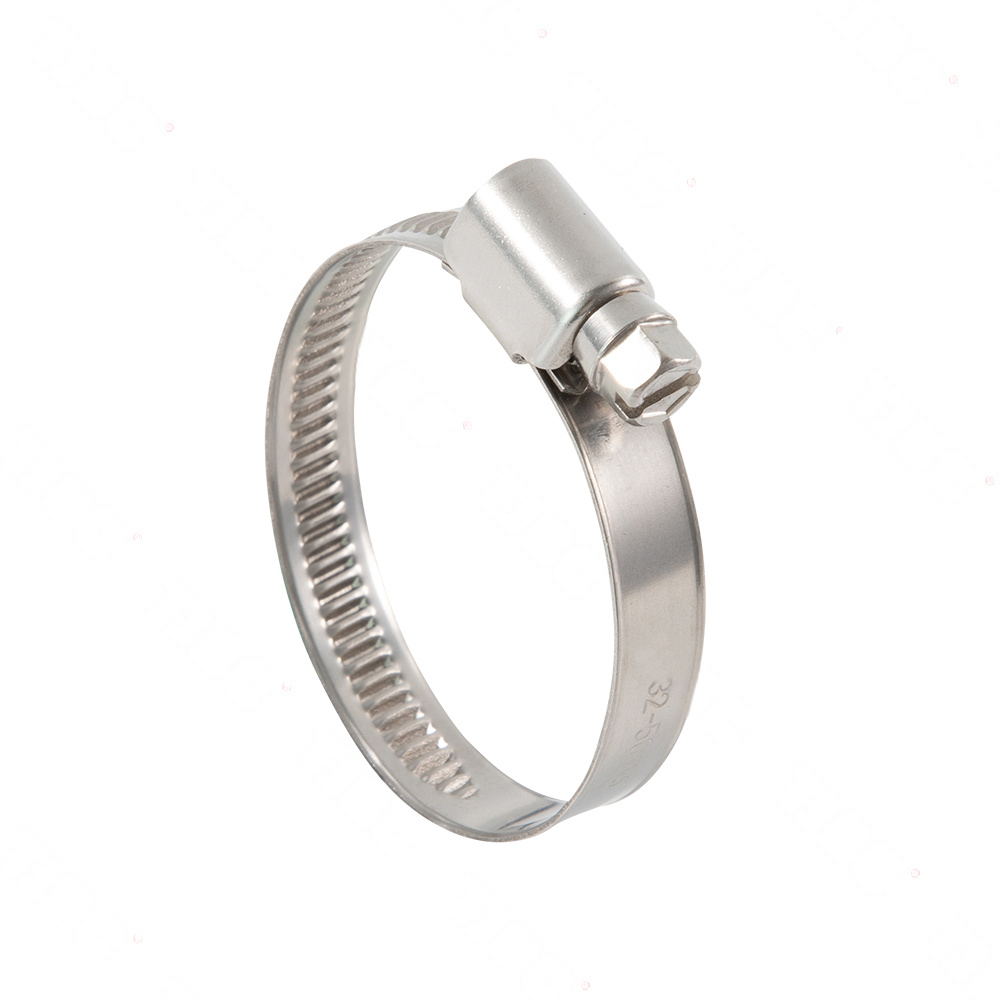

German Type Hose Clamps, also known as solid band or non-perforated hose clamps, are engineered for secure and reliable fastening of hoses and pipes. They provides a uniform clamping force and minimizes the risk of damaging softer hose materials. These clamps are widely used in automotive, industrial, and agricultural applications where a tight, leak-proof seal and hose integrity are critical.
| Size | Band Width | Thickness | Install Torque | Pcs/CTN |
| mm | mm | mm | Nm | |
| 12-20 | 12 | 0.7 | 4.5/5 | 1000 |
| 16-27 | 12 | 0.7 | 4.5/5 | 1000 |
| 20-32 | 12 | 0.7 | 4.5/5 | 1000 |
| 25-40 | 12 | 0.7 | 4.5/5 | 500 |
| 30-45 | 12 | 0.7 | 4.5/5 | 500 |
| 35-50 | 12 | 0.7 | 4.5/5 | 500 |
| 40-60 | 12 | 0.7 | 4.5/5 | 500 |
| 50-70 | 12 | 0.7 | 4.5/5 | 500 |
| 60-80 | 12 | 0.7 | 4.5/5 | 250 |
| 70-90 | 12 | 0.7 | 4.5/5 | 250 |
| 80-100 | 12 | 0.7 | 4.5/5 | 250 |
| 90-110 | 12 | 0.7 | 4.5/5 | 250 |
| 100-120 | 12 | 0.7 | 4.5/5 | 250 |
| 110-130 | 12 | 0.7 | 4.5/5 | 200 |
| 120-140 | 12 | 0.7 | 4.5/5 | 200 |
| 130-150 | 12 | 0.7 | 4.5/5 | 200 |
| 140-160 | 12 | 0.7 | 4.5/5 | 200 |
| 150-170 | 12 | 0.7 | 4.5/5 | 200 |
| 160-180 | 12 | 0.7 | 4.5/5 | 100 |
| 170-190 | 12 | 0.7 | 4.5/5 | 100 |
Larger sizes are available according to customer’s requirement.
NOTE:
W1: All material Galvanized Carbon Steel, Zinc Plated Steel
W2: All material Stainless steel 201 or 301 or 304 with Galvanized Screw,
W4: All material Stainless steel 201,301,304,
W5: All material Stainless steel 316.
