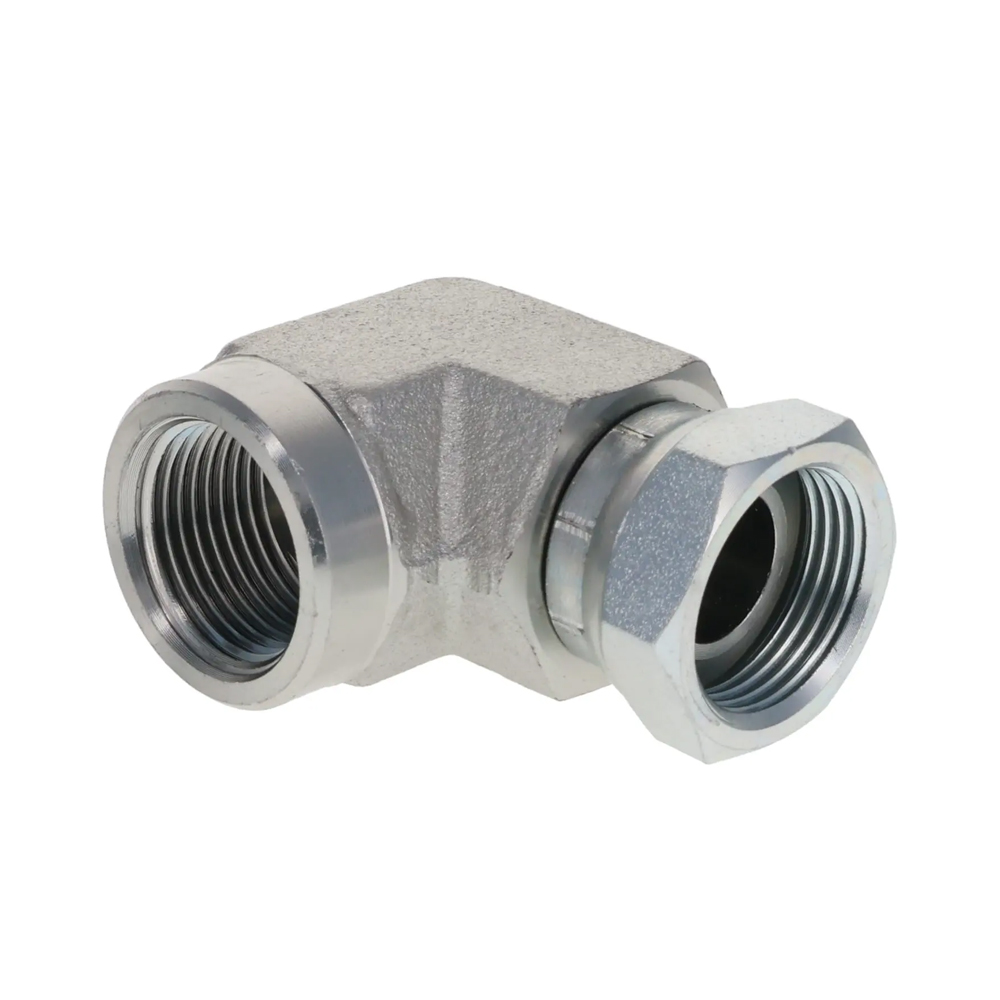

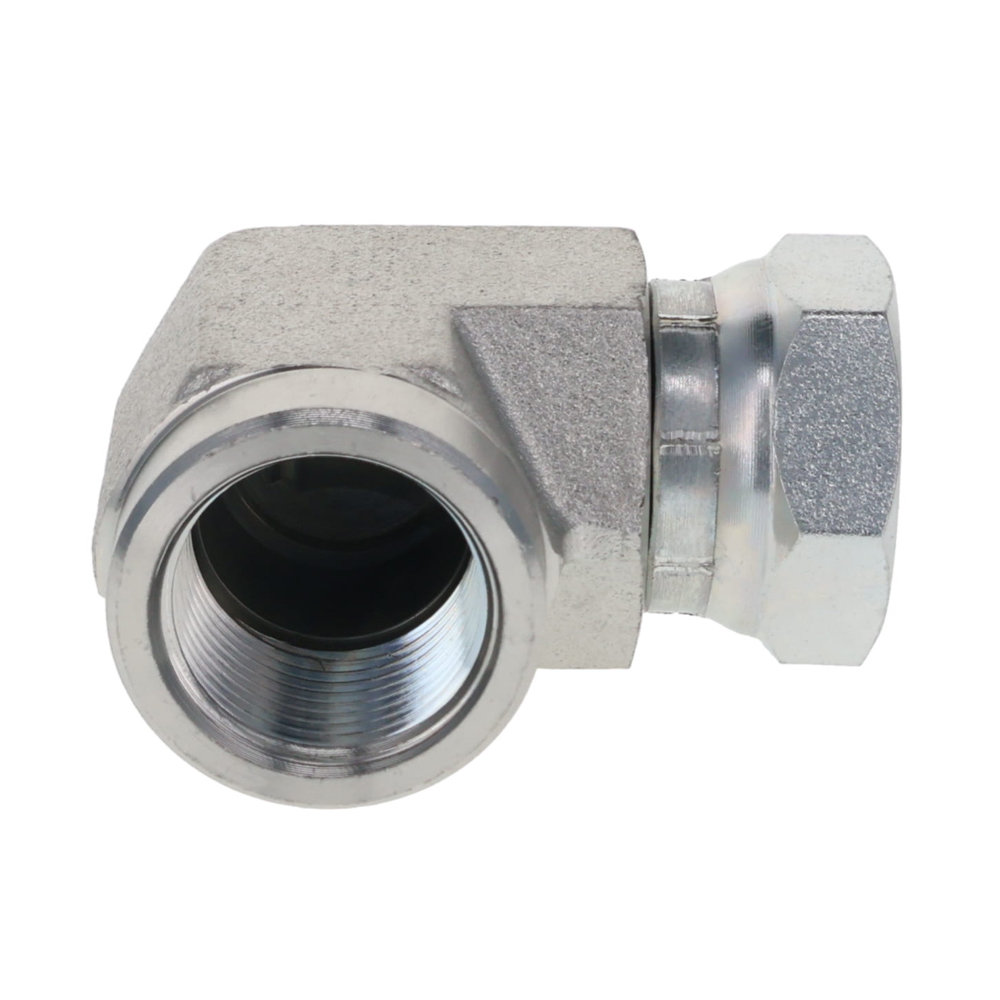

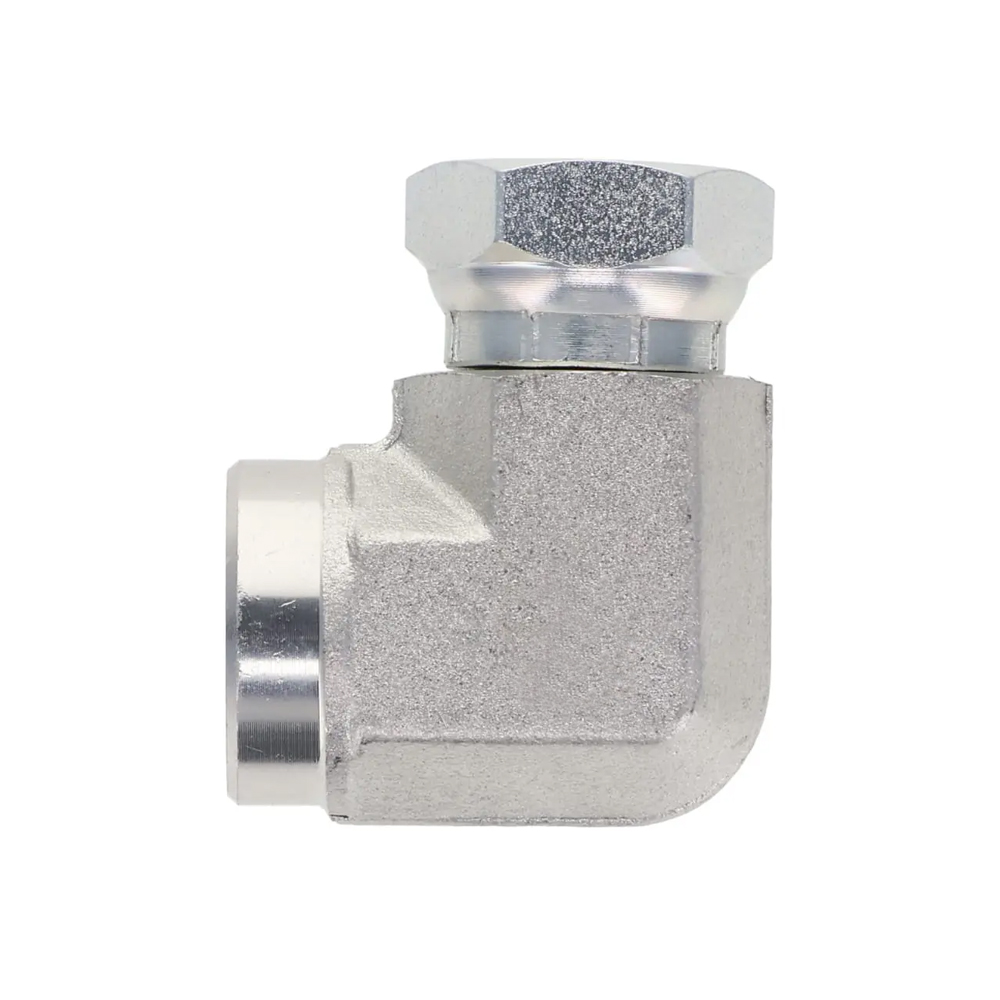

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

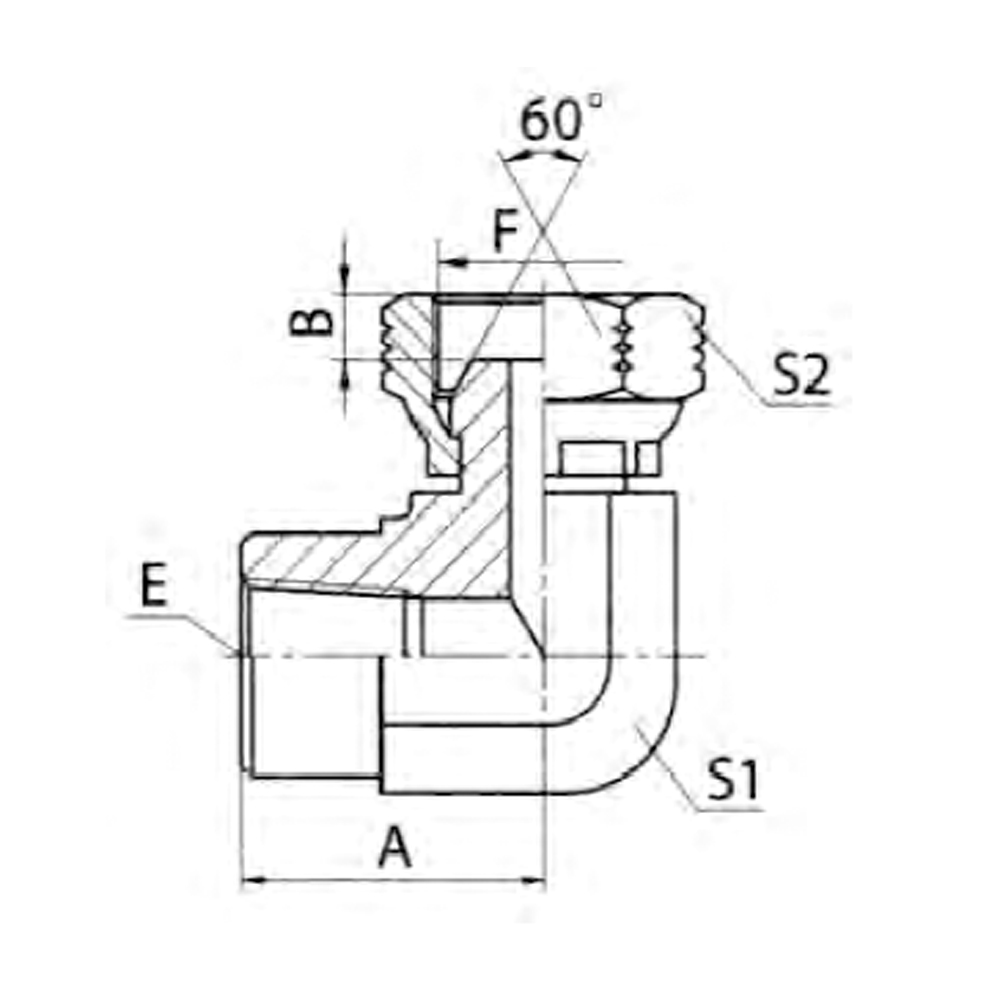

| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | A | B | S1 | S2 | |
| 7NU9-02S | Z1/8″X27 | 1/8″X27 | 17.8 | 6 | 16 | 15 |
| 7NU9-04-02S | Z1/4″X18 | 1/8″X27 | 22.5 | 6 | 19 | 15 |
| 7NU9-04S | Z1/4″X18 | 1/4″X18 | 22.5 | 5 | 19 | 19 |
| 7NU9-04-06S | Z1/4″X18 | 3/8″X18 | 22.5 | 6.5 | 19 | 22 |
| 7NU9-06S | Z3/8″X18 | 3/8″X18 | 25 | 6.5 | 24 | 22 |
| 7NU9-06-08S | Z3/8″X18 | 1/2″X14 | 25 | 7.8 | 24 | 27 |
| 7NU9-08-06S | Z1/2″X14 | 3/8″X18 | 31.2 | 6.5 | 30 | 22 |
| 7NU9-08S | Z1/2″X14 | 1/2″X14 | 31.2 | 7.8 | 30 | 27 |
| 7NU9-08-12S | Z1/2″X14 | 3/4″X14 | 31.2 | 10.5 | 30 | 32 |
| 7NU9-12-08S | Z3/4″X14 | 1/2″X14 | 34.5 | 7.8 | 33 | 27 |
| 7NU9-12S | Z3/4″X14 | 3/4″X14 | 34.5 | 10.5 | 33 | 32 |
| 7NU9-12-16S | Z3/4″X14 | 1″X11.5 | 34.5 | 11 | 33 | 41 |
| 7NU9-16S | Z1″X11.5 | 1″X11.5 | 41 | 11 | 41 | 41 |
| 7NU9-20S | Z1.1/4″X11.5 | 1.1/4″X11.5 | 43.2 | 11.5 | 50 | 50 |
| 7NU9-24S | Z1.1/2″X11.5 | 1.1/2″X11.5 | 52.8 | 12.5 | 63 | 55 |
