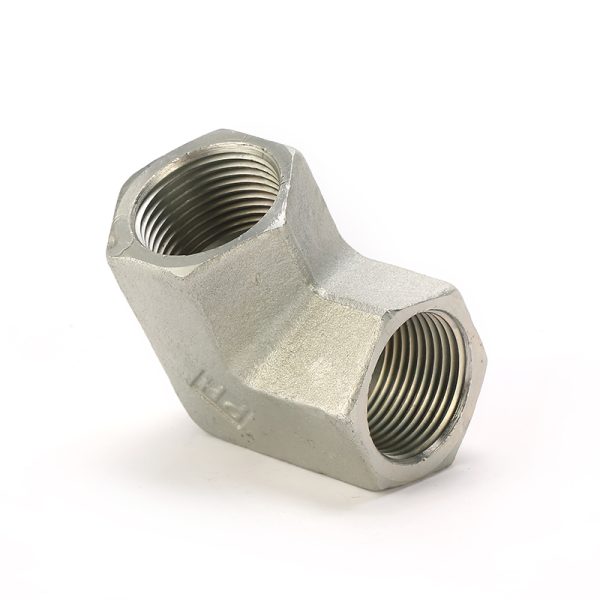

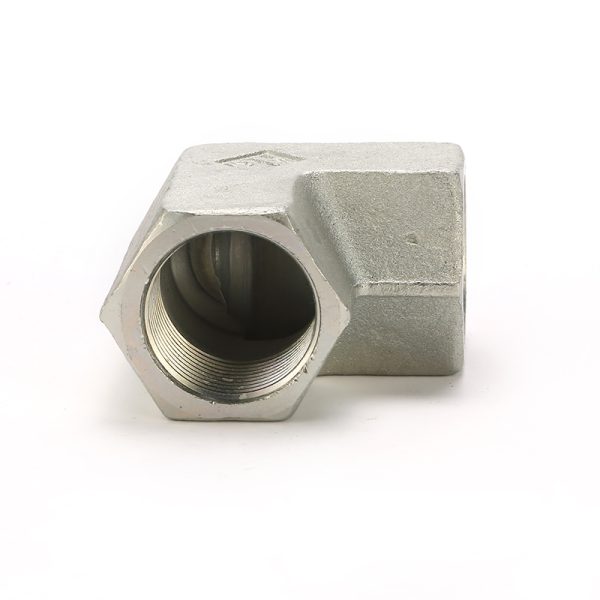

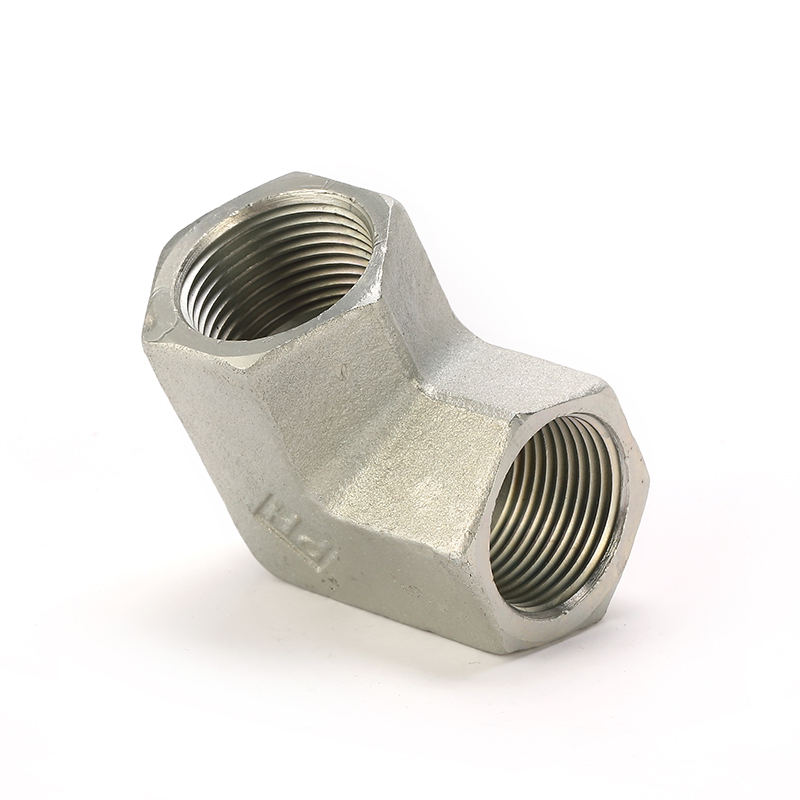

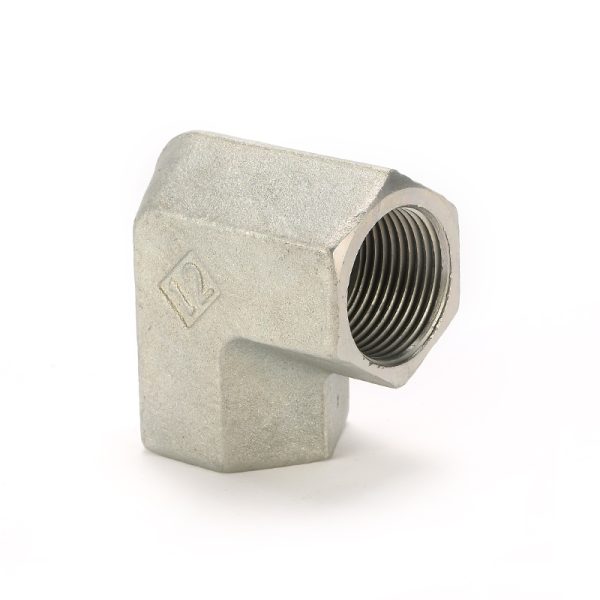

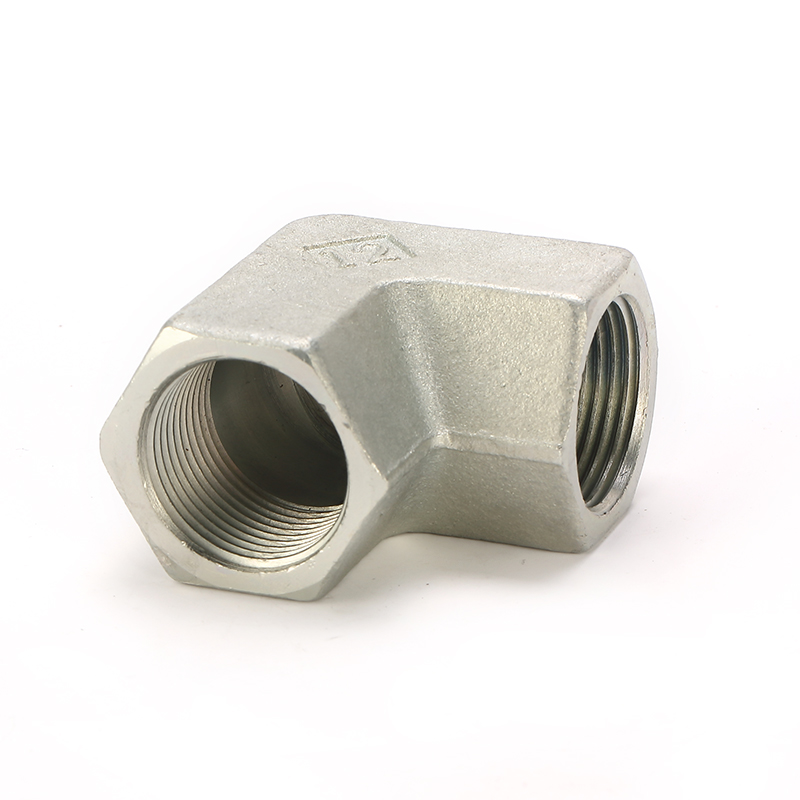

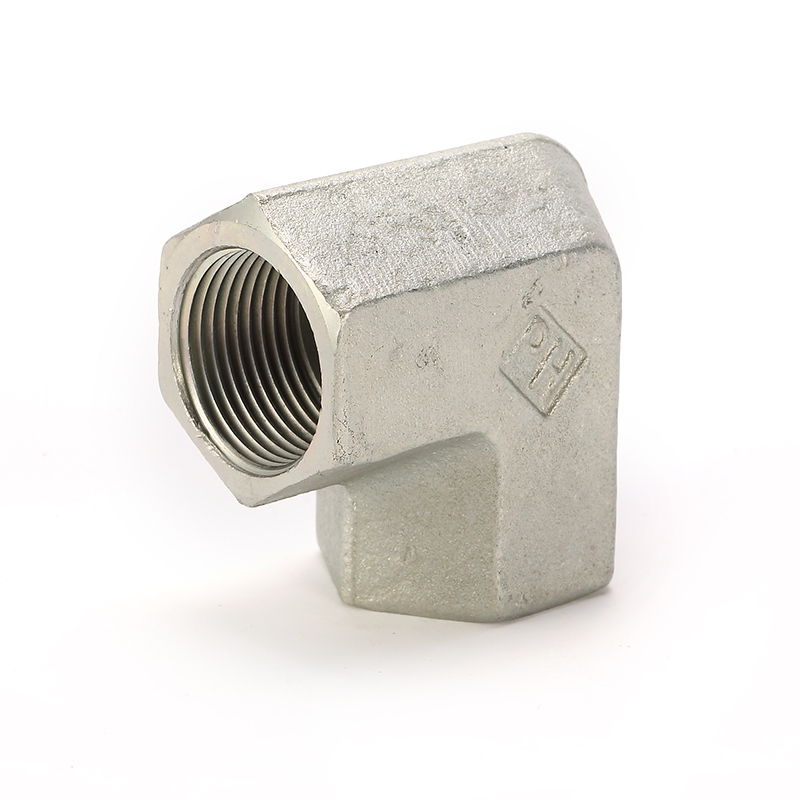

7T9 BSP Female 90° Elbow Pipe Fittings

Description:

7T9 BSPT female hydraulic hose fittings are straight female pipe fittings with two 60-degree cone seats and they are ISO 1179 standard.

Category: BSP Hydraulic Adapter Tags: 7T9, Female, 90 Degree Elbow, BSP

Description
Package& Shipping

Description

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

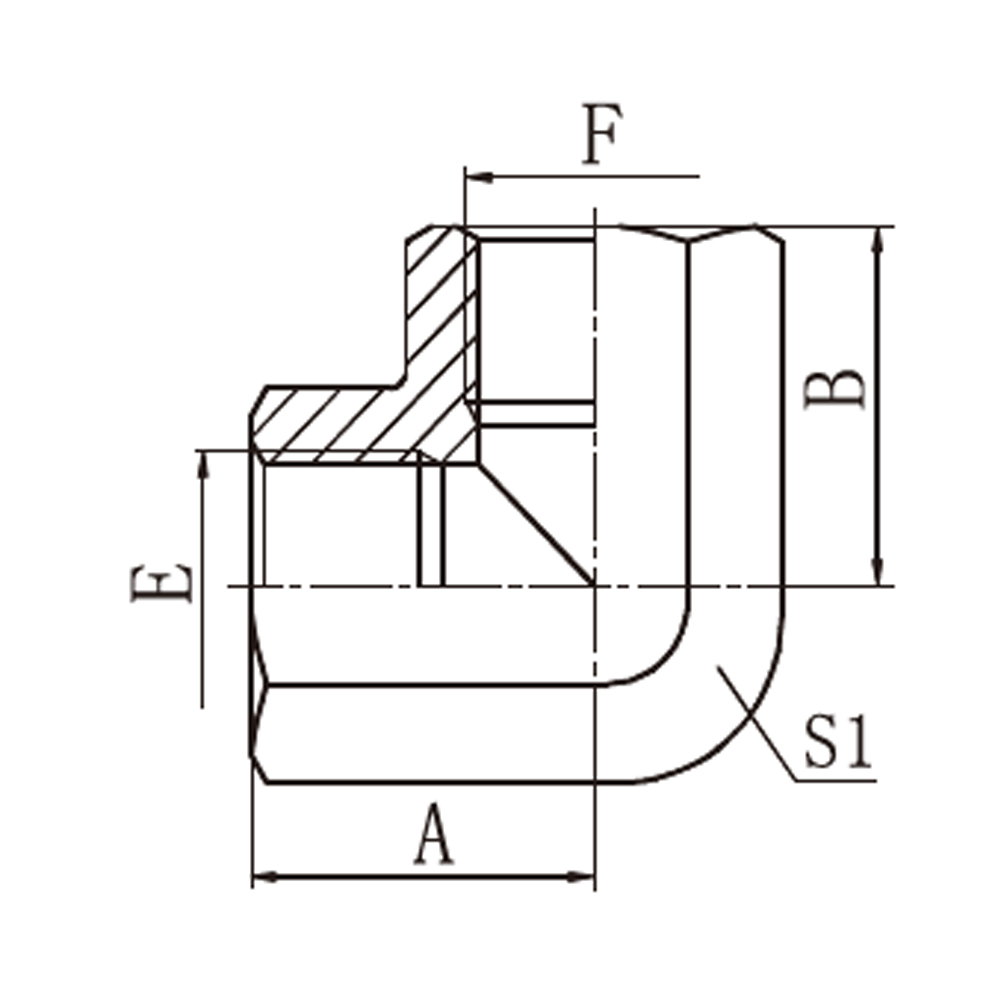

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1
7T9-02	Rc1/8″X28	Rc1/8″X28	20	20	16
7T9-02-04	Rc1/8″X28	Rc1/4″X19	20	22.5	19
7T9-04	Rc1/4″X19	Rc1/4″X19	22.5	22.5	19
7T9-06	Rc3/8″X19	Rc3/8″X19	26	26	24
7T9-08	Rc1/2″X14	Rc1/2″X14	31	31	27
7T9-12	Rc3/4″X14	Rc3/4″X14	34	34	33
7T9-16	Rc1″X11	Rc1″X11	42	42	41
7T9-20	Rc1.1/4″X11	Rc1.1/4″X11	48	48	50
7T9-24	Rc1.1/2″X11	Rc1.1/2″x11	53	53	60

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

7T9 BSP Female 90° Elbow Pipe Fittings

Package:

Delivery Time:
