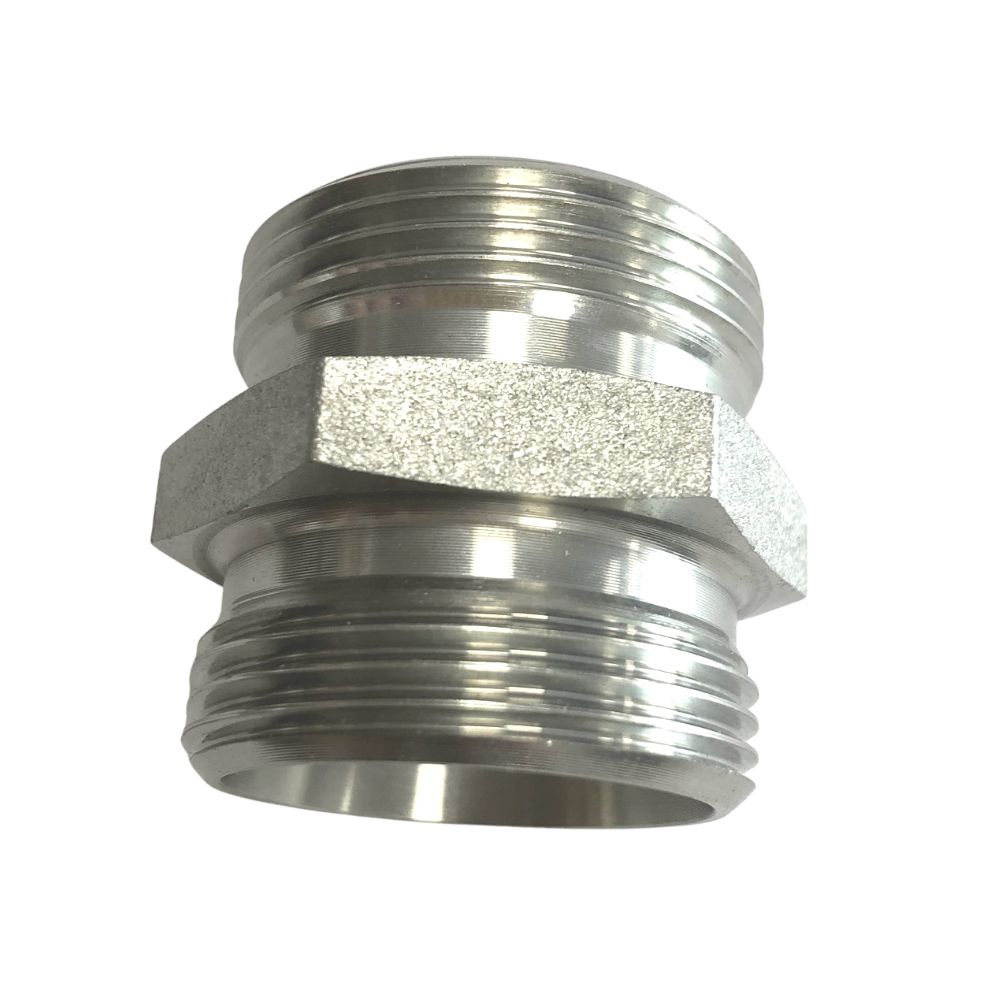

1CO/1DO Metric O-Ring UNF Adapter

Description:

1CO/1DO metric o-ring adapter is a male adapter and the UNF ends with an o-ring sealing, which can provide a leak-free seal.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

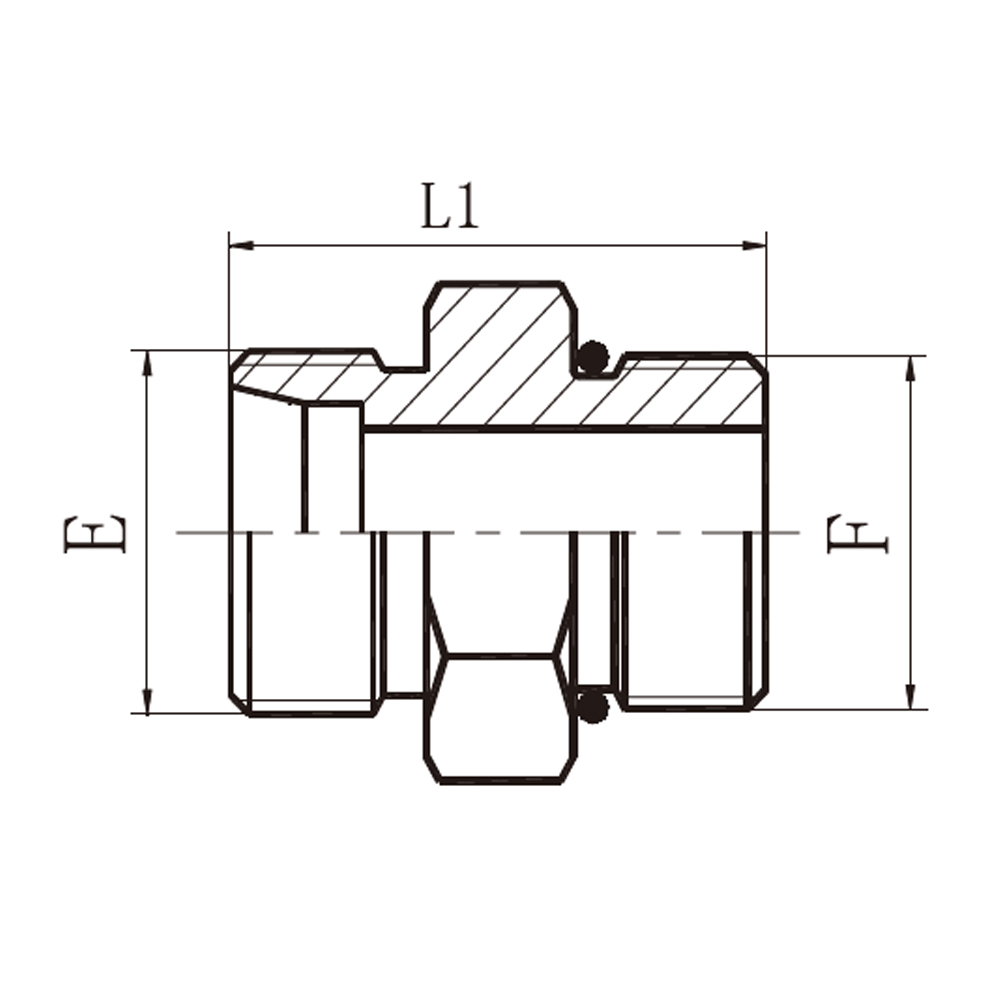

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	B	I1	L1	S1	S2	MPa
1CO-14-04	M14X1.5	7/16″X20	8	9.14	8.36	24.5	14	17	31.5 L series
1CO-16-04	M16X1.5	7/16″X20	10	9.14	9.36	25.5	17	19
1CO-18-06	M18X1.5	9/16″X18	12	9.93	10.07	27	19	22
1CO-18-08	M18X1.5	3/4″X16	12	11.13	10.37	28.5	22	22
1CO-18-10	M18X1.5	7/8″X14	12	12.7	14.3	34	27	22
1CO-22-08	M22X1.5	3/4″X16	15	11.13	14.87	33	24	27
1CO-22-10	M22X1.5	7/8″X14	15	12.7	12.3	32	27	27
1CO-22-12	M22X1.5	1.1/16″X12	15	15.09	11.91	34	32	27
1CO-26-08	M26X1.5	3/4″X16	18	11.13	14.87	33.5	27	32
1CO-26-10	M26X1.5	7/8″X14	18	12.7	11.5	31.7	27	32
1CO-30-08	M30X2	3/4″X16	22	11.13	17.37	36	32	36	16 L series
1CO-30-10	M30X2	7/8″X14	22	12.7	17.3	37.5	32	36
1CO-30-12	M30X2	1.1/16″X12	22	15.09	13.41	36	32	36
1CO-30-16	M30X2	1.5/16″X12	22	15.09	14.41	37	38	36
1CO-36-12	M36X2	1.1/16″X12	28	15.09	14.41	37	38	41
1CO-36-16	M36X2	1.5/16″X12	28	15.09	14.41	37	41	41
1CO-45-16	M45X2	1.5/16″X12	35	15.09	16.41	42	46	50
1CO-45-20	M45X2	1.5/8″X12	35	15.09	16.41	42	50	50
1CO-52-20	M52X2	1.5/8″X12	42	15.09	16.91	43	55	60
1DO-16-04	M16X1.5	7/16″X20	8	9.14	12.86	29	17	19	63 S series
1DO-18-06	M18X1.5	9/16″X18	10	9.93	12.57	30	19	22
1DO-20-06	M20X1.5	9/16″X18	12	9.93	14.57	32	22	24
1DO-20-08	M20X1.5	3/4″X16	12	11.13	14.87	33.5	24	24
1DO-24-08	M24X1.5	3/4″X16	16	11.13	15.37	35	27	30	40 S series
1CO-24-10	M24X1.5	7/8″X14	16	12.7	15.8	37	27	30
1DO-30-08	M30X2	3/4″X16	20	11.13	17.87	39.5	32	36
1CO-30-10	M30X2	7/8″X14	20	12.7	17.3	40.5	32	36
1CO-30-12	M30X2	1.1/16″X12	20	15.09	17,41	43	32	36
1DO-36-12	M36X2	1.1/16″X12	25	15.09	18.91	46	41	46
1DO-36-16	M36X2	1.5/16″X12	25	15.09	19.91	47	41	46
1DO-42-16	M42X2	1.5/16″X12	30	15.09	20.41	49	46	50
1DO-42-20	M42X2	1.5/8″X12	30	15.09	20.41	49	50	50
1DO-52-20	M52X2	1.5/8″X12	38	15.09	25.91	53	55	60	31.5 S series

Click to enlarge

Category: DIN Hose Adapters Tags: 1CO, UNF, Carbon Steel, O-ring, Metric

Description
Package& Shipping

Description

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	B	I1	L1	S1	S2	MPa
1CO-14-04	M14X1.5	7/16″X20	8	9.14	8.36	24.5	14	17	31.5 L series
1CO-16-04	M16X1.5	7/16″X20	10	9.14	9.36	25.5	17	19
1CO-18-06	M18X1.5	9/16″X18	12	9.93	10.07	27	19	22
1CO-18-08	M18X1.5	3/4″X16	12	11.13	10.37	28.5	22	22
1CO-18-10	M18X1.5	7/8″X14	12	12.7	14.3	34	27	22
1CO-22-08	M22X1.5	3/4″X16	15	11.13	14.87	33	24	27
1CO-22-10	M22X1.5	7/8″X14	15	12.7	12.3	32	27	27
1CO-22-12	M22X1.5	1.1/16″X12	15	15.09	11.91	34	32	27
1CO-26-08	M26X1.5	3/4″X16	18	11.13	14.87	33.5	27	32
1CO-26-10	M26X1.5	7/8″X14	18	12.7	11.5	31.7	27	32
1CO-30-08	M30X2	3/4″X16	22	11.13	17.37	36	32	36	16 L series
1CO-30-10	M30X2	7/8″X14	22	12.7	17.3	37.5	32	36
1CO-30-12	M30X2	1.1/16″X12	22	15.09	13.41	36	32	36
1CO-30-16	M30X2	1.5/16″X12	22	15.09	14.41	37	38	36
1CO-36-12	M36X2	1.1/16″X12	28	15.09	14.41	37	38	41
1CO-36-16	M36X2	1.5/16″X12	28	15.09	14.41	37	41	41
1CO-45-16	M45X2	1.5/16″X12	35	15.09	16.41	42	46	50
1CO-45-20	M45X2	1.5/8″X12	35	15.09	16.41	42	50	50
1CO-52-20	M52X2	1.5/8″X12	42	15.09	16.91	43	55	60
1DO-16-04	M16X1.5	7/16″X20	8	9.14	12.86	29	17	19	63 S series
1DO-18-06	M18X1.5	9/16″X18	10	9.93	12.57	30	19	22
1DO-20-06	M20X1.5	9/16″X18	12	9.93	14.57	32	22	24
1DO-20-08	M20X1.5	3/4″X16	12	11.13	14.87	33.5	24	24
1DO-24-08	M24X1.5	3/4″X16	16	11.13	15.37	35	27	30	40 S series
1CO-24-10	M24X1.5	7/8″X14	16	12.7	15.8	37	27	30
1DO-30-08	M30X2	3/4″X16	20	11.13	17.87	39.5	32	36
1CO-30-10	M30X2	7/8″X14	20	12.7	17.3	40.5	32	36
1CO-30-12	M30X2	1.1/16″X12	20	15.09	17,41	43	32	36
1DO-36-12	M36X2	1.1/16″X12	25	15.09	18.91	46	41	46
1DO-36-16	M36X2	1.5/16″X12	25	15.09	19.91	47	41	46
1DO-42-16	M42X2	1.5/16″X12	30	15.09	20.41	49	46	50
1DO-42-20	M42X2	1.5/8″X12	30	15.09	20.41	49	50	50
1DO-52-20	M52X2	1.5/8″X12	38	15.09	25.91	53	55	60	31.5 S series

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
