JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

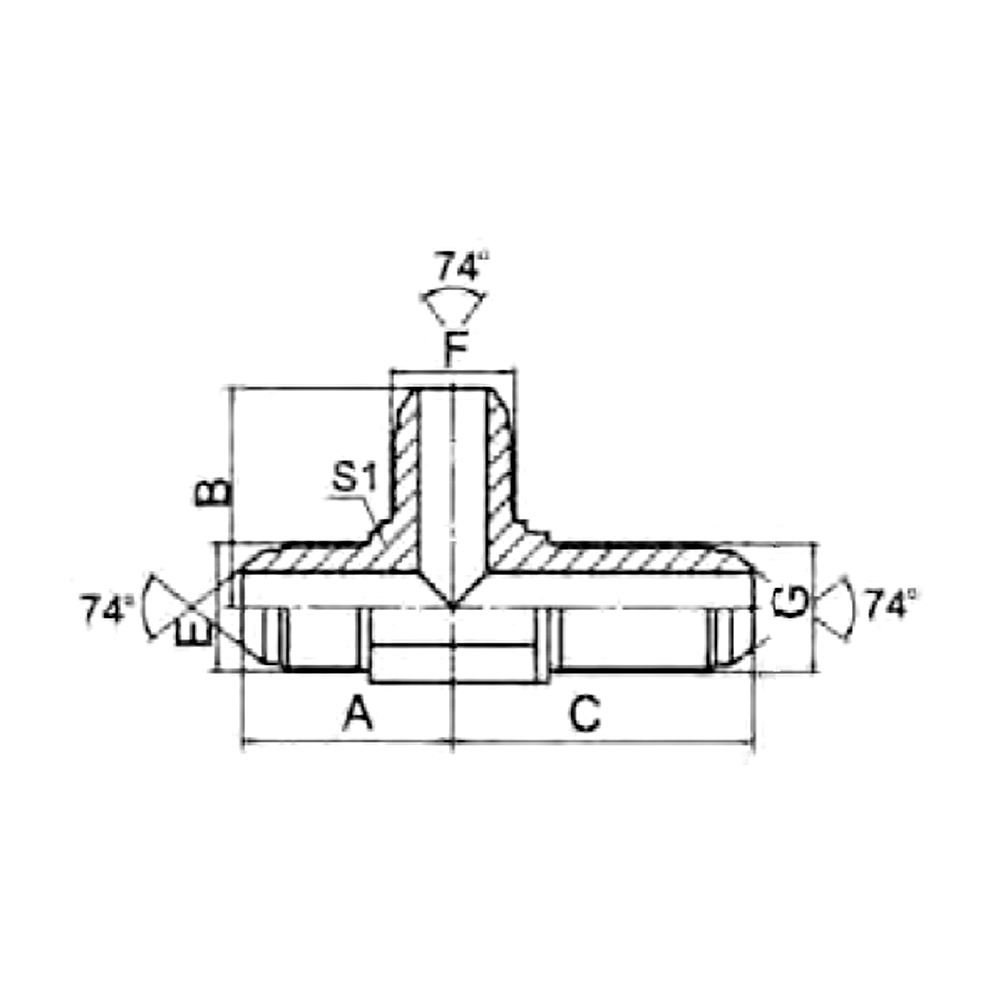

| PART NO. | THREAD | DIMENSIONS | ||||||
| E | F | G | A | B | C | S1 | S2 | |
| AJJ6J-04 | 7/16″X20 | 7/16″X20 | 7/16″X20 | 24.5 | 24.5 | 40.4 | 11 | 17 |
| AJJ6J-05 | 1/2″X20 | 1/2″X20 | 1/2″X20 | 26.6 | 26.6 | 43.7 | 14 | 19 |
| AJJ6J-06 | 9/16″X18 | 9/16″X18 | 9/16″X18 | 26.9 | 26.9 | 46 | 14 | 22 |
| AJJ6J-08 | 3/4″X16 | 3/4″X16 | 3/4″X16 | 32 | 32 | 53.5 | 19 | 24 |
| AJJ6J-10 | 7/8″X14 | 7/8″X14 | 7/8″X14 | 37.8 | 37.8 | 60.7 | 22 | 30 |
| AJJ6J-12 | 1.1/16″X12 | 1.1/16″X12 | 1.1/16″X12 | 44.2 | 44.2 | 67.8 | 27 | 36 |
| AJJ6J-16 | 1.5/16″X12 | 1.5/16″X12 | 1.5/16″X12 | 49 | 49 | 71 | 33 | 41 |
| AJJ6J-20 | 1.5/8″X12 | 1.5/8″X12 | 1.5/8″X12 | 55.3 | 55.3 | 79.2 | 41 | 50 |
| AJJ6J-24 | 1.7/8″X12 | 1.7/8″X12 | 1.7/8″X12 | 63.5 | 63.5 | 86.9 | 48 | 55 |
