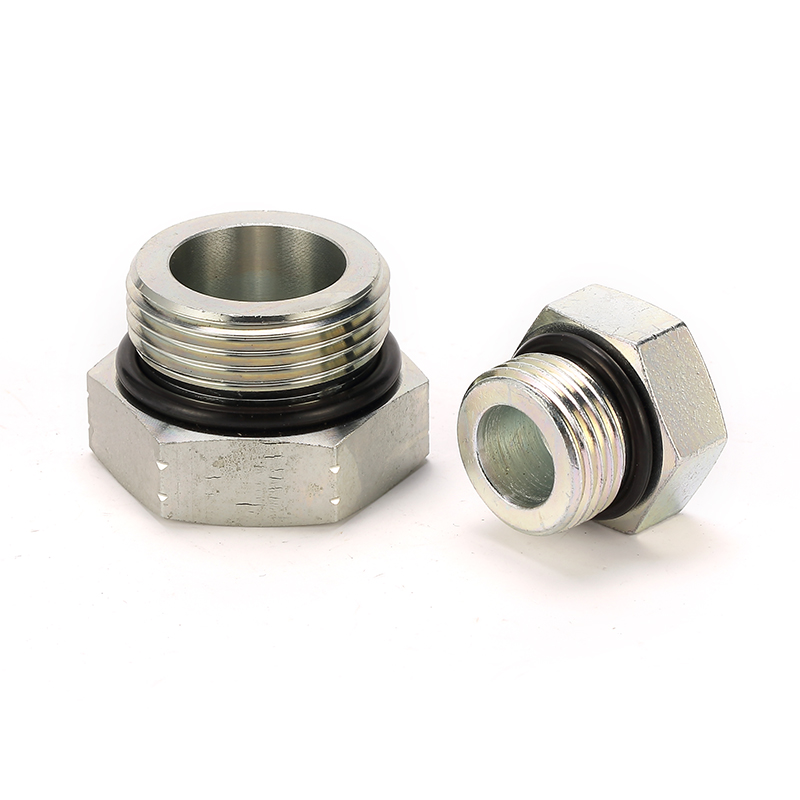

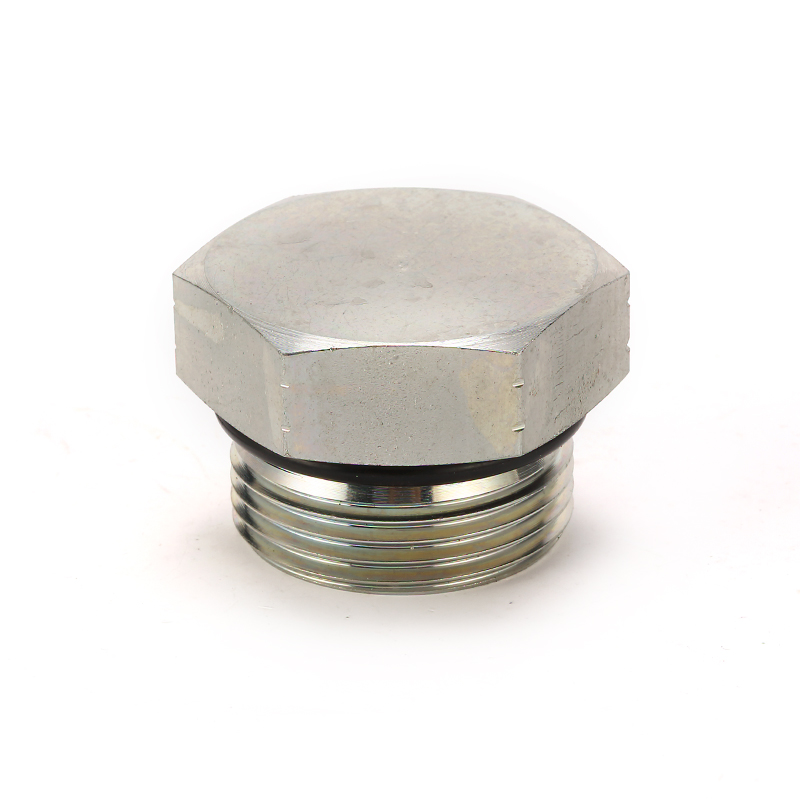

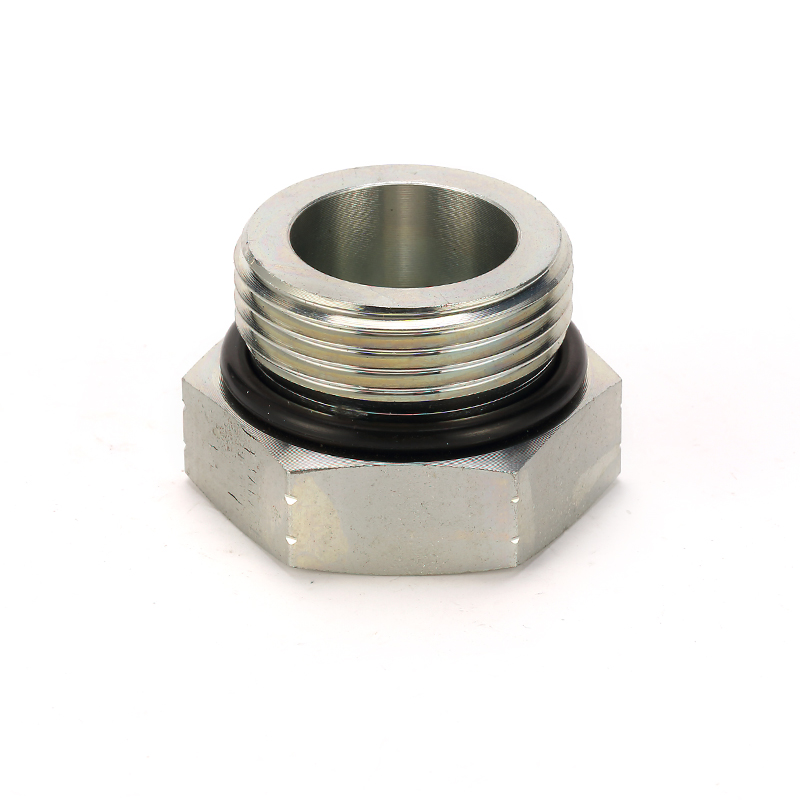

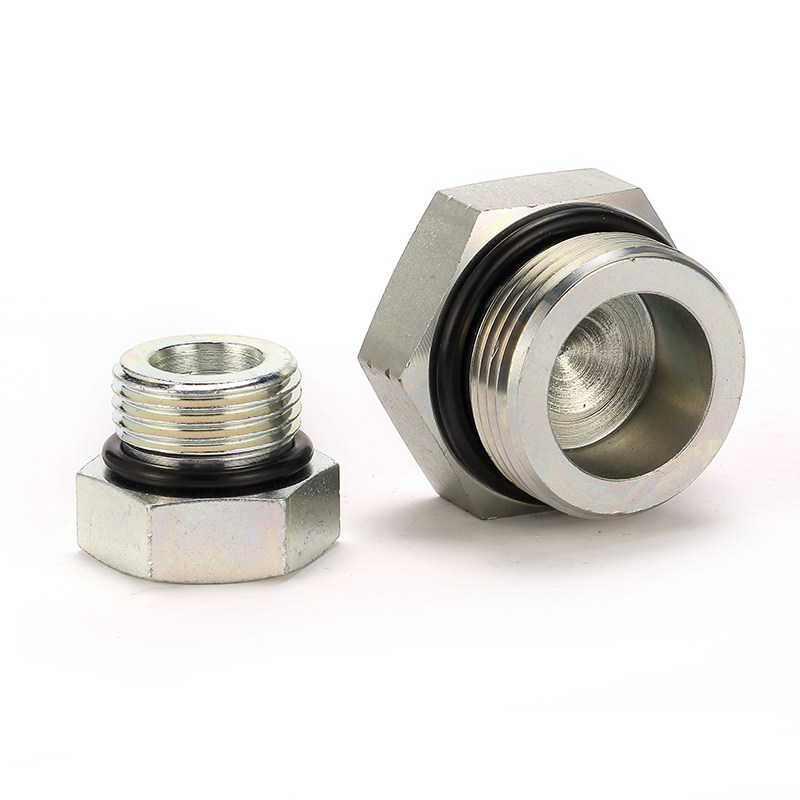

4O Male ORB External Hex Plug

Description:

4O SAE ORB hydraulic plug fitting has a male end with O-ring boss threads, allowing it to be screwed into a female port with O-ring boss threads.

Category: SAE ORB Adapters Tags: ORB, 4O, NPT, Male, Plug

Description
Package& Shipping

Description

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	THREAD	O-RING	DIMENSIONS
PART NO.	E	E	A	L	S1
4O-04	7/16″X20	8.92X1.83	9.14	16	14
4O-05	1/2″X20	10.52X1.83	9.14	16	17
4O-06	9/16″X18	11.89X1.98	10	17.5	17
4O-08	3/4″X16	16.36X2.21	11.13	19.5	22
4O-10	7/8″X14	19.18X2.46	12.7	23	27
4O-12	1.1/16″X12	23.47X2.95	15.09	26.5	32
4O-14	1.3/16″X12	26.62X2.95	15.09	27	36
4O-16	1.5/16″X12	29.74X2.95	15.09	27.5	38
4O-20	1.5/8″X12	37.46X3.00	15.09	30	50
4O-24	1.7/8″X12	43.69X3.00	15.09	30	55
4O-32	2.1/2″X12	59.36X3.00	15.09	32	70

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
