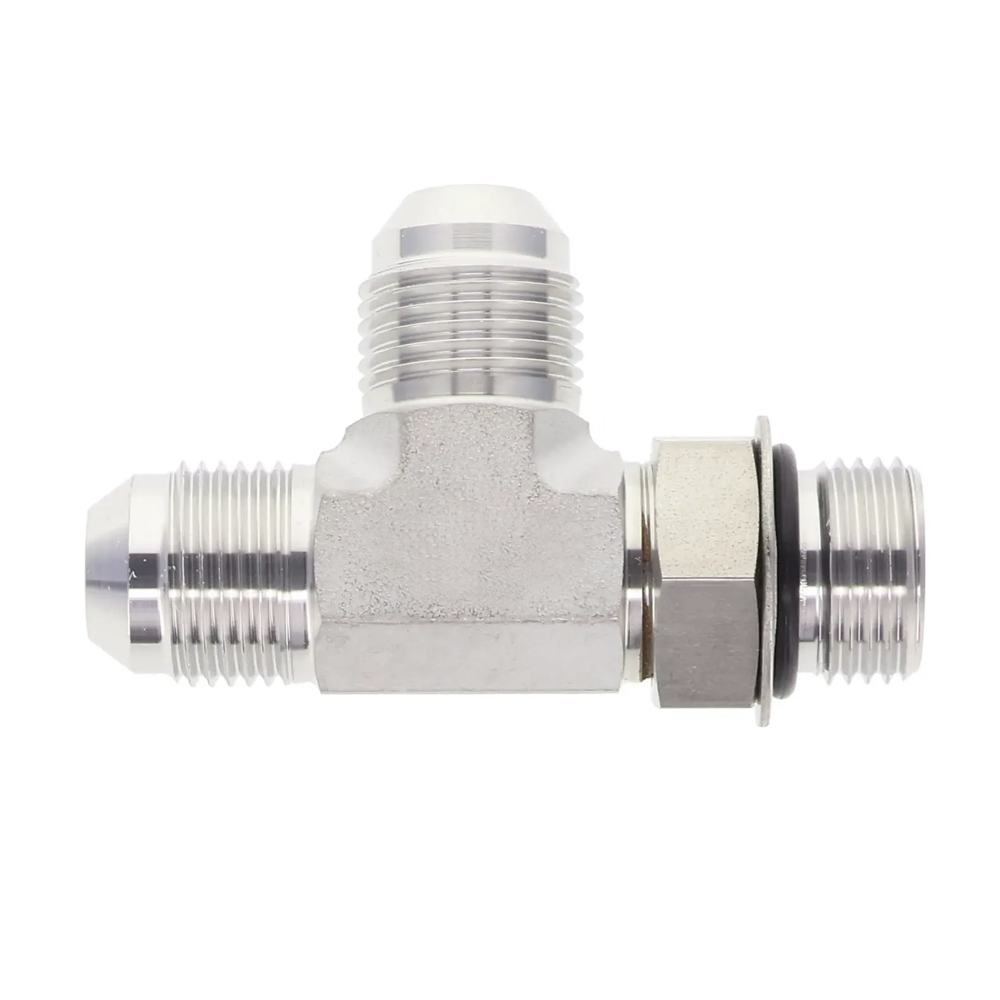

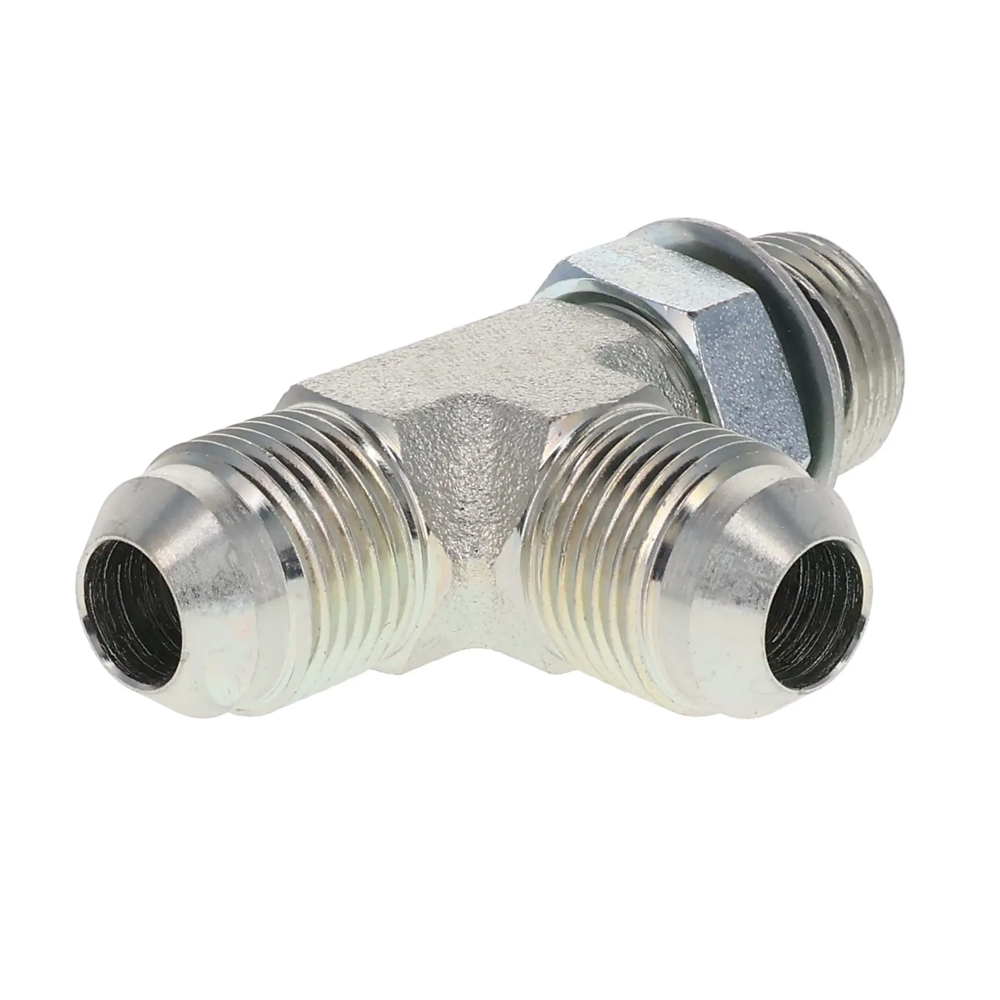

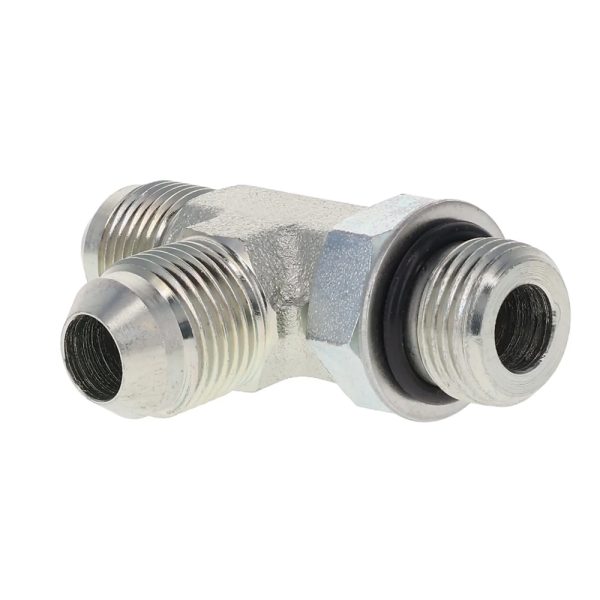

6404 JIC Flare Male x SAE O-Ring Boss Male Run Tee

Description:

6804 SAE flare run tee fitting typically features three connection points, forming a T-shaped configuration. The SAE JIC 37-degree flare connection is suitable for high-pressure applications

"*" indicates required fields

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

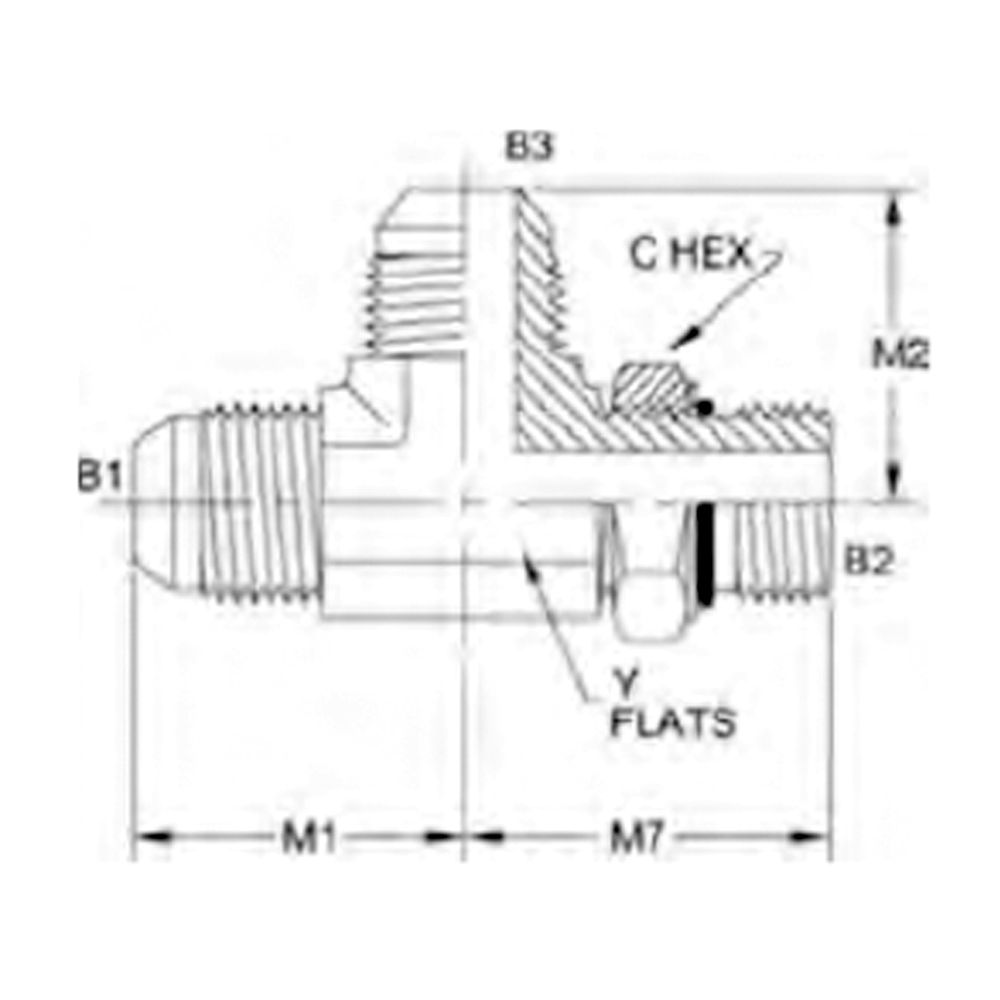

PART NO	B1 SAE37	B2 SAEORB	B3 SAE37	M1 (INCH)	M7 (INCH)	M2 (INCH)	C HEX (INCH)	Y FLATS (INCH)
6804-02-02-02-NWO-FG	5/16-24	5/16-24	5/16-24	0.77	0.94	0.77	0.438	0.438
6804-02-04-02-NWO-FG	5/16-24	7/16-20	5/16-24	0.89	1.03	0.89	0.563	0.438
6804-04-04-04-NWO-FG	7/16-20	7/16-20	7/16-20	0.89	1.03	0.89	0.563	0.438
6804-04-06-04-NWO-FG	7/16-20	9/16-18	7/16-20	1.05	1.25	1.05	0.688	0.562
6804-05-04-05-NWO-FG	1/2-20	7/16-20	1/2-20	0.95	1.13	0.95	0.563	0.562
6804-05-05-05-NWO-FG	1/2-20	1/2-20	1/2-20	0.95	1.13	0.95	0.625	0.562
6804-06-04-06-NWO-FG	9/16-18	7/16-20	9/16-18	1.06	1.19	1.06	0.563	0.562
6804-06-06-04-NWO-FG	9/16-18	9/16-18	7/16-20	1.06	1.25	1.06	0.688	0.562
6804-06-06-06-NWO-FG	9/16-18	9/16-18	9/16-18	1.06	1.25	1.06	0.688	0.562
6804-06-08-06-NWO-FG	9/16-18	3/4-16	9/16-18	1.14	1.45	1.14	0.875	0.750
6804-06-08-08-NWO-FG	9/16-18	3/4-16	3/4-16	1.14	1.45	1.25	0.875	0.750
6804-08-06-04-NWO-FG	3/4-16	9/16-18	7/16-20	1.25	1.32	1.25	0.688	0.750
6804-08-06-08-NWO-FG	3/4-16	9/16-18	3/4-16	1.25	1.32	1.25	0.688	0.750
6804-08-08-04-NWO-FG	3/4-16	3/4-16	7/16-20	1.25	1.45	1.12	0.875	0.750
6804-08-08-08-NWO-FG	3/4-16	3/4-16	3/4-16	1.25	1.45	1.25	0.875	0.750
6804-08-10-08-NWO-FG	3/4-16	7/8-14	3/4-16	1.33	1.70	1.33	1.000	0.875
6804-08-12-04-NWO-FG	3/4-16	1-1/16-12	7/16-20	1.42	1.94	1.30	1.250	1.062
6804-08-12-08-NWO-FG	3/4-16	1-1/16-12	3/4-16	1.42	1.94	1.42	1.250	1.062
6804-10-08-10-NWO-FG	7/8-14	3/4-16	7/8-14	1.45	1.54	1.45	0.875	0.875
6804-10-10-10-NWO-FG	7/8-14	7/8-14	7/8-14	1.45	1.70	1.45	1.000	0.875
6804-10-12-06-NWO-FG	7/8-14	1-1/16-12	9/16-18	1.54	1.94	1.54	1.250	1.062
6804-10-12-10-NWO-FG	7/8-14	1-1/16-12	7/8-14	1.54	1.94	1.54	1.250	1.062
6804-10-16-08-NWO-FG	7/8-14	1-5/16-12	3/4-16	1.64	2.05	1.64	1.500	1.312
6804-12-08-12-NWO-FG	1-1/16-12	3/4-16	1-1/16-12	1.66	1.62	1.66	0.875	1.062
6804-12-10-12-NWO-FG	1-1/16-12	7/8-14	1-1/16-12	1.66	1.78	1.66	1.000	1.062
6804-12-12-06-NWO-FG	1-1/16-12	1-1/16-12	9/16-18	1.66	1.94	1.66	1.250	1.062
6804-12-12-08-NWO-FG	1-1/16-12	1-1/16-12	3/4-16	1.66	1.94	1.42	1.250	1.062
6804-12-12-10-NWO-FG	1-1/16-12	1-1/16-12	7/8-14	1.66	1.94	1.66	1.250	1.062
6804-12-12-12-NWO-FG	1-1/16-12	1-1/16-12	1-1/16-12	1.66	1.94	1.66	1.250	1.062
6804-12-12-16-NWO-FG	1-1/16-12	1-1/16-12	1-5/16-12	1.76	2.05	1.76	1.250	1.312
6804-12-16-12-NWO-FG	1-1/16-12	1-5/16-12	1-1/16-12	1.76	2.05	1.76	1.500	1.312

6804-14-14-14-NWO-FG	1-3/16-12	1-3/16-12	1-3/16-12	1.80	2.00	1.80	1.375	1.312
6804-16-12-16-NWO-FG	1-5/16-12	1-1/16-12	1-5/16-12	1.81	2.05	1.81	1.250	1.312
6804-16-16-12-NWO-FG	1-5/16-12	1-5/16-12	1-1/16-12	1.81	2.05	1.81	1.500	1.312
6804-16-16-16-NWO-FG	1-5/16-12	1-5/16-12	1-5/16-12	1.81	2.05	1.81	1.500	1.312
6804-20-20-20N WO-FG	1-5/8-12	1-5/8-12	1-5/8-12	2.06	2.25	2.06	1.875	1.625
6804-24-24-24-NWO-FG	1-7/8-12	1-7/8-12	1-7/8-12	2.33	2.39	2.33	2.125	1.875
6804-32-32-32-NWO-FG	2-1/2-12	2-1/2-12	2-1/2-12	3.06	2.89	3.06	2.750	2.500

Click to enlarge

Category: SAE ORB Adapters Tags: Male, JIC, Tee, ORB, 6804

Description
Package& Shipping

Description

PART NO	B1 SAE37	B2 SAEORB	B3 SAE37	M1 (INCH)	M7 (INCH)	M2 (INCH)	C HEX (INCH)	Y FLATS (INCH)
6804-02-02-02-NWO-FG	5/16-24	5/16-24	5/16-24	0.77	0.94	0.77	0.438	0.438
6804-02-04-02-NWO-FG	5/16-24	7/16-20	5/16-24	0.89	1.03	0.89	0.563	0.438
6804-04-04-04-NWO-FG	7/16-20	7/16-20	7/16-20	0.89	1.03	0.89	0.563	0.438
6804-04-06-04-NWO-FG	7/16-20	9/16-18	7/16-20	1.05	1.25	1.05	0.688	0.562
6804-05-04-05-NWO-FG	1/2-20	7/16-20	1/2-20	0.95	1.13	0.95	0.563	0.562
6804-05-05-05-NWO-FG	1/2-20	1/2-20	1/2-20	0.95	1.13	0.95	0.625	0.562
6804-06-04-06-NWO-FG	9/16-18	7/16-20	9/16-18	1.06	1.19	1.06	0.563	0.562
6804-06-06-04-NWO-FG	9/16-18	9/16-18	7/16-20	1.06	1.25	1.06	0.688	0.562
6804-06-06-06-NWO-FG	9/16-18	9/16-18	9/16-18	1.06	1.25	1.06	0.688	0.562
6804-06-08-06-NWO-FG	9/16-18	3/4-16	9/16-18	1.14	1.45	1.14	0.875	0.750
6804-06-08-08-NWO-FG	9/16-18	3/4-16	3/4-16	1.14	1.45	1.25	0.875	0.750
6804-08-06-04-NWO-FG	3/4-16	9/16-18	7/16-20	1.25	1.32	1.25	0.688	0.750
6804-08-06-08-NWO-FG	3/4-16	9/16-18	3/4-16	1.25	1.32	1.25	0.688	0.750
6804-08-08-04-NWO-FG	3/4-16	3/4-16	7/16-20	1.25	1.45	1.12	0.875	0.750
6804-08-08-08-NWO-FG	3/4-16	3/4-16	3/4-16	1.25	1.45	1.25	0.875	0.750
6804-08-10-08-NWO-FG	3/4-16	7/8-14	3/4-16	1.33	1.70	1.33	1.000	0.875
6804-08-12-04-NWO-FG	3/4-16	1-1/16-12	7/16-20	1.42	1.94	1.30	1.250	1.062
6804-08-12-08-NWO-FG	3/4-16	1-1/16-12	3/4-16	1.42	1.94	1.42	1.250	1.062
6804-10-08-10-NWO-FG	7/8-14	3/4-16	7/8-14	1.45	1.54	1.45	0.875	0.875
6804-10-10-10-NWO-FG	7/8-14	7/8-14	7/8-14	1.45	1.70	1.45	1.000	0.875
6804-10-12-06-NWO-FG	7/8-14	1-1/16-12	9/16-18	1.54	1.94	1.54	1.250	1.062
6804-10-12-10-NWO-FG	7/8-14	1-1/16-12	7/8-14	1.54	1.94	1.54	1.250	1.062
6804-10-16-08-NWO-FG	7/8-14	1-5/16-12	3/4-16	1.64	2.05	1.64	1.500	1.312
6804-12-08-12-NWO-FG	1-1/16-12	3/4-16	1-1/16-12	1.66	1.62	1.66	0.875	1.062
6804-12-10-12-NWO-FG	1-1/16-12	7/8-14	1-1/16-12	1.66	1.78	1.66	1.000	1.062
6804-12-12-06-NWO-FG	1-1/16-12	1-1/16-12	9/16-18	1.66	1.94	1.66	1.250	1.062
6804-12-12-08-NWO-FG	1-1/16-12	1-1/16-12	3/4-16	1.66	1.94	1.42	1.250	1.062
6804-12-12-10-NWO-FG	1-1/16-12	1-1/16-12	7/8-14	1.66	1.94	1.66	1.250	1.062
6804-12-12-12-NWO-FG	1-1/16-12	1-1/16-12	1-1/16-12	1.66	1.94	1.66	1.250	1.062
6804-12-12-16-NWO-FG	1-1/16-12	1-1/16-12	1-5/16-12	1.76	2.05	1.76	1.250	1.312
6804-12-16-12-NWO-FG	1-1/16-12	1-5/16-12	1-1/16-12	1.76	2.05	1.76	1.500	1.312

6804-14-14-14-NWO-FG	1-3/16-12	1-3/16-12	1-3/16-12	1.80	2.00	1.80	1.375	1.312
6804-16-12-16-NWO-FG	1-5/16-12	1-1/16-12	1-5/16-12	1.81	2.05	1.81	1.250	1.312
6804-16-16-12-NWO-FG	1-5/16-12	1-5/16-12	1-1/16-12	1.81	2.05	1.81	1.500	1.312
6804-16-16-16-NWO-FG	1-5/16-12	1-5/16-12	1-5/16-12	1.81	2.05	1.81	1.500	1.312
6804-20-20-20N WO-FG	1-5/8-12	1-5/8-12	1-5/8-12	2.06	2.25	2.06	1.875	1.625
6804-24-24-24-NWO-FG	1-7/8-12	1-7/8-12	1-7/8-12	2.33	2.39	2.33	2.125	1.875
6804-32-32-32-NWO-FG	2-1/2-12	2-1/2-12	2-1/2-12	3.06	2.89	3.06	2.750	2.500

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
