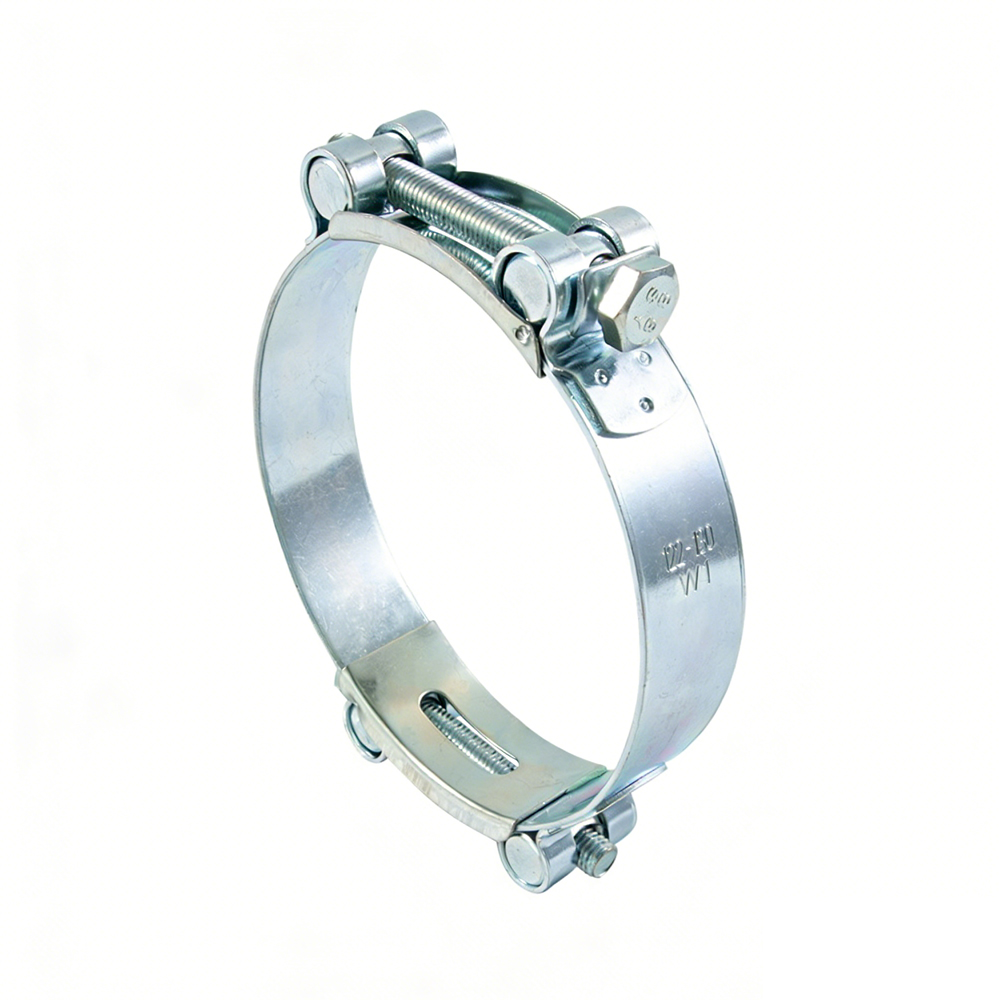

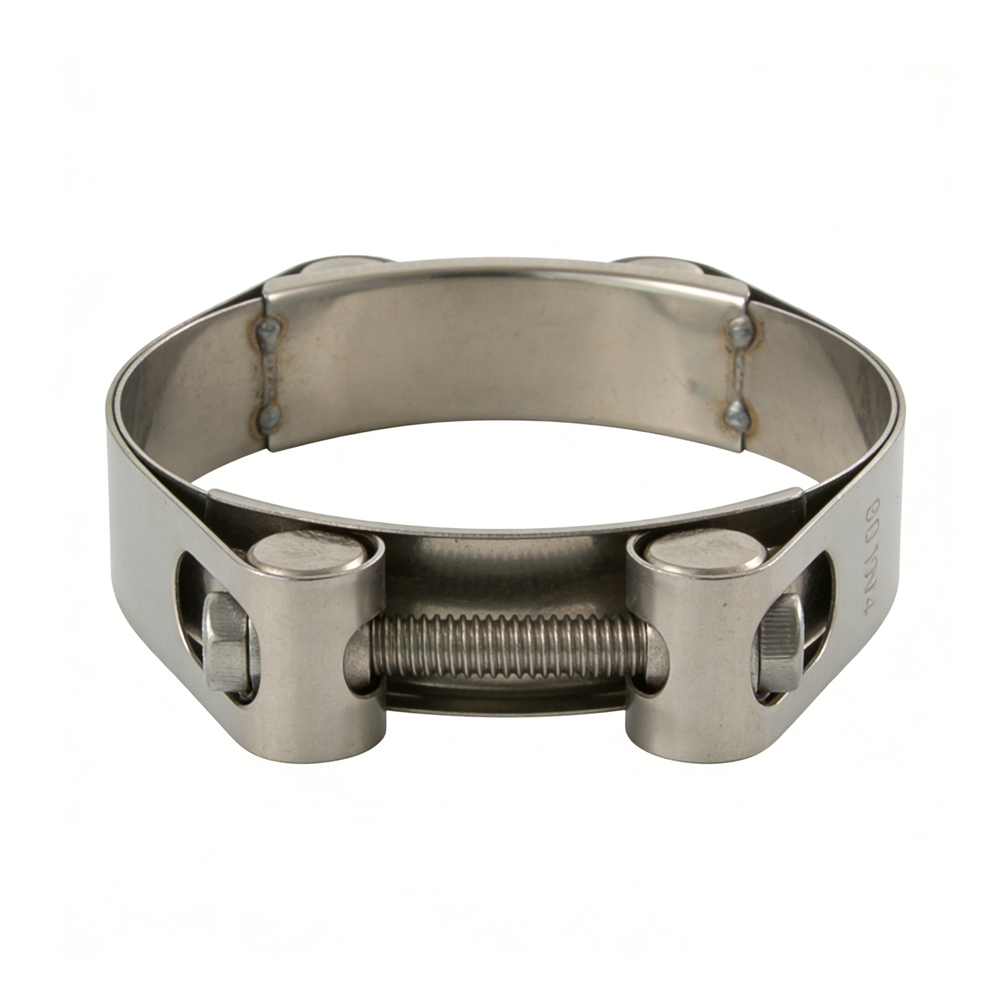

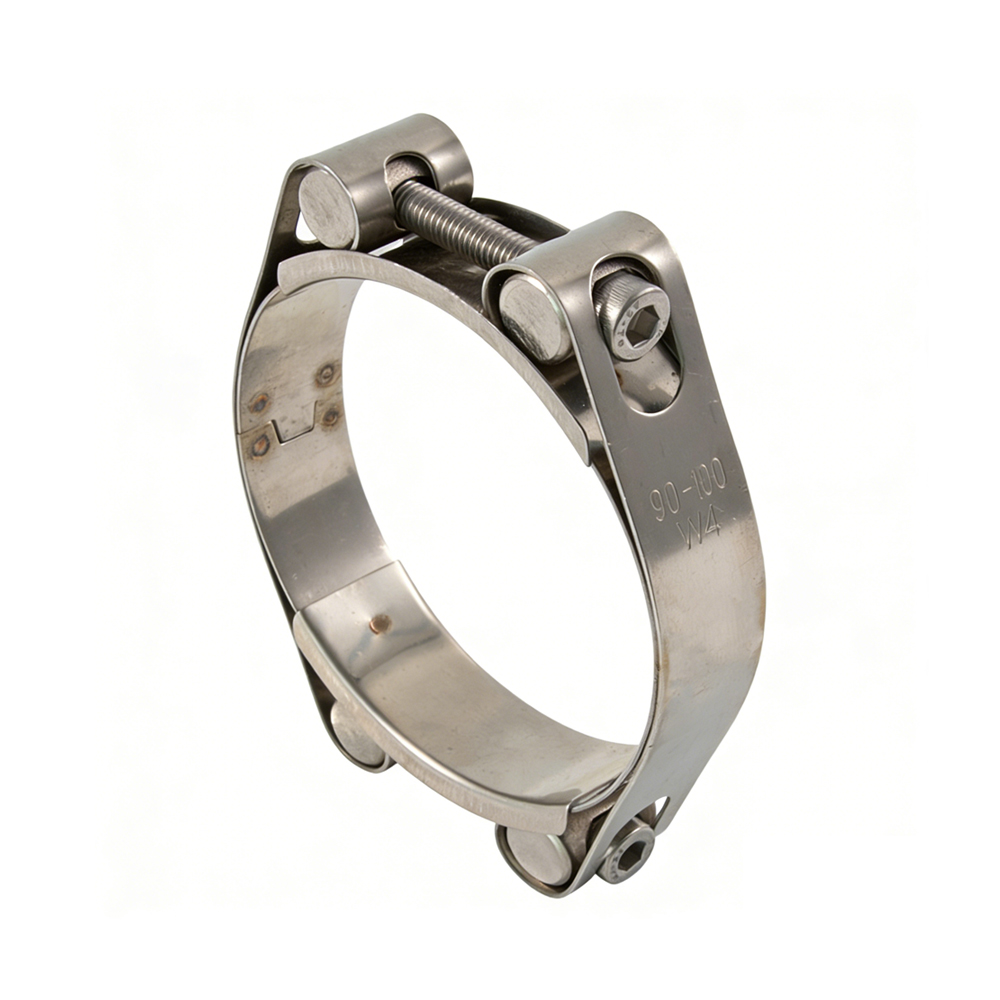

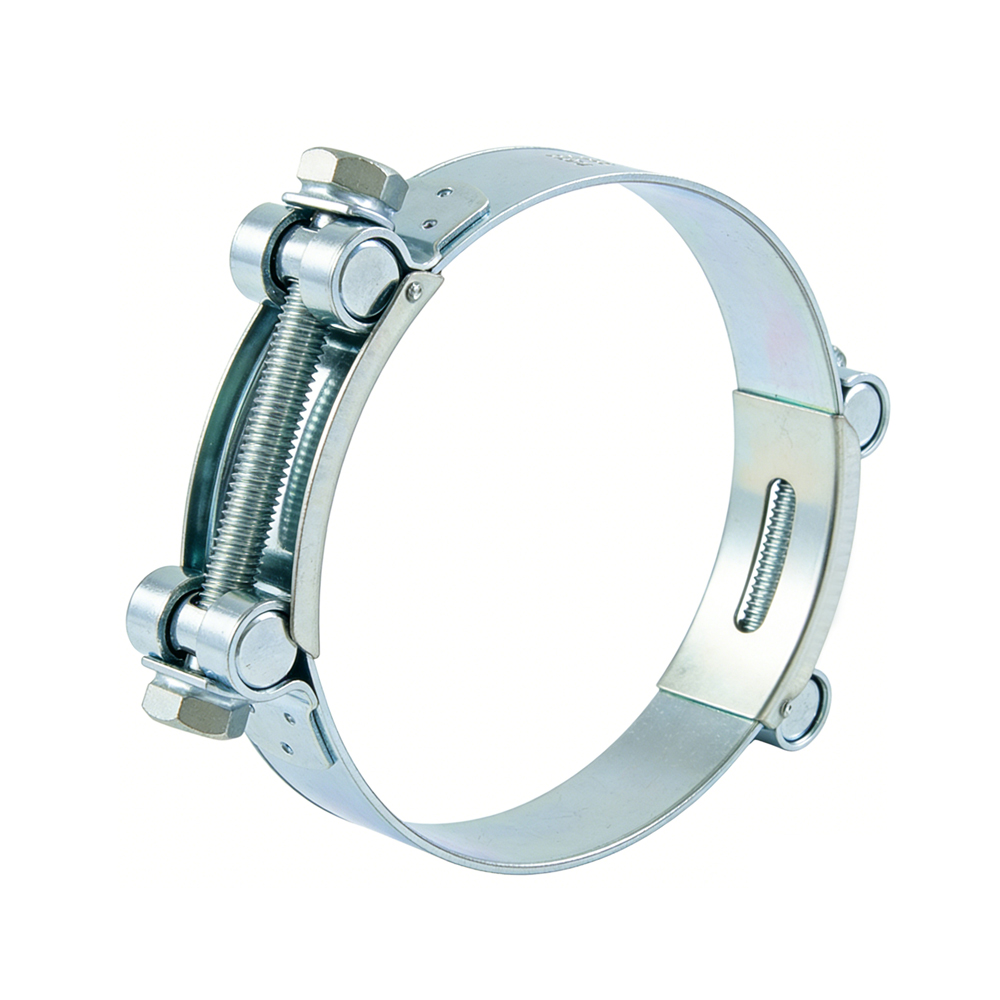

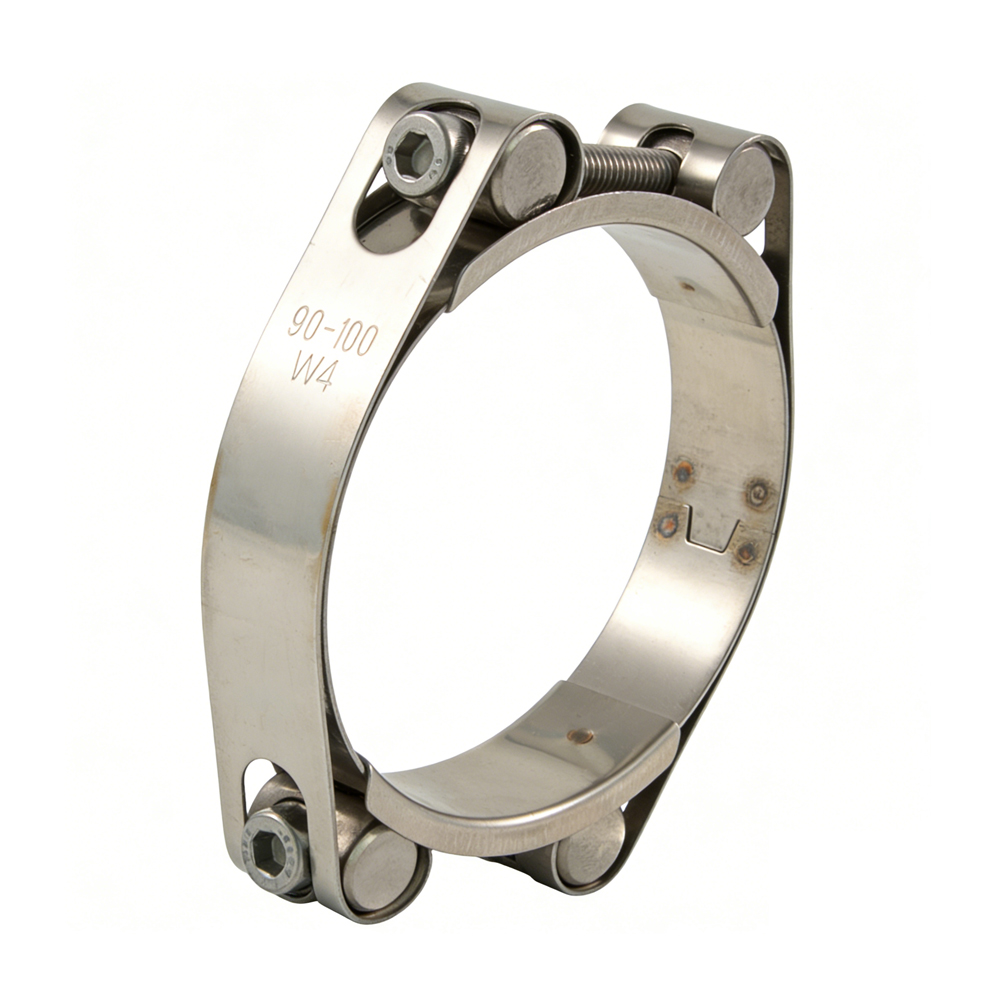

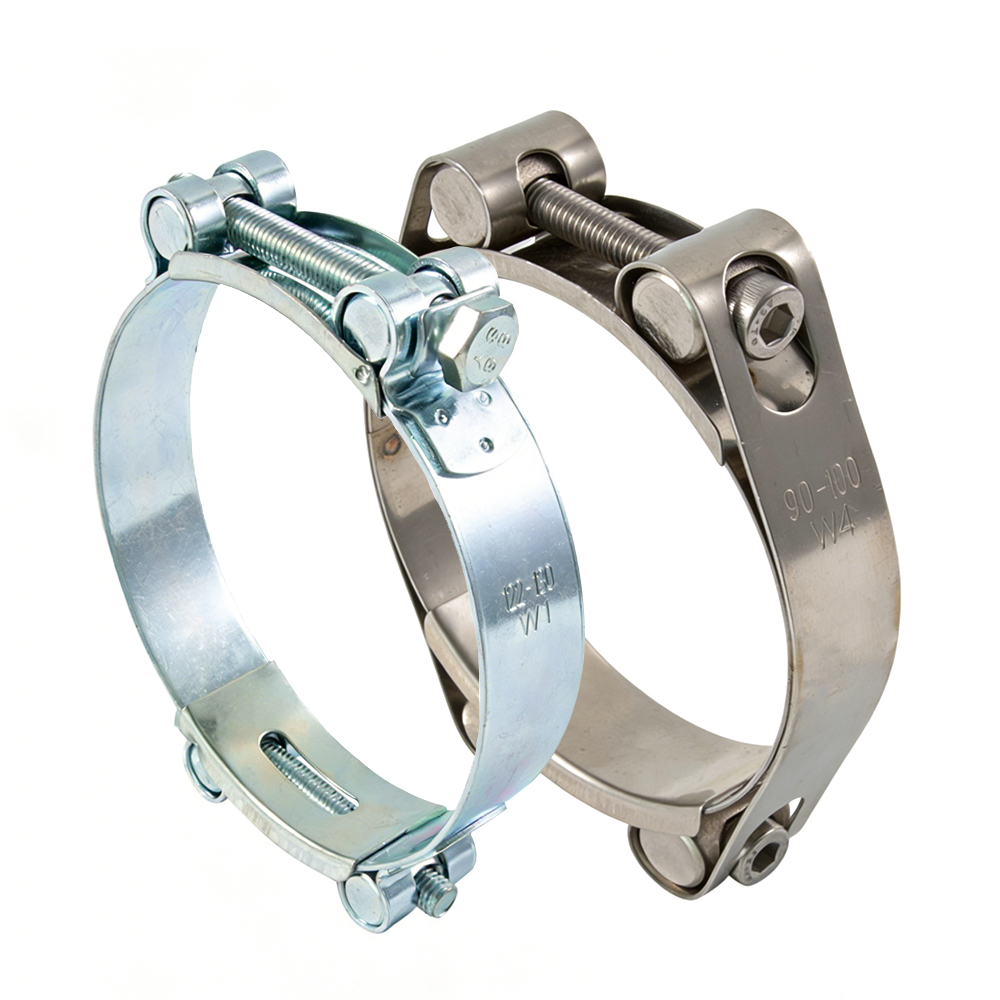

T Bolt Hose Clamps are heavy-duty fastening solutions engineered for high-pressure and high-vibration environments. With a reinforced band and a secure T-bolt locking mechanism, they deliver exceptional clamping force and a complete 360-degree seal, guaranteeing leak-proof connections for hoses and ducts. Suitable for a wide range of applications across automotive, industrial, marine, and agricultural sectors.
| Size | screw | Band Size | Thickness | Install Torque | Pcs/CTN |
| mm | mm | mm | mm | Nm | |
| 35-45 | M6*45 | 20 | 1 | 9Nm | 100 |
| 40-50 | 100 | ||||
| 45-55 | 100 | ||||
| 50-60 | 100 | ||||
| 55-65 | 100 | ||||
| 60-70 | 100 | ||||
| 65-75 | 100 | ||||
| 70-80 | 100 | ||||
| 75-85 | 100 | ||||
| 80-90 | 100 | ||||
| 85-95 | 100 | ||||
| 67-70 | M8*60 | 24 | 1 | 18Nm | 50 |
| 70-80 | 50 | ||||
| 80-90 | 50 | ||||
| 90-100 | 50 | ||||
| 100-110 | 50 | ||||
| 110-120 | 50 | ||||
| 120-130 | 50 | ||||
| 130-140 | 50 | ||||
| 140-150 | 50 | ||||
| 150-160 | 50 | ||||
| 160-170 | 50 | ||||
| 170-180 | 50 | ||||
| 180-190 | 25 | ||||
| 190-200 | 25 | ||||
| 200-210 | 25 | ||||
| 210-220 | 25 | ||||
| 220-230 | 25 | ||||
| 230-240 | 25 | ||||
| 240-250 | 25 | ||||
| 250-260 | 25 | ||||
| 260-270 | 25 | ||||
| 270-280 | 25 | ||||
| 290-300 | 25 |
Larger sizes are available according to customer’s requirement.
NOTE:
W1: All material Galvanized Carbon Steel, Zinc Plated Steel
W2: All material Stainless steel 201 or 301 or 304 with Galvanized Screw,
W4: All material Stainless steel 201,301,304,
W5: All material Stainless steel 316.
