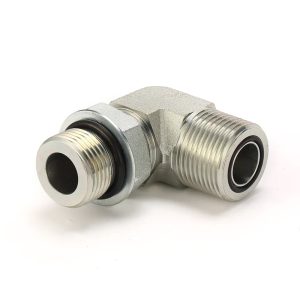

O-Ring Face Seal adapter [ORFS] fittings use a straight thread with a machined groove in the face of the male fitting to accept an O-Ring. Combined with a female fitting, this creates a leak-proof seal. Topol Power manufactures a comprehensive range of precision dapters to accommodate diverse hydraulic configuration requirements.
| PART NO. | THREAD | INCH SLEEVE | METRIC SLEEVE | DIMENSIONS | |||
| E | O.D. | NO. | O.D. | NO. | L | S2 | |
| NB200-04F | 9/16″X18 | 1/4″ | NB300-04F | 6 | NB500-06F | 14.7 | 19 |
| NB200-06F | 11/16″X16 | 3/8″ | NB300-06F | 10 | NB500-10F | 17 | 22 |
| NB200-08F | 13/16″X16 | 1/2″ | NB300-08F | 12 | NB500-12F | 21 | 27 |
| NB200-10F | 1″X14 | 5/8″ | NB300-10F | 16 | NB500-16F | 23.5 | 30 |
| NB200-12F | 1.3/16″X12 | 3/4″ | NB300-12F | 20 | NB500-20F | 26 | 36 |
| NB200-16F | 1.7/16″X12 | 1″ | NB300-16F | 25 | NB500-25F | 27.8 | 41 |
| NB200-20F | 1.11/16″X12 | 1.1/4″ | NB300-20F | 30 | NB500-30F | 27.8 | 50 |
| NB200-24F | 2″X12 | 1.1/2″ | NB300-24F | 38 | NB500-38F | 27.8 | 60 |
