26798-R5 90° Elbow Female JIC Resuable Hose Fittings

Description:

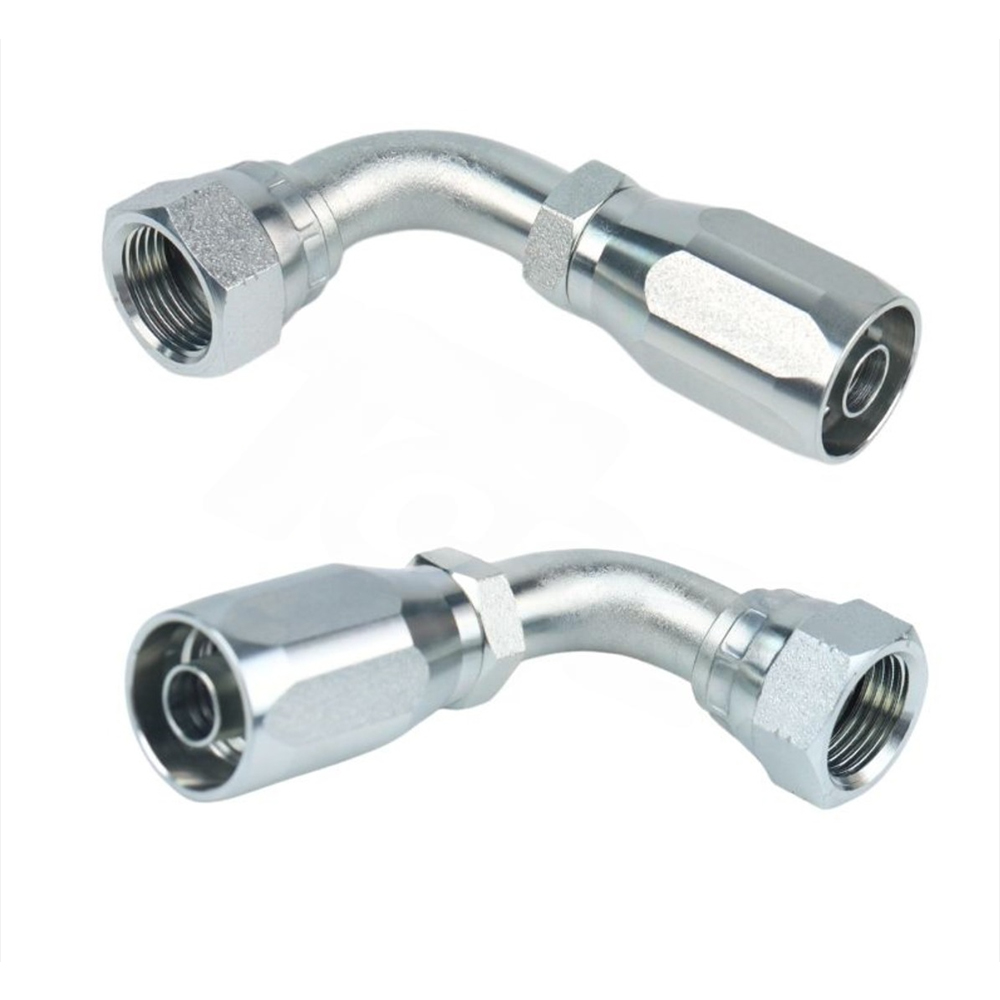

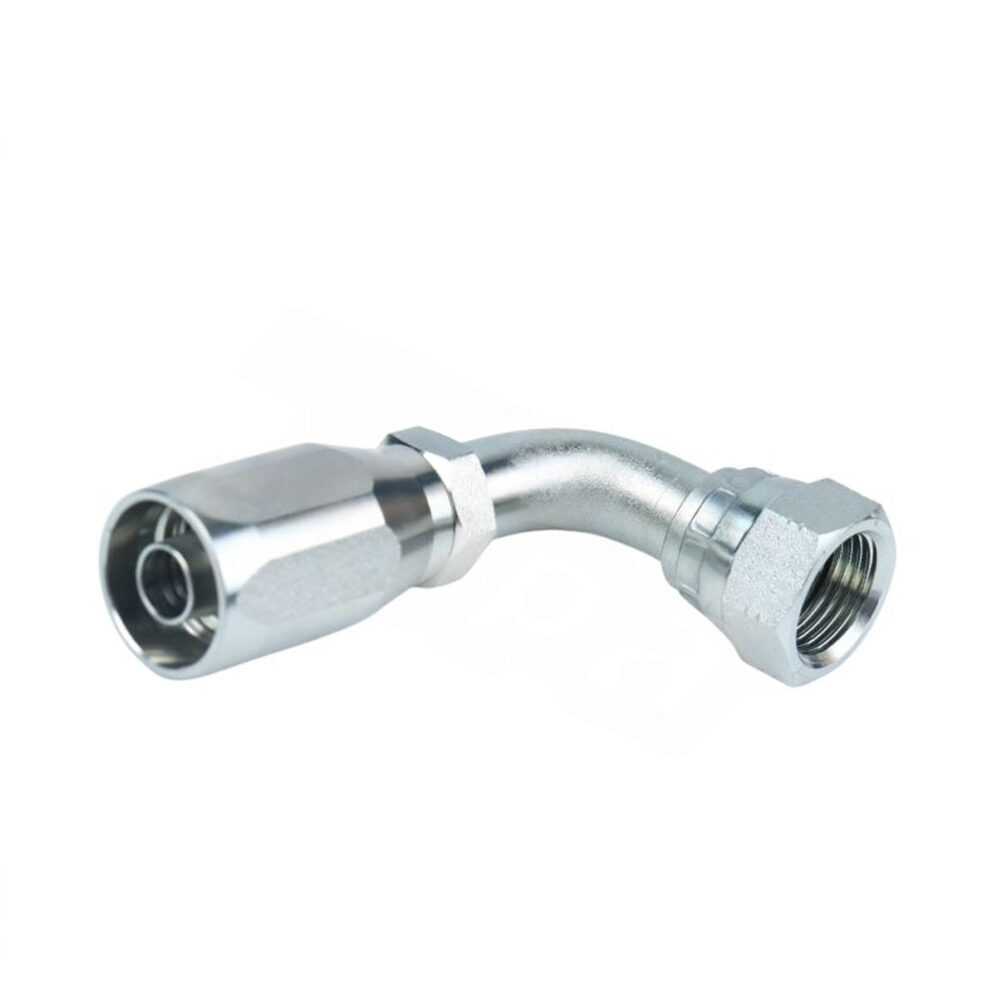

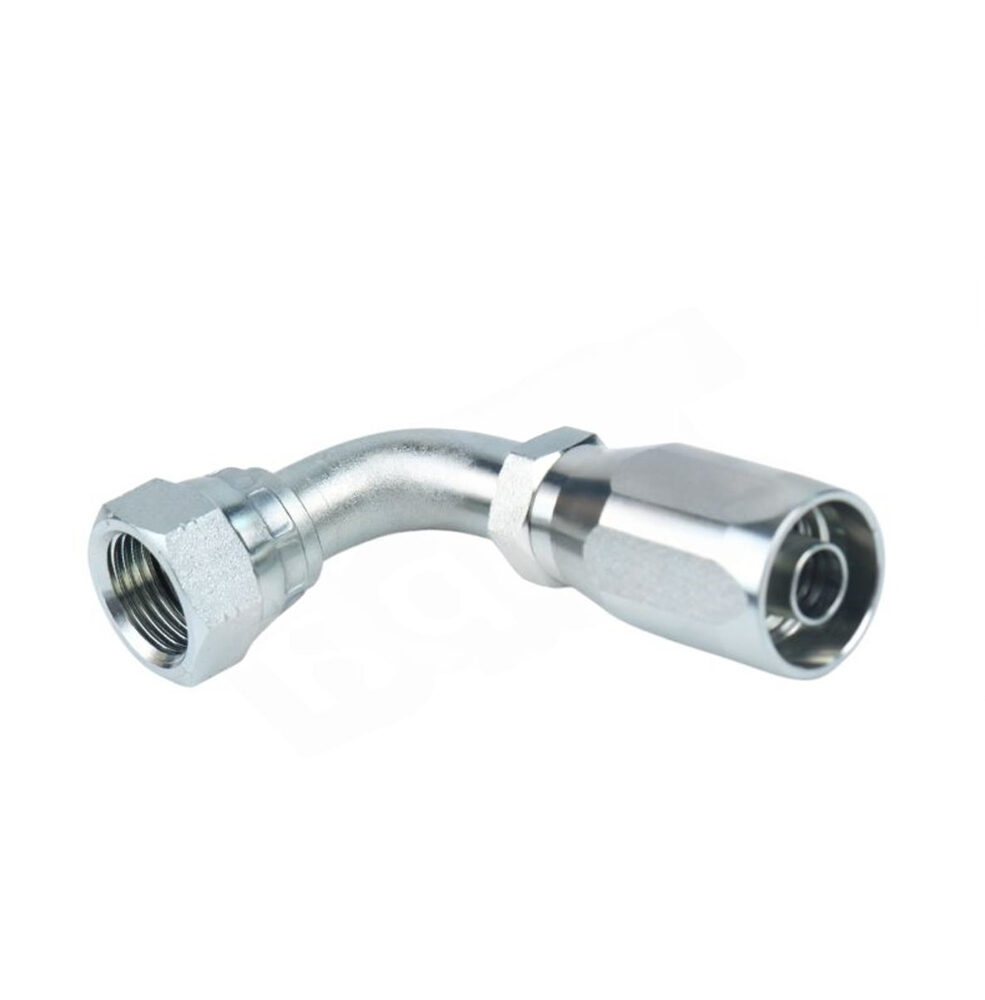

The 26798D 90° reusable JIC hydraulic fitting is a female swivel hydraulic hose fitting with a 74-degree cone seat thread and a 90-degree elbow. The 26798D 90° reusable JIC hydraulic fitting serves as an alternative to the crimp hose fitting.

Category: Resuable Hose Fittings Tags: Carbon Steel, 90 Degree Elbow, JIC, Resuable

Description
Package& Shipping

Description

Reusable hose fittings are also known as field installable fittings. Assembly can be accomplished with hand wrenches. Reusable hydraulic hose fitting installed on hydraulic hoses SAE100R1, SAE100R2 SAE100R5, PTFE, and other types. Topol Power offers a wide range of reusable hydraulic hose fittings, including reusable hydraulic hose fittings, brake reusable fittings and PTFE reusable fittings.

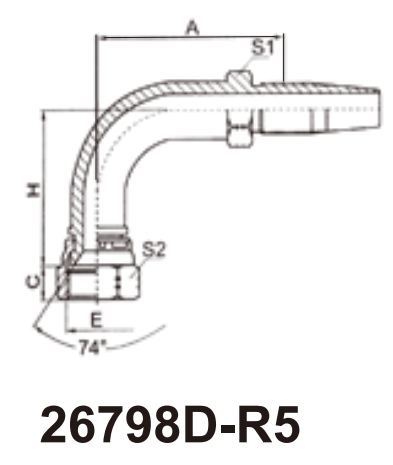

PART NO	THREAD E	HOSE DASH	DIMENSIONS
PART NO	THREAD E	HOSE DASH	A	C	H	S1	S2
26798D-04-04(R5)	7/16″X20	04	38.5	9	33.5	14	15
26798D-05-05(R5)	1/2″X20	05	43.4	9.5	37	14	17
26798D-06-06(R5)	9/16″X18	06	44.8	10.5	39.3	17	19
26798D-08-08(R5)	3/4″X16	08	53	11	47.5	19	24
26798D-10-10(R5)	7/8″X14	10	66.5	13	52.5	24	27
26798D-12-12(R5)	1.1/16″X12	12	79.5	15	63.5	27	32
26798D-16-16(R5)	1.5/16″X12	16	86.5	16	70	32	41
26798D-20-20(R5)W	1.5/8″X12	20	100.5	17	85	38	50
26798D-24-24(R5)W	1.7/8″X12	24	121	20	97.5	46	55
26798D-32-32(R5)W	2.1/2″X12	32	143.3	23.5	118.8	60	75

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
