Hydraulic NPT fitting comes in a variety of sizes and threads, such as JIC to NPT, NPT to BSP, NPT to metric, and ORFS to NPT thread. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

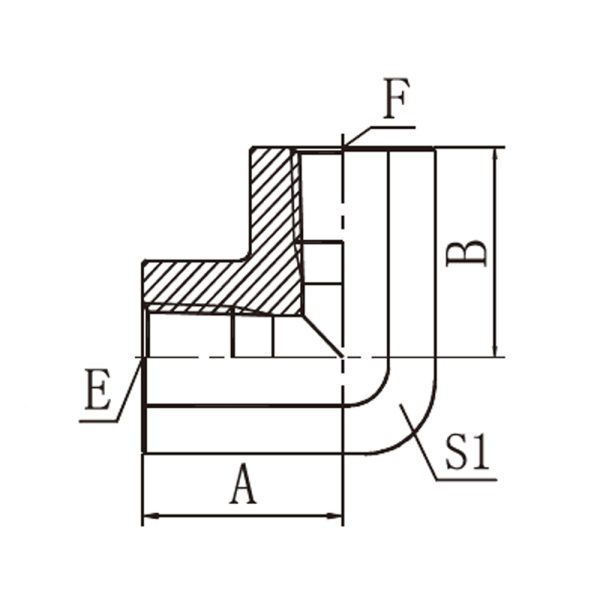

| PART NO. | THREAD | DIMENSIONS | |||
| E | F | A | B | S1 | |
| 7N9-02 | Z1/8″X27 | Z1/8″X27 | 20 | 20 | 16 |
| 7N9-04 | Z1/4″X18 | Z1/4″X18 | 22.5 | 22.5 | 19 |
| 7N9-04-06 | Z1/4″X18 | Z3/8″X18 | 25 | 26 | 24 |
| 7N9-06 | Z3/8″X18 | Z3/8″X18 | 26 | 26 | 24 |
| 7N9-08 | Z1/2″X14 | Z1/2″X14 | 31 | 31 | 27 |
| 7N9-12 | Z3/4″X14 | Z3/4″X14 | 34 | 34 | 33 |
| 7N9-16 | Z1″X11.5 | Z1″X11.5 | 42 | 42 | 41 |
| 7N9-20 | Z1.1/4″X11.5 | Z1.1/4″X11.5 | 48 | 48 | 50 |
| 7N9-24 | Z1.1/2″X11.5 | Z1.1/2″X11.5 | 53 | 53 | 60 |
| 7N9-32 | Z2″X11.5 | Z2″X11.5 | 62 | 62 | 70 |
