Hydraulic NPT fitting comes in a variety of sizes and threads, such as JIC to NPT, NPT to BSP, NPT to metric, and ORFS to NPT thread. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

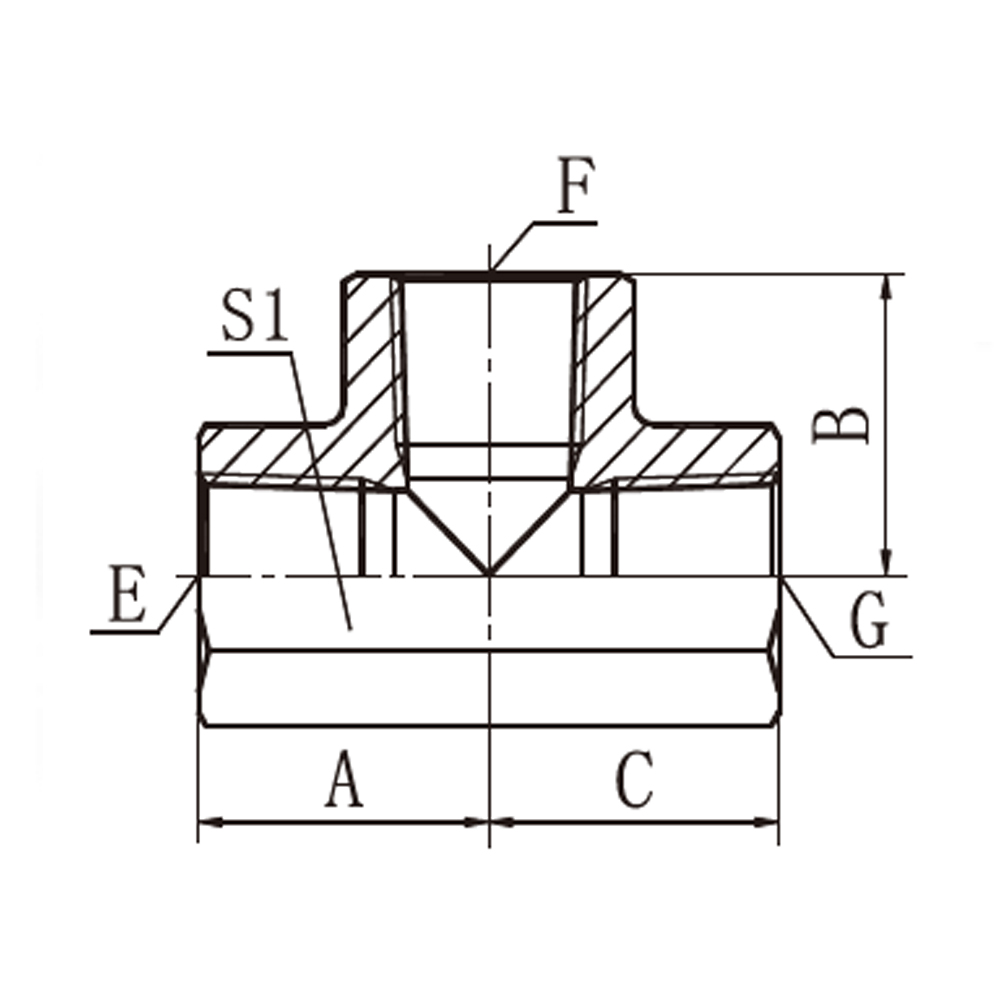

| PART NO. | THREAD | DIMENSIONS | |||
| E,F,G | A | B | C | S1 | |
| GN-02 | Z1/8″X27 | 20 | 20 | 20 | 16 |
| GN-04 | Z1/4″X18 | 22.5 | 22.5 | 22.5 | 19 |
| GN-06 | Z3/8″X18 | 26 | 26 | 26 | 24 |
| GN-08 | Z1/2″X14 | 31 | 31 | 31 | 27 |
| GN-12 | Z3/4″X14 | 34 | 34 | 34 | 33 |
| GN-16 | Z1″X11.5 | 42 | 42 | 42 | 41 |
| GN-20 | Z1.1/4″X11.5 | 48 | 48 | 48 | 50 |
| GN-24 | Z1.1/2″X11.5 | 53 | 53 | 53 | 60 |
| GN-32 | Z2″X11.5 | 62 | 62 | 62 | 70 |
