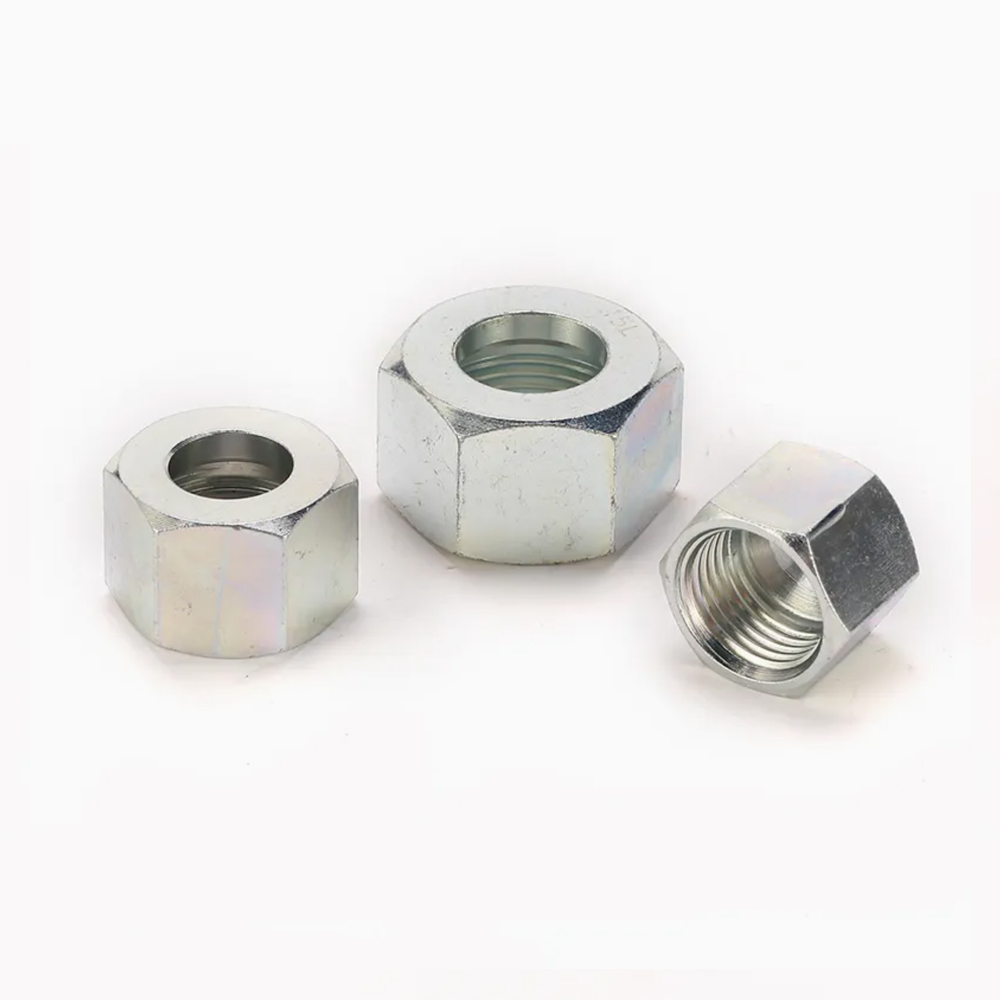

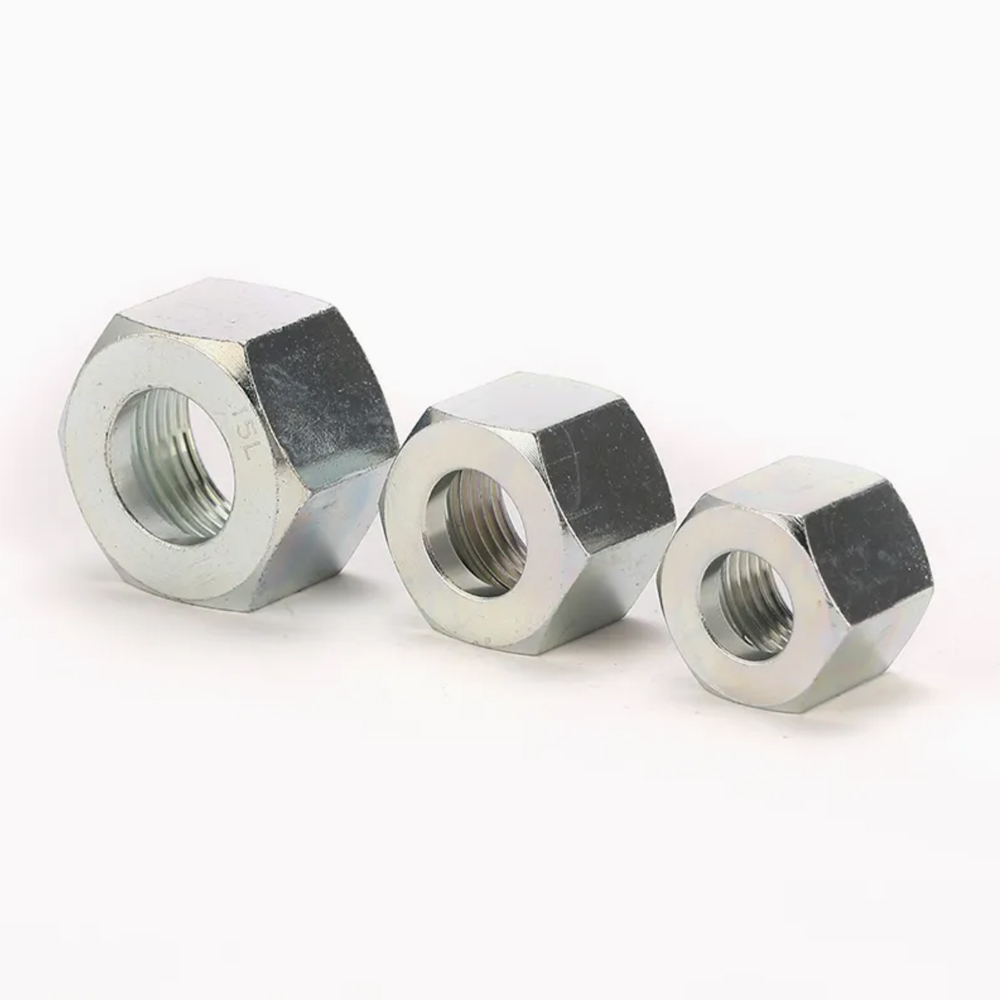

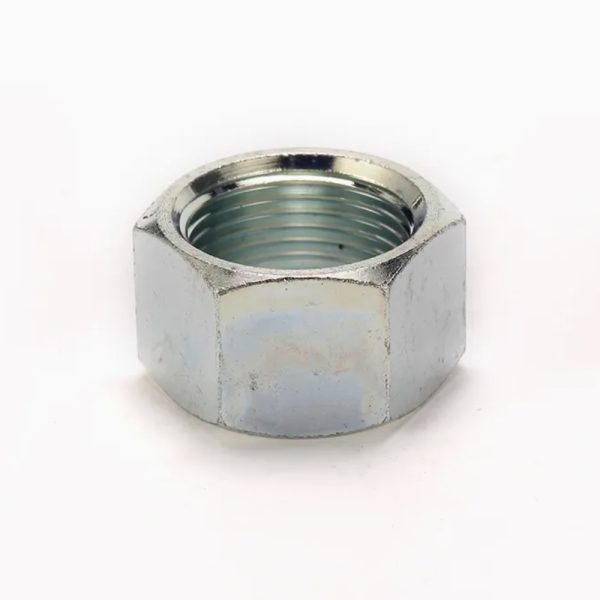

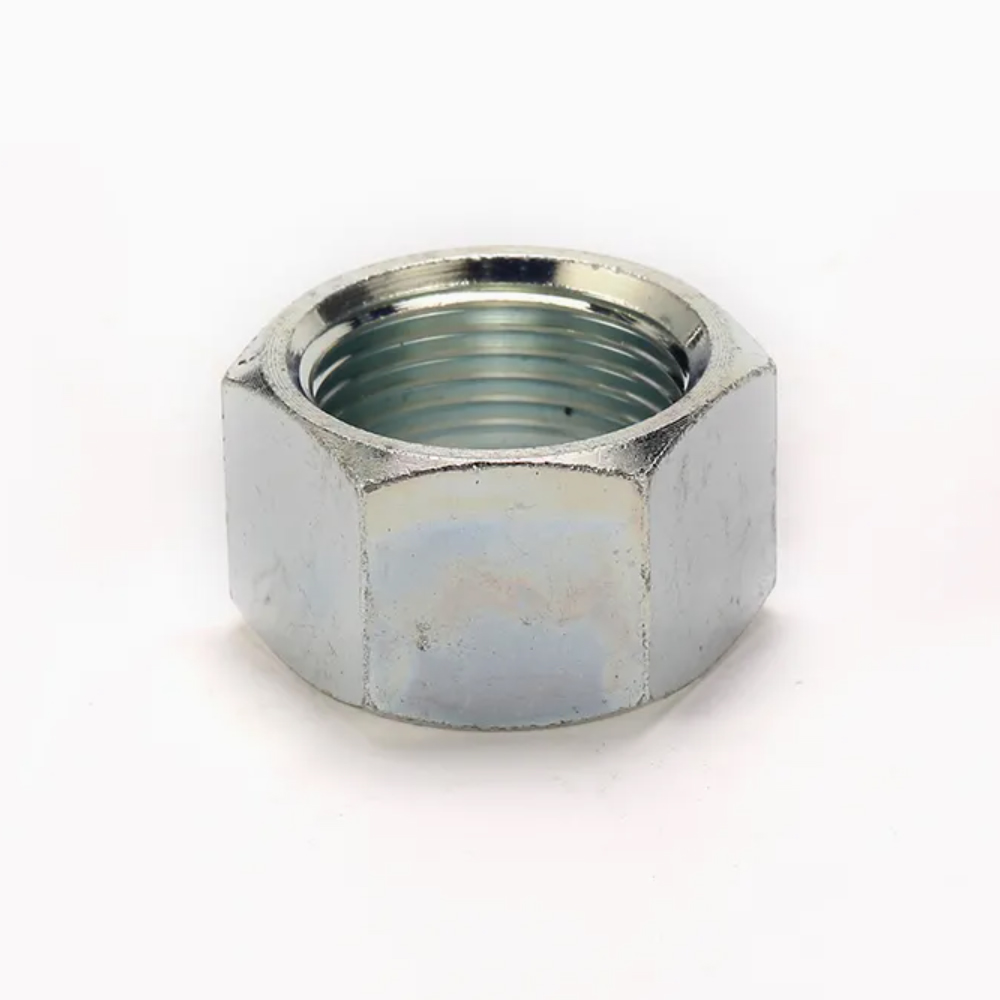

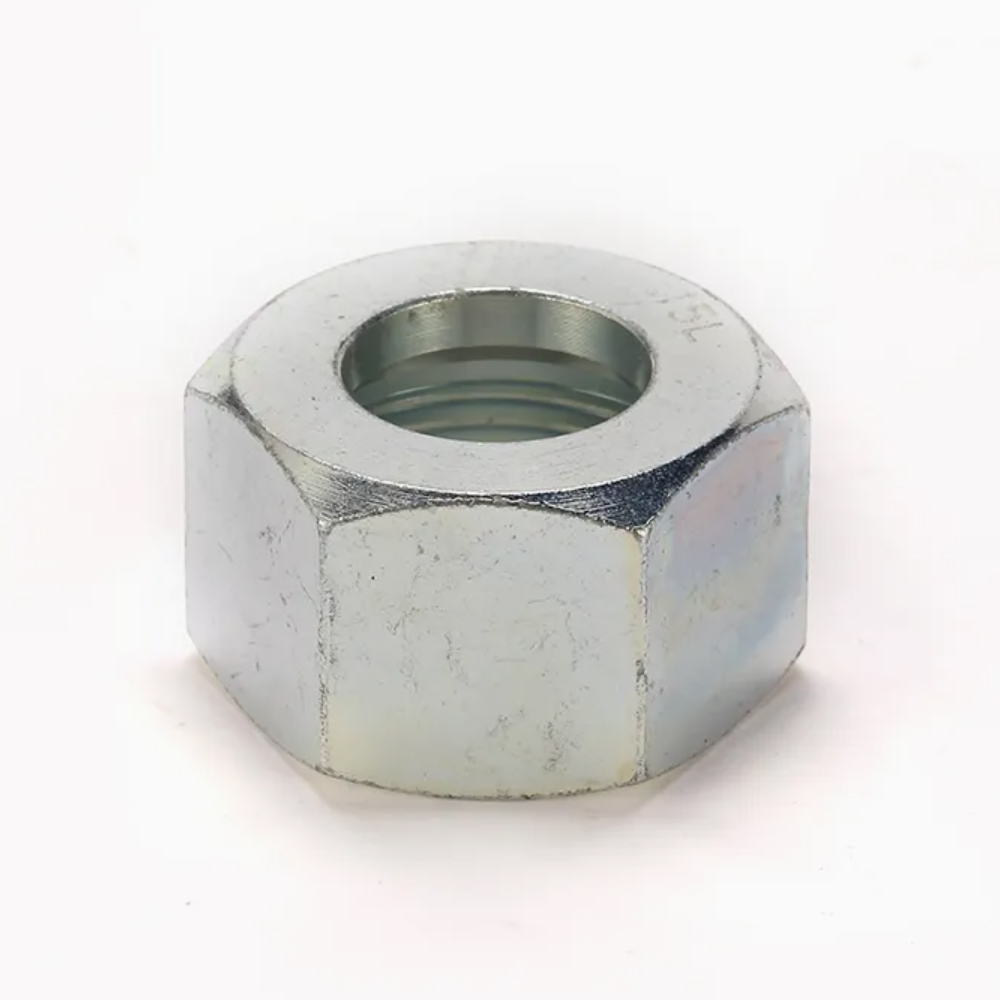

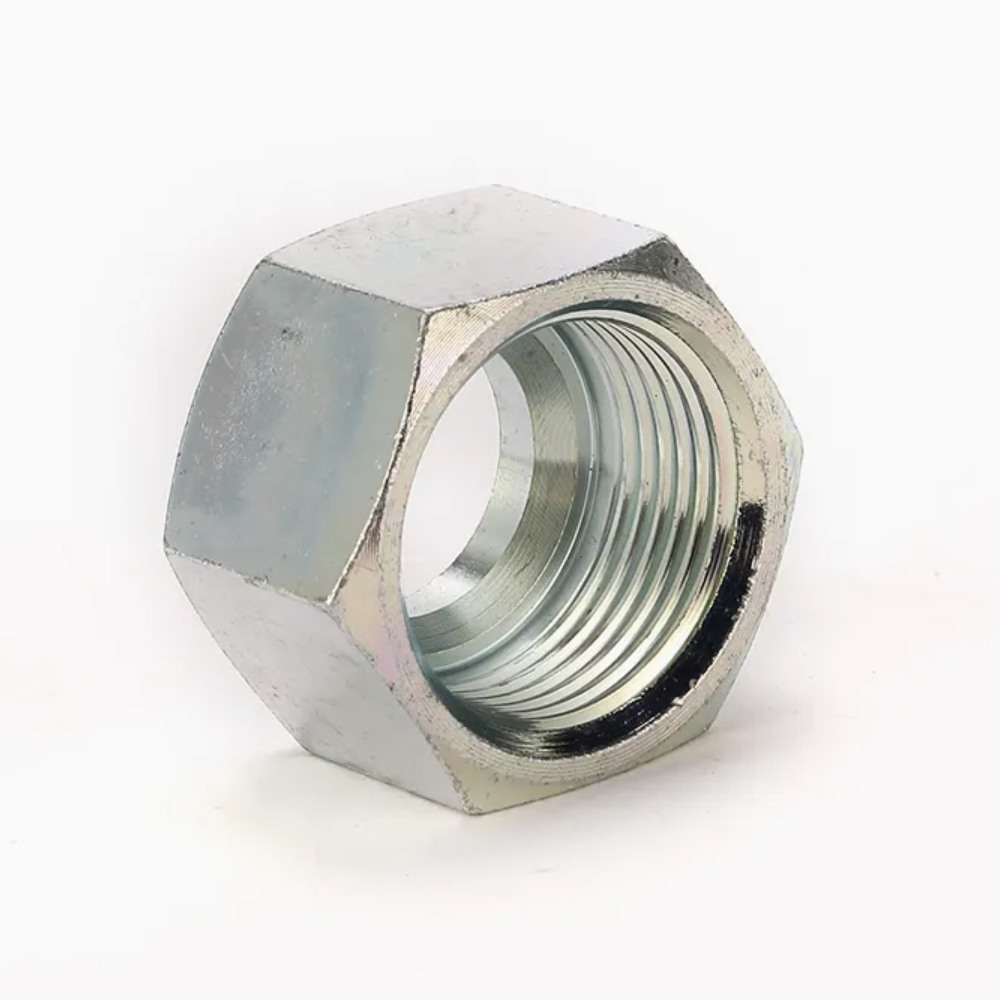

NL NS Retaining Nuts Hydraulic Adapter

Description:

NL/NS metric nut is a type of hydraulic fitting that is commonly used in fluid power systems.

Category: DIN Hose Adapters Tags: Metric, NL, NS, Carbon Steel, O-ring

Description
Package& Shipping

Description

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	THREAD	TUBE O.D.	DIMENSIONS		REMARK

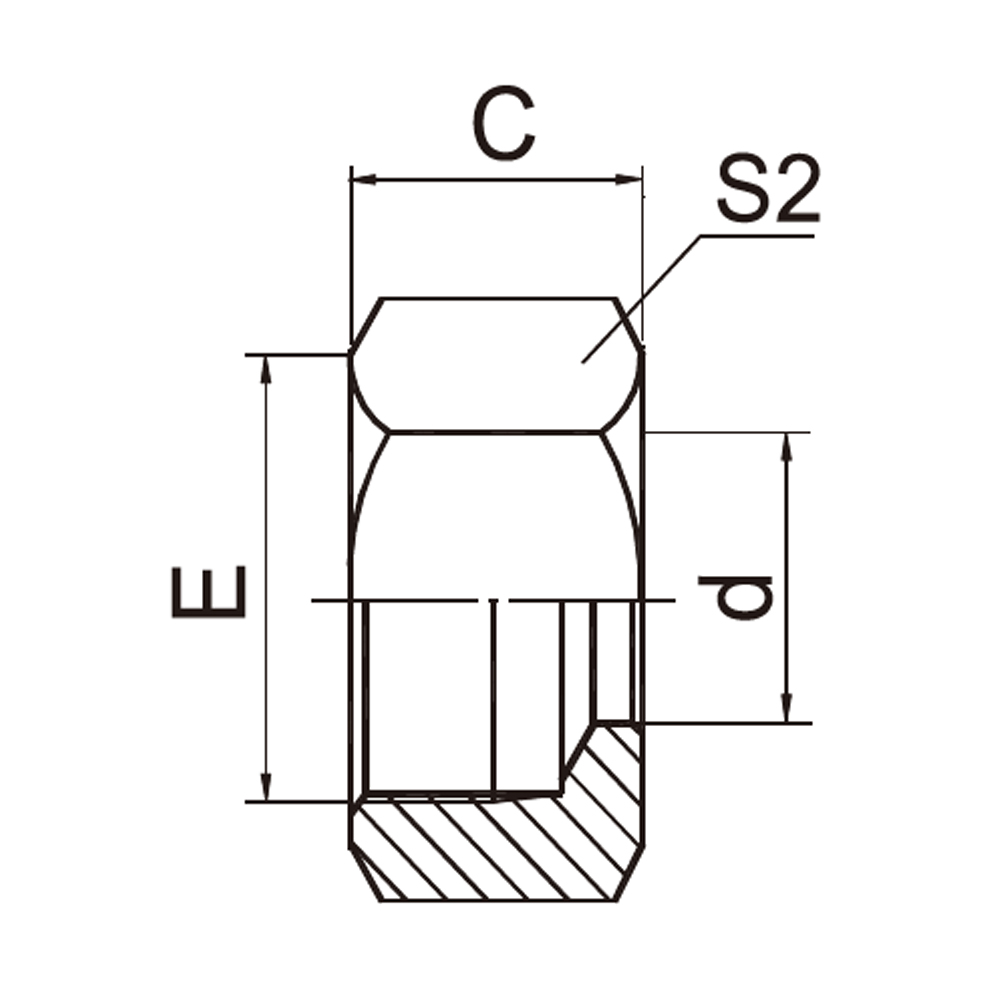

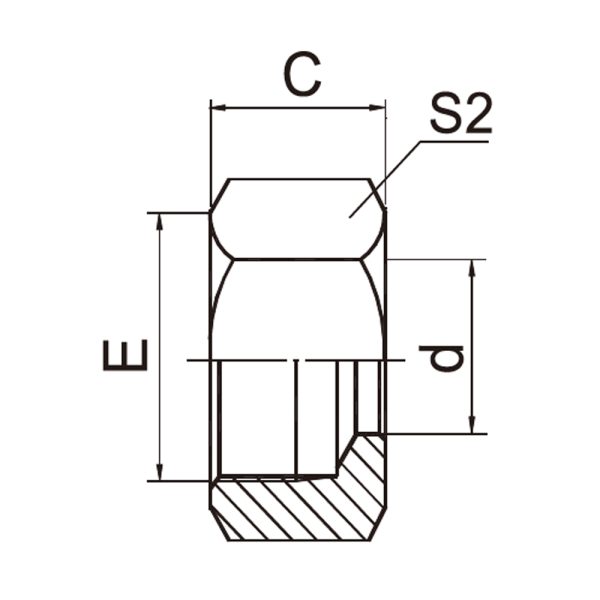

PART NO.	E	TUBE O.D.	C	S2	REMARK
NL-12	M12*1.5	6	14.5	14	NL
NL-14	M14*1.5	8	14.5	17
NL-16	M16*1.5	10	15.5	19
NL-18	M18*1.5	12	15.5	22
NL-22	M22*1.5	15	17	27
NL-26	M26*1.5	18	18	32
NL-30	M30*2	22	20	36
NL-36	M36*2	28	21	41
NL-45	M45*2	35	24	50
NL-52	M52*2	42	24	60
NS-12	M12*1.5	6	14.5	14	NS
NS-14	M14*1.5	8	14.5	17
NS-16	M16*1.5	10	15.5	19
NS-18	M18*1.5	12	15.5	22
NS-22	M22*1.5	15	17	27
NS-26	M26*1.5	18	18	32
NS-30	M30*2	22	20	36
NS-36	M36*2	28	21	41
NS-45	M45*2	35	24	50
NS-52	M52*2	42	24	60

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
