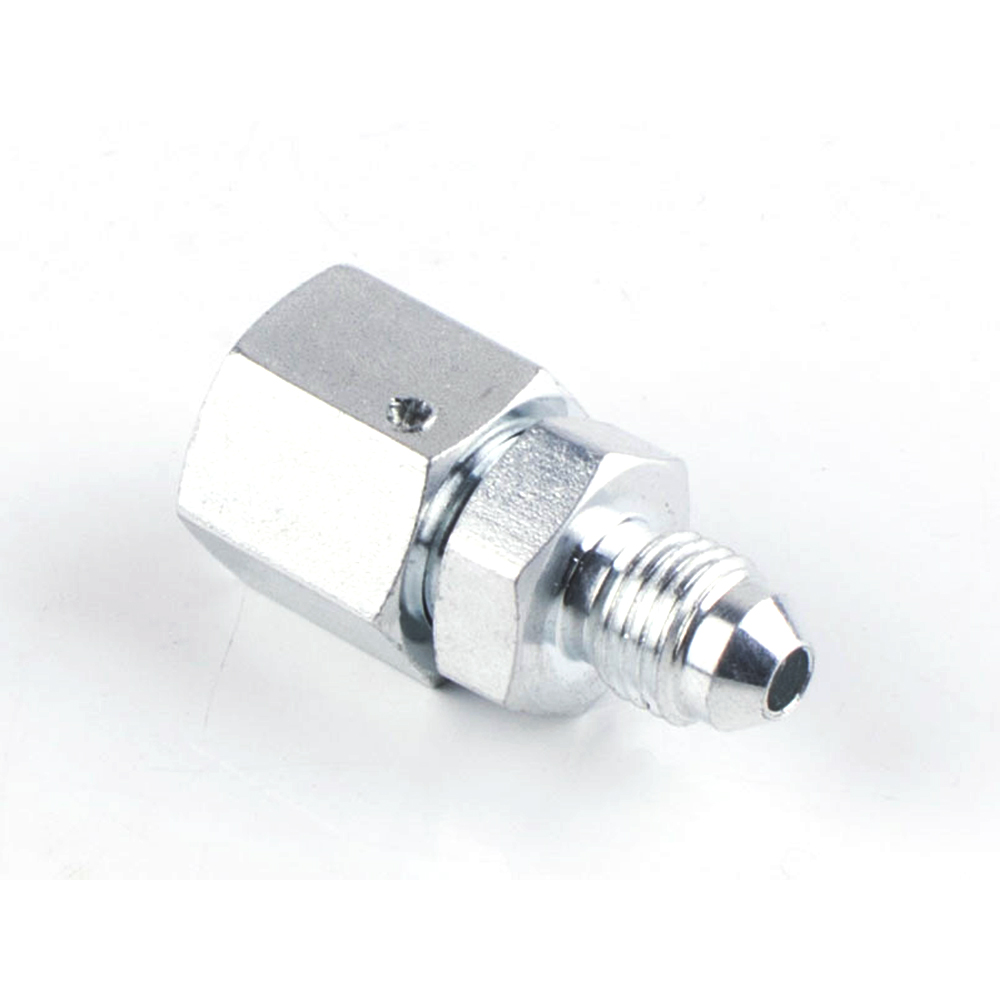

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

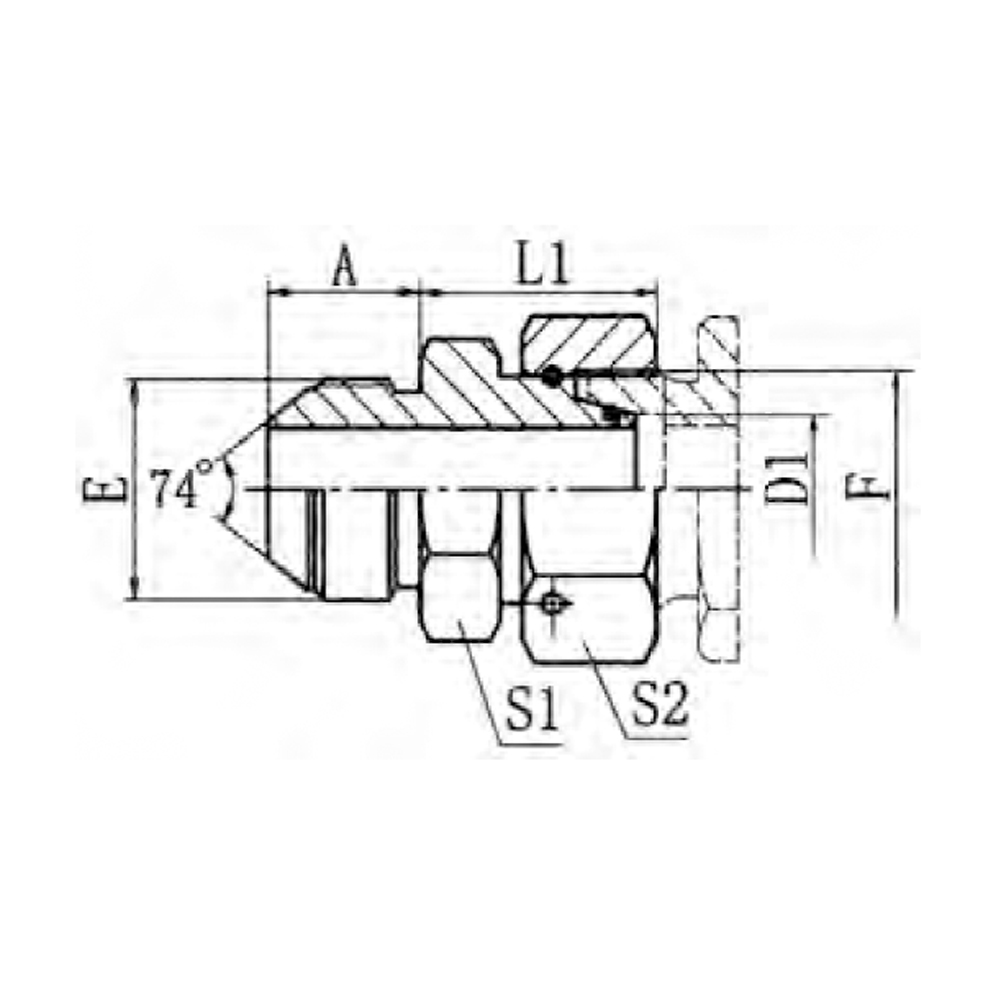

| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | ||||
| E | F | D1 | A | L1 | S1 | S2 | ||
| 2JC-04-12 | 7/16″X20 | M12X1.5 | 6 | 14 | 22 | 14 | 14 | 31.5 L series |
| 2JC-04-14 | 7/16″X20 | M14X1.5 | 8 | 14 | 22.1 | 14 | 17 | |
| 2JC-05-14 | 1/2″X20 | M14X1.5 | 8 | 14 | 22.1 | 14 | 17 | |
| 2JC-05-16 | 1/2″X20 | M16X1.5 | 10 | 14 | 22.7 | 17 | 19 | |
| 2JC-06-14 | 9/16″X18 | M14X1.5 | 8 | 14.1 | 22.5 | 17 | 17 | |
| 2JC-06-16 | 9/16″X18 | M16X1.5 | 10 | 14.1 | 22.6 | 17 | 19 | |
| 2JC-06-18 | 9/16″X18 | M18X1.5 | 12 | 14.1 | 25 | 17 | 22 | |
| 2JC-08-18 | 3/4″X16 | M18X1.5 | 12 | 16.7 | 26.4 | 22 | 22 | |
| 2JC-08-22 | 3/4″X16 | M22X1.5 | 15 | 16.7 | 28.3 | 22 | 27 | |
| 2JC-10-22 | 7/8″X14 | M22X1.5 | 15 | 19.3 | 27.6 | 24 | 27 | |
| 2JC-10-26 | 7/8″X14 | M26X1.5 | 18 | 19.3 | 31.2 | 27 | 32 | |
| 2JC-12-26 | 1.1/16″X12 | M26X1.5 | 18 | 21.9 | 32.1 | 30 | 32 | |
| 2JC-12-30 | 1.1/16″X12 | M30X2 | 22 | 21.9 | 33.6 | 30 | 36 | 16 L series |
| 2JC-16-36 | 1.5/16X12 | M36X2 | 28 | 23.1 | 36.4 | 36 | 41 | |
| 2JC-16-45 | 1.5/16X12 | M45X2 | 35 | 23.1 | 41.4 | 41 | 50 | |
| 2JC-20-45 | 1.5/8″X12 | M45X2 | 35 | 24.3 | 42.3 | 46 | 50 | |
| 2JC-20-52 | 1.5/8″X12 | M52X2 | 42 | 24.3 | 46.4 | 50 | 60 | |
| 2JC-24-52 | 1.7/8″X12 | M52X2 | 42 | 27.5 | 46.2 | 50 | 60 | |
| 2JD-04-14 | 7/16″X20 | M14X1.5 | 6 | 14 | 22.1 | 14 | 17 | 63 Series |
| 2JD-04-16 | 7/16″X20 | M16X1.5 | 8 | 14 | 22.7 | 17 | 19 | |
| 2JD-04-18 | 7/16″X20 | M18X1.5 | 10 | 14 | 24.8 | 17 | 22 | |
| 2JD-05-18 | 1/2″X20 | M18X1.5 | 10 | 14 | 24.8 | 17 | 22 | |
| 2JD-06-16 | 9/16″X18 | M16X1.5 | 8 | 14.1 | 22.6 | 17 | 19 | |
| 2JD-06-18 | 9/16″X18 | M18X1.5 | 10 | 14.1 | 24.7 | 17 | 22 | |
| 2JD-06-20 | 9/16″X18 | M20X1.5 | 12 | 14.1 | 28.4 | 19 | 24 | |
| 2JD-06-22 | 9/16″X18 | M22X1.5 | 14 | 14.1 | 28.8 | 22 | 27 | |
| 2JD-08-22 | 3/4″X16 | M22X1.5 | 14 | 16.7 | 28.7 | 22 | 27 | |
| 2JD-08-24 | 3/4″X16 | M24X1.5 | 16 | 16.7 | 30.9 | 24 | 30 | 40 Series |
| 2JD-10-30 | 7/8″X14 | M30X2 | 20 | 19.3 | 33.7 | 30 | 36 | |
| 2JD-10-36 | 7/8″X14 | M36X2 | 25 | 19.3 | 36.1 | 36 | 46 | |
| 2JD-12-30 | 1.1/16″X12 | M30X2 | 20 | 21.9 | 34.6 | 30 | 36 | |
| 2JD-12-36 | 1.1/16″X12 | M36X2 | 25 | 21.9 | 36.5 | 36 | 46 | |
| 2JD-16-42 | 1.5/16″X12 | M42X2 | 30 | 23.1 | 41.9 | 41 | 50 | |
| 2JD-20-42 | 1.5/8″X12 | M42X2 | 30 | 24.3 | 42.7 | 46 | 50 | |
| 2JD-20-52 | 1.5/8″X12 | M52X2 | 38 | 24.3 | 46.15 | 50 | 60 | |
| 2JD-24-52 | 1.7/8″X12 | M52X2 | 38 | 27.5 | 46.25 | 50 | 60 | |
