Topol Power as per the compatible crimped hydraulic fittings manufacturer could provide quality or reliability one piece fittings. We have Metric, JIC, NPTF, ORFS, and flange, we also havethe 43 series, 71 series, 77 series, 91 series and HY series. It could match most the brands of hydraulic hose, such as Parker, Manuli, Gates, and so on.

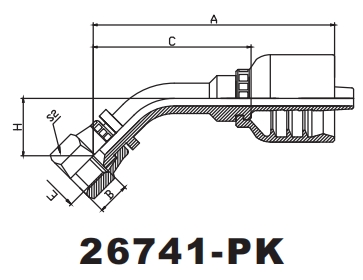

| PART NO | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | B | C | H | S2 | ||
| 26741-04-04PKAST | 7/16″X20 | 6 | 04 | 63.5 | 9 | 41.5 | 18 | 14 |
| 26741-06-04PKAST | 9/16″X18 | 6 | 04 | 68 | 10.2 | 46 | 18 | 19 |
| 26741-06-06PK AST | 9/16″X18 | 10 | 06 | 74.5 | 10.2 | 46 | 20 | 19 |
| 26741-08-06PKAST | 3/4″X16 | 10 | 06 | 79.5 | 10.8 | 51 | 20 | 24 |
| 26741-08-08PK AST | 3/4″X16 | 12 | 08 | 92.5 | 10.8 | 58.5 | 23.5 | 24 |
| 26741-10-10PKAST | 7/8″X14 | 16 | 10 | 109.5 | 12.3 | 70.7 | 25 | 27 |
| 26741-12-12PK AST | 1.1/16″X12 | 20 | 12 | 117.5 | 14.5 | 78.4 | 30 | 32 |
| 26741-16-16PK AST | 1.5/16″X12 | 25 | 16 | 127.5 | 15.5 | 82.7 | 31.5 | 38 |
