TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

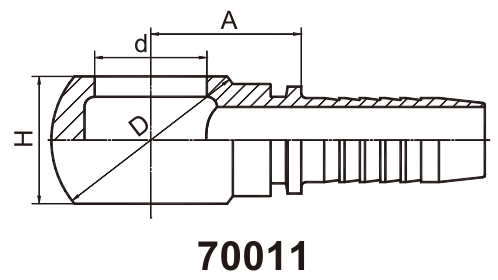

| PART NO | BOLT | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | d | D | H | ||
| 70011-10-03 | M10X1 | 5 | 03 | 14.5 | 10.1 | 17 | 10 |
| 70011-10-04 | M10X1 | 6 | 04 | 17 | 10.1 | 17 | 10 |
| 70011-12-04 | M12X1.5 | 6 | 04 | 20.5 | 12.1 | 20 | 12 |
| 70011-12-05 | M12X1.5 | 8 | 05 | 20.5 | 12.1 | 20 | 12 |
| 70011-12-06 | M12X1.5 | 10 | 06 | 20.5 | 12.1 | 20 | 12 |
| 70011-14-04 | M14X1.5 | 6 | 04 | 19 | 14.1 | 24 | 14 |
| 70011-14-05 | M14X1.5 | 8 | 05 | 19 | 14.1 | 24 | 14 |
| 70011-14-06 | M14X1.5 | 10 | 06 | 21 | 14.1 | 24 | 14 |
| 70011-16-04 | M16X1.5 | 6 | 04 | 20.5 | 16.1 | 28 | 16 |
| 70011-16-05 | M16X1.5 | 8 | 05 | 20.5 | 16.1 | 28 | 16 |
| 70011-16-06 | M16X1.5 | 10 | 06 | 20.5 | 16.1 | 28 | 16 |
| 70011-18-04 | M18X1.5 | 6 | 04 | 23 | 18.1 | 32 | 20 |
| 70011-18-05 | M18X1.5 | 8 | 05 | 24 | 18.1 | 32 | 20 |
| 70011-18-06 | M18X1.5 | 10 | 06 | 24 | 18.1 | 32 | 20 |
| 70011-18-08 | M18X1.5 | 12 | 08 | 24.5 | 18.1 | 32 | 20 |
| 70011-22-06 | M22X1.5 | 10 | 06 | 28.1 | 22.1 | 39 | 25 |
| 70011-22-08 | M22X1.5 | 12 | 08 | 28.5 | 22.1 | 39 | 25 |
| 70011-22-10 | M22X1.5 | 16 | 10 | 27.5 | 22.1 | 39 | 25 |
| 70011-26-12 | M26X1.5 | 20 | 12 | 30.5 | 26.1 | 46 | 30 |
| 70011-30-16 | M30X1.5 | 25 | 16 | 37 | 30.1 | 54 | 36 |
| 70011-30-20 | M30X1.5 | 32 | 20 | 41 | 30.1 | 54 | 36 |
