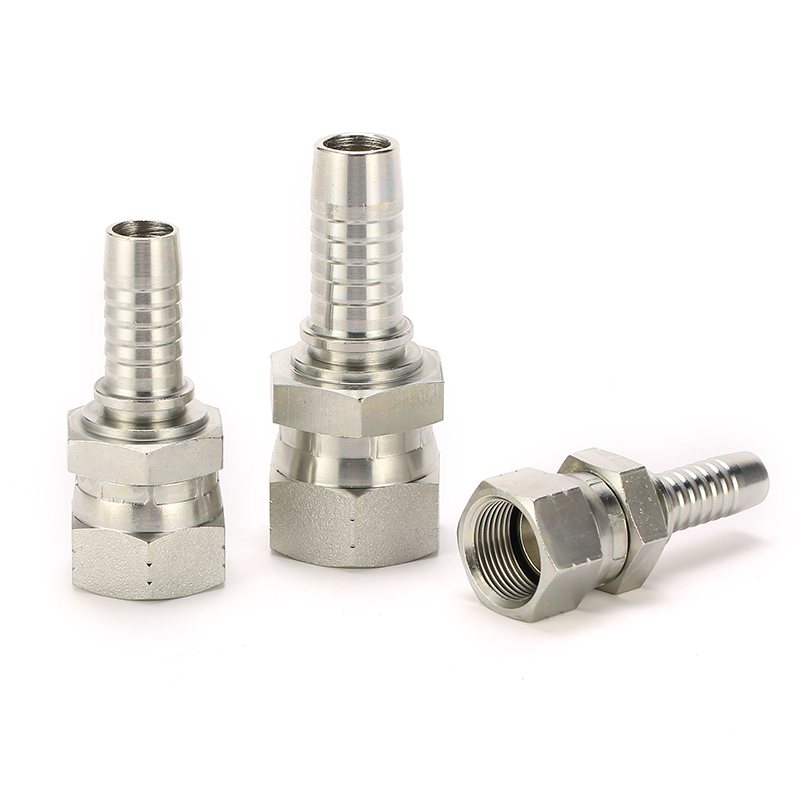

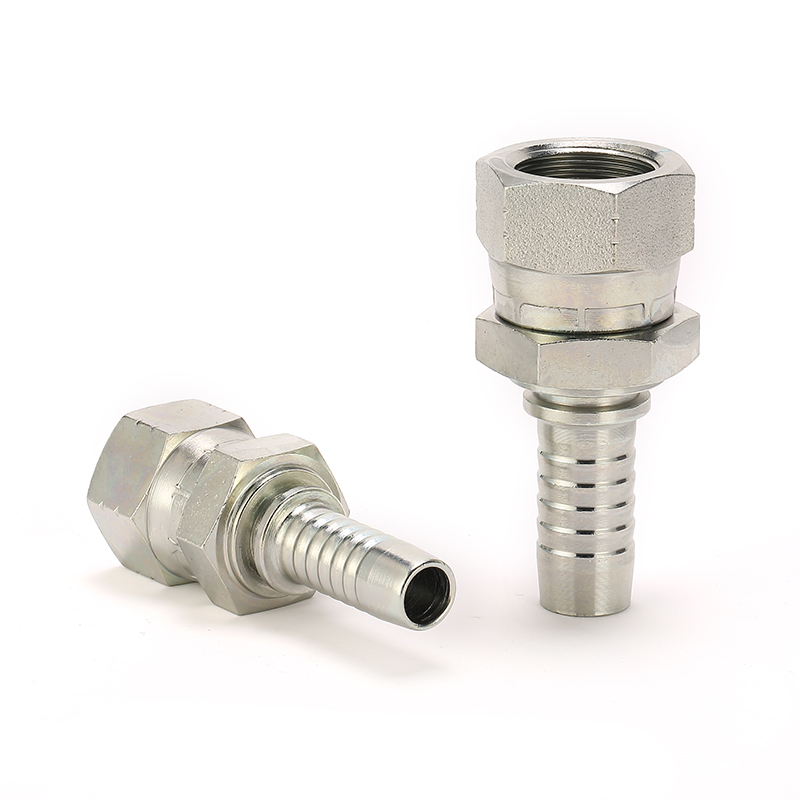

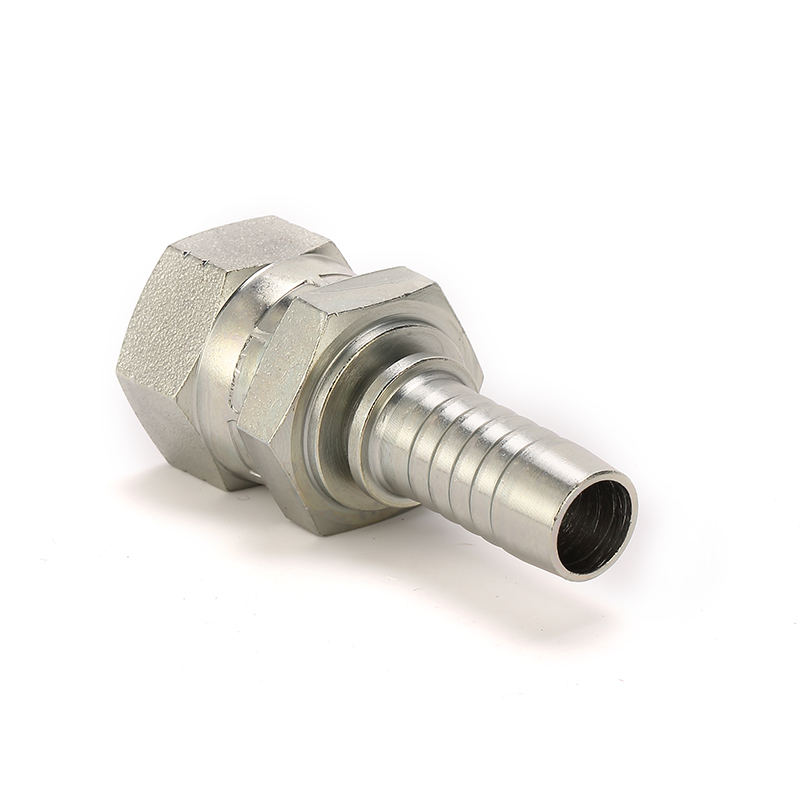

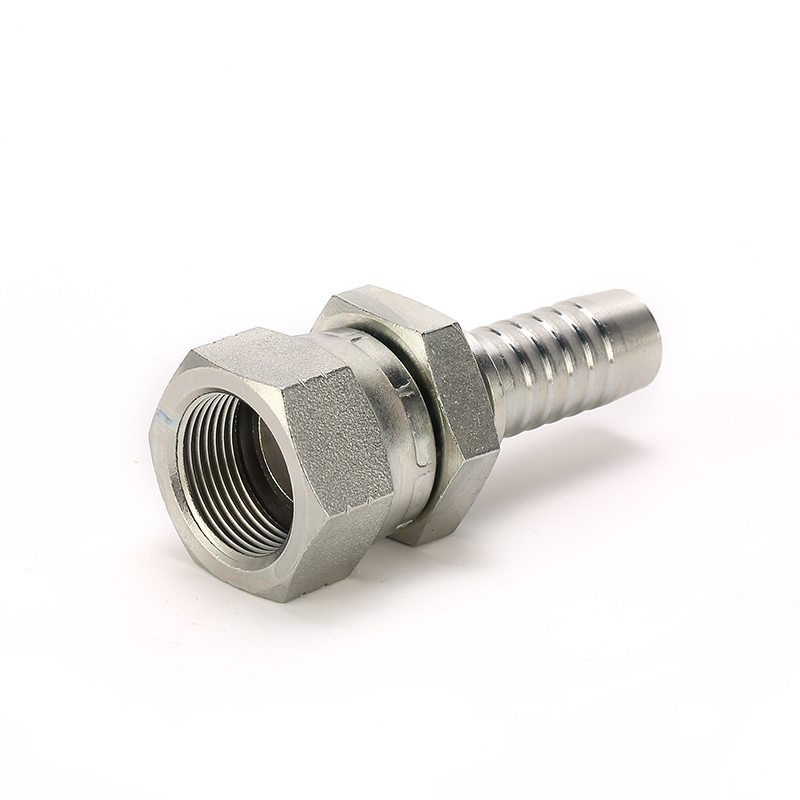

JIS hydraulic fitting dimensions define these fittings’ size and wall thickness according to Japanese standards. Topol Power can offer various types of JIS fittings with tapered and parallel threads.

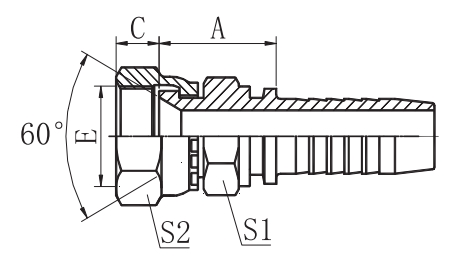

| PART NO | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | S1 | S2 | ||
| 28611-12-04 | M12X1.5 | 6 | 04 | 22 | 10.5 | 17 | 17 |
| 28611-14-04 | M14X1.5 | 6 | 04 | 23.5 | 11 | 19 | 19 |
| 28611-14-06 | M14X1.5 | 10 | 06 | 24 | 11 | 19 | 19 |
| 28611-16-04 | M16X1.5 | 6 | 04 | 25.5 | 10.5 | 22 | 22 |
| 28611-16-05 | M16X1.5 | 8 | 05 | 25.5 | 10.5 | 22 | 22 |
| 28611-16-06 | M16X1.5 | 10 | 06 | 25.5 | 10.5 | 22 | 22 |
| 28611-18-06 | M18X1.5 | 10 | 06 | 27 | 11 | 24 | 24 |
| 28611-18-08 | M18X1.5 | 12 | 08 | 27.5 | 11 | 24 | 24 |
| 28611-20-08 | M20X1.5 | 12 | 08 | 27.5 | 12 | 27 | 27 |
| 28611-22-08 | M22X1.5 | 12 | 08 | 27.5 | 14 | 27 | 27 |
| 28611-24-08 | M24X1.5 | 12 | 08 | 28 | 14.5 | 32 | 32 |
| 28611-24-10 | M24X1.5 | 16 | 10 | 28.5 | 14.5 | 32 | 32 |
| 28611-27-10 | M27X1.5 | 16 | 10 | 32 | 13.5 | 32 | 32 |
| 28611-30-12 | M30X1.5 | 20 | 12 | 32.5 | 17 | 36 | 36 |
| 28611-33-12 | M33X1.5 | 20 | 12 | 34.5 | 17.5 | 41 | 41 |
| 28611-33-16 | M33X1.5 | 25 | 16 | 36.2 | 17.5 | 41 | 41 |
| 28611-36-20 | M36X1.5 | 32 | 20 | 38.5 | 18 | 46 | 46 |
| 28611-42-24 | M42X1.5 | 40 | 24 | 41 | 19 | 55 | 55 |
