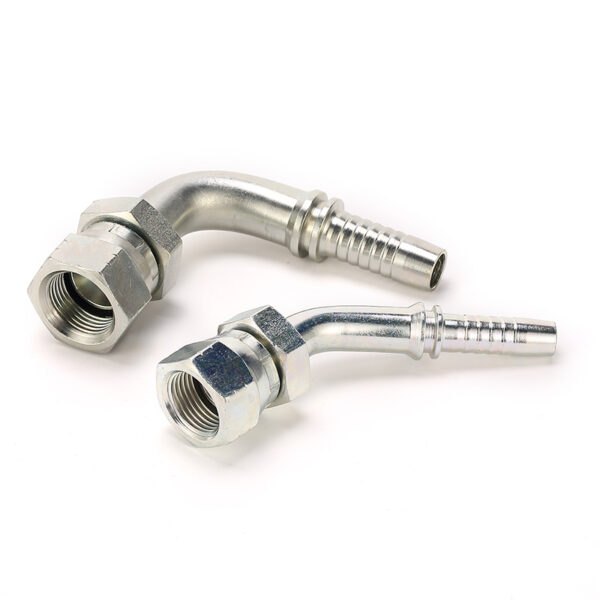

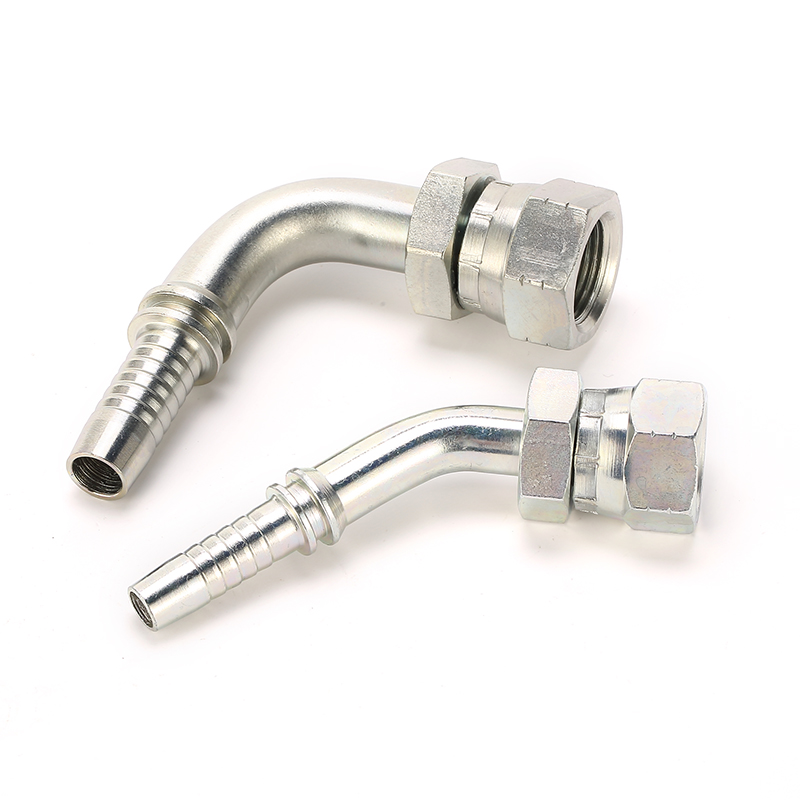

28691 90° Elbow JIS Female Metric 60° Cone Hose Fittings

Description:

The 28691 female Metric JIS hose fitting indicates a JIS fitting that has a female threaded end and adheres to the metric measurement system. Hydraulic JIS fittings are frequently utilized in Japan and possess diverse standards according to their specific applications.

Category: JIS Hose Fittings Tags: Female, Carbon Steel, O-ring, JIS

Description
Package& Shipping

Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

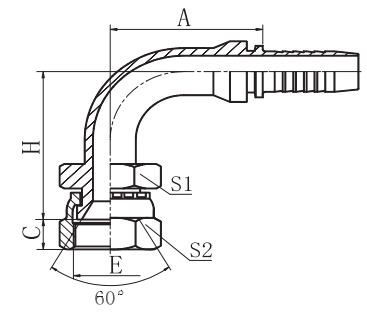

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	H	S1	S2
28691-14-04	M14X1.5	6	04	30	11	38	19	19
28691-14-06	M14X1.5	10	06	35	11	43.5	19	19
28691-16-05	M16X1.5	8	05	33	10.5	44	22	22
28691-18-06	M18X1.5	10	06	35	11	46.5	24	24
28691-22-08	M22X1.5	12	08	41.5	14	52.5	27	27
28691-24-10	M24X1.5	16	10	56.5	14.5	59	32	32
28691-30-12	M30X1.5	20	12	65.5	17	68.5	36	36
28691-33-16	M33X1.5	25	16	76.7	17.5	80	41	41
28691-36-20	M36X1.5	32	20	93	18	95	46	46
28691-42-24	M42X1.5	40	24	108	19	110	55	55

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

28691 90° Elbow JIS Female Metric 60° Cone Hose Fittings

Package:

Delivery Time:
