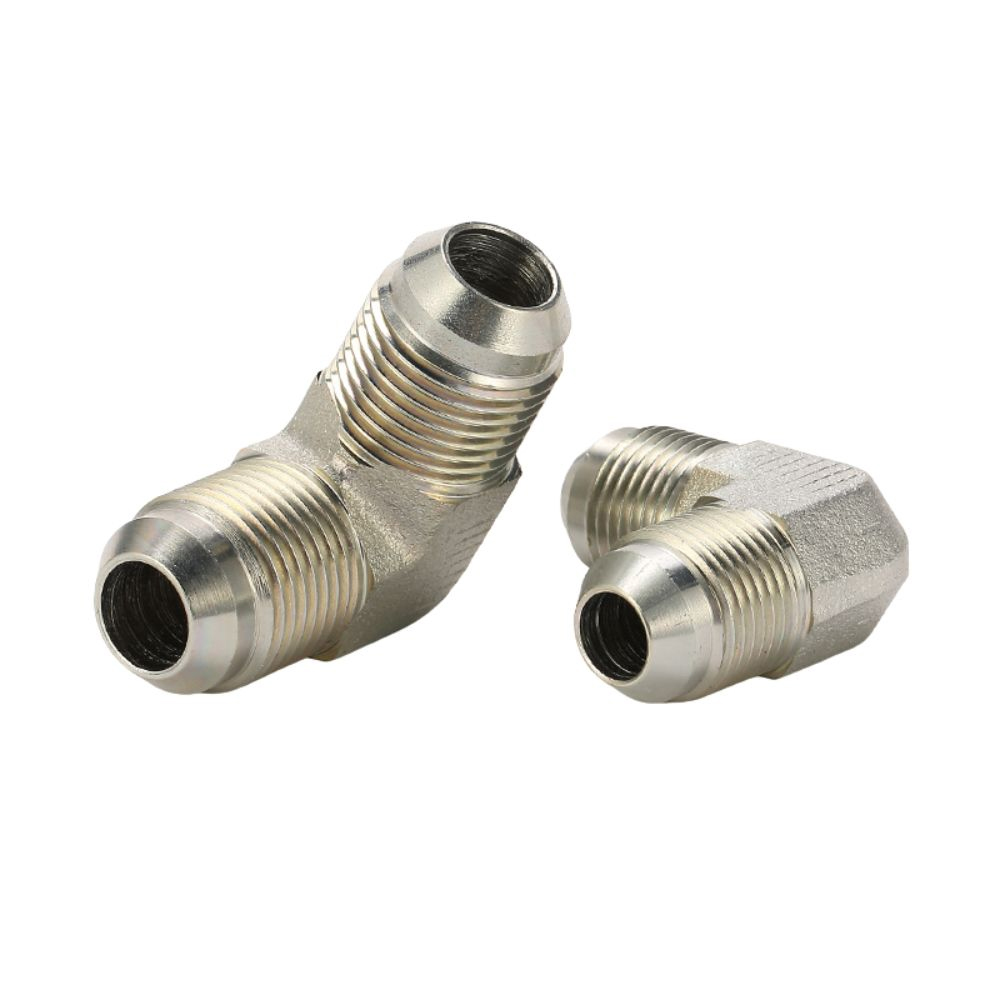

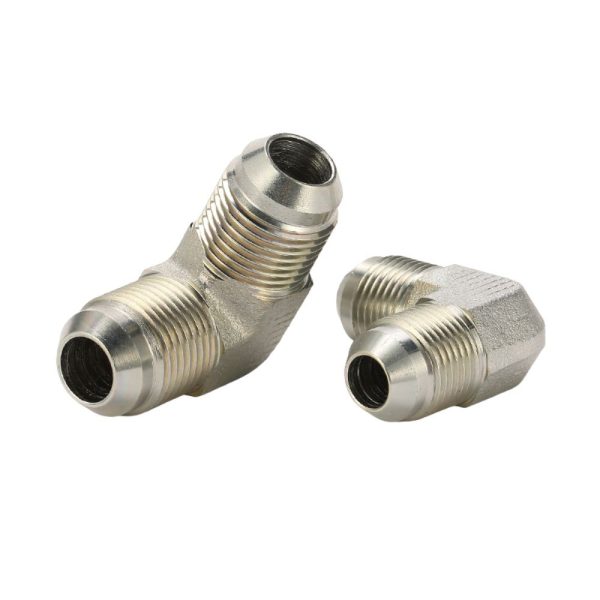

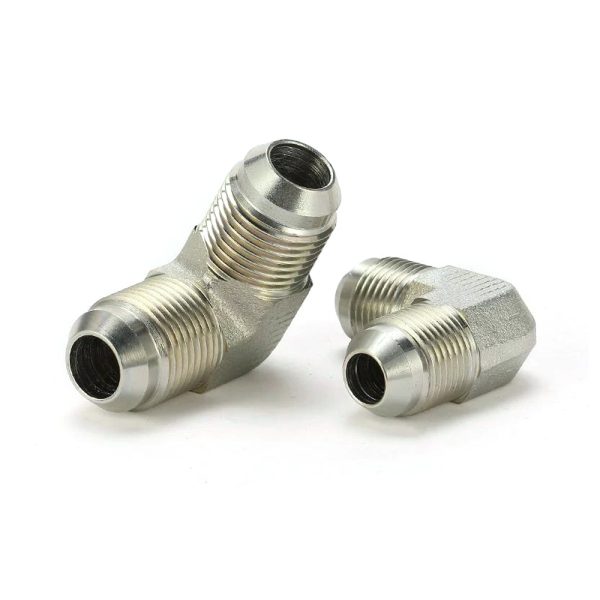

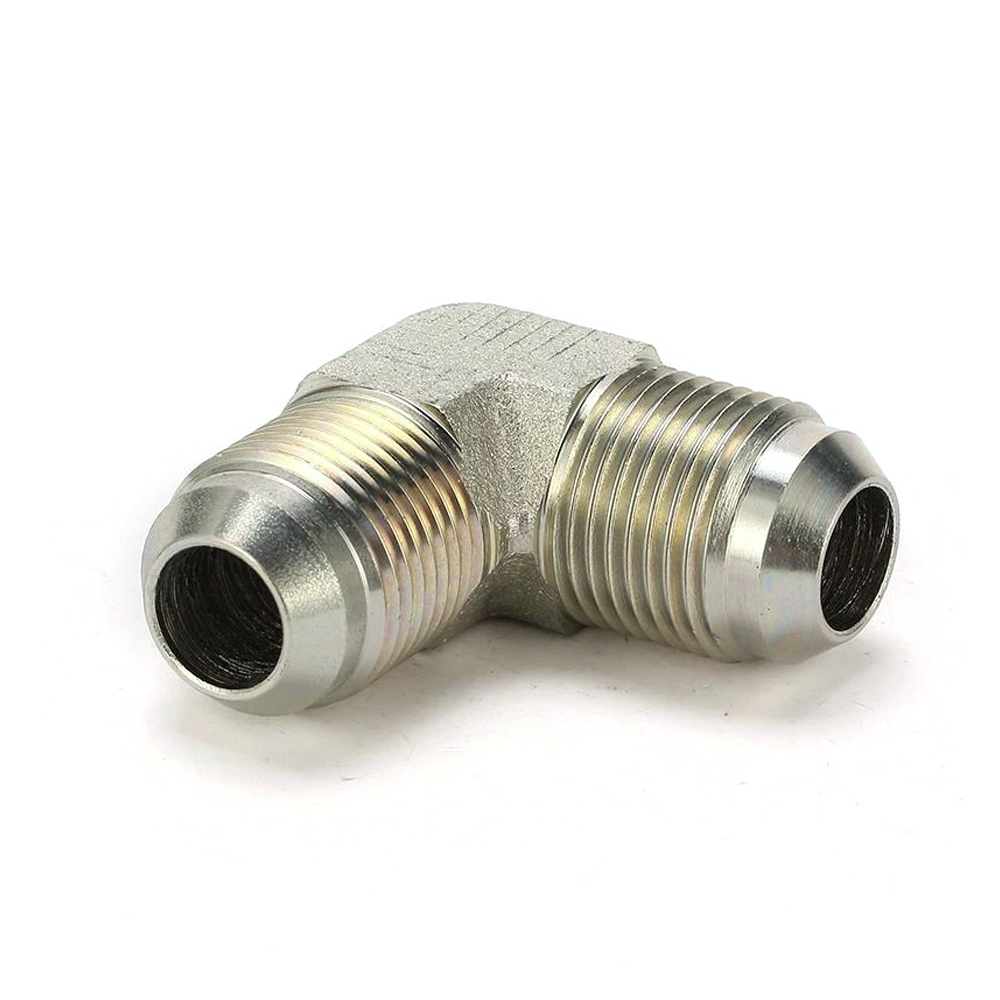

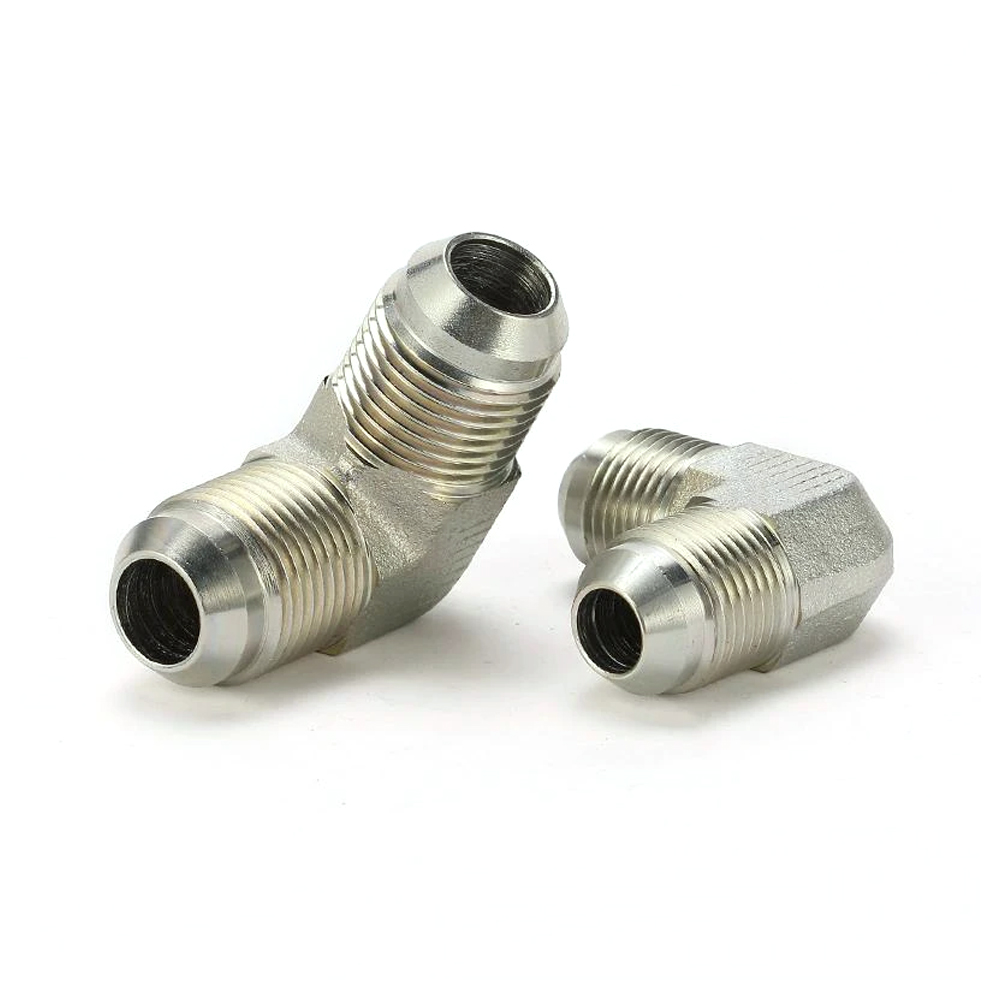

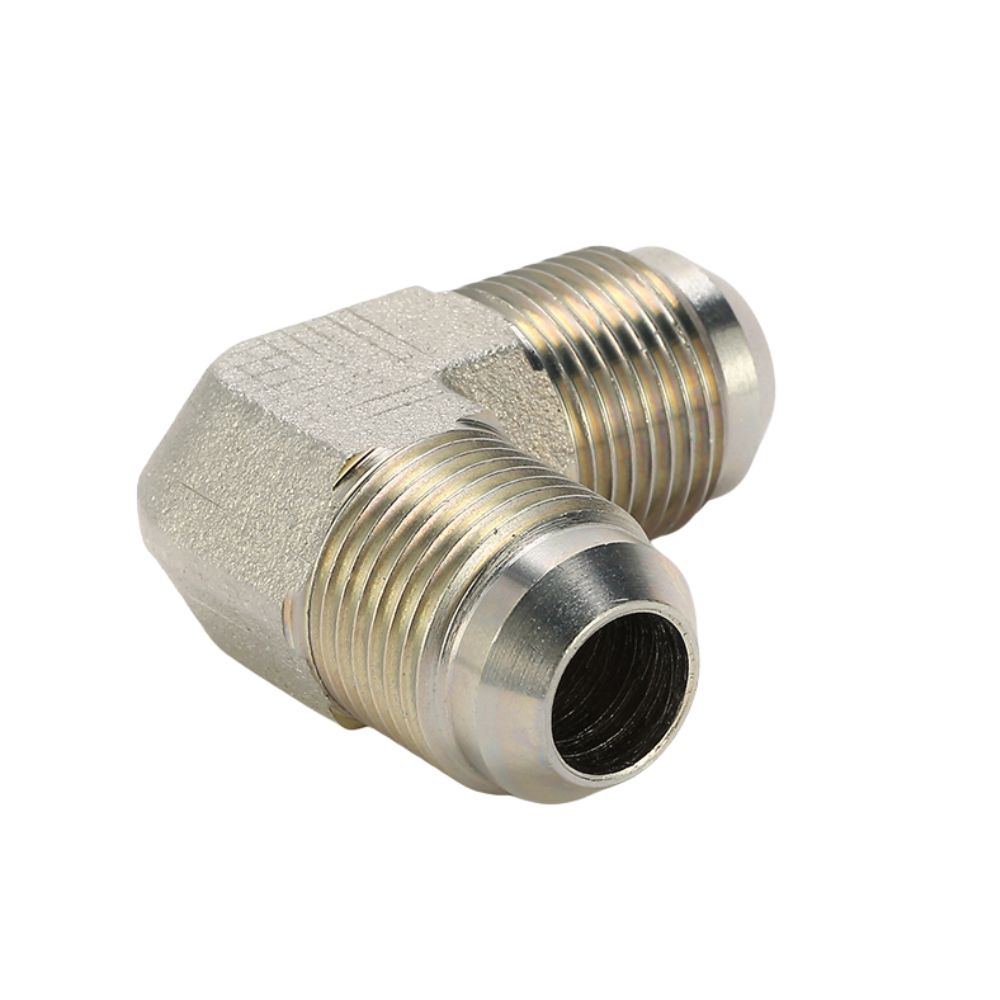

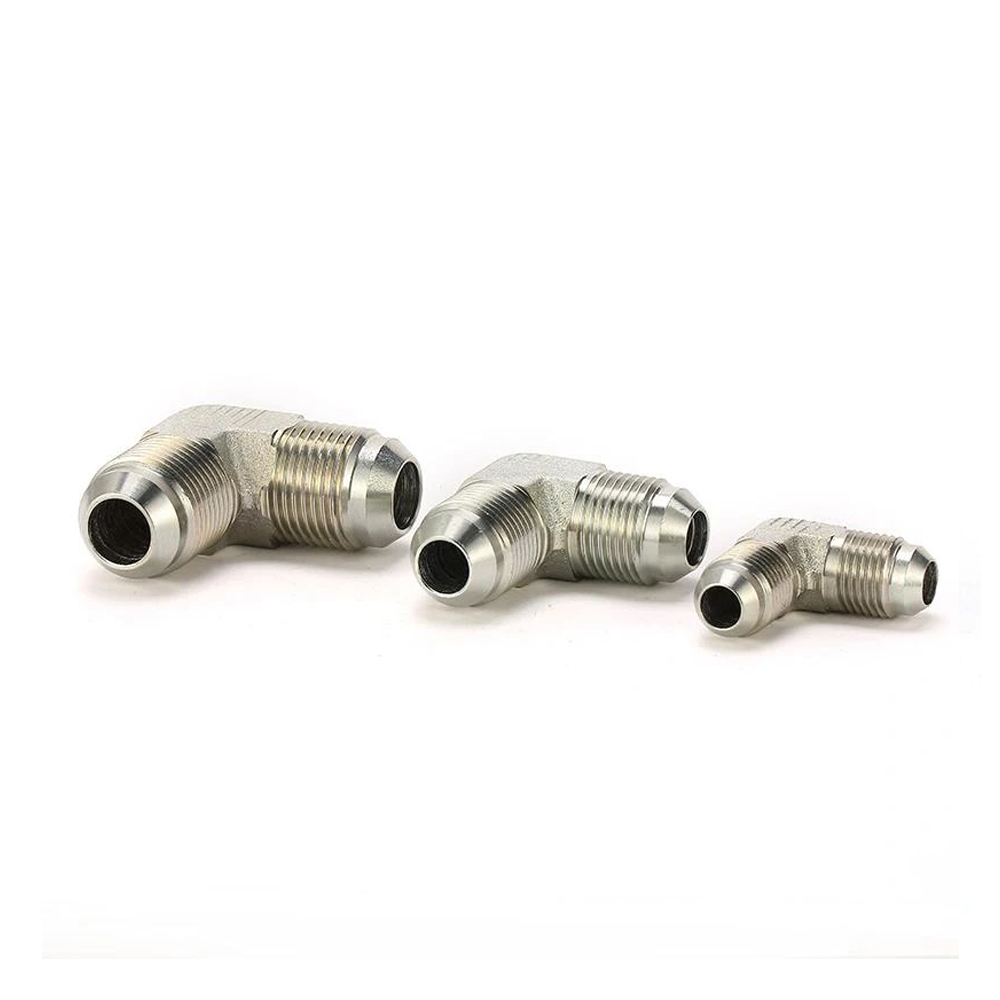

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

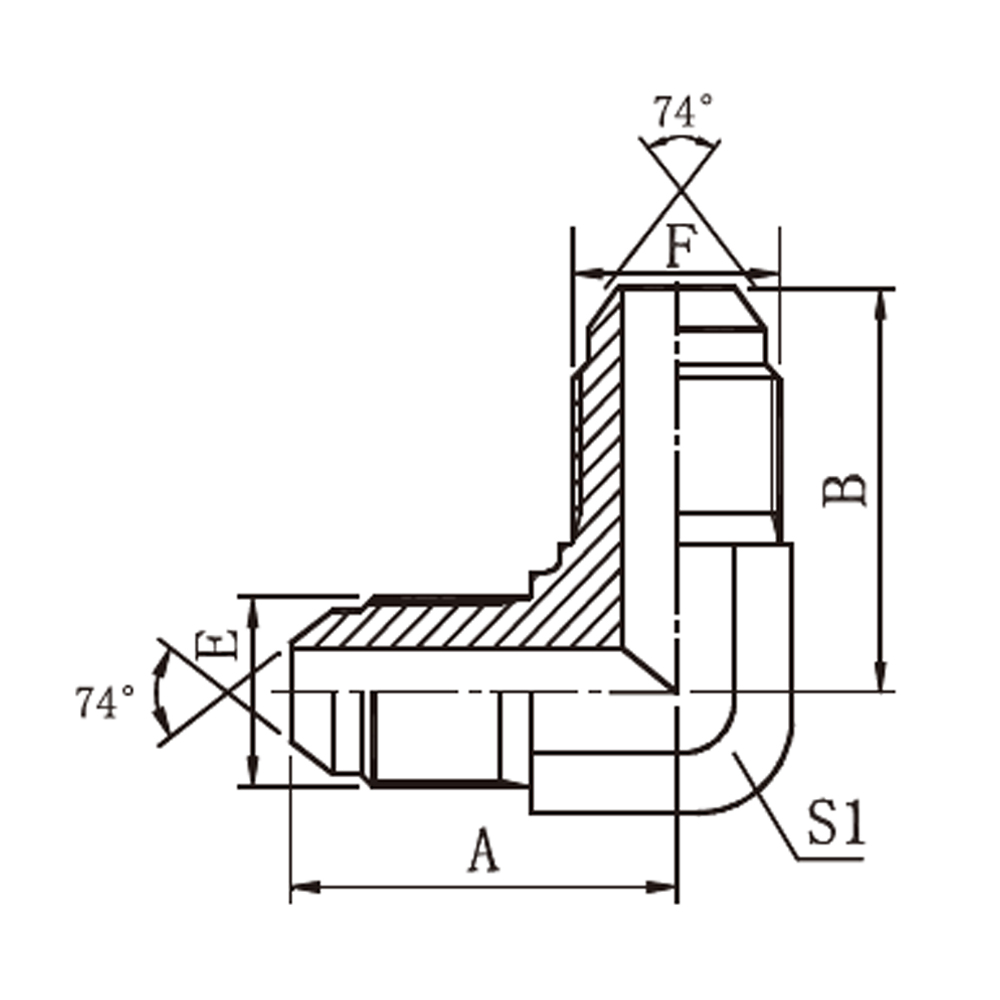

| PART NO. | THREAD | DIMENSIONS | |||
| E | F | A | B | S1 | |
| 1J9-02 | 5/16″X24 | 5/16″X24 | 20.5 | 20.5 | 11 |
| 1J9-03 | 3/8″X24 | 3/8″X24 | 22 | 22 | 11 |
| 1J9-04 | 7/16″X20 | 7/16″X20 | 24.5 | 24.5 | 11 |
| 1J9-05 | 1/2″X20 | 1/2″X20 | 26.6 | 26.6 | 14 |
| 1J9-05-06 | 1/2″X20 | 9/16″X18 | 26.6 | 26.9 | 14 |
| 1J9-06 | 9/16″X18 | 9/16″X18 | 26.9 | 26.9 | 14 |
| 1J9-06-08 | 9/16″X18 | 3/4″X16 | 30 | 32 | 19 |
| 1J9-06-10 | 9/16″X18 | 7/8″X14 | 32 | 37.8 | 22 |
| 1J9-08 | 3/4″X16 | 3/4″X16 | 32 | 32 | 19 |
| 1J9-08-10 | 3/4″X16 | 7/8″X14 | 34.8 | 37.8 | 22 |
| 1J9-10 | 7/8″X14 | 7/8″X14 | 37.8 | 37.8 | 22 |
| 1J9-10-12 | 7/8″X14 | 1.1/16″X12 | 41 | 44.2 | 27 |
| 1J9-12 | 1.1/16″X12 | 1.1/16″X12 | 44.2 | 44.2 | 27 |
| 1J9-14 | 1.3/16″X12 | 1.3/16″X12 | 47.5 | 47.5 | 30 |
| 1J9-16 | 1.5/16″X12 | 1.5/16″X12 | 49 | 49 | 33 |
| 1J9-20 | 1.5/8″X12 | 1.5/8″X12 | 55.5 | 55.5 | 41 |
| 1J9-24 | 1.7/8″X12 | 1.7/8″X12 | 62.5 | 62.5 | 48 |
| 1J9-32 | 2.1/2″X12 | 2.1/2″X12 | 78 | 78 | 63 |
