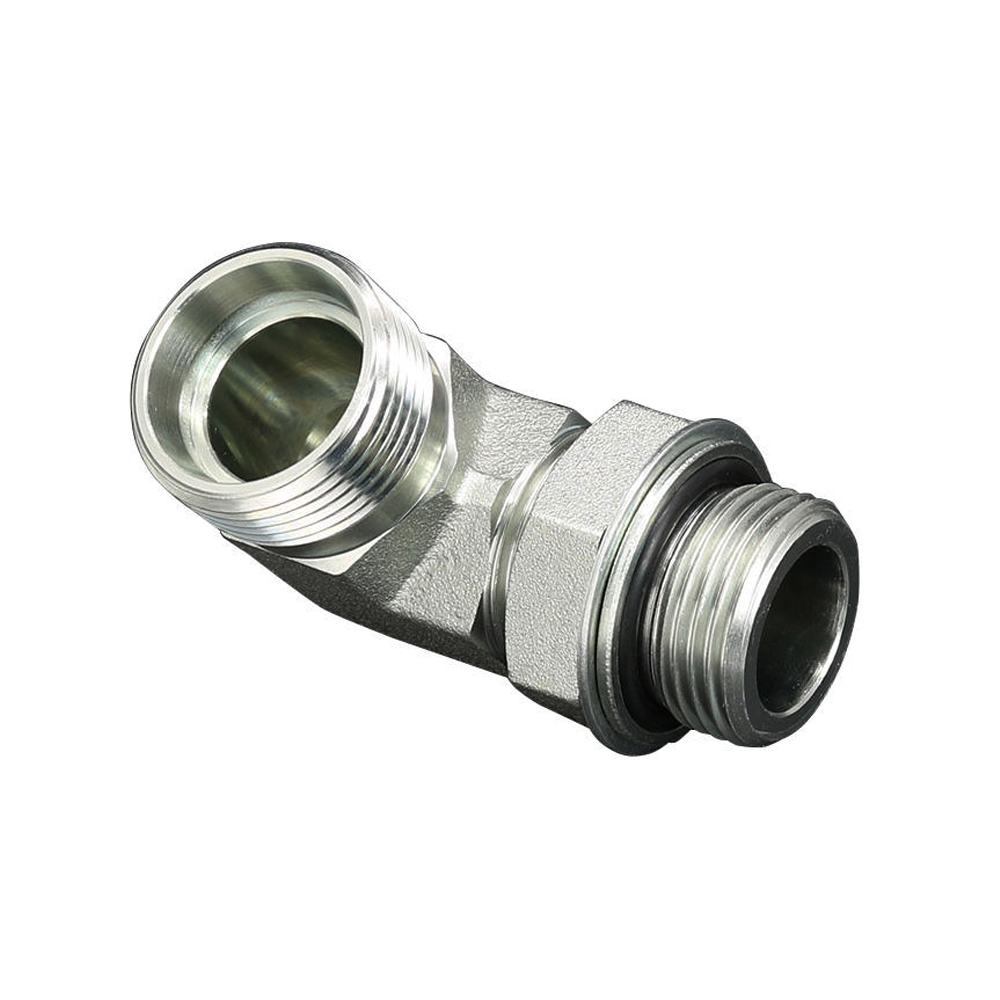

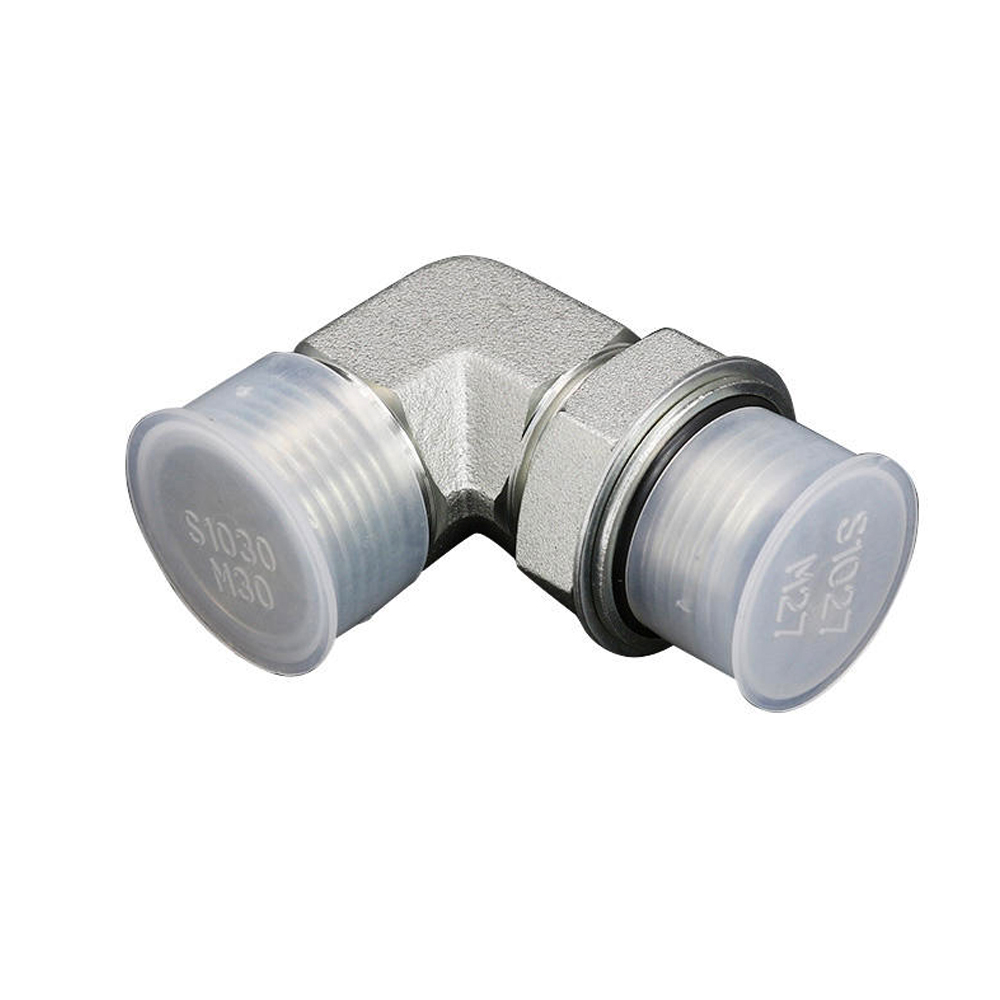

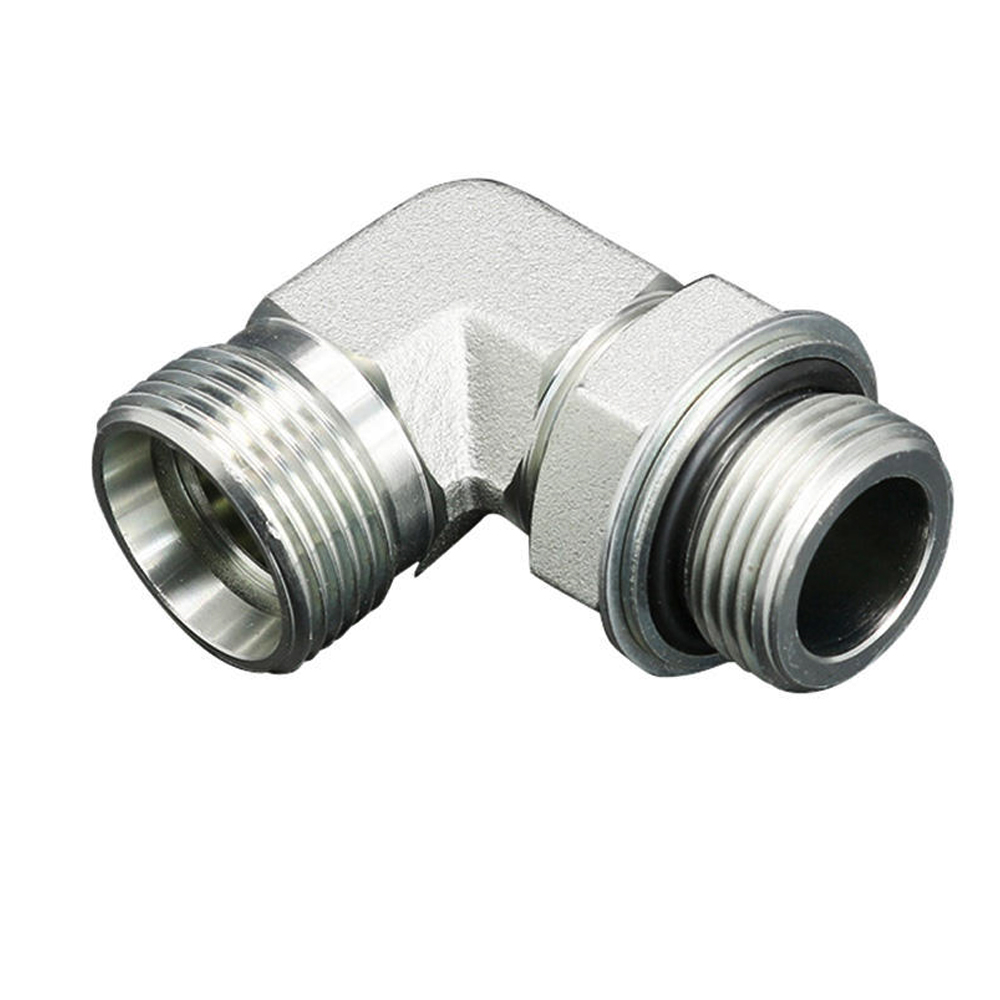

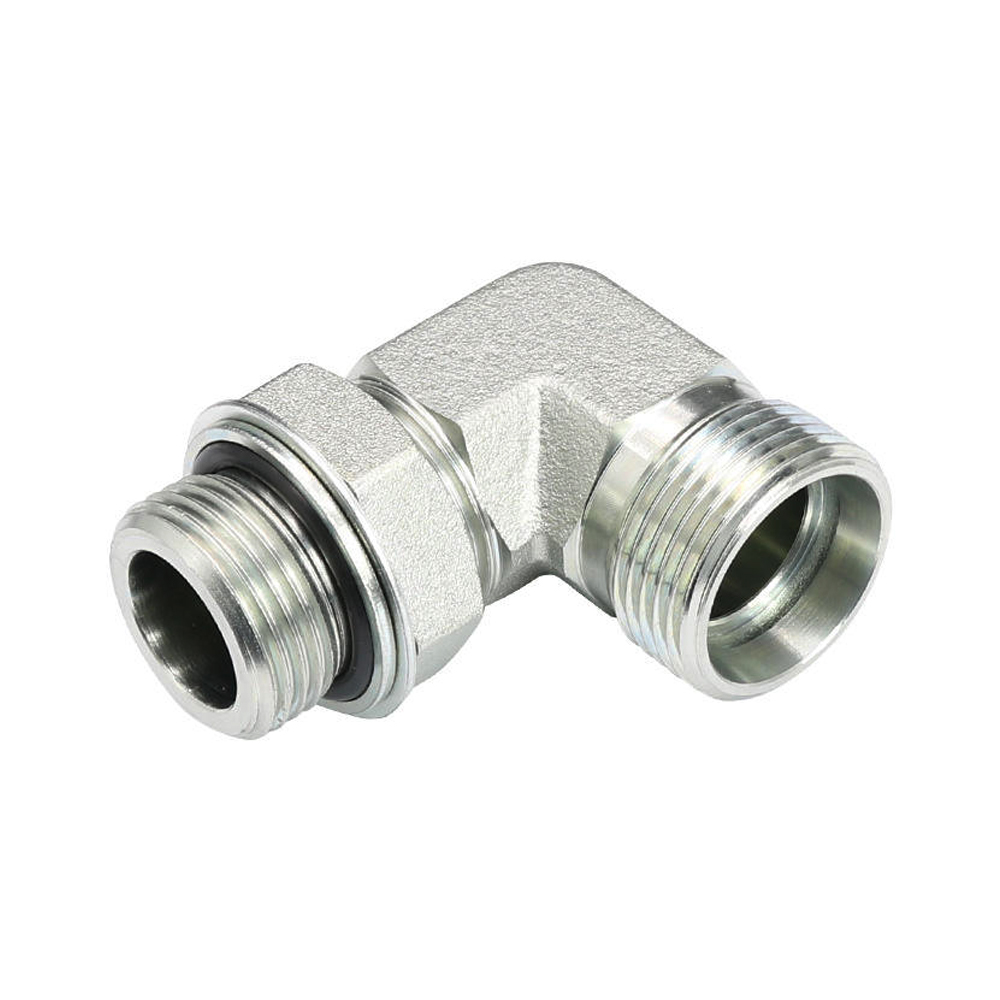

1CH9 Metric 90° Elbow O-ring Adapter

Description:

1CH9-OG/1DH9-OG 90° elbow metric o-ring adapter is a male adapter and the male adjustable ends with an o-ring sealing.

INQUIRE NOW

"*" indicates required fields

Category: DIN Hose Adapters Tags: Carbon Steel, Metric, 1CH, 1DH
Share:
  • Description
  • Package& Shipping
Description

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

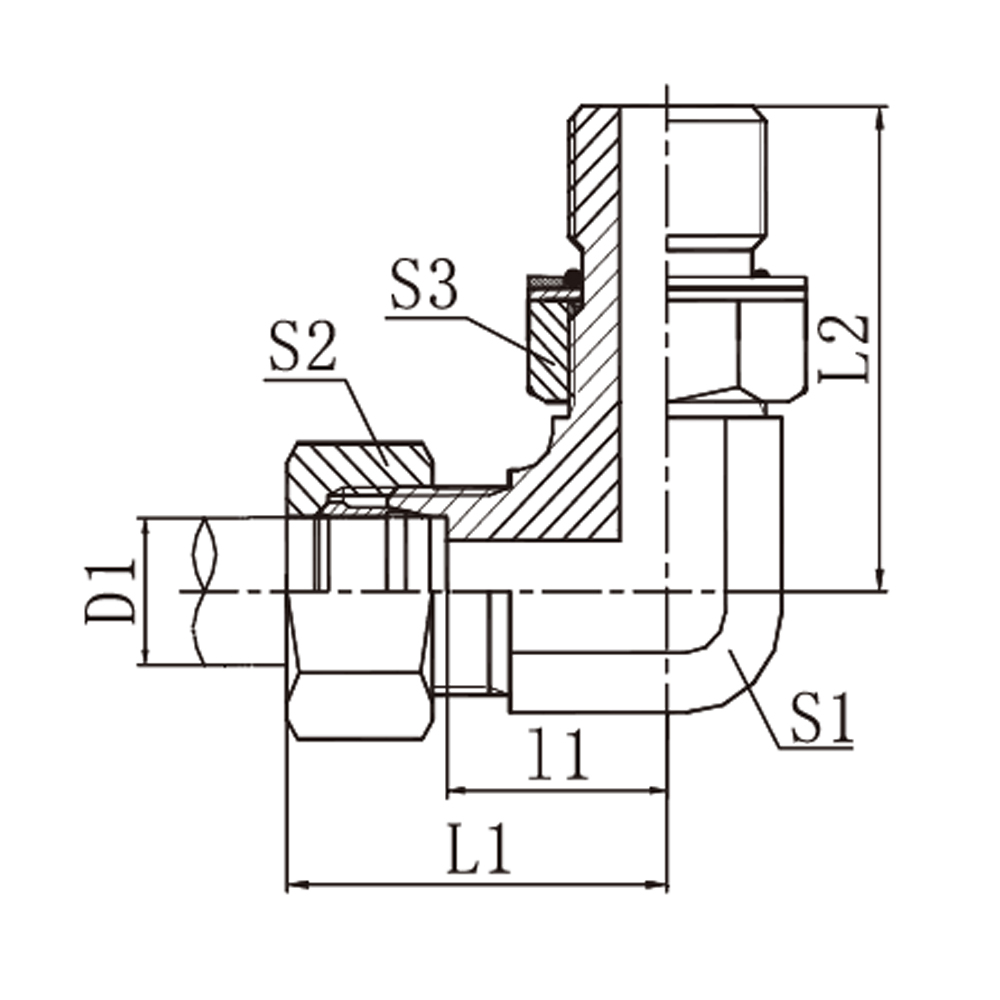

PART NO. THREAD TUBE O.D. O-RING DIMENSIONS MPa
E F I1 L1 L2 S1 S2 S3
1CH9-12-10OG M12X1.5 M10X1 6 O08.1X1.6 13 28 26.5 11 14 14 31.5
L series
1CH9-14-12OG M14X1.5 M12X1.5 8 O09.3X2.4 15.5 30.5 32.5 14 17 17
1CH9-16-14OG M16X1.5 M14X1.5 10 O11.3X2.4 17.5 32.5 35.3 16 19 19
1CH9-18-16OG M18X1.5 M16X1.5 12 O13.3X2.4 19 34 36 19 22 22
1CH9-22-18OG M22X1.5 M18X1.5 15 O15.3X2.4 22 37 39.5 22 27 24
1CH9-26-22OG M26X1.5 M22X1.5 18 O19.3X2.4 25.5 42 43.5 27 32 27
1CH9-30-27OG M30X2 M27X2 22 O23.5X3.0 29.5 45.8 50 30 36 32 16
L series
1CH9-36-33OG M36X2 M33X2 28 O29.5X3.0 33.2 49.8 54 36 41 41
1DH9-14-12OG M14X1.5 M12X1.5 6 O09.3X2.4 17.5 32.5 32 14 17 17 63
S series
1DH9-16-14OG M16X1.5 M14X1.5 8 O11.3X2.4 18.5 33.7 34 16 19 19
1DH9-18-16OG M18X1.5 M16X1.5 10 O13.3X2.4 19.5 36 36 19 22 22
1DH9-20-18OG M20X1.5 M18X1.5 12 O15.3X2.4 19.5 36 37 19 24 24
1DH9-22-20OG M22X1.5 M20X1.5 14 O17.3X2.4 23.5 41 40.5 22 27 27
1DH9-24-22OG M24X1.5 M22X1.5 16 O19.3X2.4 24 42 41 24 30 27
1DH9-30-27OG M30X2 M27X2 20 O23.5X3.0 28.5 49.8 50 30 36 32 40
S series
1DH9-36-33OG M36X2 M33X2 25 O29.5X3.0 32.8 56.8 54 36 46 41
1DH9-42OG M42X2 M42X2 30 O38.5X3.0 36 62.7 57.2 41 50 50
