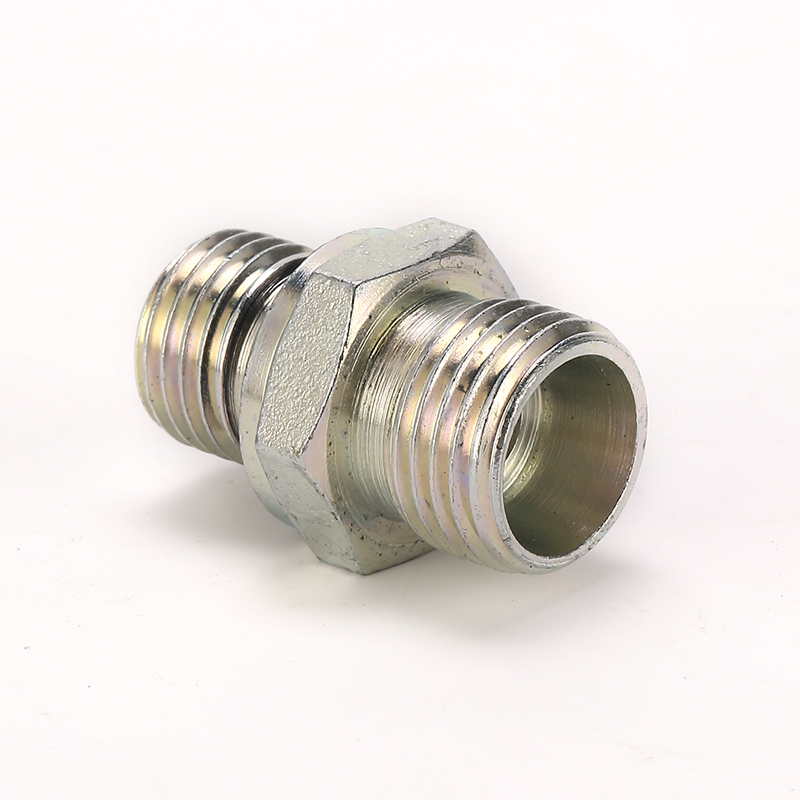

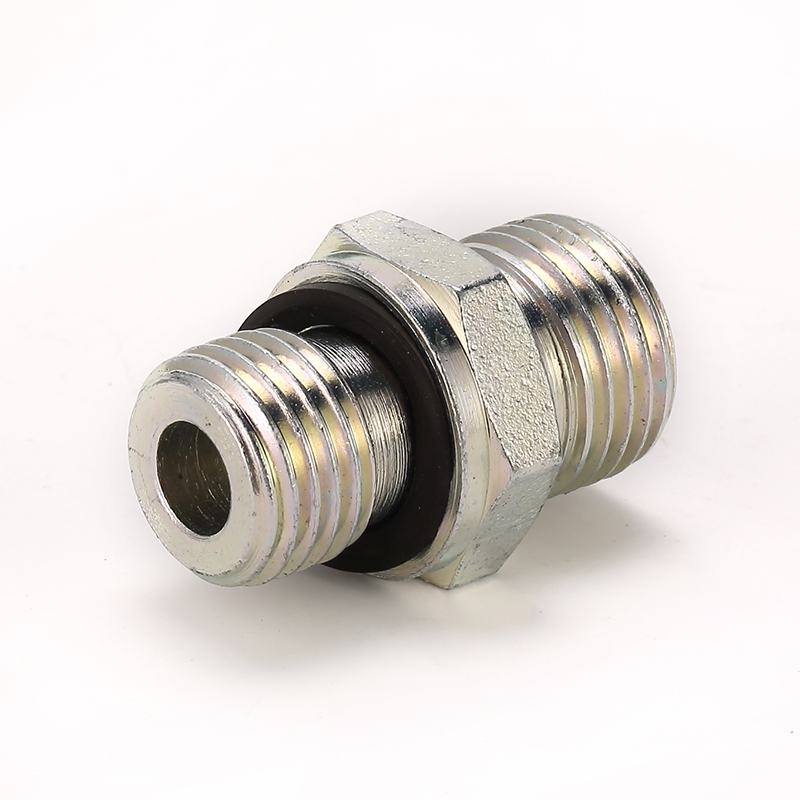

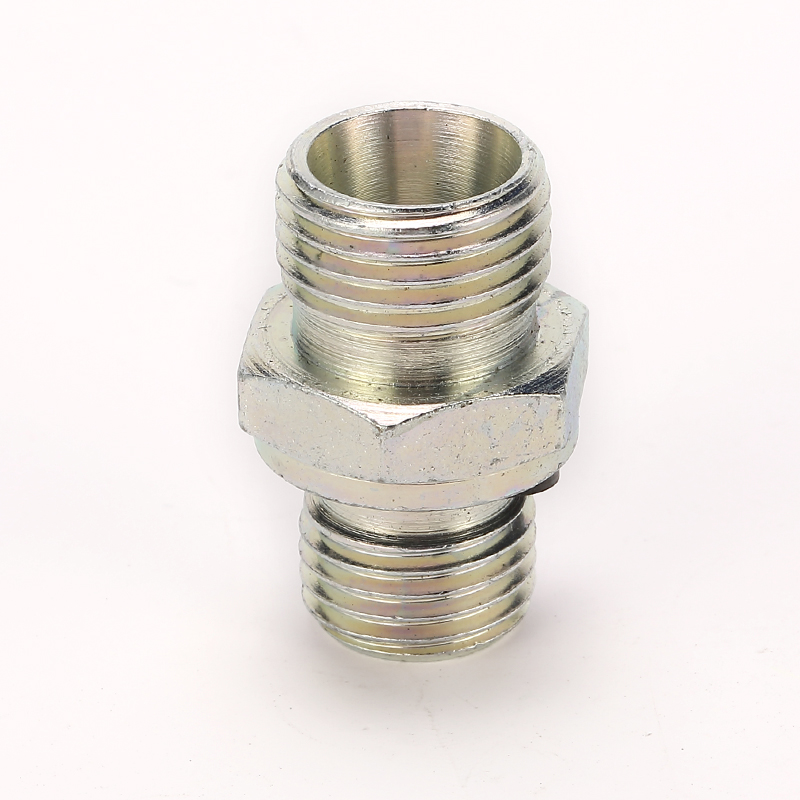

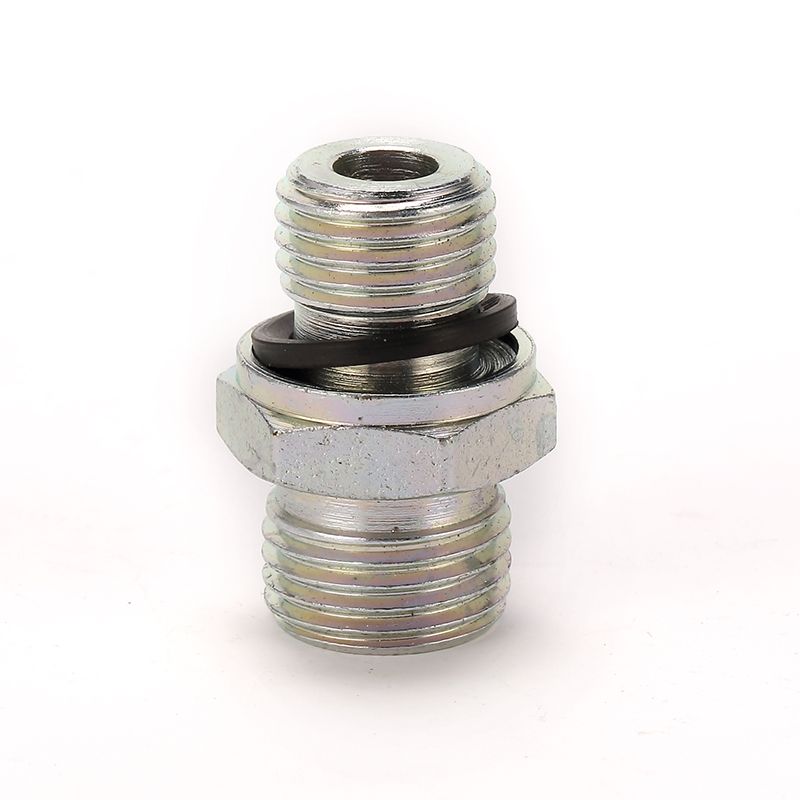

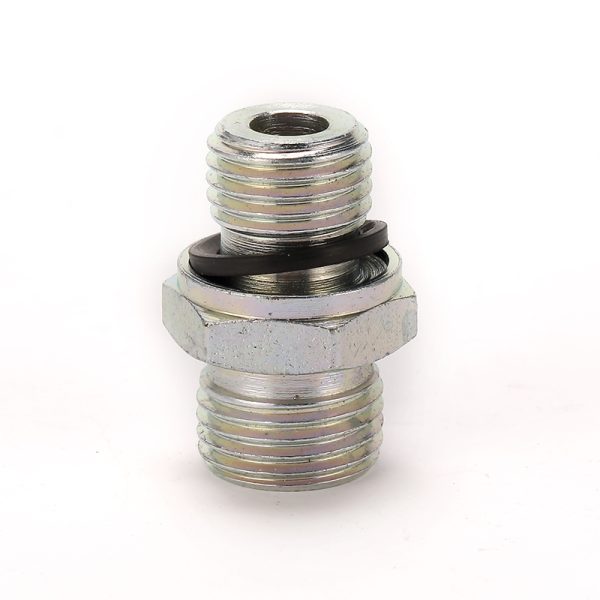

1CH Metric Male Stud Ends ISO6149

Description:

1CH/1DH metric o-ring adapter is a male adapter and the male adjustable ends with an o-ring sealing.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

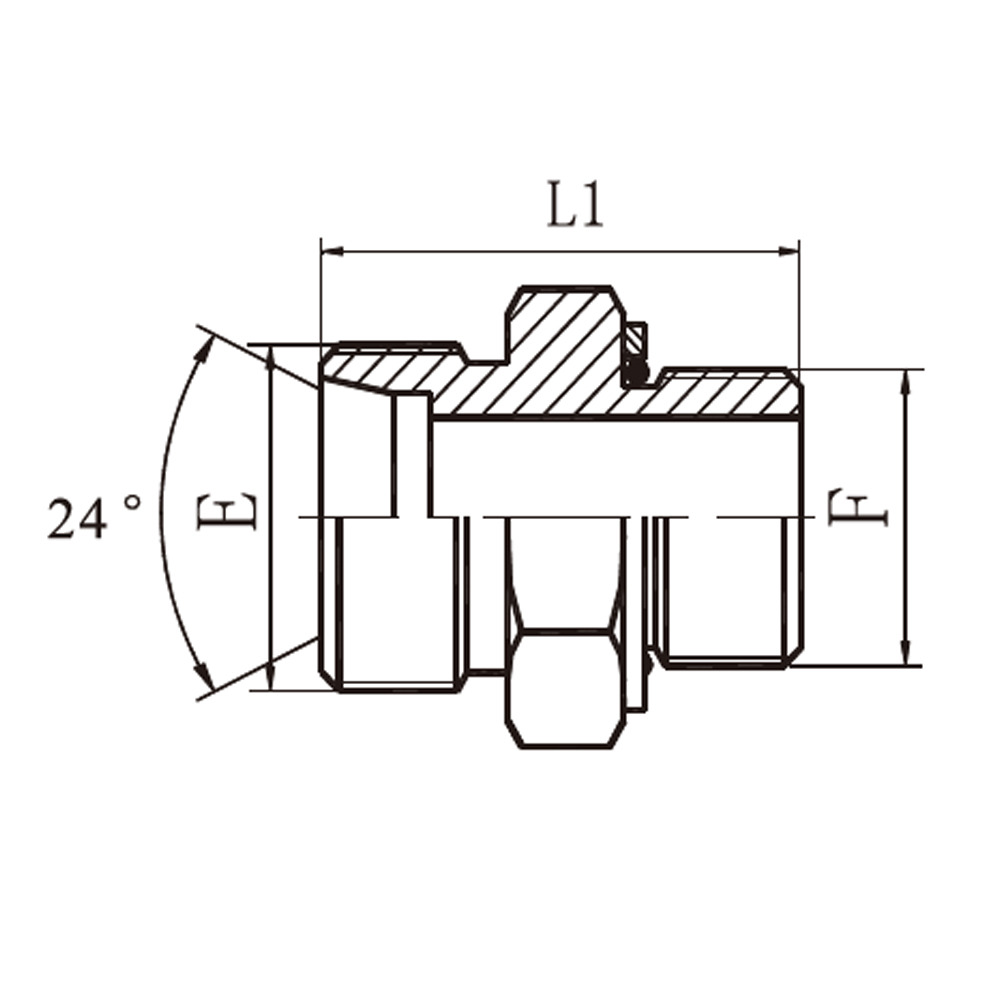

PART NO.	THREAD		TUBE O.D.	O-RING	DIMENSIONS					MPa
PART NO.	E	F	TUBE O.D.	O-RING	B	I1	L1	S1	S2	MPa
1CH-12-10	M12X1.5	M10X1	6	O08.1X1.6	8.5	9.5	25	14	14	31.5 L series
1CH-14	M14X1.5	M14X1.5	8	O11.3X2.4	11	10	28	19	17
1CH-14-12	M14X1.5	M12X1.5	8	O09.3X2.4	11	10	28	17	17
1CH-16-14	M16X1.5	M14X1.5	10	O11.3X2.4	11	11	29	19	19
1CH-18-14	M18X1.5	M14X1.5	12	O11.3X2.4	11	11	29	19	22
1CH-14-18	M14X1.5	M18X1.5	8	O15.3X2.4	12.5	11.5	31	24	17
1CH-16	M16X1.5	M16X1.5	10	O13.3X2.4	11.5	12.5	31	22	19
1CH-16-18	M16X1.5	M18X1.5	10	O15.3X2.4	12.5	12.5	32	24	19
1CH-18-16	M18X1.5	M16X1.5	12	O13.3X2.4	11.5	12.5	31	22	22
1CH-22-16	M22X1.5	M16X1.5	15	O13.3X2.4	11.5	13.5	32	24	27
1CH-22-18	M22X1.5	M18X1.5	15	O15.3X2.4	12.5	13.5	33	24	27
1CH-16-22	M16X1.5	M22X1.5	10	O19.3X2.4	13	14	34	27	19
1CH-22-20	M22X1.5	M20X1.5	15	O17.3X2.4	12	15	34	27	27
1CH-22	M22X1.5	M22X1.5	15	O19.3X2.4	13	15	35	27	27
1CH-26-22	M26X1.5	M22X1.5	18	O19.3X2.4	13	14.5	35	27	32
1CH-26	M26X1.5	M26X1.5	18	O23.5X3.0	13.5	14.5	35.5	32	32
1CH-26-27	M26X1.5	M27X2	18	O23.5X3.0	16	14.5	38	32	32
1CH-26-33	M26X1.5	M33X2	18	O29.5X3.0	16	15.5	39	41	32
1CH-30-22	M30X2	M22X1.5	22	O19.3X2.4	13	16.5	37	32	36	16 L series
1CH-30-27	M30X2	M27X2	22	O23.5X3.0	16	16.5	40	32	36
1CH-30	M30X2	M30X2	22	O26.5X3.0	16	17.5	41	36	36
1CH-36-27	M36X2	M27X2	28	O23.5X3.0	16	17	40.5	41	41
1CH-36-33	M36X2	M33X2	28	O29.5X3.0	16	17.5	41	41	41
1CH-36-42	M36X2	M42X2	28	O38.5X3.0	16	18.5	42	50	41
1CH-45-33	M45X2	M33X2	35	O29.5X3.0	16	17.5	44	46	50
1CH-45-42	M45X2	M42X2	35	O38.5X3.0	16	17.5	44	50	50
1CH-52-48	M52X2	M48X2	42	O44.5X3.0	17.5	19	47.5	55	60
1DH-14	M14X1.5	M14X1.5	6	O11.3X2.4	11	15	33	19	17	63 S series
1DH-14-12	M14X1.5	M12X1.5	6	O09.3X2.4	11	13	31	17	17
1DH-16-14	M16X1.5	M14X1.5	8	O11.3X2.4	11	15	33	19	19
1DH-18-16	M18X1.5	M16X1.5	10	O13.3X2.4	11.5	15	34	22	22
1DH-20-14	M20X1.5	M14X1.5	12	O11.3X2.4	11	15	33.5	22	24
1DH-20-16	M20X1.5	M16X1.5	12	O13.3X2.4	11.5	15	34	22	24
1DH-20-18	M20X1.5	M18X1.5	12	O15.3X2.4	12.5	17	37	24	24
1DH-20-22	M20X1.5	M22X1.5	12	O19.3X2.4	13	17.5	38	27	24
1DH-24-22	M25X1.5	M22X1.5	16	O19.3X2.4	13	18.5	40	27	30	40 S series
1DH-30-30	M30X2	M30X2	20	O26.5X3.0	16	20.5	47	36	36
1DH-30-27	M30X2	M27X2	20	O23.5X3.0	16	20.5	47	32	36
1DH-30-33	M30X2	M33X2	20	O29.5X3.0	16	22.5	49	41	36
1DH-36-27	M36X2	M27X2	25	O23.5X3.0	16	23	51	41	46
1DH-36-33	M36X2	M33X2	25	O29.5X3.0	16	23	51	41	46
1DH-42-42	M42X2	M42X2	30	O38.5X3.0	16	23.5	53	50	50
1DH-42-48	M42X2	M48X2	30	O44.5X3.0	17.5	26.5	57.5	55	50
