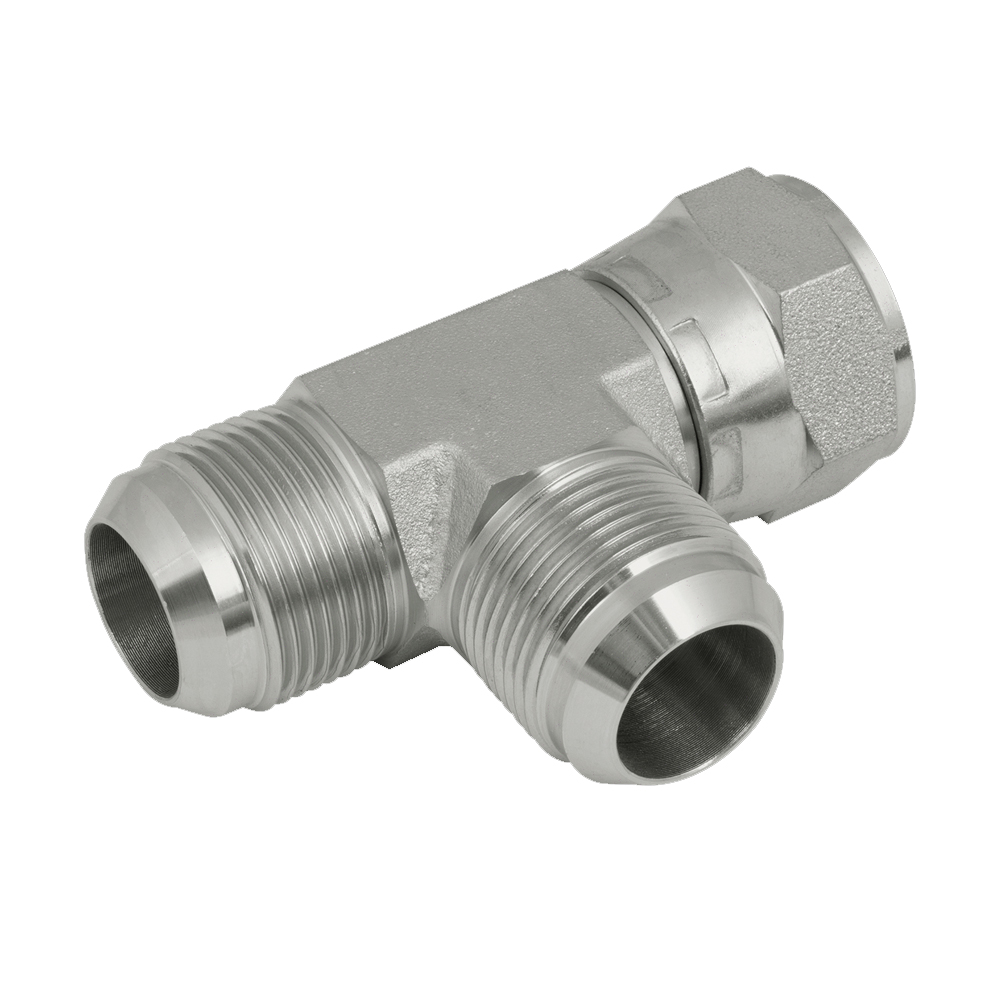

JIS hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

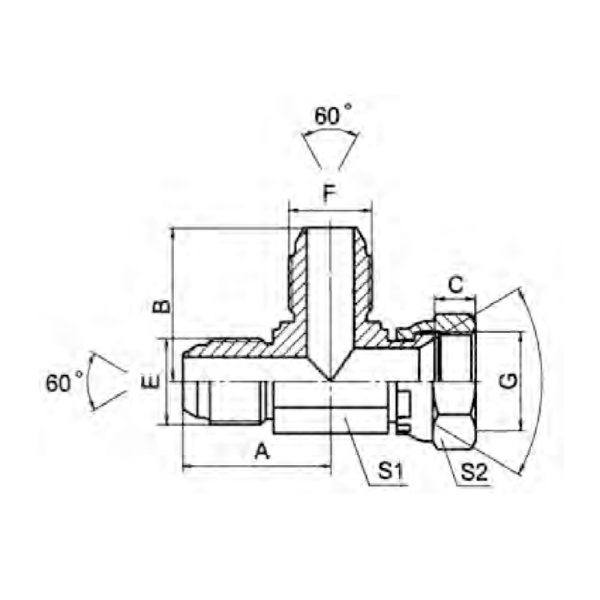

| PART NO. | THREAD | DIMENSIONS | ||||||
| E | F | G | A | B | C | S1 | S2 | |
| AK-14 | M14X1.5 | M14X1.5 | M14X1.5 | 26.5 | 26.5 | 11 | 14 | 19 |
| AK-16 | M16X1.5 | M16X1.5 | M16X1.5 | 29.5 | 29.5 | 10.5 | 16 | 22 |
| AK-18 | M18X1.5 | M18X1.5 | M18X1.5 | 30.8 | 30.8 | 11 | 19 | 24 |
| AK-22 | M22X1.5 | M22X1.5 | M22X1.5 | 35.5 | 35.5 | 14 | 22 | 27 |
| AK-24 | M24X1.5 | M24X1.5 | M24X1.5 | 37 | 37 | 14.5 | 22 | 32 |
| AK-30 | M30X1.5 | M30X1.5 | M30X1.5 | 45 | 45 | 17 | 30 | 36 |
