Description:

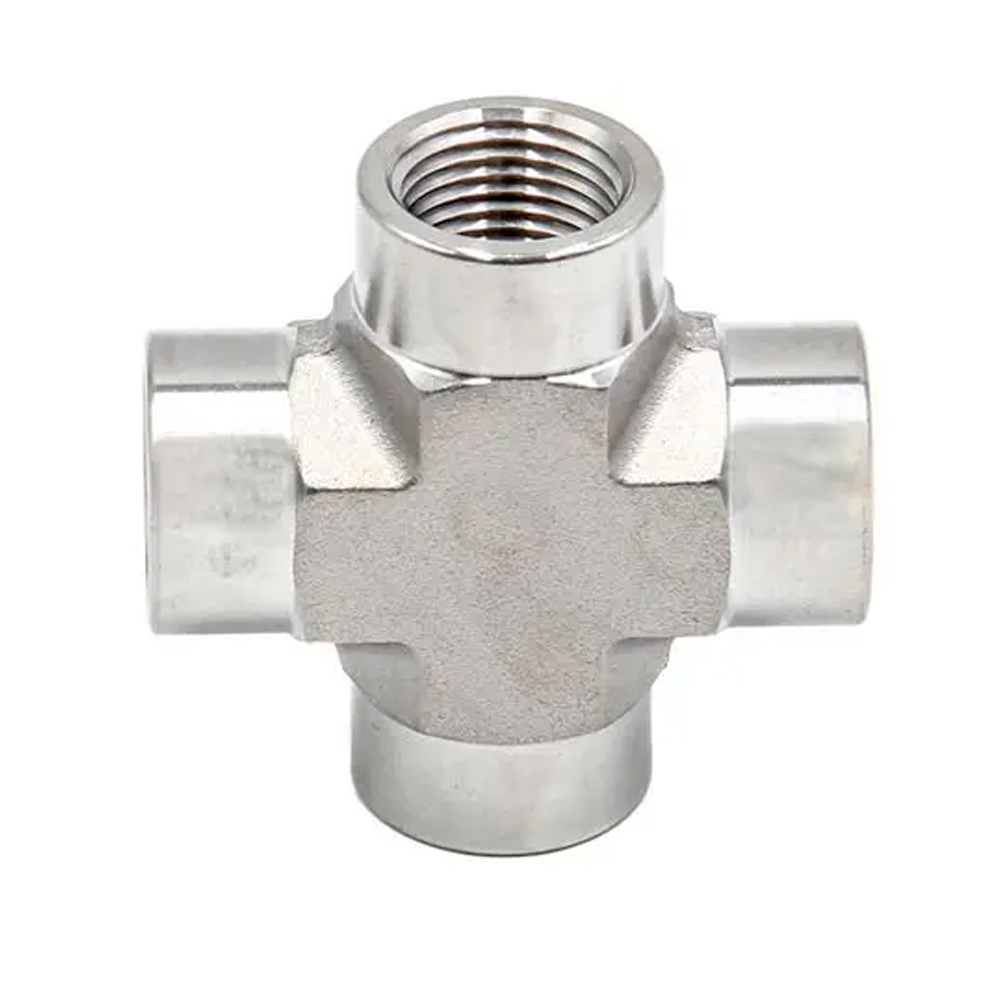

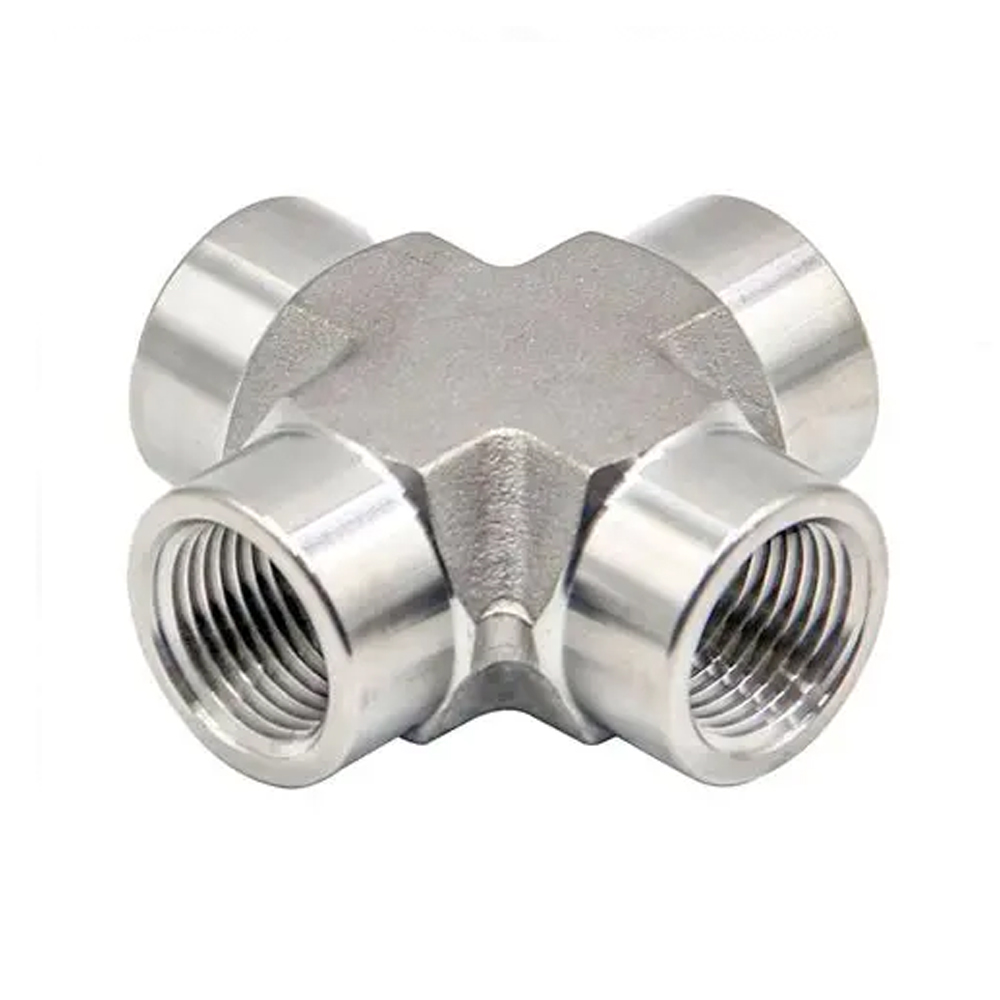

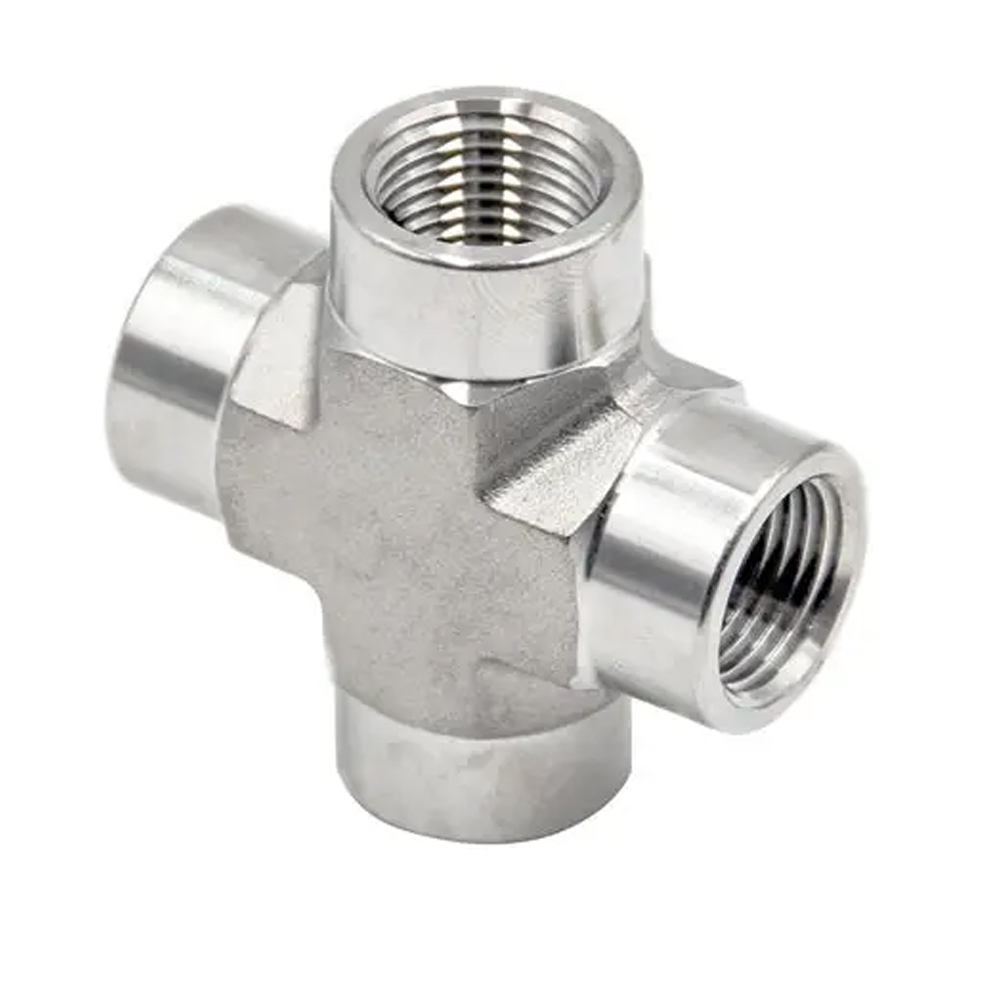

ZN hydraulic female NPT cross fitting has three female NPT threads that can connect with male NPT threads.
"*" indicates required fields
Hydraulic NPT fitting comes in a variety of sizes and threads, such as JIC to NPT, NPT to BSP, NPT to metric, and ORFS to NPT thread. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

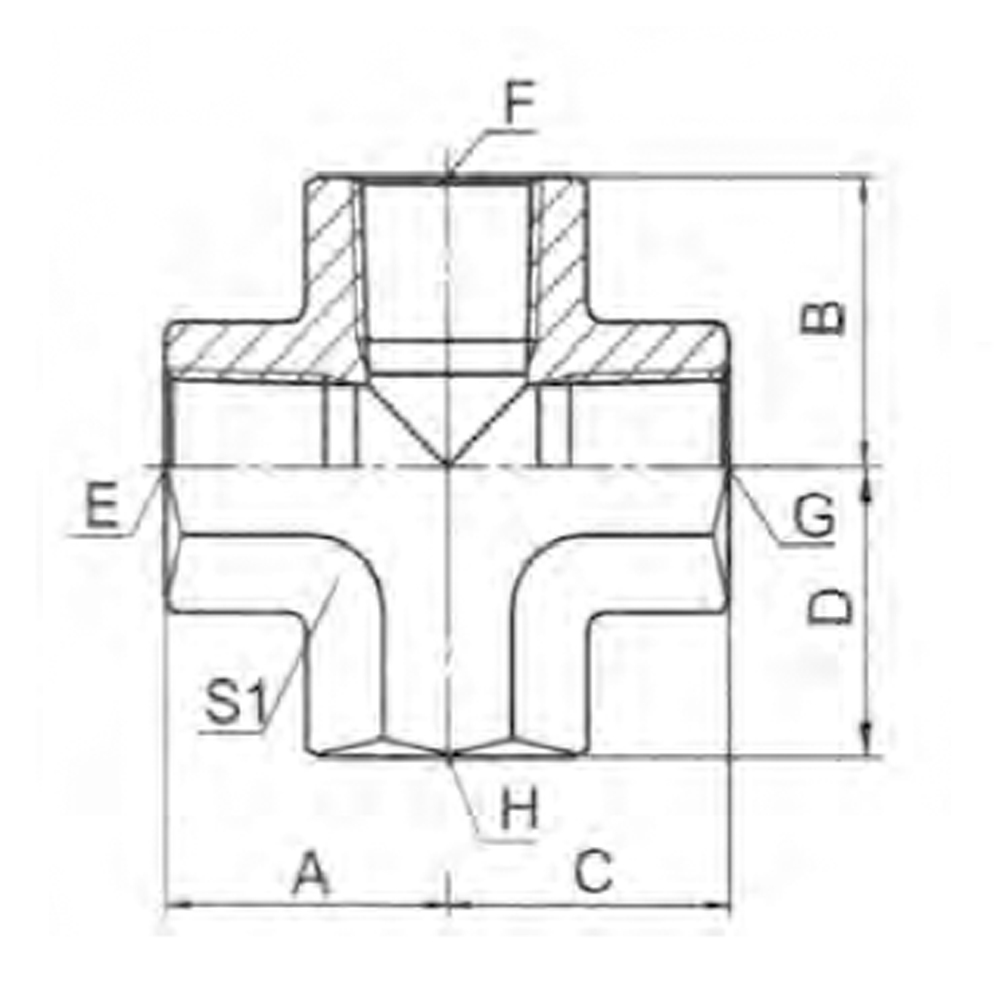

| PART NO. | THREAD | DIMENSIONS | |
| E,F,G,H | A,B,C,D | S1 | |
| ZN-04 | Z1/4″X18 | 22.5 | 19 |
| ZN-06 | Z3/8″X18 | 26 | 24 |
| ZN-08 | Z1/2″X14 | 31 | 27 |
| ZN-12 | Z3/4″X14 | 34 | 33 |
| ZN-16 | Z1″X11.5 | 42 | 41 |
| ZN-20 | Z1.1/4″X11.5 | 48 | 50 |
We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.
It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
