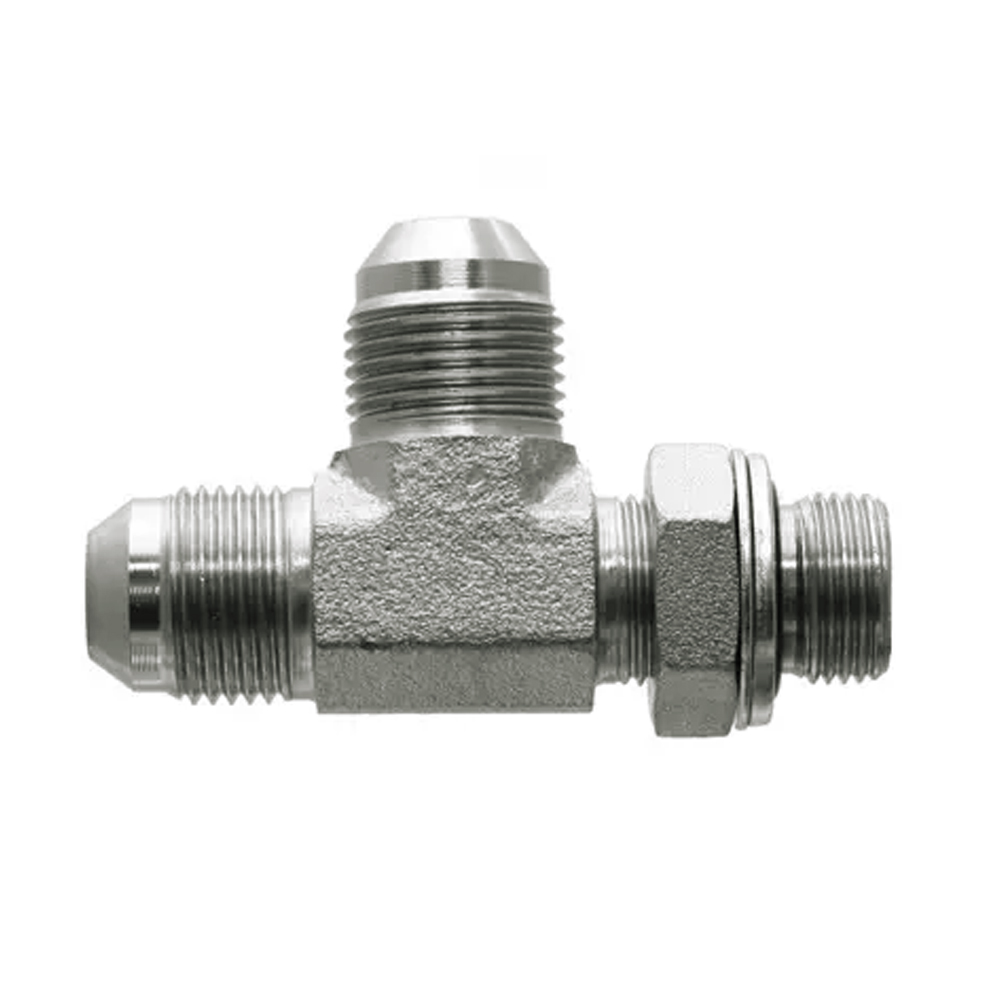

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

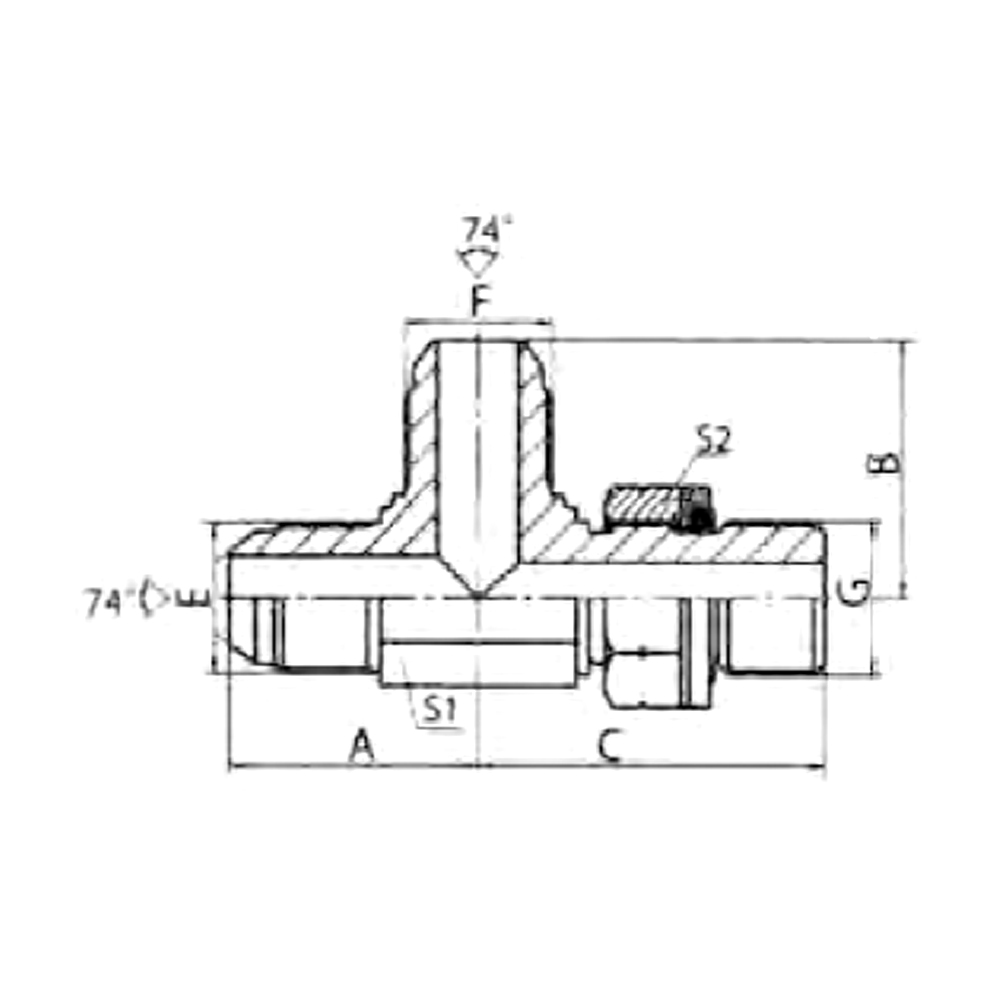

| PART NO. | THREAD | O-RING | DIMENSIONS | ||||||
| E | F | G | A | B | c | S1 | S2 | ||
| AJJG-04OG | 7/16″X20 | 7/16″X20 | G1/4″X19 | O111 | 26.6 | 26.6 | 31.9 | 14 | 19 |
| AJJG-05-05-04OG | 1/2″X20 | 1/2″X20 | G1/4″X19 | O111 | 26.6 | 26.6 | 31.3 | 14 | 19 |
| AJJG-05-06-04OG | 1/2″X20 | 9/16″X18 | G1/4″X19 | O111 | 26.6 | 26.9 | 31.3 | 14 | 19 |
| AJJG-06OG | 9/16″X18 | 9/16″X18 | G3/8″X19 | O113 | 28.5 | 28.5 | 35.5 | 16 | 22 |
| AJJG-06-06-04OG | 9/16″X18 | 9/16″X18 | G1/4″x19 | O111 | 26.9 | 26.9 | 31.3 | 14 | 19 |
| AJJG-08-08-06OG | 3/4″X16 | 3/4″X16 | G3/8″X19 | O113 | 32 | 32 | 36.8 | 19 | 22 |
| AJJG-08OG | 3/4″X16 | 3/4″X16 | G1/2″X14 | O115 | 35 | 35 | 43.2 | 22 | 27 |
| AJJG-10-10-08OG | 7/8″X14 | 7/8″X14 | G1/2″X14 | O115 | 37.8 | 37.8 | 43.2 | 22 | 27 |
| AJJG-12OG | 1.1/16″X12 | 1.1/16″X12 | G3/4″X14 | O119 | 44 | 44 | 49.5 | 27 | 32 |
| AJJG-16OG | 1.5/16″X12 | 1.5/16″X12 | G1″X11 | O217 | 48.8 | 48.8 | 53 | 33 | 41 |
