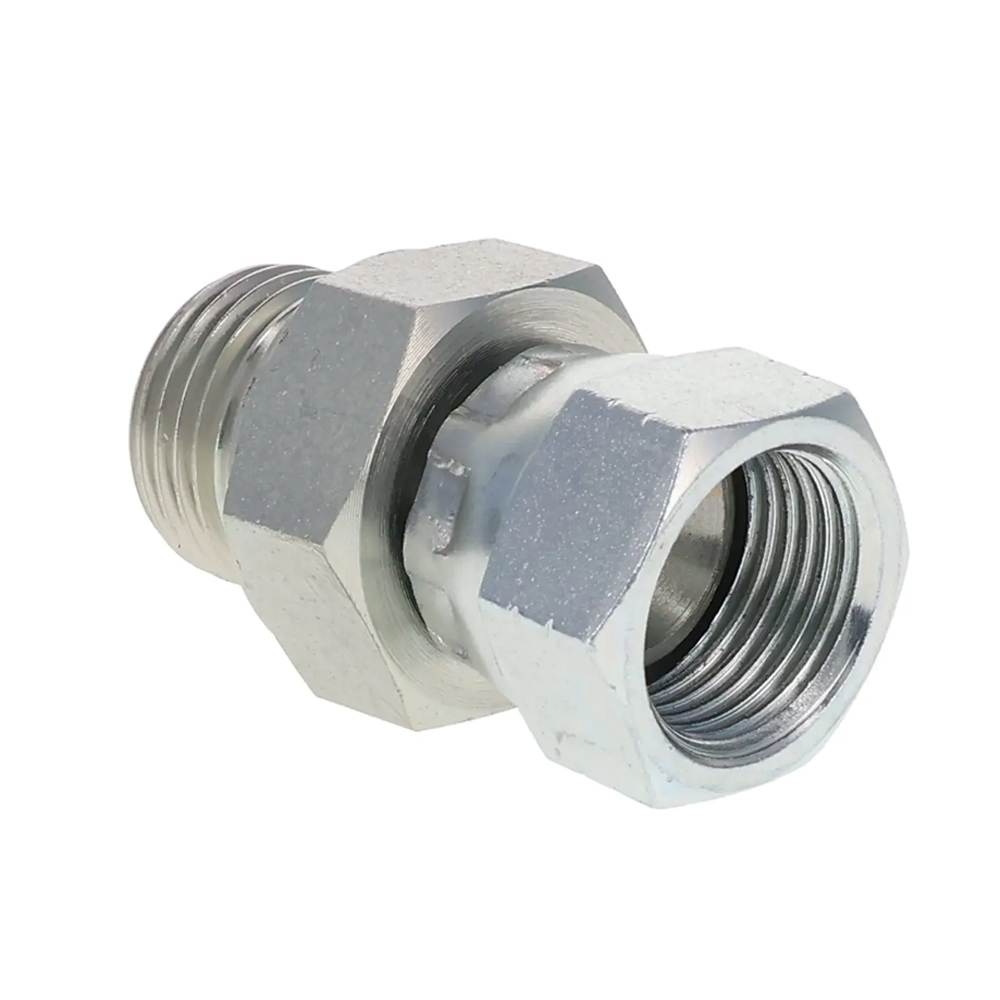

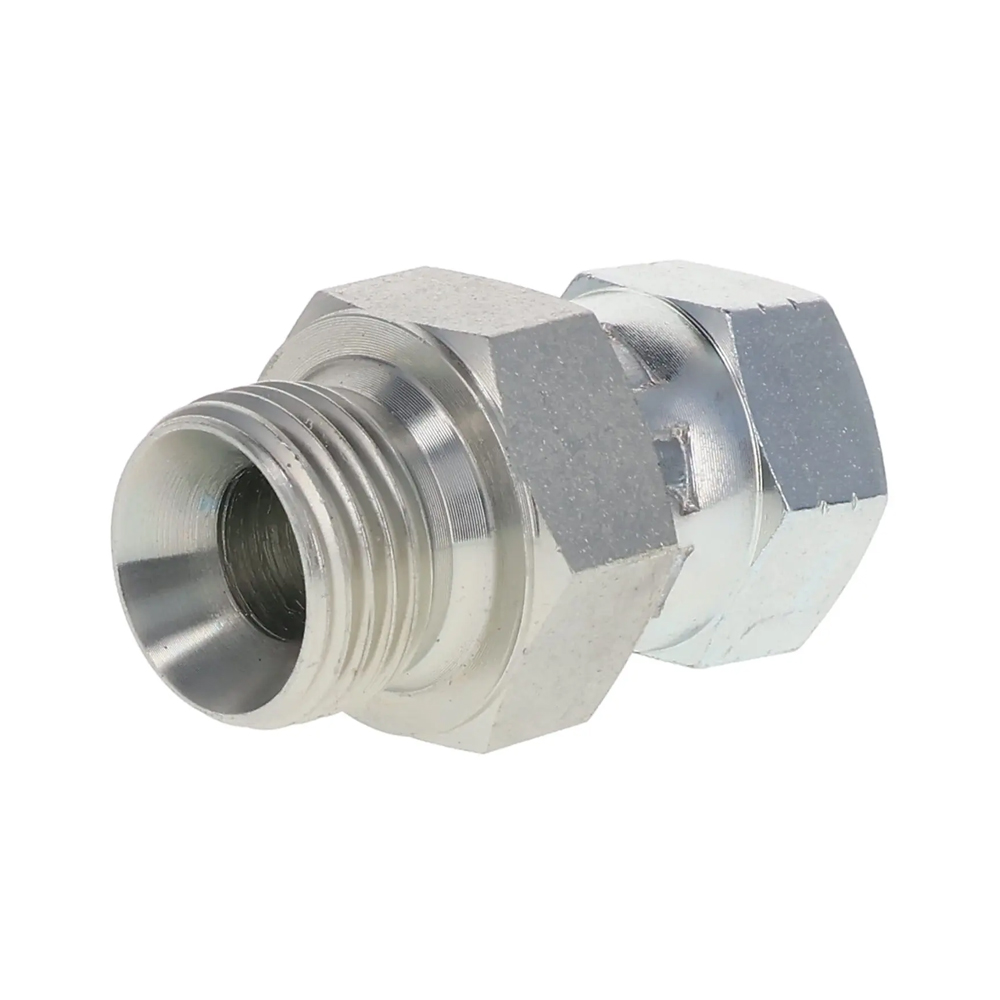

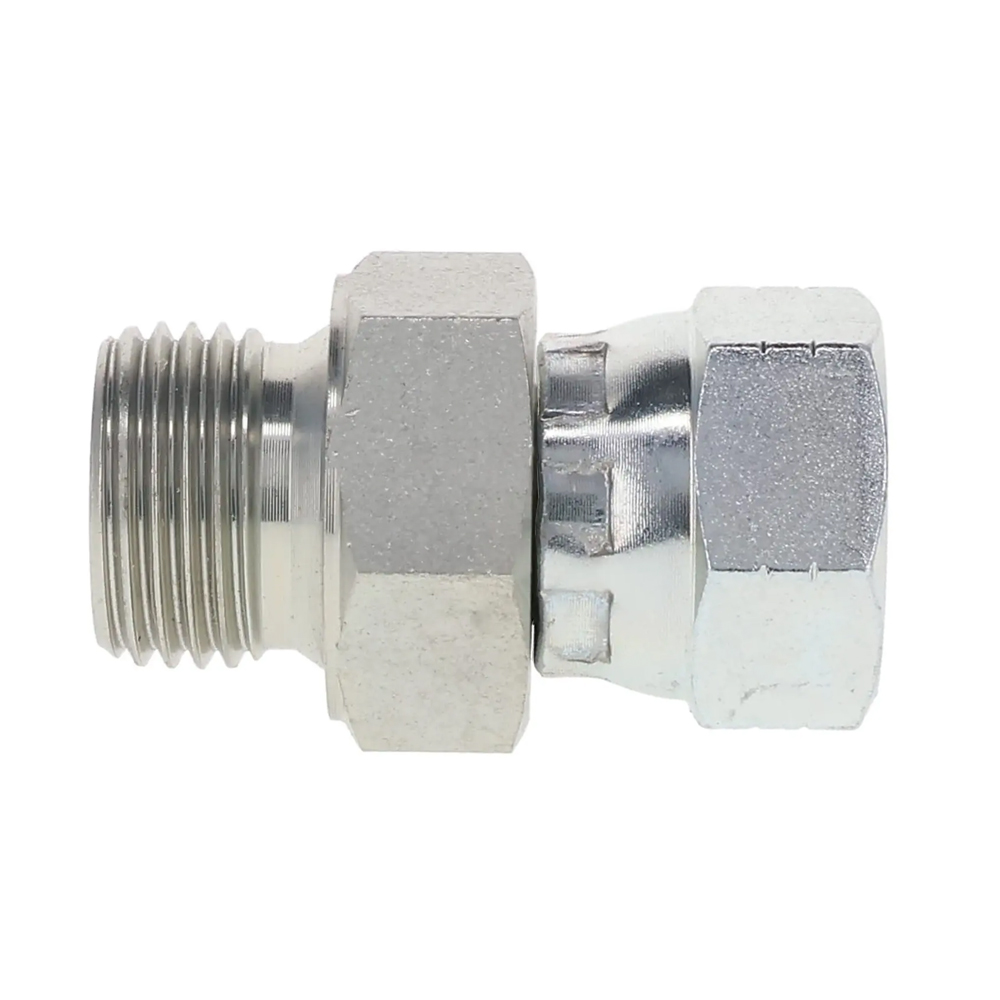

2GJ JIC Female to BSP Male Swivel Adapter

Description:

2GJ-JIC to BSP hydraulic fitting has a BSPP male connection on one end and a JIC female connection on the other end.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

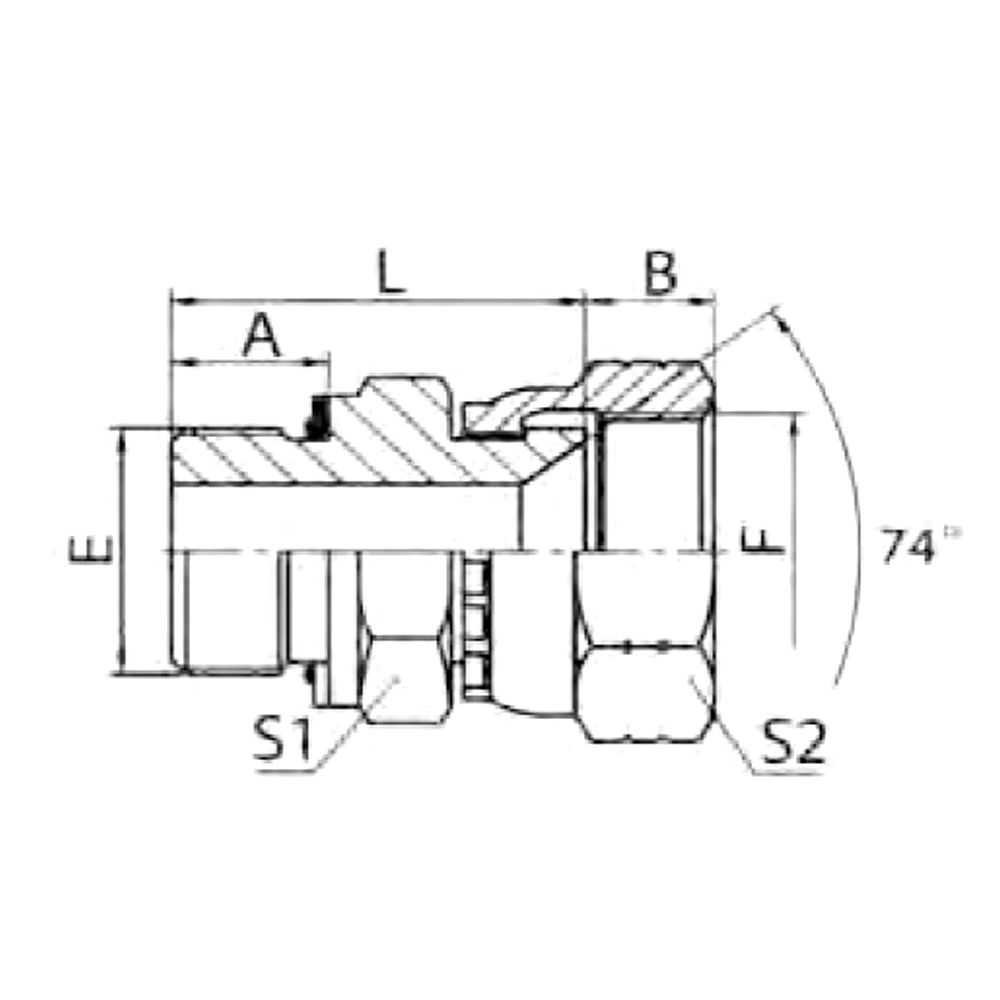

PART NO.	THREAD		O-RING	DIMENSIONS
PART NO.	E	F	F	A	B	L	S1
1JG-04-02	7/16″X20	G1/8″X28	OO11	14	9.5	31	14
1JG-04	7/16″X20	G1/4″X19	O111	14	11	32.5	19
1JG-04-06	7/16″X20	G3/8″X19	O113	14	11.5	34	22
1JG-04-08	7/16″X20	G1/2″X14	O115	14	14	39	27
1JG-05-04	1/2″X20	G1/4″X19	O111	14	11	33	19
1JG-05-06	1/2″X20	G3/8″X19	O113	14	11.5	36	22
1JG-05-08	1/2″X20	G1/2″X14	O115	14	14	39	27
1JG-06-04	9/16″X18	G1/4″X19	O111	14.1	11	32.5	19
1JG-06	9/16″X18	G3/8″X19	O113	14.1	11.5	34	22
1JG-06-08	9/16″X18	G1/2″X14	O115	14.1	14	39	27
1JG-08-04	3/4″X16	G1/4″X19	O111	16.7	11	36	22
1JG-08-06	3/4″X16	G3/8″X19	O113	16.7	11.5	37	22
1JG-08	3/4″X16	G1/2″X14	O115	16.7	14	42	27
1JG-08-12	3/4″X16	G3/4″X14	O119	16.7	15.5	44	32
1JG-10-06	7/8″X14	G3/8″X19	O113	19.3	11.5	40.5	24
1JG-10-08	7/8″X14	G1/2″X14	O115	19.3	14	44.5	27
1JG-10-12	7/8″X14	G3/4″X14	O119	19.3	15.5	48.5	32
1JG-12-08	1.1/16″X12	G1/2″X14	O115	21.9	14	49	30
1JG-12	1.1/16″X12	G3/4″X14	O119	21.9	15.5	49.5	32
1JG-12-16	1.1/16″X12	G1″X11	O217	21.9	18	54	41
1JG-12-20	1.1/16″X12	G1.1/4″X11	O222	21.9	20	57	50
1JG-16-12	1.5/16″X12	G3/4″X14	O119	23.1	15.5	52.5	36
1JG-16	1.5/16″X12	G1″X11	O217	23.1	18	55	41
1JG-16-20	1.5/16″X12	G1.1/4″X11	O222	23.1	20	58	50
1JG-20-16	1.5/8″X12	G1″X11	O217	24.3	18	58	46
1JG-20	1.5/8″X12	G1.1/4″X11	O222	24.3	20	59.5	50
1JG-24-16	1.7/8″X12	G1″X11	O217	27.5	18	63.5	50
1JG-24-20	1.7/8″X12	G1.1/4″X11	O222	27.5	20	65.5	50
1JG-24	1.7/8″X12	G1.1/2″X11	O224	27.5	21.5	64	55

Click to enlarge

Category: JIC Flared Adapter Tags: BSPP, 2GJ, Female, JIC 37°, Male

Description
Package& Shipping

Description

PART NO.	THREAD		O-RING	DIMENSIONS
PART NO.	E	F	F	A	B	L	S1
1JG-04-02	7/16″X20	G1/8″X28	OO11	14	9.5	31	14
1JG-04	7/16″X20	G1/4″X19	O111	14	11	32.5	19
1JG-04-06	7/16″X20	G3/8″X19	O113	14	11.5	34	22
1JG-04-08	7/16″X20	G1/2″X14	O115	14	14	39	27
1JG-05-04	1/2″X20	G1/4″X19	O111	14	11	33	19
1JG-05-06	1/2″X20	G3/8″X19	O113	14	11.5	36	22
1JG-05-08	1/2″X20	G1/2″X14	O115	14	14	39	27
1JG-06-04	9/16″X18	G1/4″X19	O111	14.1	11	32.5	19
1JG-06	9/16″X18	G3/8″X19	O113	14.1	11.5	34	22
1JG-06-08	9/16″X18	G1/2″X14	O115	14.1	14	39	27
1JG-08-04	3/4″X16	G1/4″X19	O111	16.7	11	36	22
1JG-08-06	3/4″X16	G3/8″X19	O113	16.7	11.5	37	22
1JG-08	3/4″X16	G1/2″X14	O115	16.7	14	42	27
1JG-08-12	3/4″X16	G3/4″X14	O119	16.7	15.5	44	32
1JG-10-06	7/8″X14	G3/8″X19	O113	19.3	11.5	40.5	24
1JG-10-08	7/8″X14	G1/2″X14	O115	19.3	14	44.5	27
1JG-10-12	7/8″X14	G3/4″X14	O119	19.3	15.5	48.5	32
1JG-12-08	1.1/16″X12	G1/2″X14	O115	21.9	14	49	30
1JG-12	1.1/16″X12	G3/4″X14	O119	21.9	15.5	49.5	32
1JG-12-16	1.1/16″X12	G1″X11	O217	21.9	18	54	41
1JG-12-20	1.1/16″X12	G1.1/4″X11	O222	21.9	20	57	50
1JG-16-12	1.5/16″X12	G3/4″X14	O119	23.1	15.5	52.5	36
1JG-16	1.5/16″X12	G1″X11	O217	23.1	18	55	41
1JG-16-20	1.5/16″X12	G1.1/4″X11	O222	23.1	20	58	50
1JG-20-16	1.5/8″X12	G1″X11	O217	24.3	18	58	46
1JG-20	1.5/8″X12	G1.1/4″X11	O222	24.3	20	59.5	50
1JG-24-16	1.7/8″X12	G1″X11	O217	27.5	18	63.5	50
1JG-24-20	1.7/8″X12	G1.1/4″X11	O222	27.5	20	65.5	50
1JG-24	1.7/8″X12	G1.1/2″X11	O224	27.5	21.5	64	55

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
