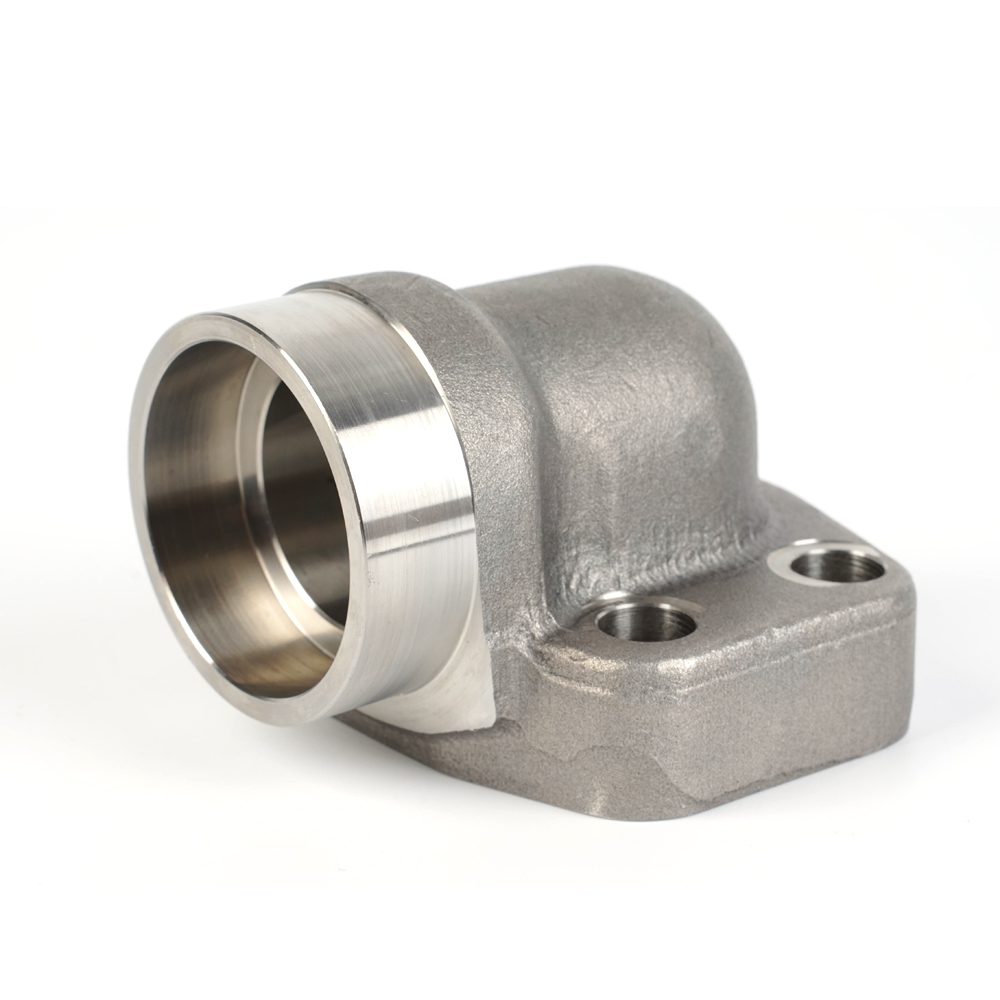

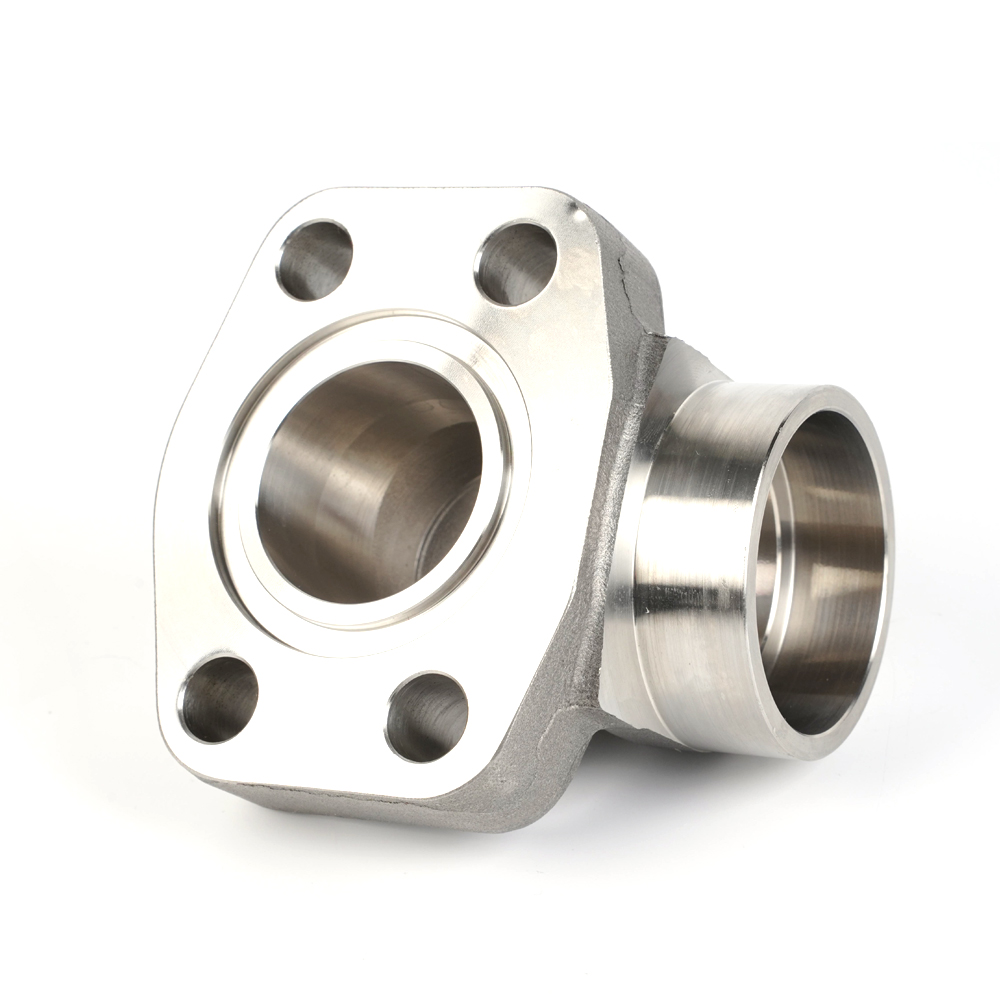

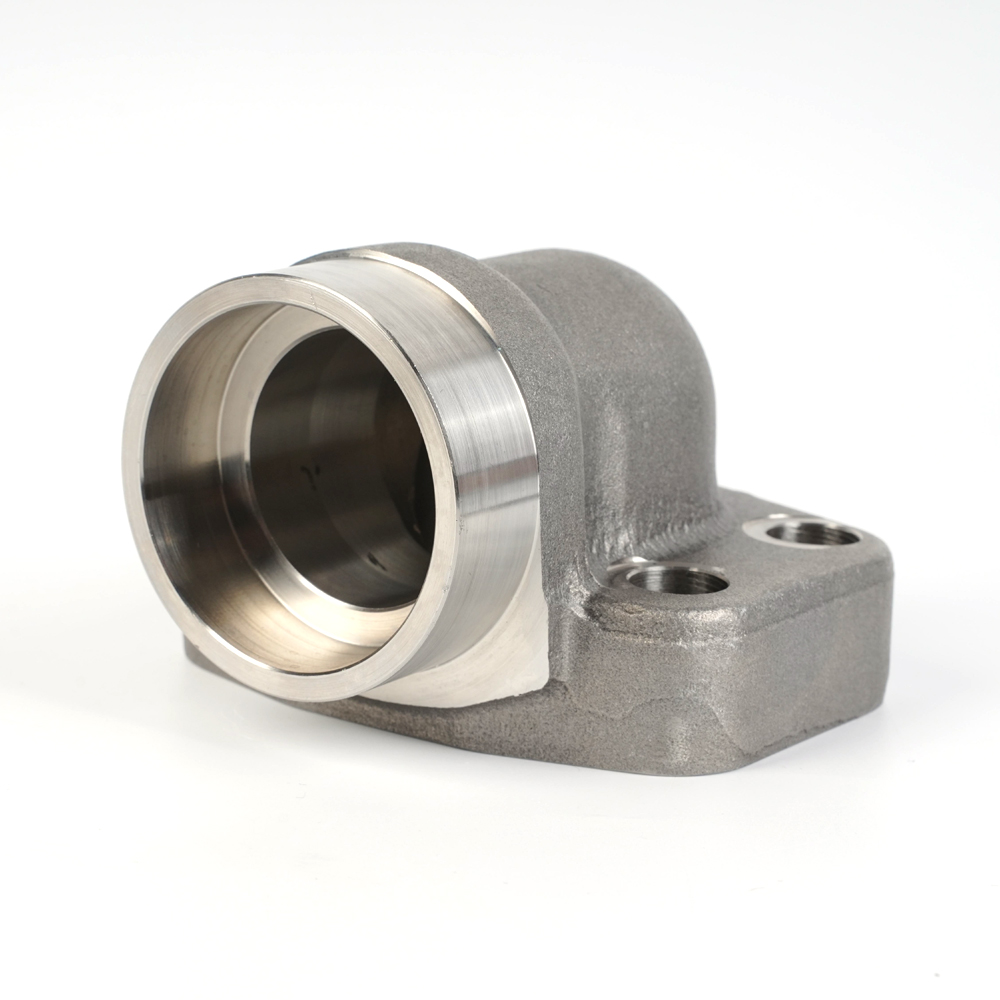

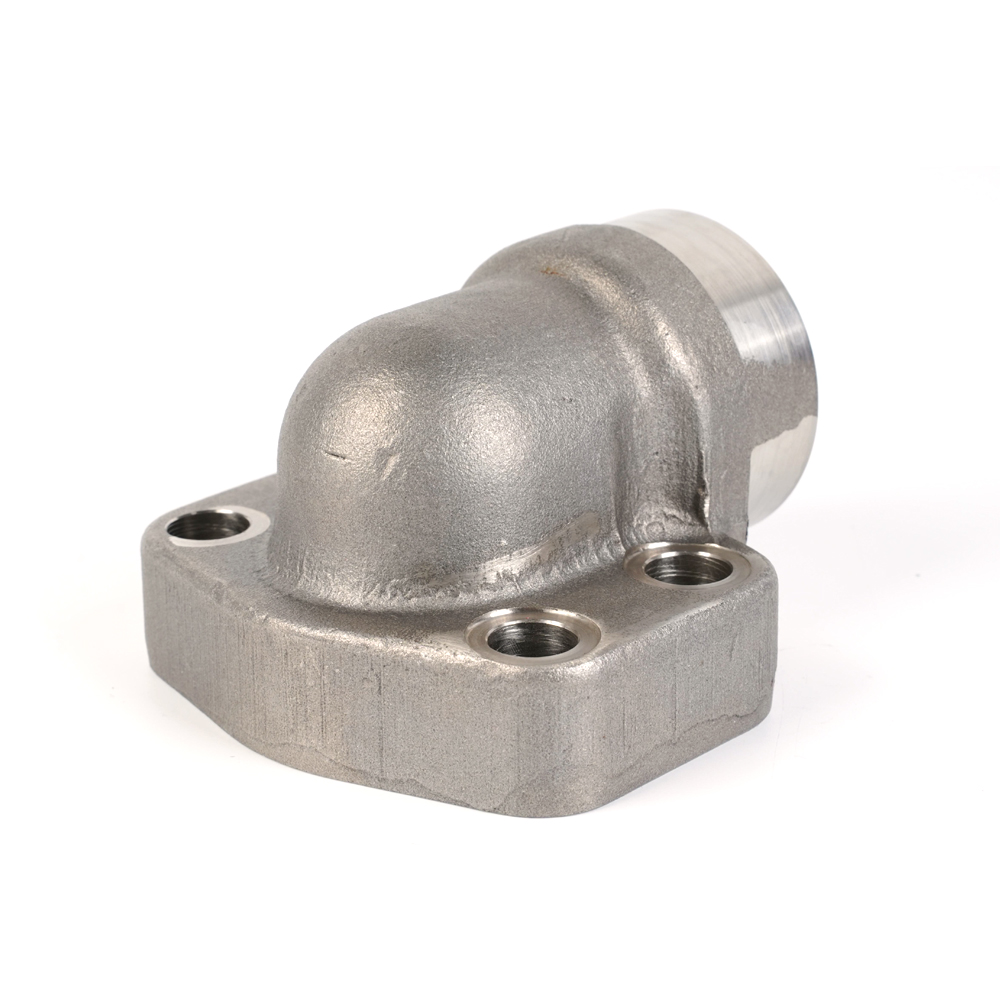

AFW-S 90° Elbow SAE Socket Weld Flange

Description:

AFW-S weld flange is a type of socket weld 90° elbow flange manufactured in accordance with ISO 6162 and SAE J518 standards. There are two pressure series for hydraulic SAE Socket Weld Flange: 3000 psi and 6000 psi.

"*" indicates required fields

The Flange adapters are designed for a pressure rating up to 3,000 psi and high-pressure scenarios with a rating of up to 6,000 psi. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	SIZE	DIMENSION										BOLT	O-Ring	W.T.	MAX.W.P
PART NO.	(inch)	A	B	C	D	E	H	I	K	L1	L2	BOLT	O-Ring	(kg)	(kg/cm²)
3000 psi
AFW301S	1/2″	21.6	13	38.1	54	17.48	16	10	9	20	37	8×30	18.66×3.53	0.33	350
AFW302S	3/4″	27.2	19	47.63	65	22.23	18	10	11	24	39	10×35	25.00×3.53	0.49	350
AFW303S	1″	34	25	52.37	70	26.19	19	12	Лях	28	44	10×35	32.92×3.53	0.66	315
AFW304S	11/4″	42.8	32	58.72	79	30.18	21	14	11.5	34	52	10×40	37.70×3.53	1.5	250
AFW305S	11/2″	48.6	38	69.85	93	35.71	25	16	13.5	38	57	12×45	47.22×3.53	1.65	200
AFW306S	2″	61	51	77.77	102	42.88	25	18	13.5	42	65	12×45	56.75×3.53	2	200
6000 psi
AFW601S	1/2″	21.6	13	40.49	56	18.24	16	10	9	20	38	8×30	18.66×3.53	0.35	400
AFW602S	3/4″	27.2	19	50.8	71	23.8	19	12	11	28	43	10×35	25.00×3.53	0.75	400
AFW603S	1″	34	25	57.15	79	27.76	21	14	13	34	51	12×40	32.92×3.53	1.05	400
AFW604S	11/4″	42.8	32	66.68	93	31.75	25	16	15	38	56	14×45	37.70×3.53	1.45	400
AFW605S	11/2″	48.6	38	79.38	110	36.5	25	18	17	42	65	16×50	47.22×3.53	2.8	400
AFW606S	2″	61	51	96.82	134	44.45	33	18	21	45	75	20×65	56.75×3.53	4	400

Click to enlarge

Category: Flange Hydraulic Adapter Tags: AFW-S, SAE, Weld

Description
Package& Shipping

Description

PART NO.	SIZE	DIMENSION										BOLT	O-Ring	W.T.	MAX.W.P
PART NO.	(inch)	A	B	C	D	E	H	I	K	L1	L2	BOLT	O-Ring	(kg)	(kg/cm²)
3000 psi
AFW301S	1/2″	21.6	13	38.1	54	17.48	16	10	9	20	37	8×30	18.66×3.53	0.33	350
AFW302S	3/4″	27.2	19	47.63	65	22.23	18	10	11	24	39	10×35	25.00×3.53	0.49	350
AFW303S	1″	34	25	52.37	70	26.19	19	12	Лях	28	44	10×35	32.92×3.53	0.66	315
AFW304S	11/4″	42.8	32	58.72	79	30.18	21	14	11.5	34	52	10×40	37.70×3.53	1.5	250
AFW305S	11/2″	48.6	38	69.85	93	35.71	25	16	13.5	38	57	12×45	47.22×3.53	1.65	200
AFW306S	2″	61	51	77.77	102	42.88	25	18	13.5	42	65	12×45	56.75×3.53	2	200
6000 psi
AFW601S	1/2″	21.6	13	40.49	56	18.24	16	10	9	20	38	8×30	18.66×3.53	0.35	400
AFW602S	3/4″	27.2	19	50.8	71	23.8	19	12	11	28	43	10×35	25.00×3.53	0.75	400
AFW603S	1″	34	25	57.15	79	27.76	21	14	13	34	51	12×40	32.92×3.53	1.05	400
AFW604S	11/4″	42.8	32	66.68	93	31.75	25	16	15	38	56	14×45	37.70×3.53	1.45	400
AFW605S	11/2″	48.6	38	79.38	110	36.5	25	18	17	42	65	16×50	47.22×3.53	2.8	400
AFW606S	2″	61	51	96.82	134	44.45	33	18	21	45	75	20×65	56.75×3.53	4	400

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
