6402 JIC SAE Flare Male x O-ring Boss 45° Elbow Adapter

Description:

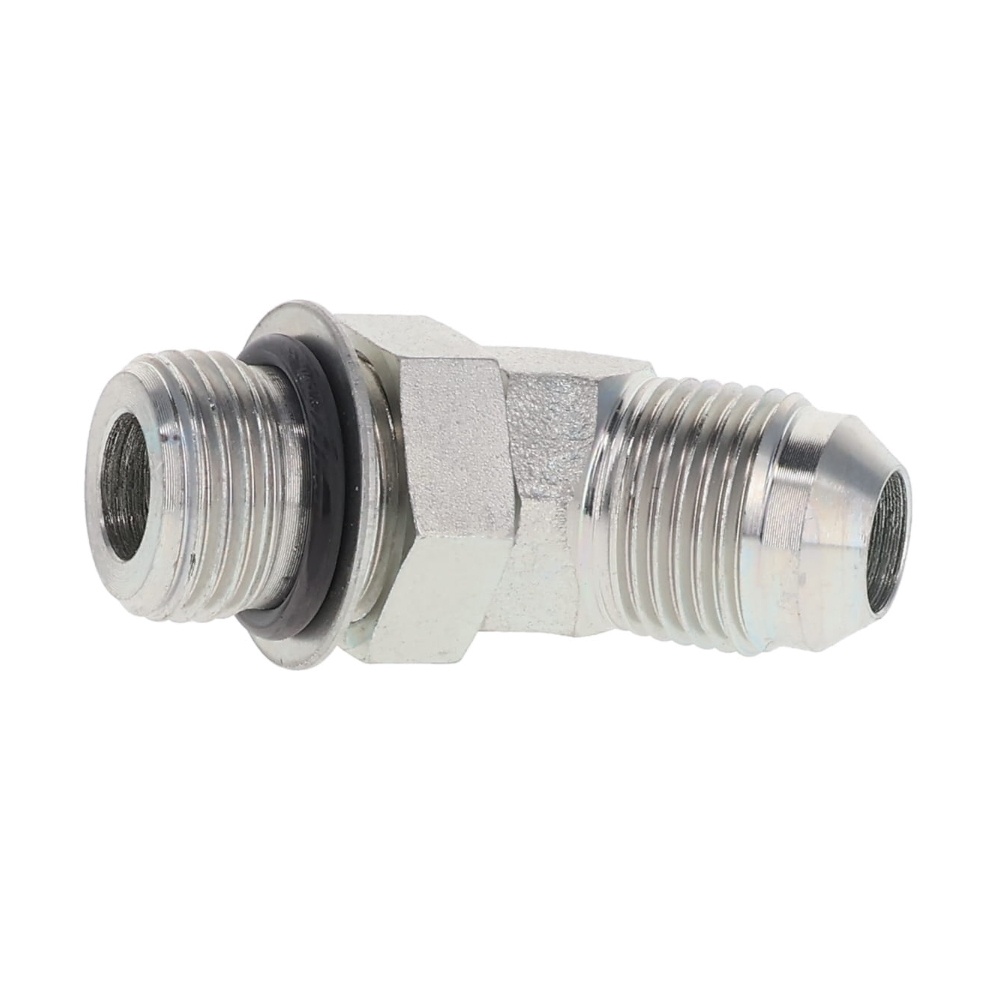

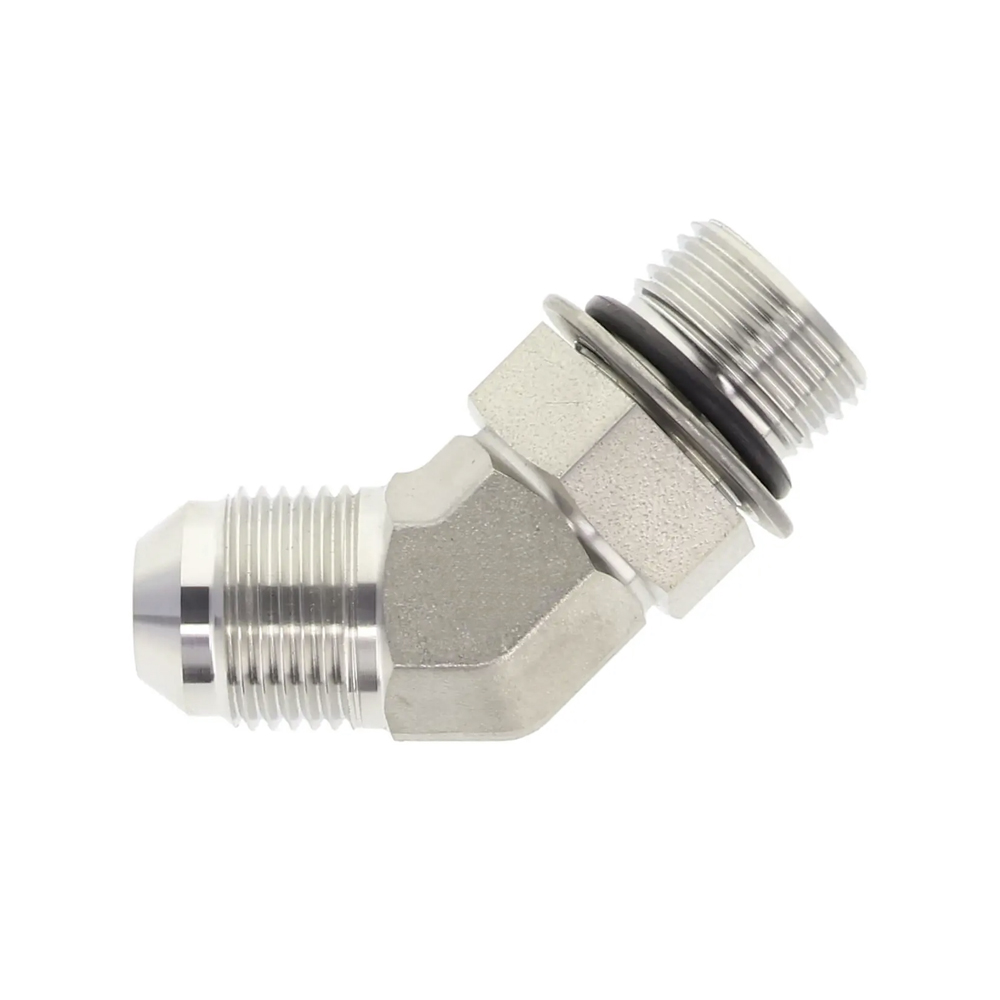

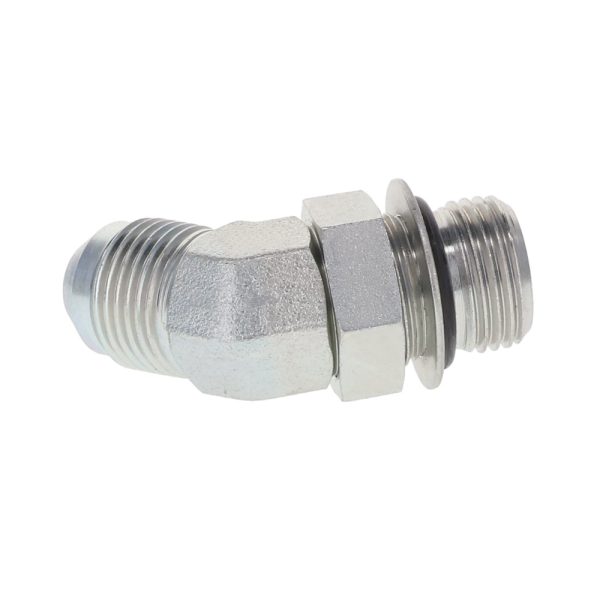

6802 45° elbow SAE JIC to ORB SAE adapter features a male JIC 37-degree flare end and a male SAE ORB straight thread end, with a 45-degree elbow design connecting the two ends.

"*" indicates required fields

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

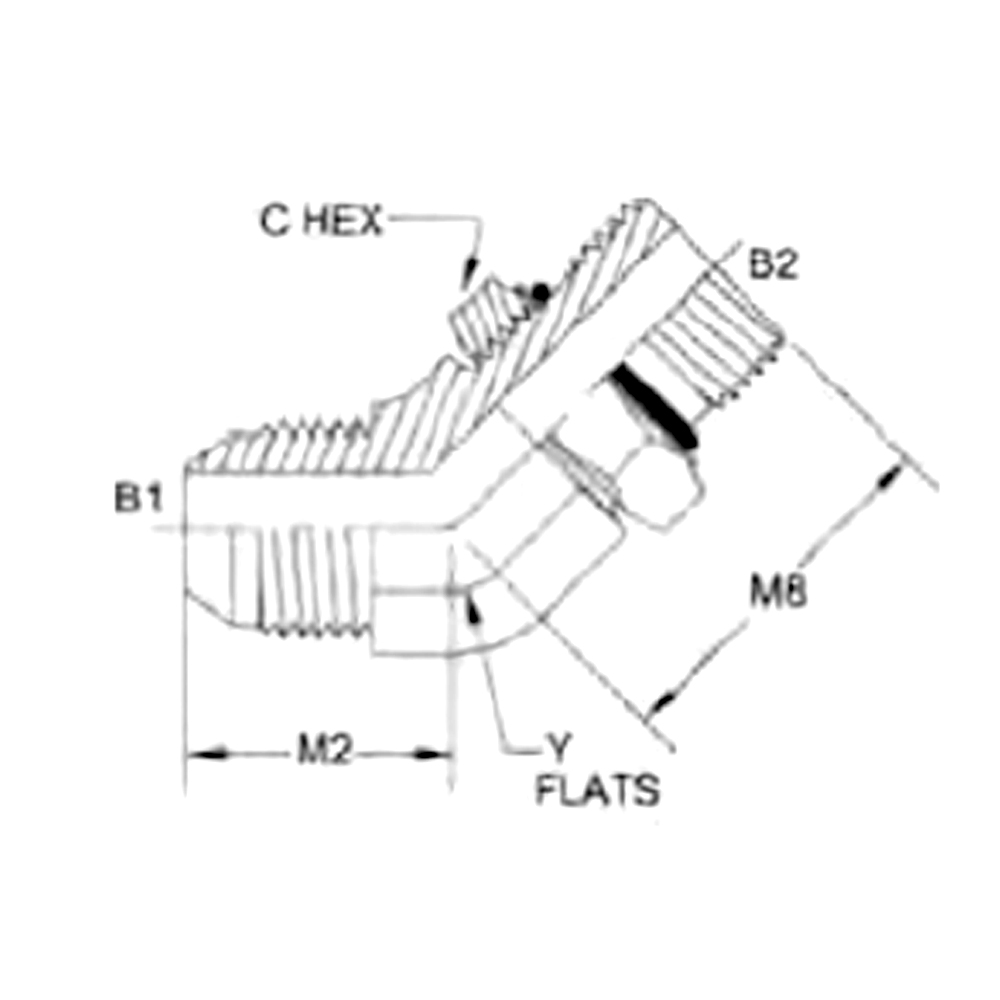

PART NO	TUBE O.D. (INCH)	B1 SAE37	B2 SAEORB	M2 (INCH)	M8 (INCH)	C HEX (INCH)	Y FLATS (INCH)
6802-02-02-NWO-FG	1/8	5/16-24	5/16-24	0.69	0.88	0.438	0.438
6802-04-04-NWO-FG	1/4	7/16-20	7/16-20	0.72	1.05	0.563	0.438
6802-04-05-NWO-FG	1/4	7/16-20	1/2-20	0.77	1.05	0.625	0.562
6802-04-06-NWO-FG	1/4	7/16-20	9/16-18	0.82	1.14	0.688	0.562
6802-04-08-NWO-FG	1/4	7/16-20	3/4-16	0.85	1.30	0.875	0.750
6802-05-04-NWO-FG	5/16	1/2-20	7/16-20	0.77	1.05	0.563	0.562
6802-05-05-NWO-FG	5/16	1/2-20	1/2-20	0.77	1.05	0.625	0.562
6802-05-06-NWO-FG	5/16	1/2-20	9/16-18	0.82	1.14	0.688	0.562
6802-06-04-NWO-FG	3/8	9/16-18	7/16-20	0.83	1.08	0.563	0.562
6802-06-05-NWO-FG	3/8	9/16-18	1/2-20	0.83	1.14	0.625	0.562
6802-06-06-NWO-FG	3/8	9/16-18	9/16-18	0.83	1.14	0.688	0.562
6802-06-08-NWO-FG	3/8	9/16-18	3/4-16	0.87	1.30	0.875	0.750
6802-06-10-NWO-FG	3/8	9/16-18	7/8-14	0.88	1.52	1.000	0.875
6802-06-12-NWO-FG	3/8	9/16-18	1-1/16-12	0.93	1.73	1.250	1.062
6802-08-04-NWO-FG	1/2	3/4-16	7/16-20	0.98	1.11	0.563	0.750
6802-08-06-NWO-FG	1/2	3/4-16	9/16-18	0.98	1.17	0.688	0.750
6802-08-08-NWO-FG	1/2	3/4-16	3/4-16	0.98	1.30	0.875	0.750
6802-08-10-NWO-FG	1/2	3/4-16	7/8-14	0.99	1.52	1.000	0.875
6802-08-12-NWO-FG	1/2	3/4-16	1-1/16-12	1.04	1.73	1.250	1.062
6802-10-08-NWO-FG	5/8	7/8-14	3/4-16	1.11	1.36	0.875	0.875
6802-10-10-NWO-FG	5/8	7/8-14	7/8-14	1.11	1.52	1.000	0.875
6802-10-12-NWO-FG	5/8	7/8-14	1-1/16-12	1.16	1.73	1.250	1.062
6802-12-08-NWO-FG	3/4	1-1/16-12	3/4-16	1.28	1.41	0.875	1.062
6802-12-10-NWO-FG	3/4	1-1/16-12	7/8-14	1.28	1.57	1.000	1.062
6802-12-12-NWO-FG	3/4	1-1/16-12	1-1/16-12	1.28	1.73	1.250	1.062
6802-12-14-NWO-FG	3/4	1-1/16-12	1-3/16-12	1.42	1.86	1.375	1.312
6802-12-16-NWO-FG	3/4	1-1/16-12	1-5/16-12	1.42	1.86	1.500	1.312
6802-14-14-NWO-FG	5/8	1-3/16-12	1-3/16-12	1.45	1.86	1.375	1.312
6802-16-12-NWO-FG	1	1-5/16-12	1-1/16-12	1.47	1.86	1.250	1.312
6802-16-14-NWO-FG	1	1-5/16-12	1-3/16-12	1.47	1.86	1.375	1.312
6802-16-16-NWO-FG	1	1-5/16-12	1-5/16-12	1.47	1.86	1.500	1.312
6802-16-20-NWO-FG	1	1-5/16-12	1-5/8-12	1.54	1.91	1.875	1.625
