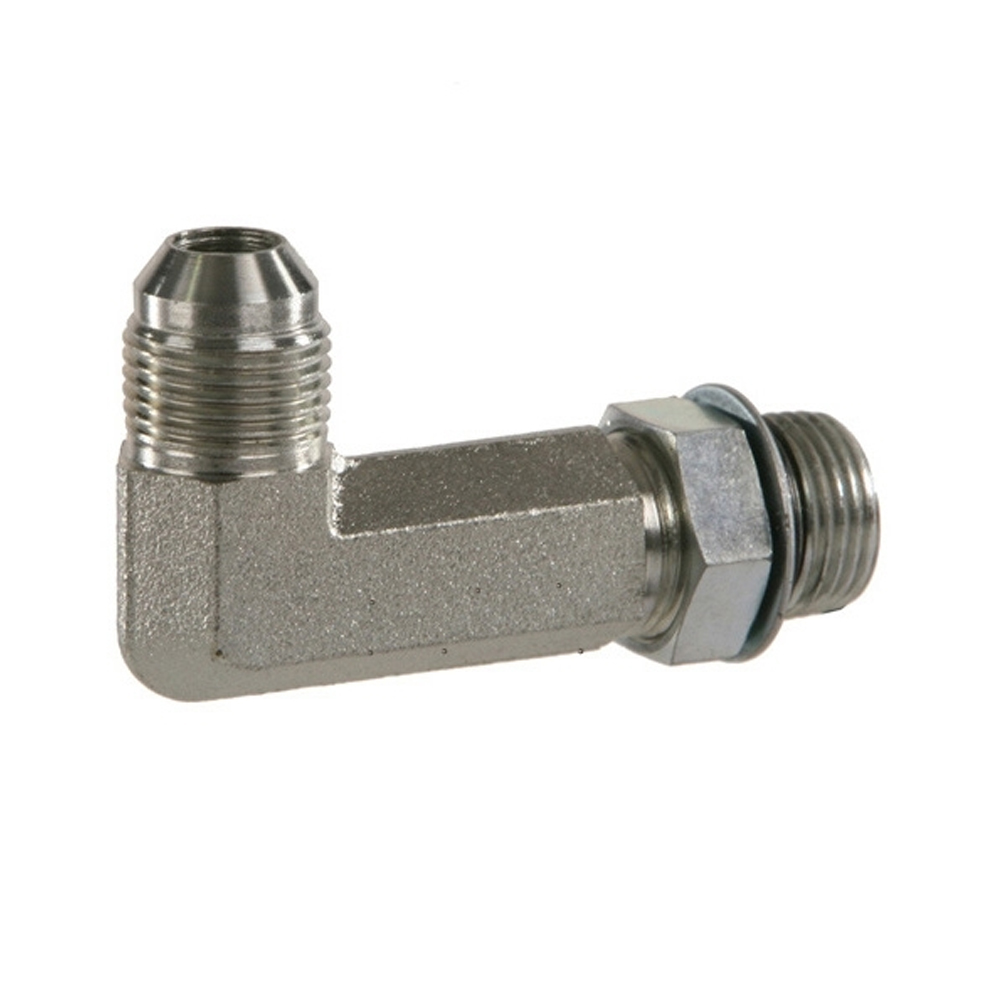

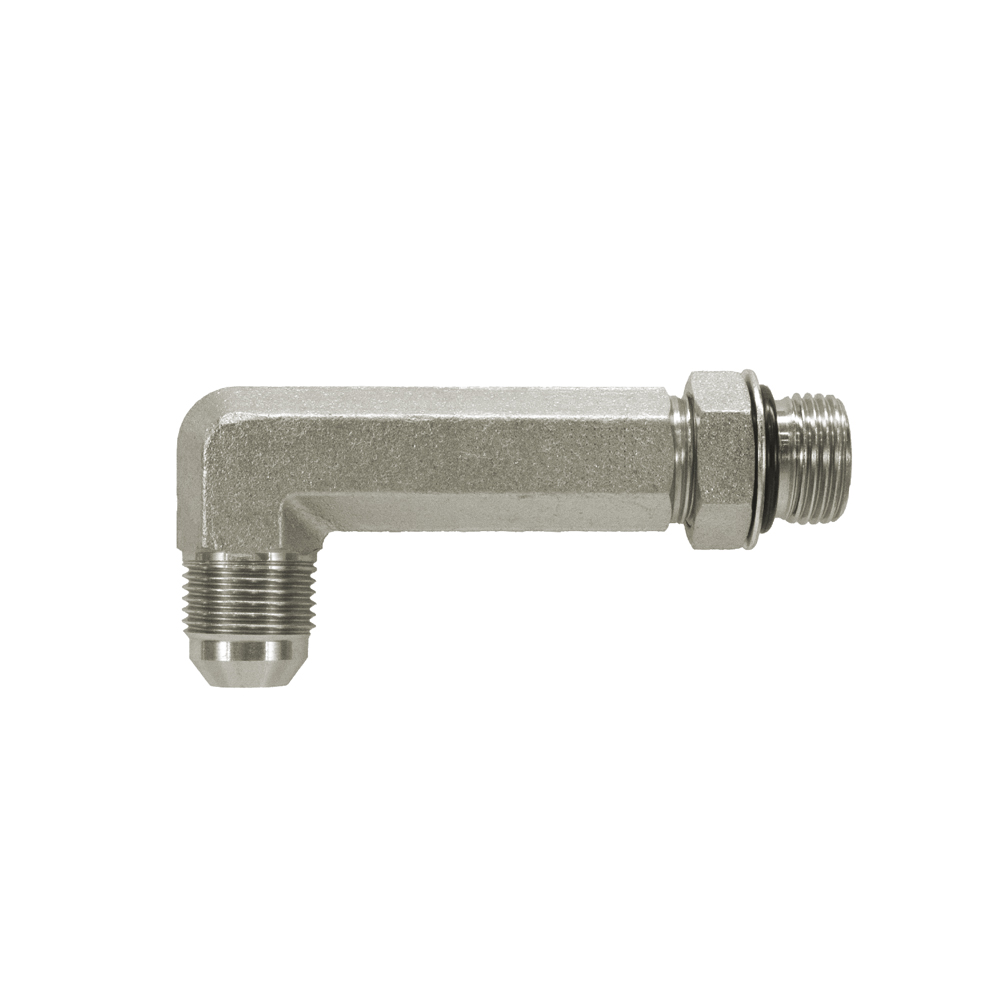

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.
|

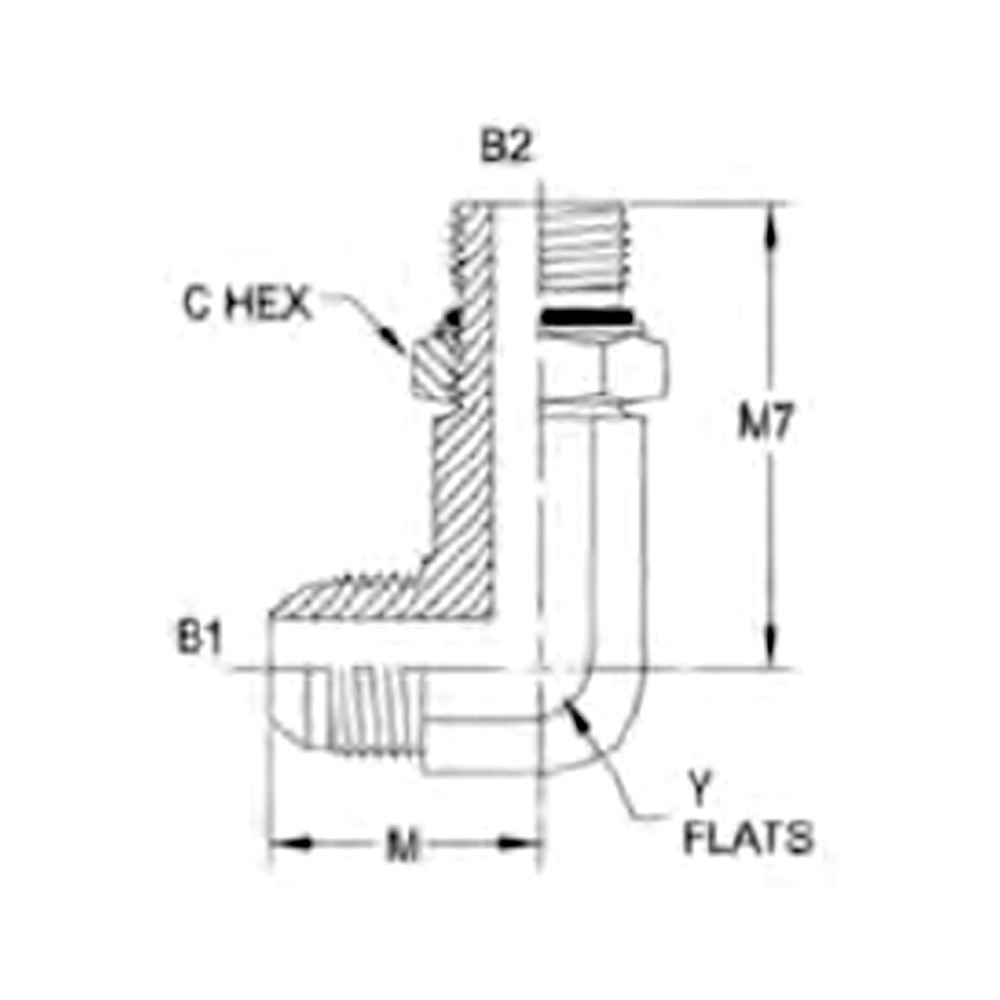

PART NO |
TUBE O.D.
(INCH) |
B1
SAE37 |
B2
SAE37 |
M
(INCH) |
M7
(INCH) |
C HEX
(INCH) |
Y FLATS (INCH) |
| 6801-L-04-04-NWO-FG | 1/4 | 7/16-20 | 7/16-20 | 0.89 | 1.54 | 0.563 | 0.438 |
| 6801-L-04-06-NWO-FG | 1/4 | 7/16-20 | 9/16-18 | 1.05 | 1.66 | 0.688 | 0.562 |
| 6801-L-06-06-NWO-FG | 3/8 | 9/16-18 | 9/16-18 | 1.06 | 1.66 | 0.688 | 0.562 |
| 6801-L-06-08-NWO-FG | 3/8 | 9/16-18 | 3/4-16 | 1.14 | 1.97 | 0.875 | 0.750 |
| 6801-L-08-06-NWO-FG | 1/2 | 3/4-16 | 9/16-18 | 1.25 | 1.84 | 0.688 | 0.750 |
| 6801-L-08-08-NWO-FG | 1/2 | 3/4-16 | 3/4-16 | 1.25 | 1.97 | 0.875 | 0.750 |
| 6801 -L-08-10-N WO-FG | 1/2 | 3/4-16 | 7/8-14 | 1.33 | 2.26 | 1.000 | 0.875 |
| 6801-L-10-08-NWO-FG | 5/8 | 7/8-14 | 3/4-16 | 1.45 | 2.10 | 0.875 | 0.875 |
| 6801-L-10-10-N WO-FG | 5/8 | 7/8-14 | 7/8-14 | 1.45 | 2.26 | 1.000 | 0.875 |
| 6801-L-10-12-NWO-FG | 5/8 | 7/8-14 | 1-1/16-12 | 1.54 | 2.62 | 1.250 | 1.062 |
| 6801-L-12-IO-NWO-FG | 3/4 | 1-1/16-12 | 7/8-14 | 1.66 | 2.46 | 1.000 | 1.062 |
| 6801-L-12-12-NWO-FG | 3/4 | 1-1/16-12 | 1-1/16-12 | 1.66 | 2.62 | 1.250 | 1.062 |
| 6801-L-16-12-NWO-FG | 1 | 1-5/16-12 | 1-1/16-12 | 1.81 | 3.06 | 1.250 | 1.312 |
| 6801-L-16-16-NWO-FG | 1 | 1-5/16-12 | 1-5/16-12 | 1.81 | 3.06 | 1.500 | 1.312 |
| 6801-L-20-20-N WO-FG | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 2.06 | 3.48 | 1.875 | 1.625 |
