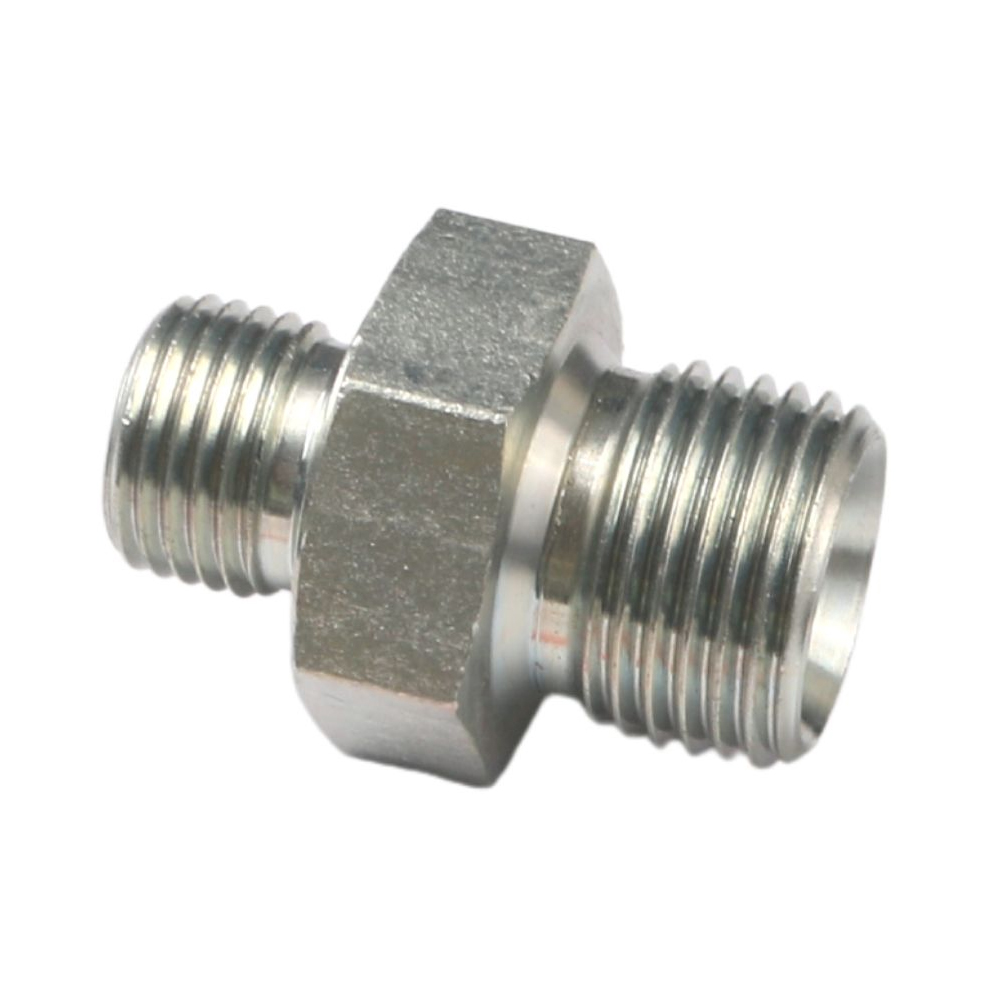

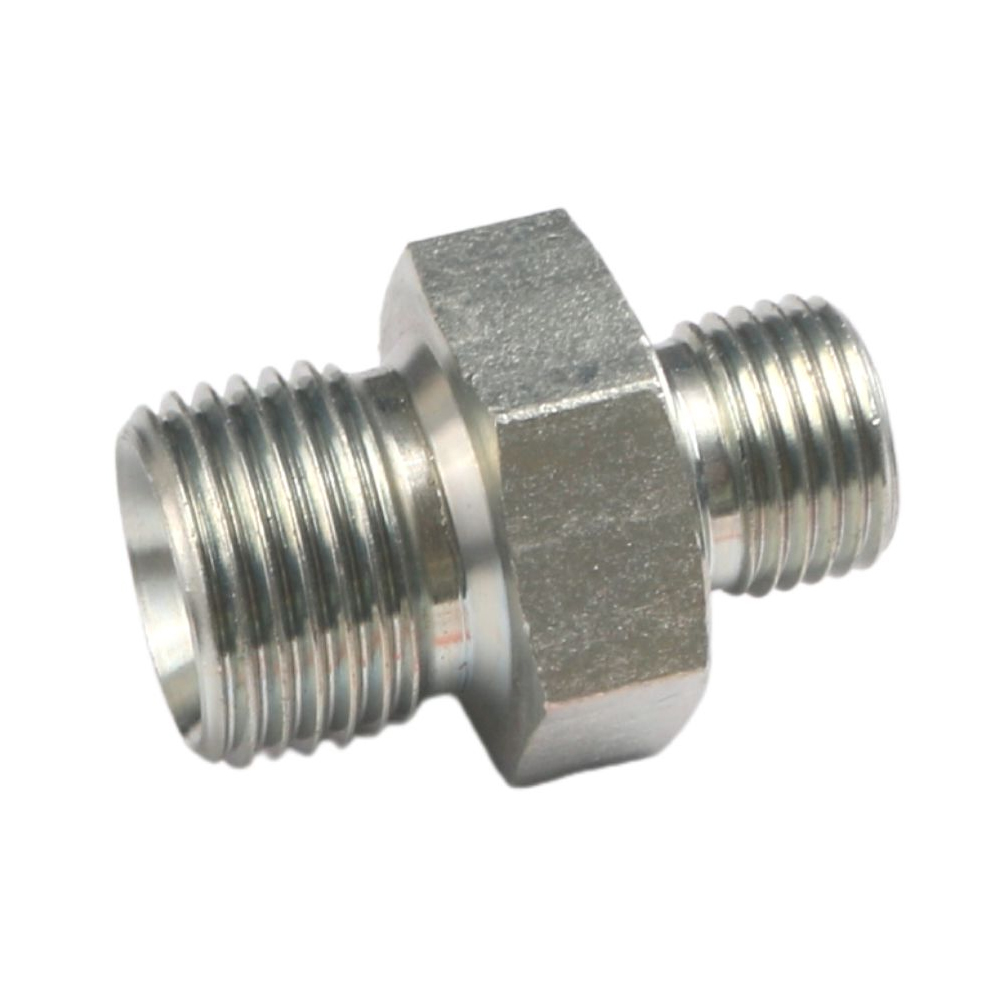

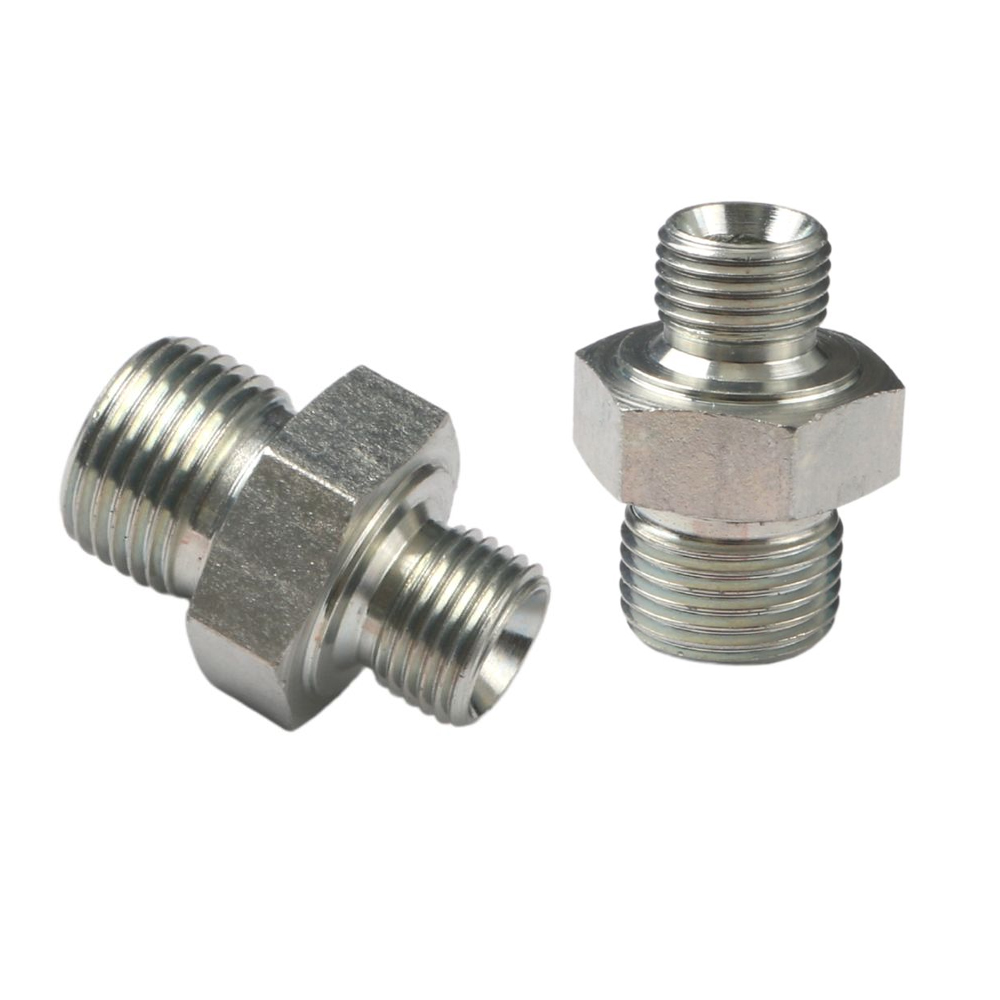

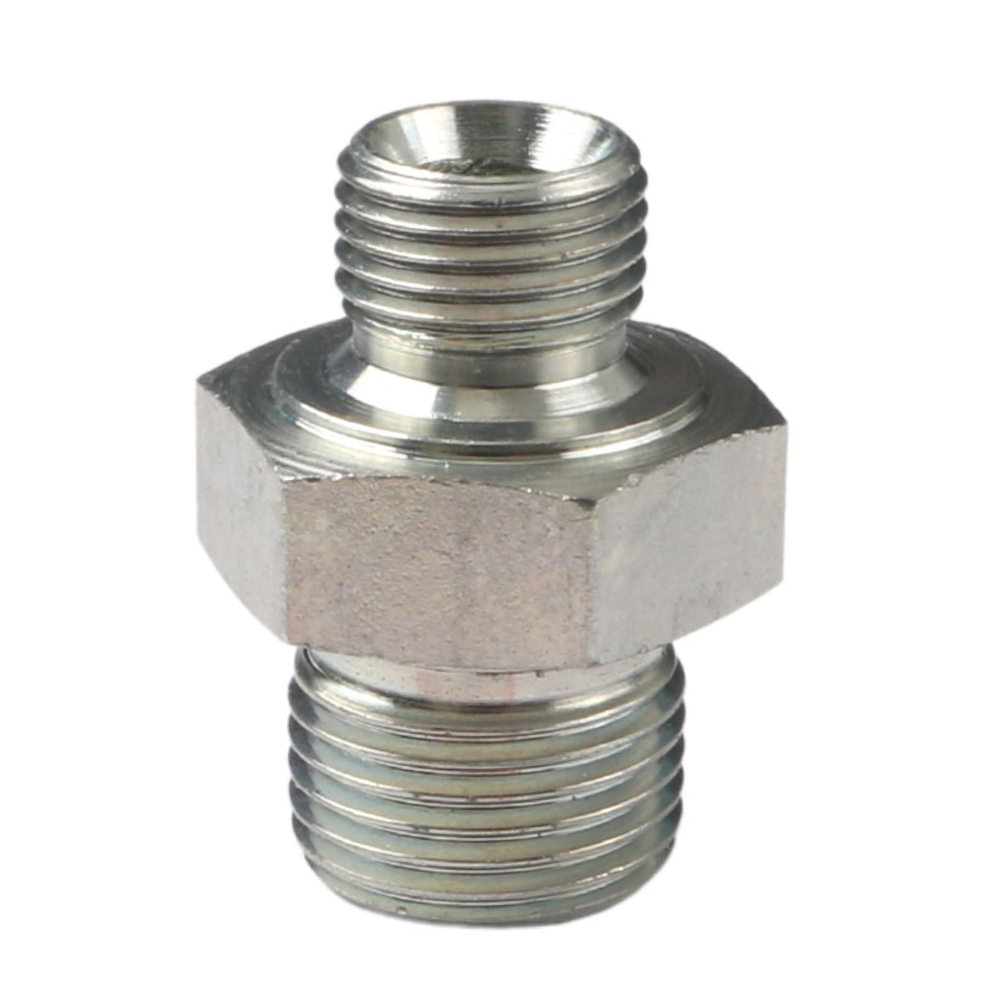

1BM Male BSP To Metric Adapter

Description:

1BM BSP to Metric hydraulic hose fittings are straight double male thread connectors with a 60-degree cone seat BSP thread and a Metric thread.

"*" indicates required fields

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

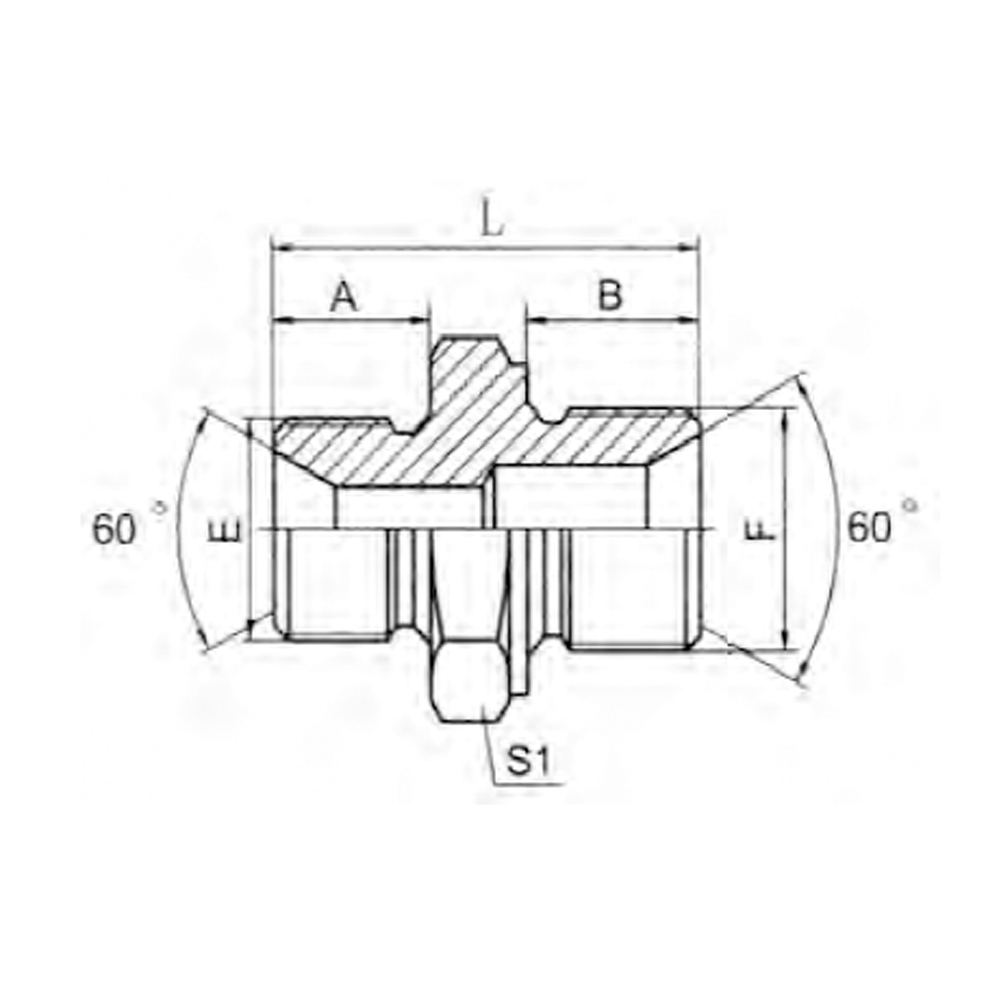

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	L	S1
1BM-02-10	G1/8″X28	M10X1	10	8	25	14
1BM-02-12	G1/8″X28	M12X1.5	10	10	27	17
1BM-04-12	G1/4″X19	M12X1.5	12	10	29	19
1BM-04-14	G1/4″X19	M14X1.5	12	11	30	19
1BM-04-16	G1/4″X19	M16X1.5	12	12	33	22
1BM-04-18	G1/4″X19	M18X1.5	12	12	33	24
1BM-06-10	G3/8″X19	M10X1	13.5	8	29.5	22
1BM-06-12	G3/8″X19	M12X1.5	13.5	10	31.5	22
1BM-06-14	G3/8″X19	M14X1.5	13.5	11	32.5	22
1BM-06-16	G3/8″X19	M16X1.5	13.5	12	33.5	22
1BM-06-18	G3/8″X19	M18X1.5	13.5	12	34.5	24
1BM-06-20	G3/8″X19	M20X1.5	13.5	14	38.5	27
1BM-06-22	G3/8″X19	M22X1.5	13.5	14	38.5	27
1BM-08-14	G1/2″X14	M14X1.5	16	11	38	27
1BM-08-16	G1/2″X14	M16X1.5	16	12	39	27
1BM-08-18	G1/2″X14	M18X1.5	16	12	39	27
1BM-08-20	G1/2″X14	M20X1.5	16	14	41	27
1BM-08-22	G1/2″X14	M22X1.5	16	14	41	27
1BM-08-24	G1/2″X14	M24X1.5	16	14	41	30
1BM-08-26	G1/2″X14	M26X1.5	16	16	44	32
1BM-08-27D	G1/2″X14	M27X1.5	16	16	44	32
1BM-08-30	G1/2″X14	M30X2	16	18	45	36
1BM-10-22	G5/8″X14	M22X1.5	17.5	14	42.5	30
1BM-10-26	G5/8″X14	M26X1.5	17.5	16	45.5	32
1BM-12-18	G3/4″X14	M18X1.5	18.5	12	42.5	32
1BM-12-20	G3/4″X14	M20X1.5	18.5	14	44.5	32
1BM-12-22	G3/4″X14	M22X1.5	18.5	14	44.5	32
1BM-12-24	G3/4″X14	M24X1.5	18.5	14	44.5	32
1BM-12-26	G3/4″X14	M26X1.5	18.5	16	46.5	32
1BM-12-27	G3/4″X14	M27X2	18.5	16	46.5	32
1BM-12-27D	G3/4″X14	M27X1.5	18.5	16	46.5	32
1BM-12-30	G3/4″X14	M30X2	18.5	18	47.5	36
1BM-12-30D	G3/4″X14	M30X1.5	18.5	18	47.5	36
1BM-16-14	G1″X11	M14X1.5	20.5	11	45.5	41
1BM-16-22	G1″X11	M22X1.5	20.5	14	48.5	41

Click to enlarge

Category: BSP Hydraulic Adapter Tags: Metric, 1BM, Female, BSP, O-ring

Description
Package& Shipping

Description

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	L	S1
1BM-02-10	G1/8″X28	M10X1	10	8	25	14
1BM-02-12	G1/8″X28	M12X1.5	10	10	27	17
1BM-04-12	G1/4″X19	M12X1.5	12	10	29	19
1BM-04-14	G1/4″X19	M14X1.5	12	11	30	19
1BM-04-16	G1/4″X19	M16X1.5	12	12	33	22
1BM-04-18	G1/4″X19	M18X1.5	12	12	33	24
1BM-06-10	G3/8″X19	M10X1	13.5	8	29.5	22
1BM-06-12	G3/8″X19	M12X1.5	13.5	10	31.5	22
1BM-06-14	G3/8″X19	M14X1.5	13.5	11	32.5	22
1BM-06-16	G3/8″X19	M16X1.5	13.5	12	33.5	22
1BM-06-18	G3/8″X19	M18X1.5	13.5	12	34.5	24
1BM-06-20	G3/8″X19	M20X1.5	13.5	14	38.5	27
1BM-06-22	G3/8″X19	M22X1.5	13.5	14	38.5	27
1BM-08-14	G1/2″X14	M14X1.5	16	11	38	27
1BM-08-16	G1/2″X14	M16X1.5	16	12	39	27
1BM-08-18	G1/2″X14	M18X1.5	16	12	39	27
1BM-08-20	G1/2″X14	M20X1.5	16	14	41	27
1BM-08-22	G1/2″X14	M22X1.5	16	14	41	27
1BM-08-24	G1/2″X14	M24X1.5	16	14	41	30
1BM-08-26	G1/2″X14	M26X1.5	16	16	44	32
1BM-08-27D	G1/2″X14	M27X1.5	16	16	44	32
1BM-08-30	G1/2″X14	M30X2	16	18	45	36
1BM-10-22	G5/8″X14	M22X1.5	17.5	14	42.5	30
1BM-10-26	G5/8″X14	M26X1.5	17.5	16	45.5	32
1BM-12-18	G3/4″X14	M18X1.5	18.5	12	42.5	32
1BM-12-20	G3/4″X14	M20X1.5	18.5	14	44.5	32
1BM-12-22	G3/4″X14	M22X1.5	18.5	14	44.5	32
1BM-12-24	G3/4″X14	M24X1.5	18.5	14	44.5	32
1BM-12-26	G3/4″X14	M26X1.5	18.5	16	46.5	32
1BM-12-27	G3/4″X14	M27X2	18.5	16	46.5	32
1BM-12-27D	G3/4″X14	M27X1.5	18.5	16	46.5	32
1BM-12-30	G3/4″X14	M30X2	18.5	18	47.5	36
1BM-12-30D	G3/4″X14	M30X1.5	18.5	18	47.5	36
1BM-16-14	G1″X11	M14X1.5	20.5	11	45.5	41
1BM-16-22	G1″X11	M22X1.5	20.5	14	48.5	41

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
