Home Hydraulic Hose Ferrules 00110A Crimp Hose Ferrules For EN 1SN
00110 Crimp Hose Ferrules For SAE 100R1
Back to products
03310 Crimp Hose Ferrules For SAE 100R2
Click to enlarge

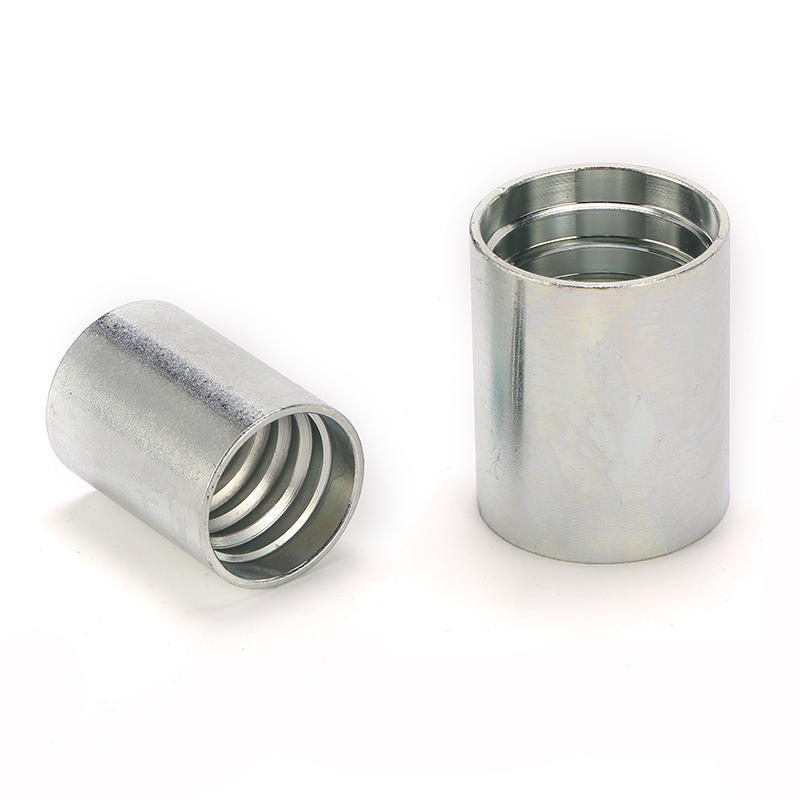

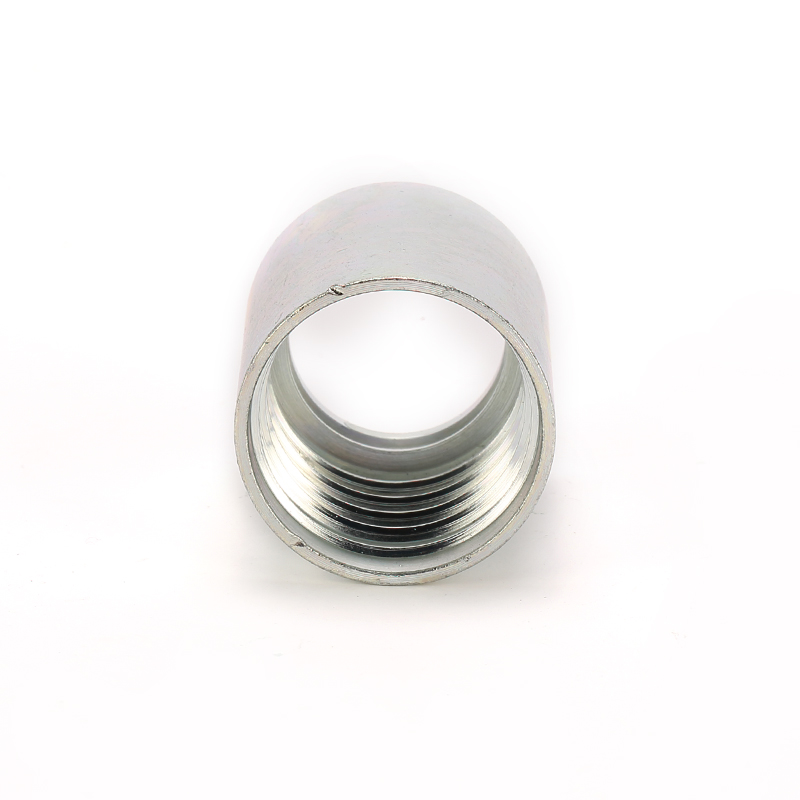

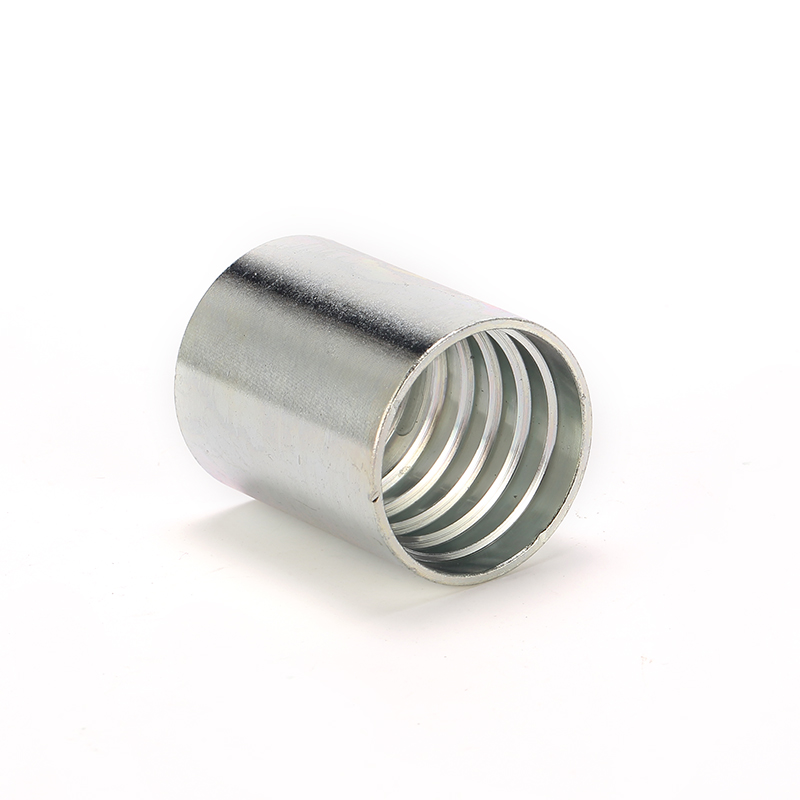

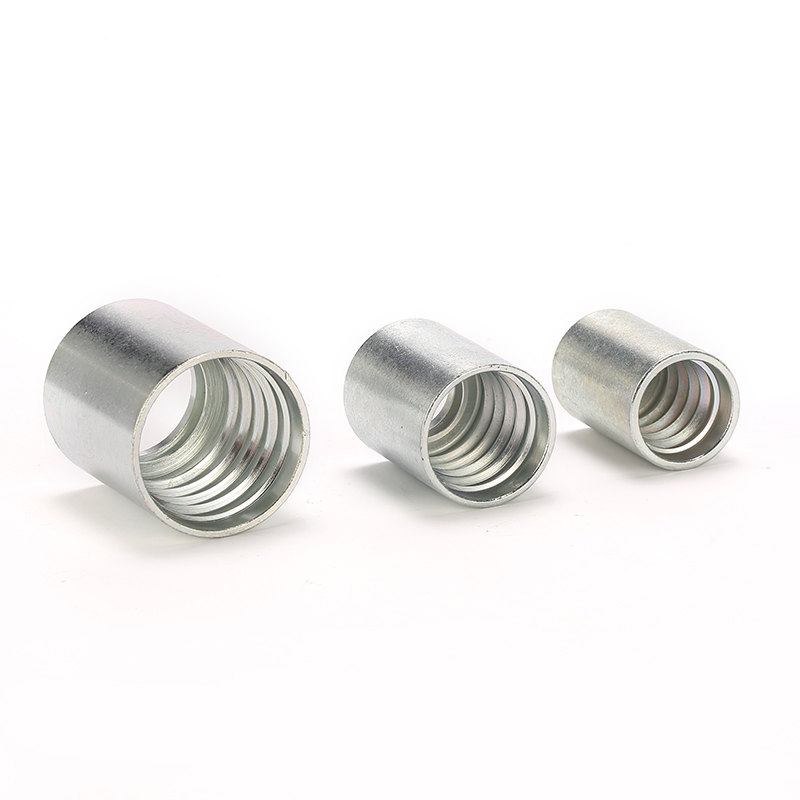

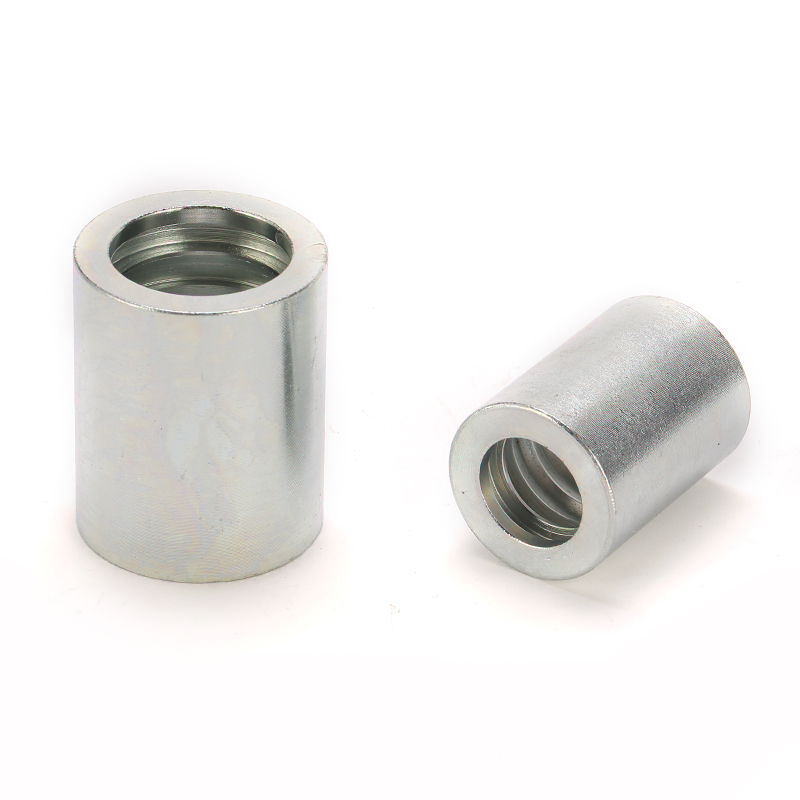

00110A Crimp Hose Ferrules For EN 1SN

Description:

The 00110A Hydraulic hose ferrule is a specific kind of hose ferrule designed for use with hydraulic SAE 100R1AT one-wire braid hose. Normally, a hose ferrule is crimped onto the terminal of a hydraulic hose to firmly attach the hose to a fitting, allowing for the creation of a leak-free seal.

INQUIRE NOW

"*" indicates required fields

Category: Hydraulic Hose Ferrules Tags: Hose Ferrules, Female, Carbon Steel
Share:
  • Description
  • Package& Shipping
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

PART NO HOSE  BORE
DN DASH L
00110-03A 5 03 23
00110-04A 6 04 30.5
00110-05A 8 05 30
00110-06A 10 06 32
00110-08A 12 08 34
00110-10A 16 10 37
00110-12A 20 12 42
00110-16A 25 16 51
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
