Home Hydraulic Hose Fittings JIS Hose Fittings 29611 JIS Female GAS 60° Cone Hose Fittings
28691 90° Elbow JIS Female Metric 60° Cone Hose Fittings
Back to products
29641 45° Elbow JIS Female GAS 60° Cone Hose Fittings
Click to enlarge

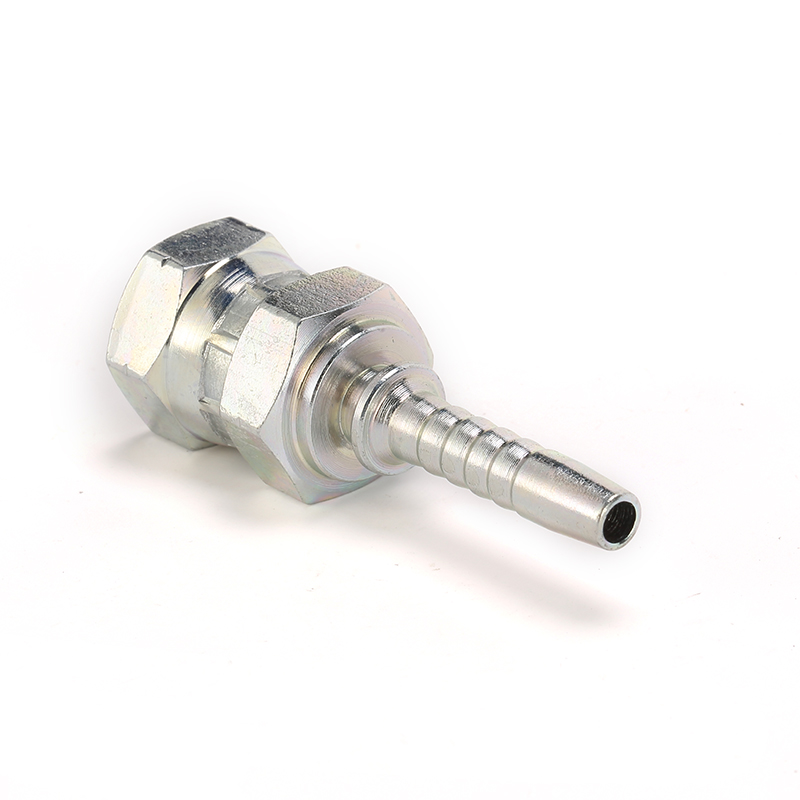

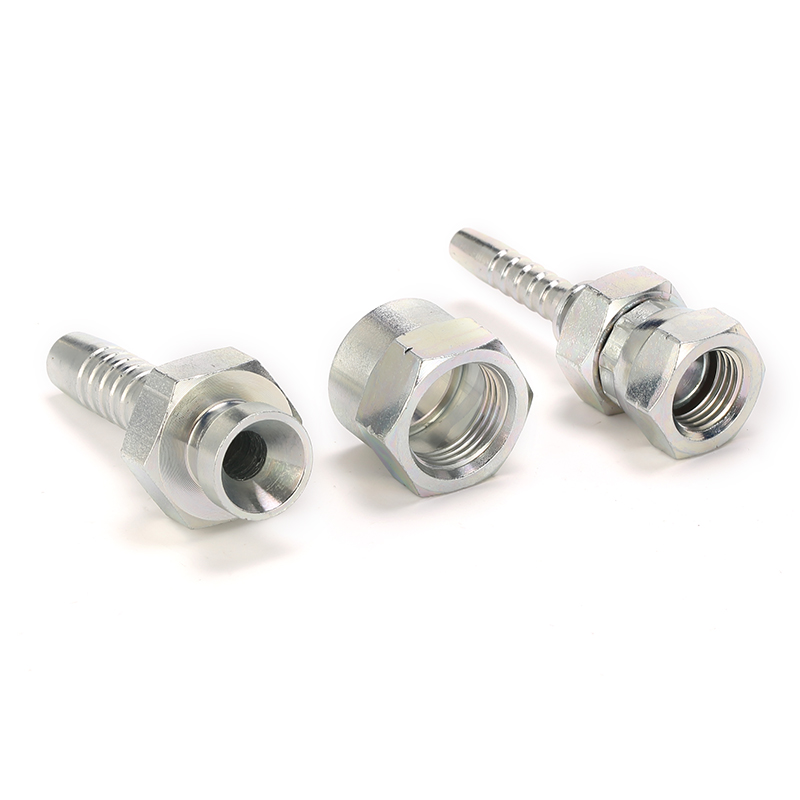

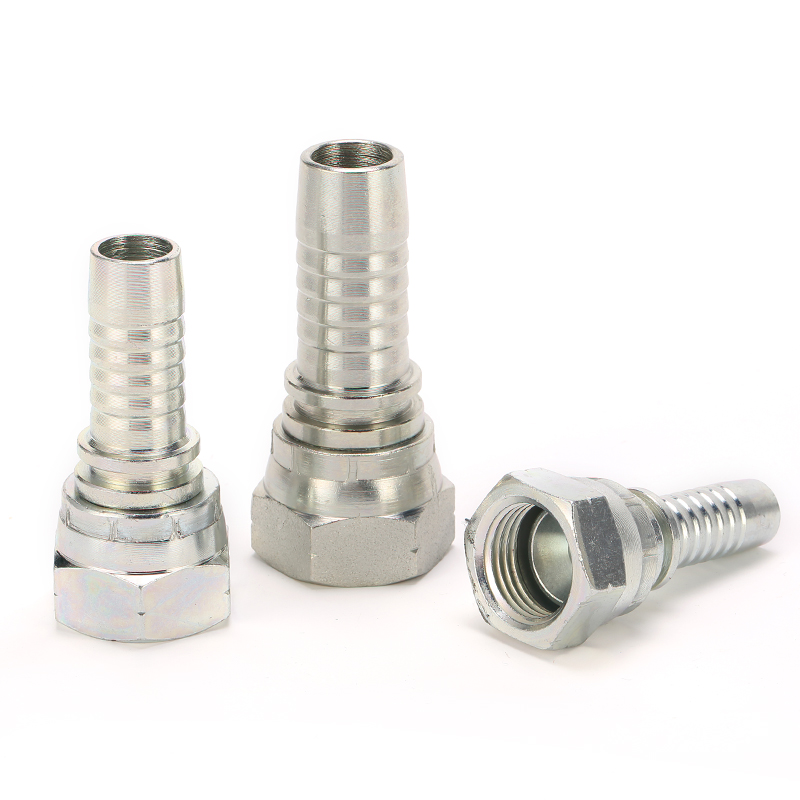

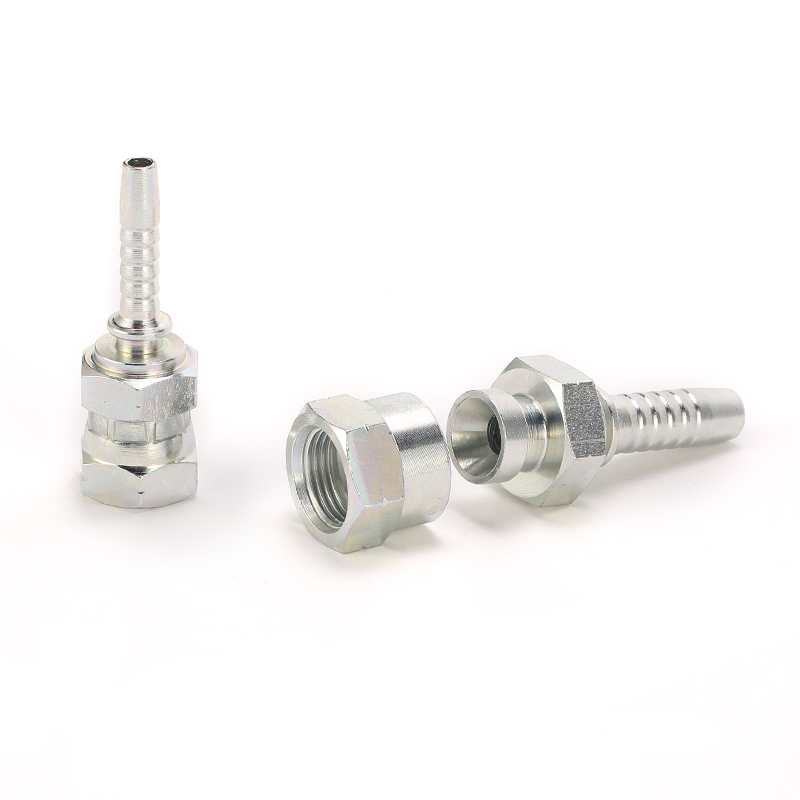

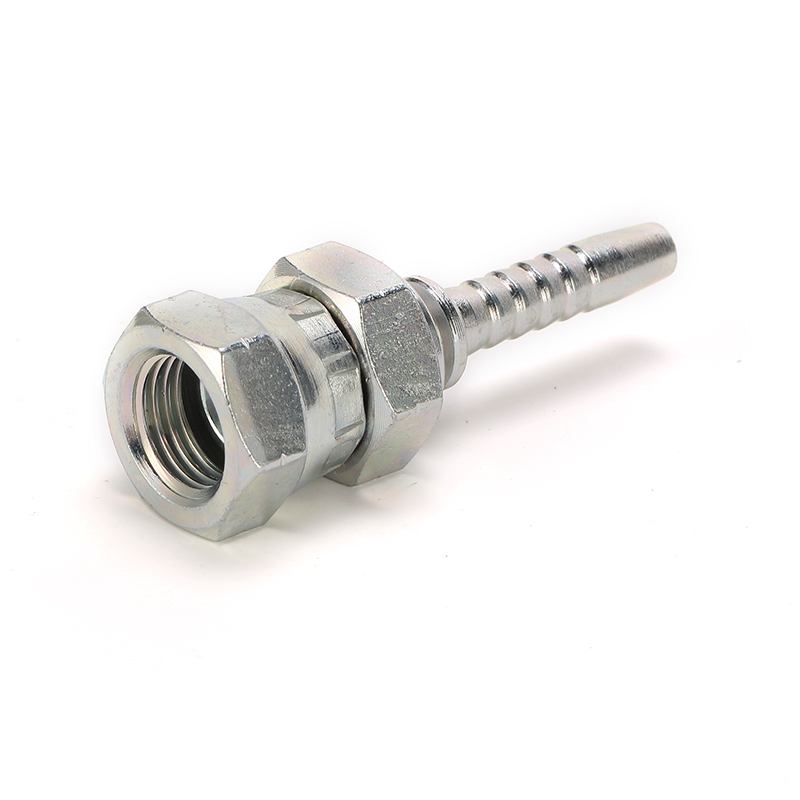

29611 JIS Female GAS 60° Cone Hose Fittings

Description:

The 29611/29611-W female JIS gas hose fitting is a component that comes with a female 60-degree cone seat JIS thread and a hose end. The JIS standard represents a collection of norms employed in Japan for industrial products.

INQUIRE NOW

"*" indicates required fields

Category: JIS Hose Fittings Tags: JIS, Female, Carbon Steel, O-ring
Share:
  • Description
  • Package& Shipping
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

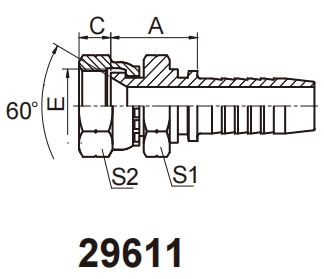

PART  NO THREAD E HOSE  BORE DIMENSIONS
DN DASH A C S1 S2
29611-02-03 G1/8″X28 5 03 20 7 14 14
29611-04-04 G1/4″X19 6 04 21 8 19 19
29611-04-05 G1/4″X19 8 05 21 8 19 19
29611-06-04 G3/8″X19 6 04 23 9 22 22
29611-06-06 G3/8″X19 10 06 23 9 22 22
29611-08-06 G1/2″X14 10 06 28 12 27 27
29611-08-08 G1/2″X14 12 08 26.5 12 27 27
29611-10-10 G5/8″X14 16 10 30.5 11.5 30 30
29611-12-10 G3/4″X14 16 10 30 13.5 32 32
29611-12-12 G3/4″X14 20 12 30.5 13.5 32 32
29611-16-16 G1″X11 25 16 32 16 41 41
29611-20-20W G1.1/4″X11 32 20 43 18.5 50 50
29611-24-24W G1.1/2″X11 40 24 43.5 19 55 55
29611-32-32W G2″X11 50 32 46.5 23 70 70
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
