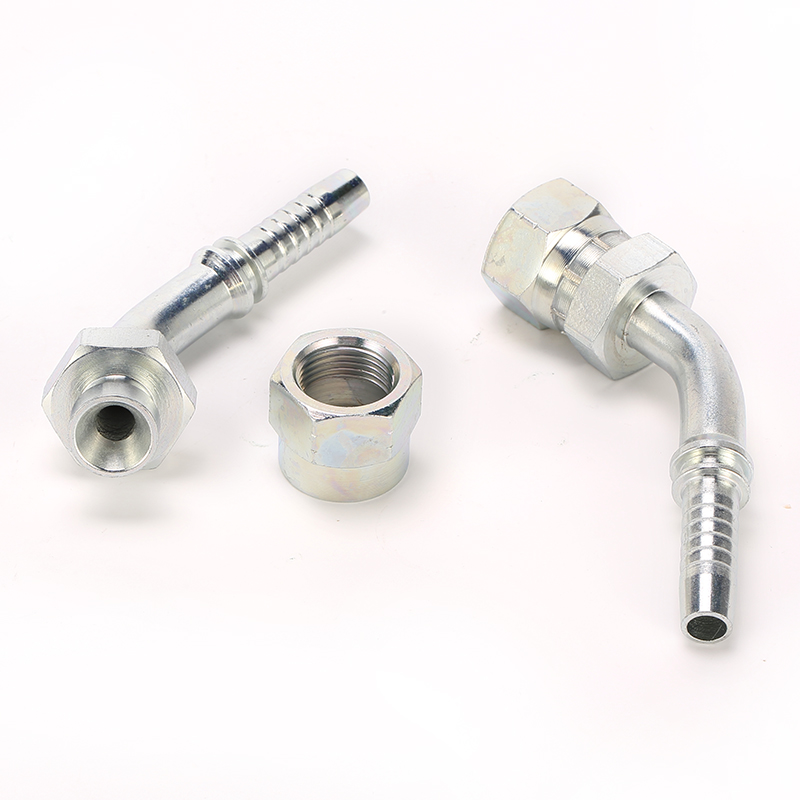

JIS hydraulic fitting dimensions define these fittings’ size and wall thickness according to Japanese standards. Topol Power can offer various types of JIS fittings with tapered and parallel threads.

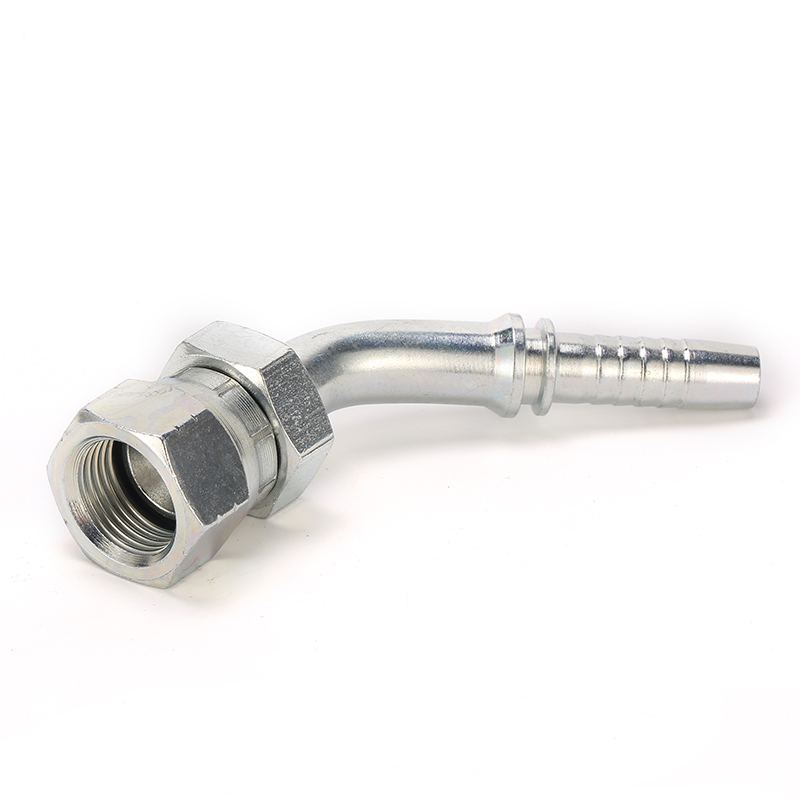

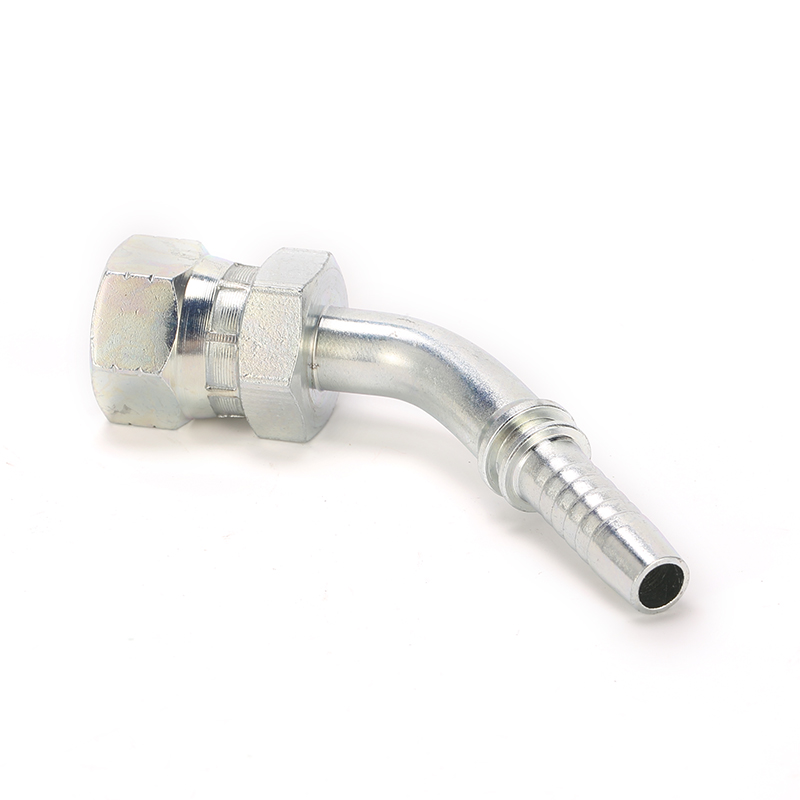

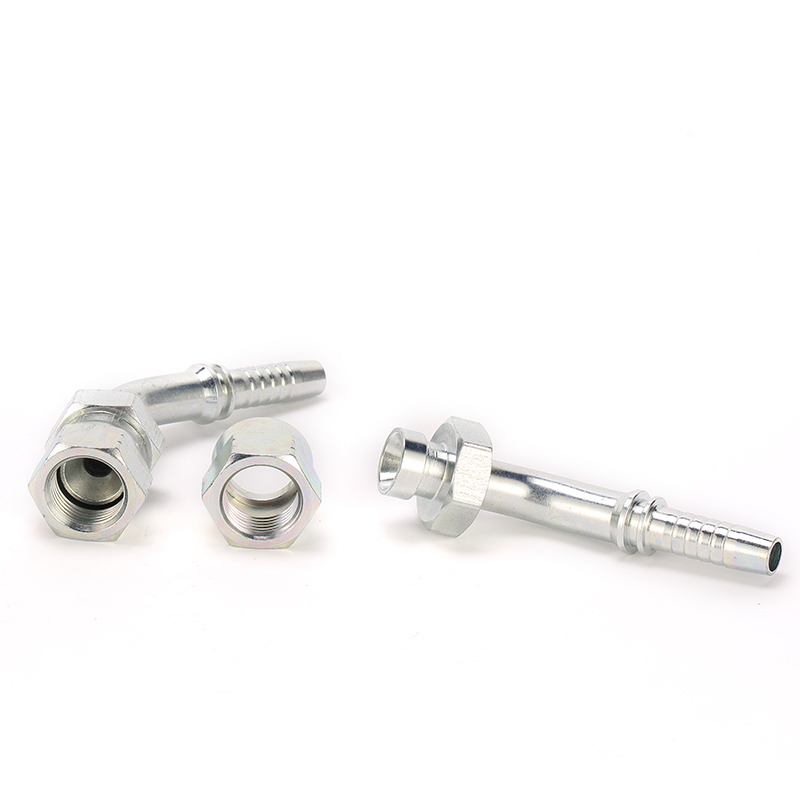

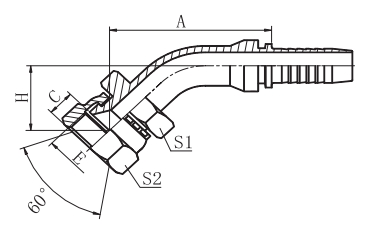

| PART NO | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | H | S1 | S2 | ||
| 28641-14-04 | M14X1.5 | 6 | 04 | 43.5 | 11 | 21.3 | 19 | 19 |
| 28641-16-05 | M16X1.5 | 8 | 05 | 47.5 | 10.5 | 24.3 | 22 | 22 |
| 28641-18-06 | M18X1.5 | 10 | 06 | 49.5 | 11 | 25 | 24 | 24 |
| 28641-22-08 | M22X1.5 | 12 | 08 | 62 | 14 | 27.2 | 27 | 27 |
| 28641-24-10 | M24X1.5 | 16 | 10 | 74.5 | 14.5 | 30 | 32 | 32 |
| 28641-30-12 | M30X1.5 | 20 | 12 | 81 | 17 | 33.5 | 36 | 36 |
| 28641-33-16 | M33X1.5 | 25 | 16 | 90.7 | 17.5 | 35.7 | 41 | 41 |
| 28641-36-20 | M36X1.5 | 32 | 20 | 104.5 | 18 | 42 | 46 | 46 |
| 28641-42-24 | M42X1.5 | 40 | 24 | 117 | 19 | 47.5 | 55 | 55 |
