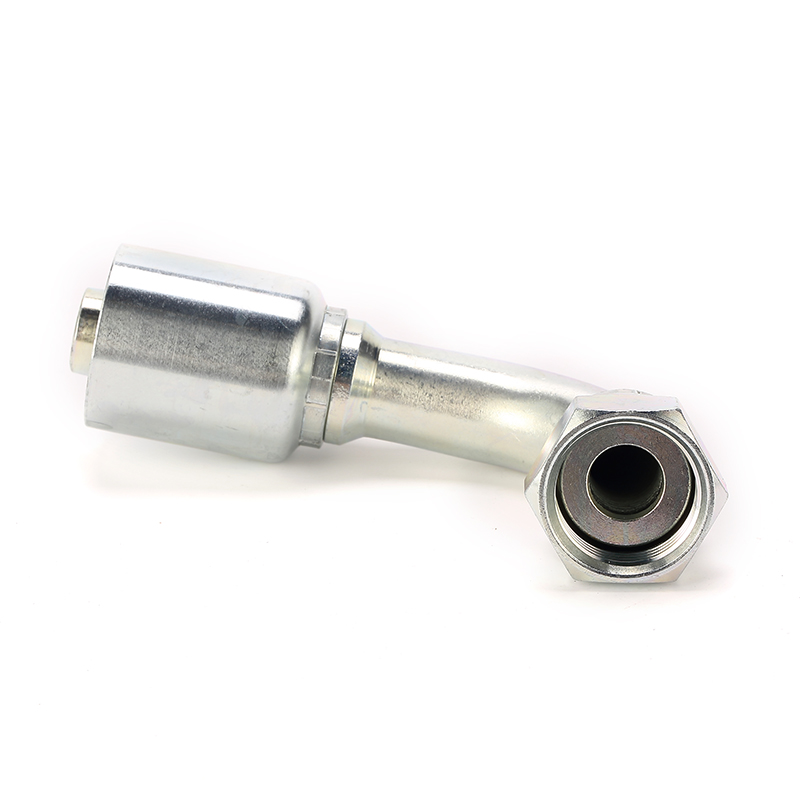

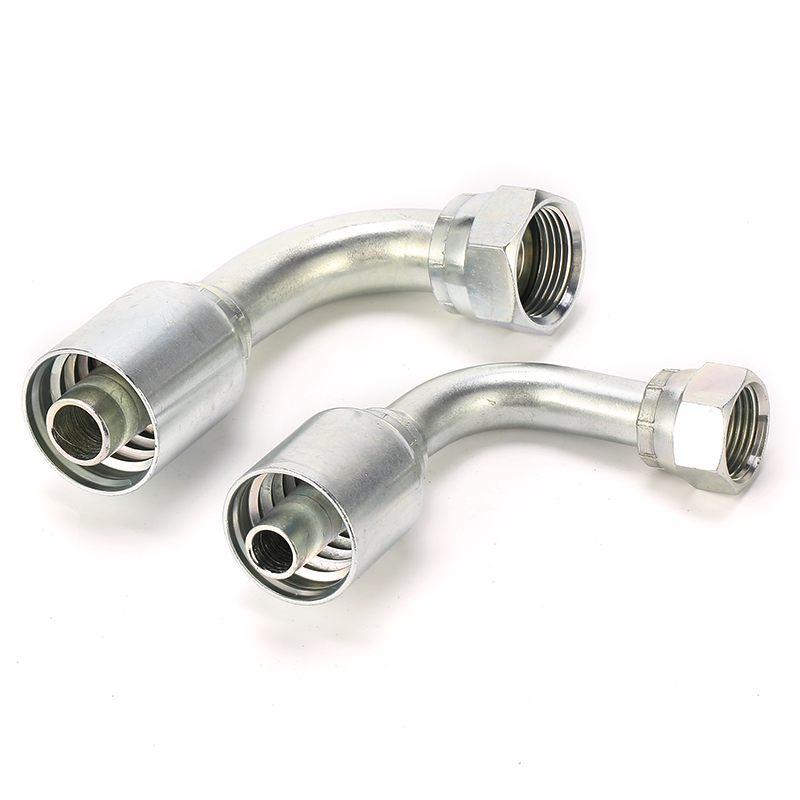

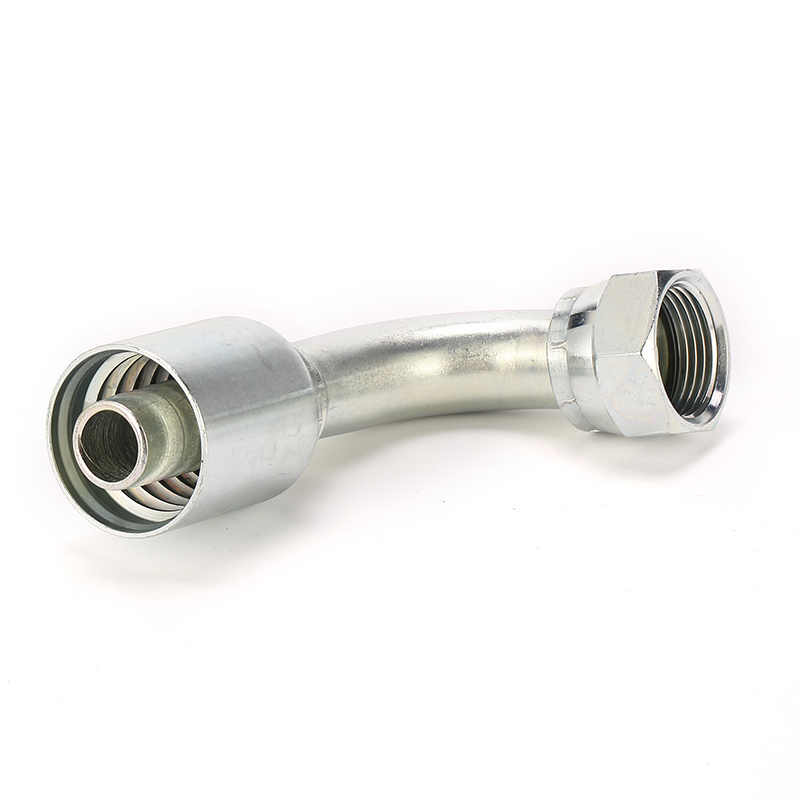

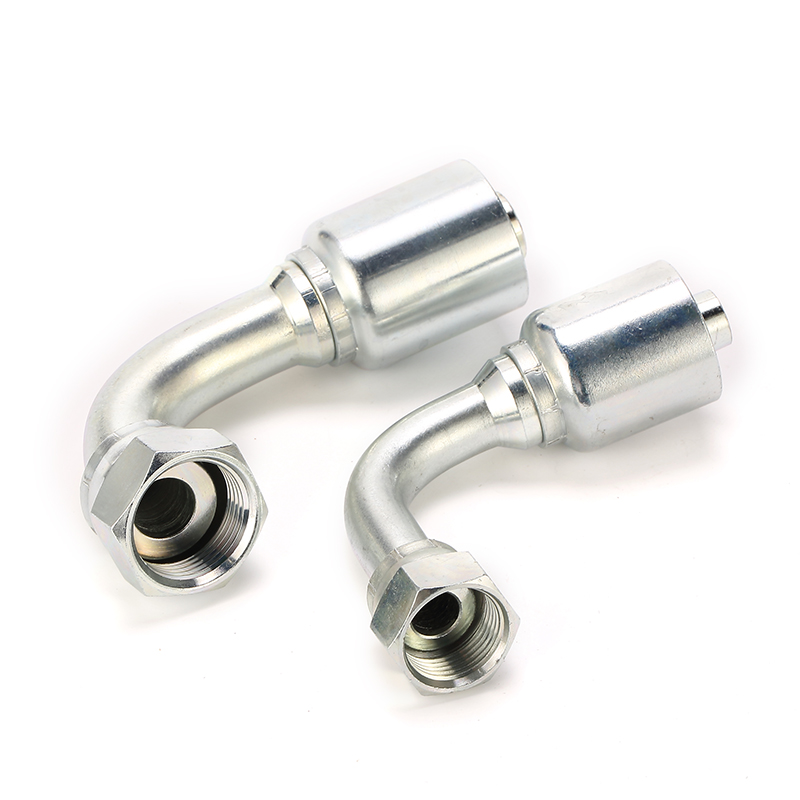

24291PK 90 Deg Elbow ORFS Female 45° Cone Fittings

Description:

The 24291pk female ORFS 45° cone fittings with 90 ° elbow are available in one-piece construction for applications ranging from hydraulic industry standards, constant working pressure, high temperature, and low temperature. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.

Category: One Piece Fittings Tags: One Piece, Carbon Steel, 90° Elbow, ORFS

Description
Package& Shipping

Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

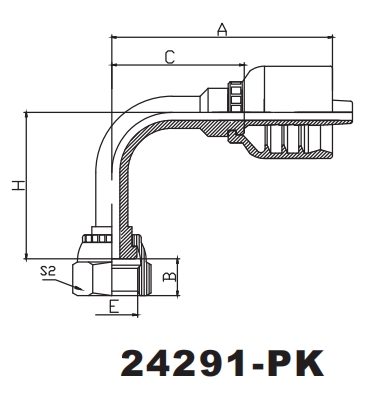

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	B	C	H	S2
24291-04-04PKAST	9/16″X18	6	04	50	8.2	27	21	17.46
24291-06-06PKAST	11/16″X16	10	06	61	8	32.5	26	22
24291-08-06PKAST	13/16″X16	10	06	61	11.5	32.5	29	24
24291-08-08PKAST	13/16″X16	12	08	77	11.5	43	34	24
24291-10-08PKAST	1″X14	12	08	77	12.5	43	35	30
24291-10-10PKAST	1″X14	16	10	95	12.5	56.2	47	30
24291-12-12PKAST	1.3/16″X12	16	10	95	13	56.2	48	36
24291-12-12PKAST	1.3/16″X12	20	12	103	13	63.9	51	36
24291-16-16PKAST	1.7/16″X12	25	16	122	14	77.2	60	41
24291-20-20PKAST	1.11/16″X12	32	20	137.8	15	90.8	70	50

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
