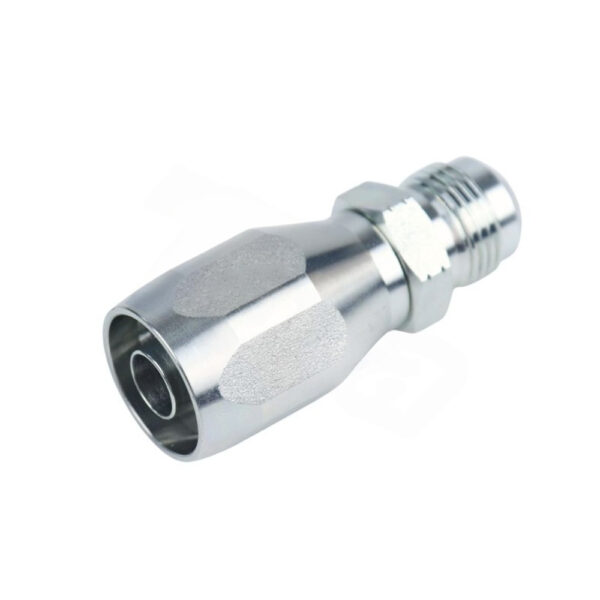

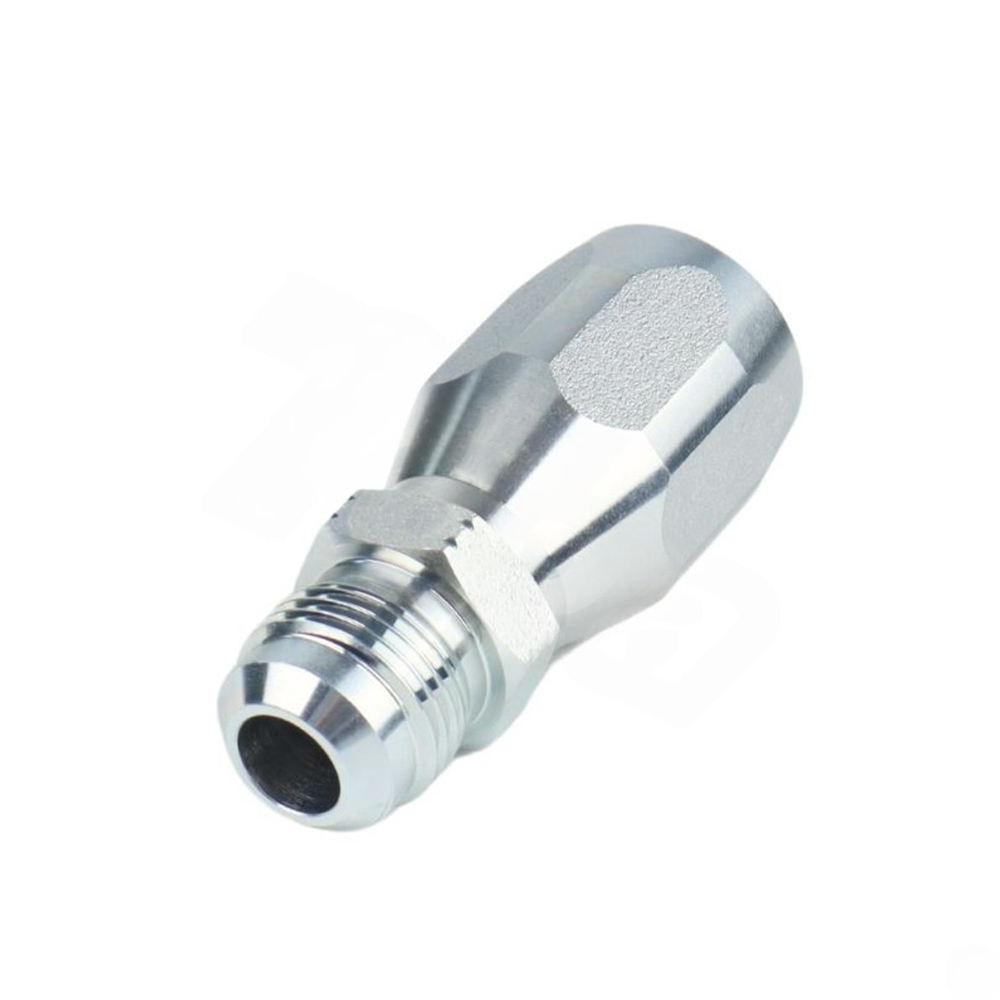

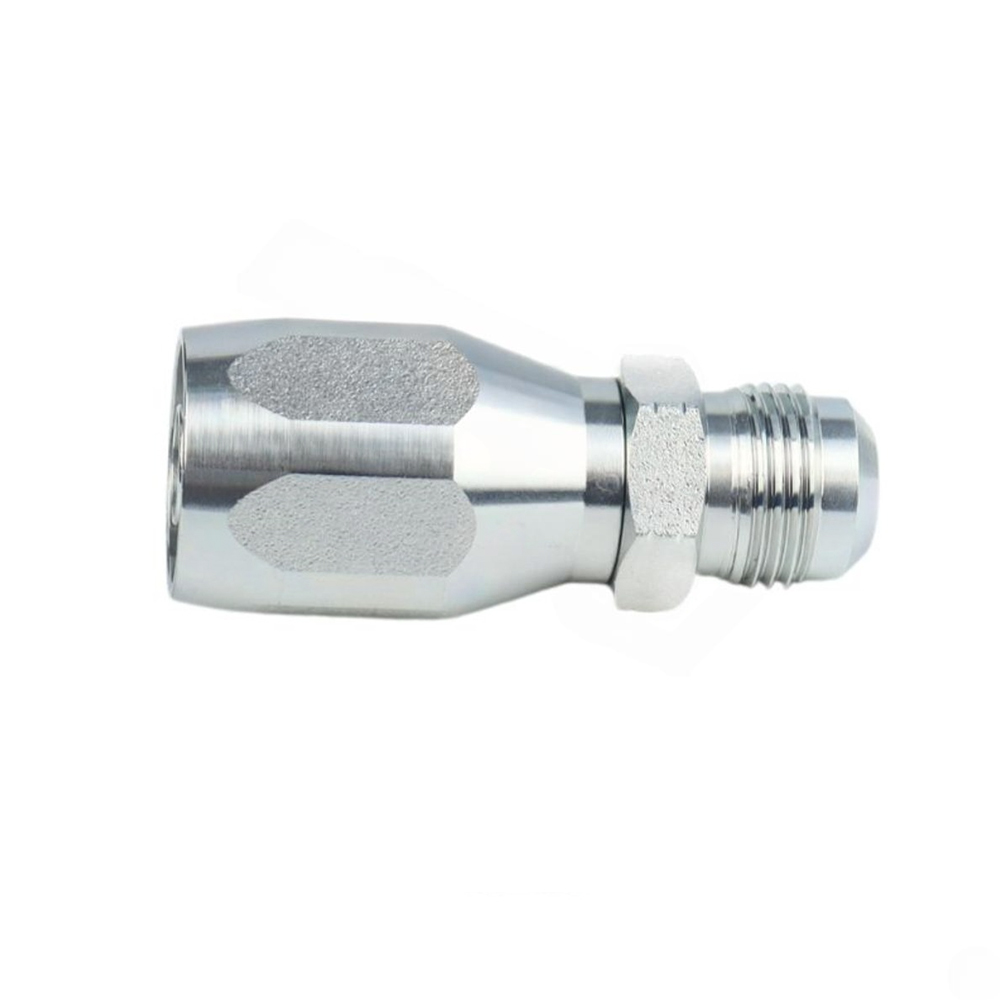

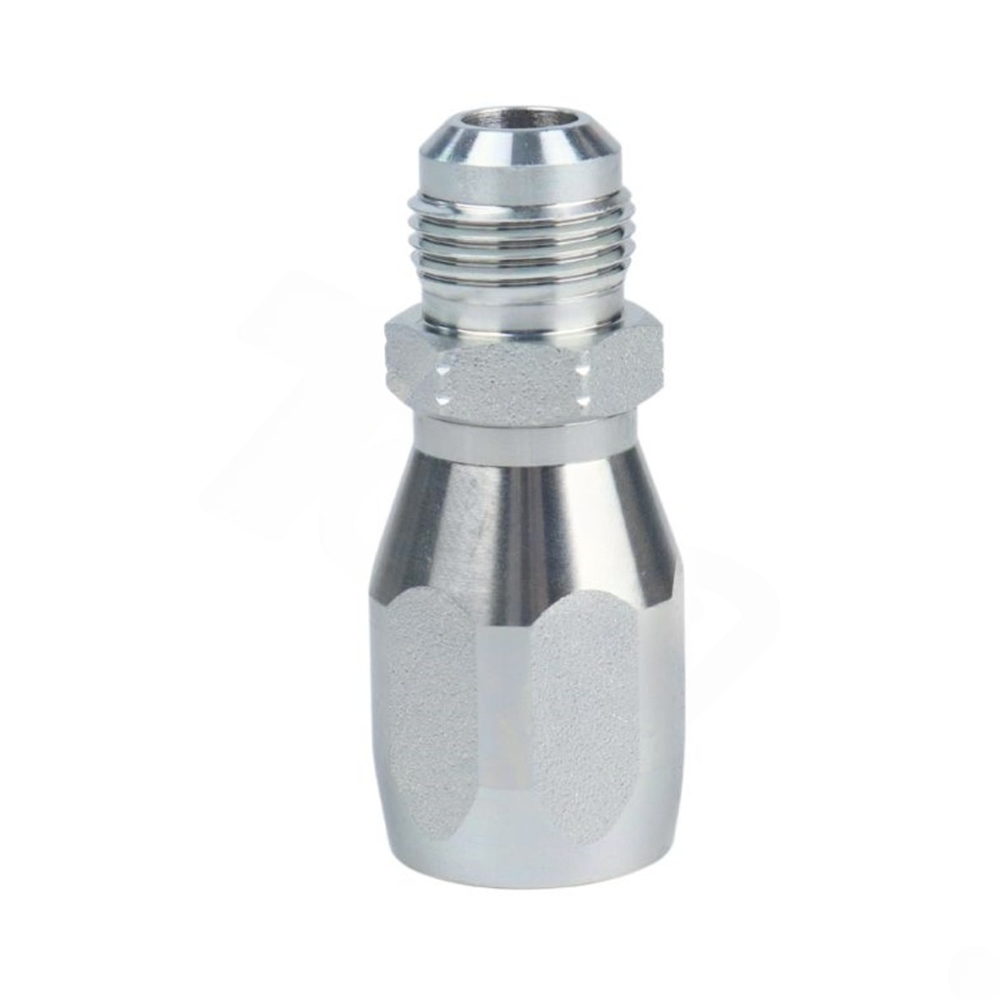

Reusable hose fittings are also known as field installable fittings. Assembly can be accomplished with hand wrenches. Reusable hydraulic hose fitting installed on hydraulic hoses SAE100R1, SAE100R2 SAE100R5, PTFE, and other types. Topol Power offers a wide range of reusable hydraulic hose fittings, including reusable hydraulic hose fittings, brake reusable fittings and PTFE reusable fittings.

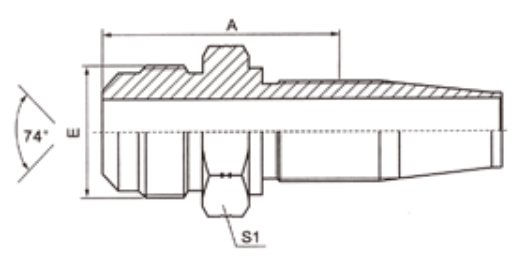

| PART NO | THREAD E | HOSE DASH | DIMENSIONS | |
| A | S1 | |||
| 16718-04-04(R5) | 7/16″X20 | 04 | 29 | 12 |
| 16718-06-05(R5) | 9/16″X18 | 05 | 31 | 17 |
| 16718-06-06(R5) | 9/16″X18 | 06 | 32 | 17 |
| 16718-08-06(R5) | 3/4″X16 | 06 | 34.7 | 22 |
| 16718-08-08(R5) | 3/4″X16 | 08 | 38 | 22 |
| 16718-10-10(R5) | 7/8″X14 | 10 | 40.5 | 24 |
| 16718-12-12(R5) | 1.1/16″X12 | 12 | 45.5 | 30 |
| 16718-16-16(R5) | 1.5/16″X12 | 16 | 44 | 36 |
| 16718-20-20(R5) | 1.5/8″X12 | 20 | 49.5 | 46 |
| 16718-24-24(R5) | 1.7/8″X12 | 24 | 52.5 | 50 |
