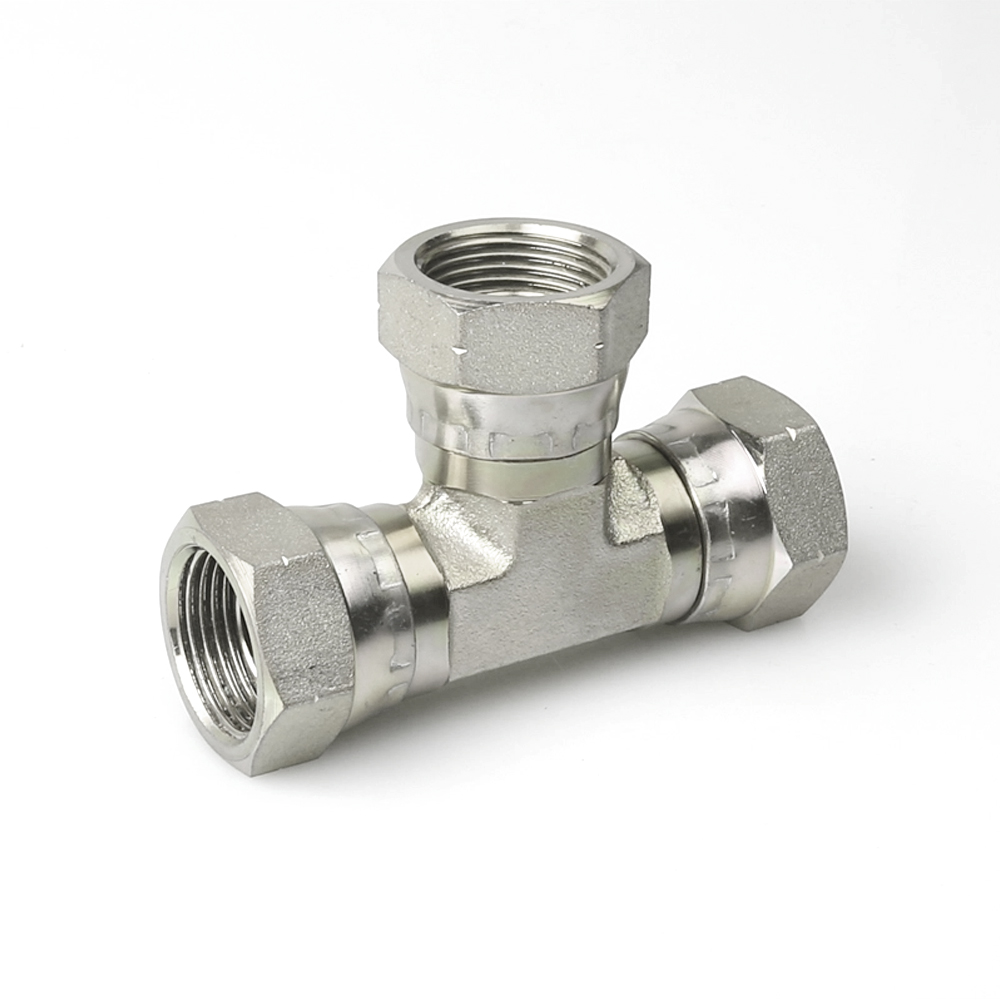

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

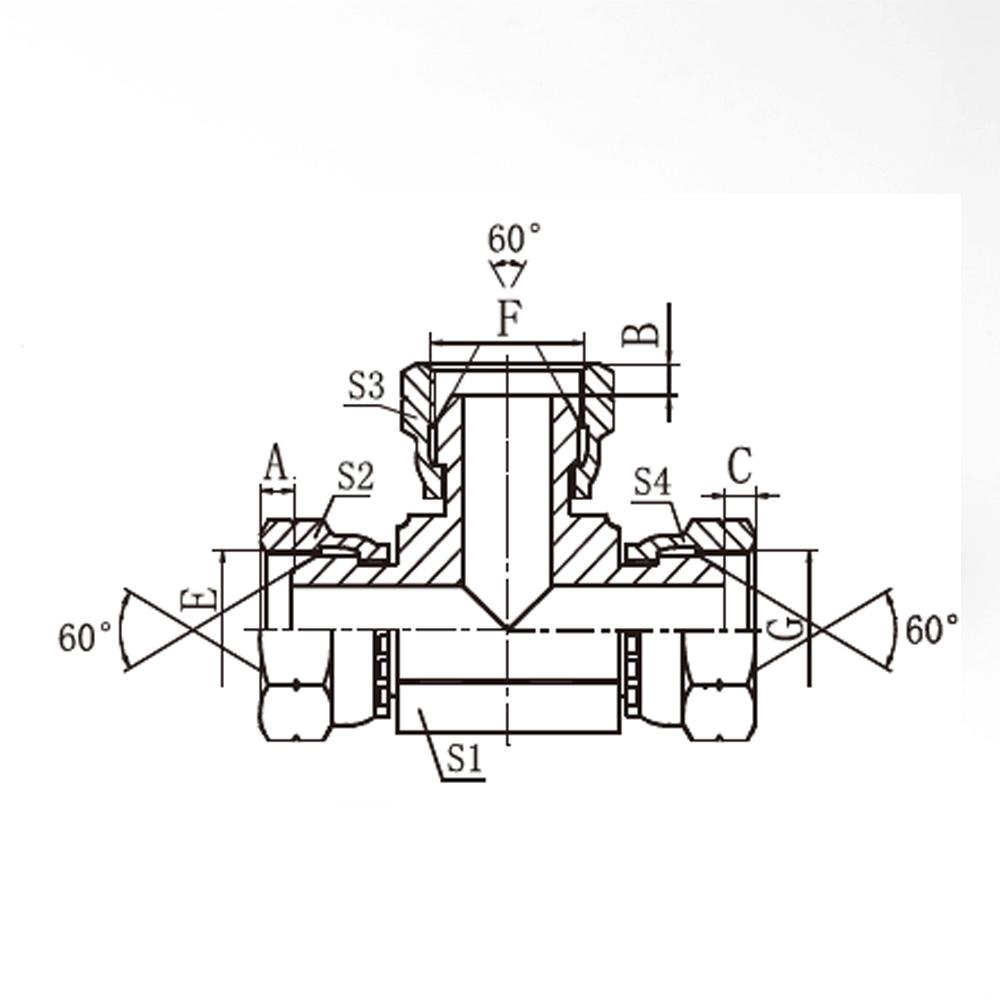

| PAPT NO. | THREAD | DIMENSIONS | ||||||
| E | F | G | AC | B | S1 | S2,S4 | S3 | |
| DB-02 | G1/8″X28 | G1/8″X28 | G1/8″X28 | 6 | 6 | 11 | 14 | 14 |
| DB-04 | G1/4″X19 | G1/4″X19 | G1/4″X19 | 5 | 5 | 11 | 19 | 19 |
| DB-06 | G3/8″X19 | G3/8″X19 | G3/8″X19 | 6.5 | 6.5 | 14 | 22 | 22 |
| DB-08 | G1/2″X14 | G1/2″X14 | G1/2″X14 | 7.8 | 7.8 | 19 | 27 | 27 |
| DB-10 | G5/8″X14 | G5/8″X14 | G5/8″X14 | 9 | 9 | 22 | 30 | 30 |
| DB-12 | G3/4″X14 | G3/4″X14 | G3/4″X14 | 10.5 | 10.5 | 24 | 32 | 32 |
| DB-12-08-12 | G3/4″X14 | G1/2″X14 | G3/4″X14 | 10.5 | 7.8 | 24 | 32 | 27 |
| DB-16 | G1″X11 | G1″X11 | G1″X11 | 11 | 11 | 30 | 41 | 41 |
| DB-16-12-16 | G1″X11 | G3/4″X14 | G1″X11 | 11 | 10.5 | 30 | 41 | 32 |
| DB-20 | G1.1/4″X11 | G1.1/4″X11 | G1.1/4″X11 | 11.5 | 11.5 | 36 | 50 | 50 |
| DB-24 | G1.1/2″X11 | G1.1/2″X11 | G1.1/2″X11 | 12.5 | 12.5 | 48 | 55 | 55 |
| DB-32 | G2″X11 | G2″X11 | G2″X11 | 17 | 17 | 55 | 70 | 70 |
