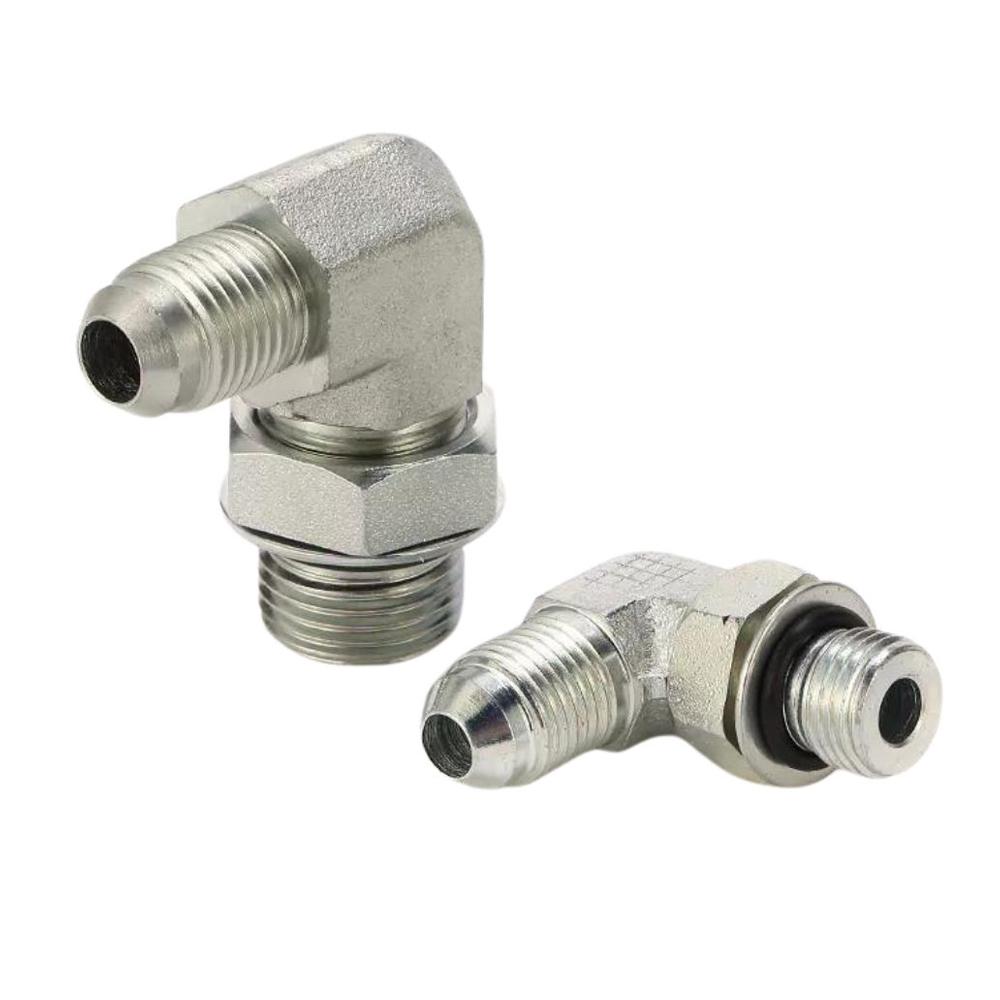

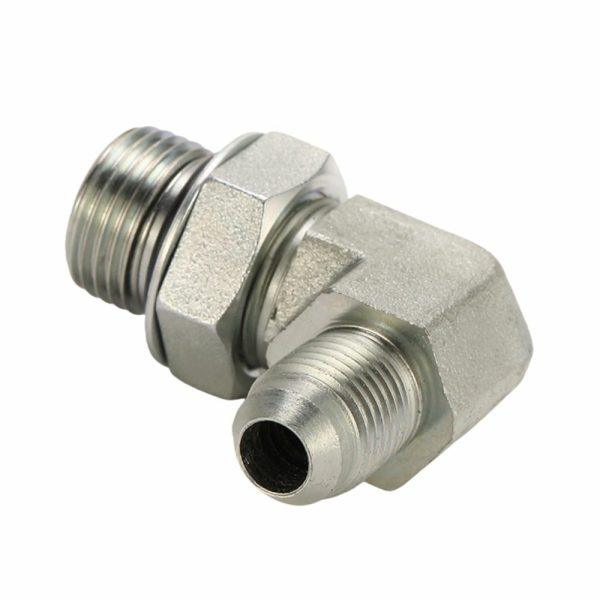

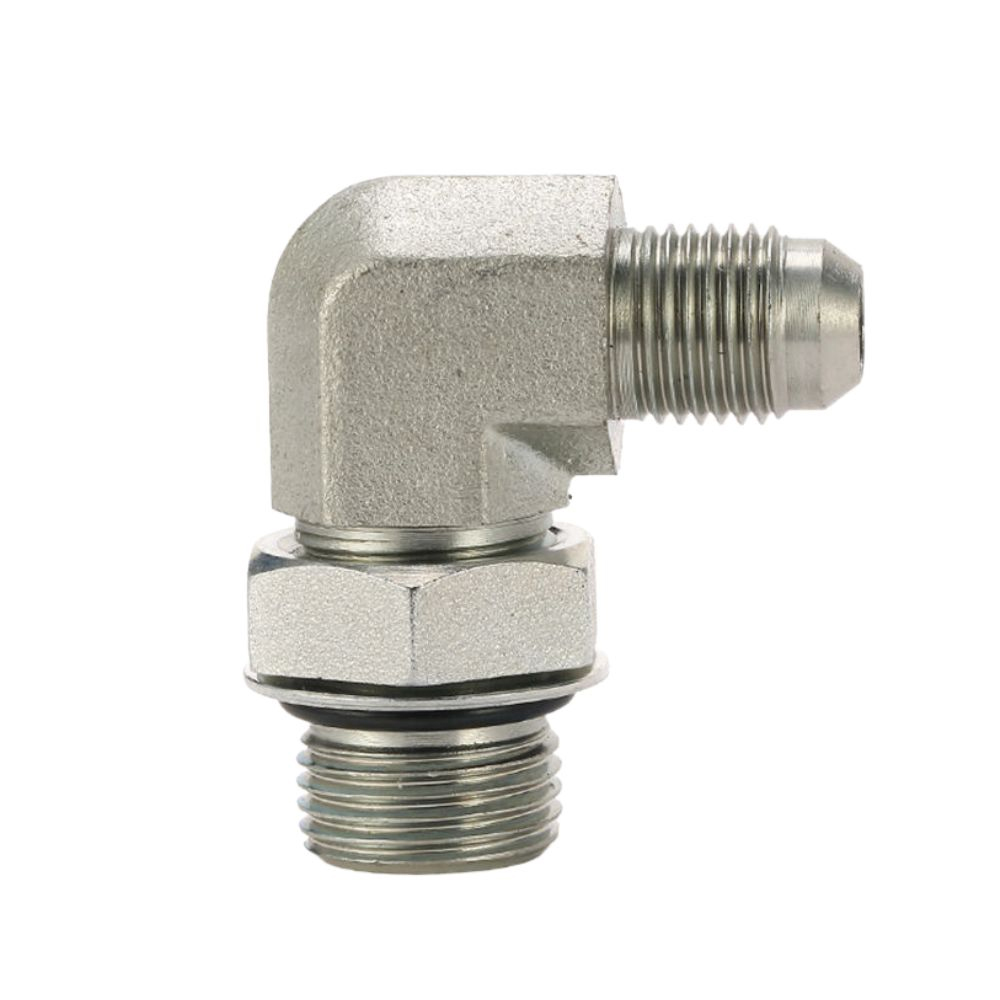

1JG9 JIC to BSP Male 90° Elbow Pipe Adapter

Description:

1JG9-OG-JIC to BSP hydraulic fitting has a BSPP (British Standard Parallel Pipe) connection on one end and a JIC (Joint Industry Council) connection on the other end.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

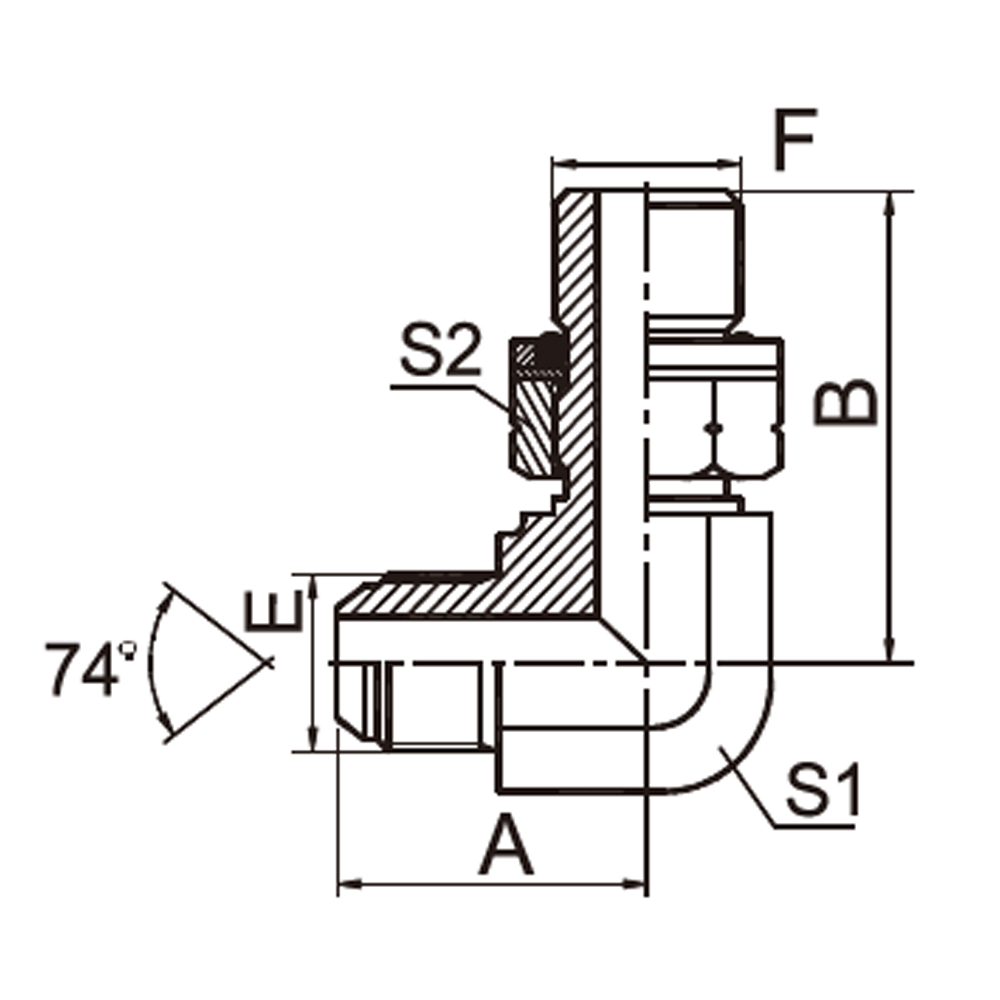

PART NO.	THREAD		O-RING	DIMENSIONS
PART NO.	E	F	F	A	B	S1	S2
1JG9-040G	7/16″X20	G1/4″X19	10.77X2.62	26.6	31.5	14	19
1JG9-04-02OG	7/16″X20	G1/8″X28	7.65X1.78	24.5	26.2	11	14
1JG9-04-06OG	7/16″X20	G3/8″X19	13.94X2.62	27.5	36.8	16	22
1JG9-05-04OG	1/2″X20	G1/4″X19	10.77X2.62	26.5	31.8	14	19
1JG9-05-06OG	1/2″X20	G3/8″X19	13.94X2.62	27.5	35.8	16	22
1JG9-05-08OG	1/2″X20	G1/2″X14	17.12X2.62	31.5	43.2	22	27
1JG9-06OG	9/16″X18	G3/8″X19	13.94X2.62	28.5	35.8	16	22
1JG9-06-04OG	9/16″X18	G1/4″X19	10.77X2.62	26.9	31.3	14	19
1JG9-06-08OG	9/16″X18	G1/2″X14	17.12X2.62	32.5	43.2	22	27
1JG9-08OG	3/4″X16	G1/2″X14	17.12X2.62	34.8	43.2	22	27
1JG9-08-04OG	3/4″X16	G1/4″X19	10.77X2.62	32	33.5	19	19
1JG9-08-06OG	3/4″X16	G3/8″X19	13.94X2.62	32	36.8	19	22
1JG9-08-120G	3/4″X16	G3/4″X14	23.47X2.62	37.9	49.3	27	32
1JG9-100G	7/8″X14	G5/8″X14	19.18X2.62	36.8	44.5	22	30
1JG9-10-04OG	7/8″X14	G1/4″X19	10.77X2.62	36.8	36	22	19
1JG9-10-06OG	7/8″X14	G3/8″X19	13.94X2.62	37.8	39.2	22	22
1JG9-10-08OG	7/8″X14	G1/2″X14	17.12X2.62	37.8	43.2	22	27
1JG9-10-120G	7/8″X14	G3/4″X14	23.47X2.62	41	49.3	27	32
1JG9-120G	1.1/16″X12	G3/4″X14	23.47X2.62	44.2	49.3	27	32
1JG9-12-08OG	1.1/16″X12	G1/2″X14	17.12X2.62	44.2	46.5	27	27
1JG9-12-16OG	1.1/16″X12	G1″X11	29.74X3.53	48	53	33	41
1JG9-160G	1.5/16″X12	G1″X11	29.74X3.53	49	53	33	41
1JG9-16-120G	1.5/16″X12	G3/4″X14	23.47X2.62	49	53	33	32
1JG9-16-200G	1.5/16″X12	G1.1/4″X11	37.69X3.53	53.8	58	41	50
1JG9-200G	1.5/8″X12	G1.1/4″X11	37.69X3.53	55.5	58	41	50
1JG9-20-160G	1.5/8″X12	G1″X11	29.74X3.53	55.5	58	41	41
1JG9-24-16OG	1.7/8″X12	G1″X11	29.74X3.53	62.5	63	48	41
1JG9-24-200G	1.7/8″X12	G1.1/4″X11	37.69X3.53	62.5	63	48	50
1JG9-24OG	1.7/8″X12	G1.1/2″X11	44.04X3.53	62.5	63	48	55
