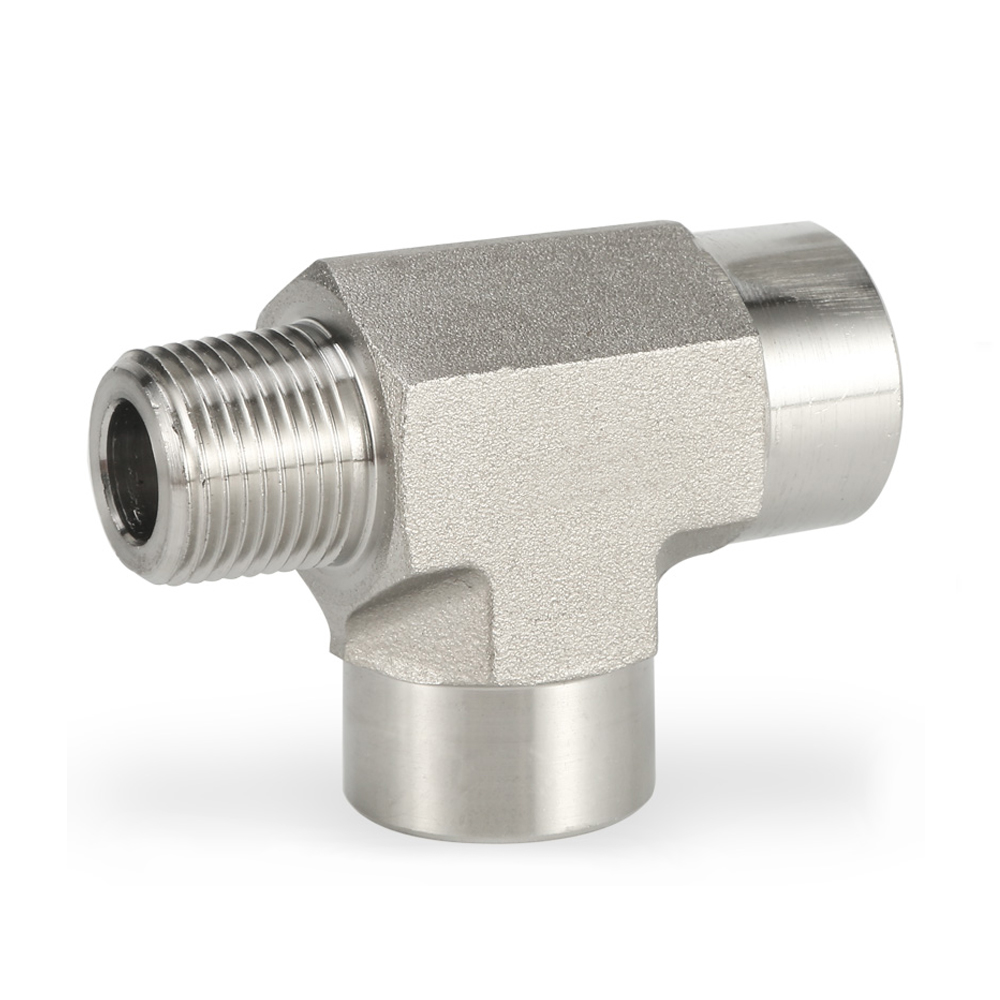

Hydraulic NPT fitting comes in a variety of sizes and threads, such as JIC to NPT, NPT to BSP, NPT to metric, and ORFS to NPT thread. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

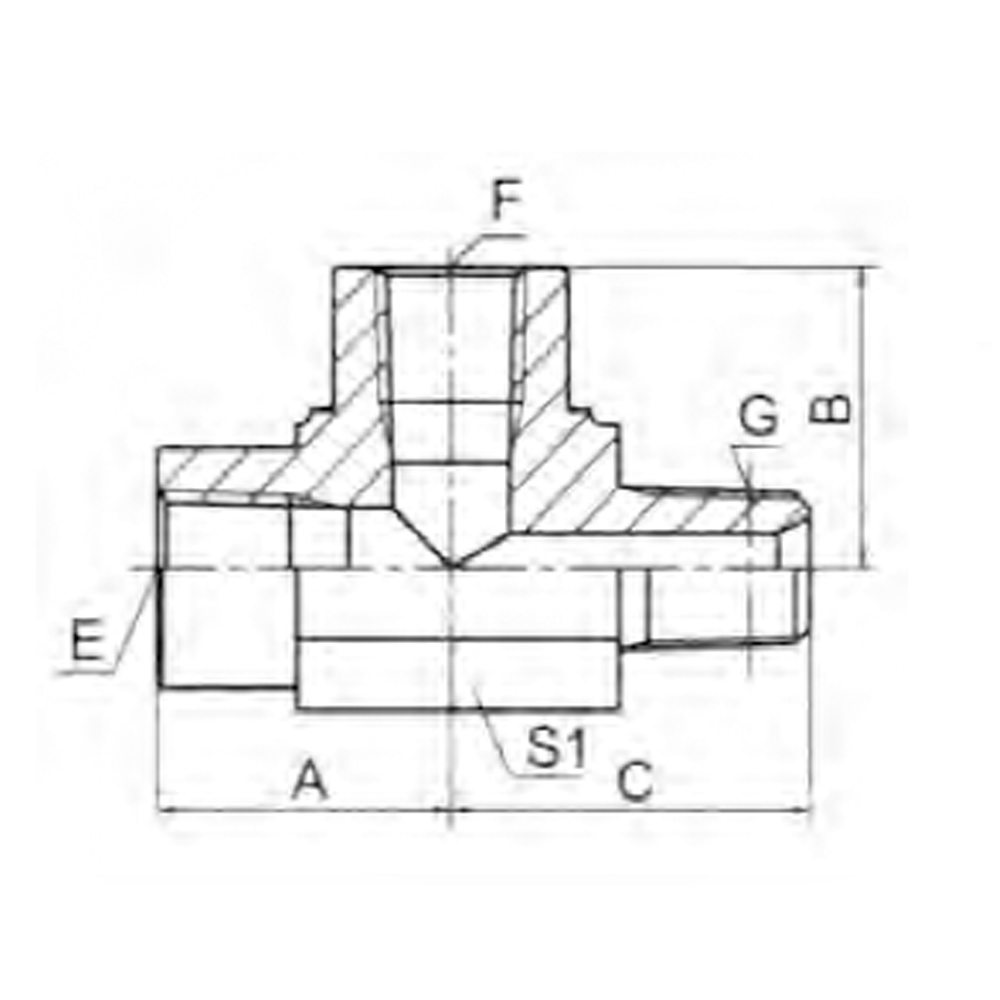

| PART NO. | THREAD | DIMENSIONS | |||||
| E | F | G | A | B | C | S1 | |
| HN-02 | Z1/8″X27 | Z1/8″X27 | Z1/8″X27 | 20 | 20 | 24.5 | 16 |
| HN-04 | Z1/4″X18 | Z1/4″X18 | Z1/4″X18 | 25 | 25 | 28.5 | 19 |
| HN-06 | Z3/8″X18 | Z3/8″X18 | Z3/8″X18 | 27 | 27 | 33.5 | 24 |
| HN-08 | Z1/2″X14 | Z1/2″X14 | Z1/2″X14 | 35 | 35 | 42.5 | 30 |
| HN-12 | Z3/4″X14 | Z3/4″X14 | Z3/4″X14 | 37 | 37 | 45.2 | 33 |
| HN-16 | Z1″X11.5 | Z1″X11.5 | Z1″X11.5 | 44 | 44 | 54.7 | 41 |
| HN-20 | Z1.1/4″X11.5 | Z1.1/4″X11.5 | Z1.1/4″X11.5 | 48 | 48 | 58.5 | 48 |
