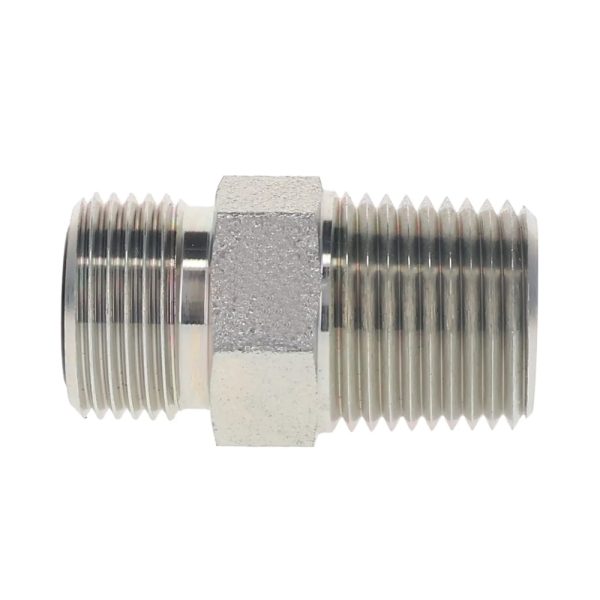

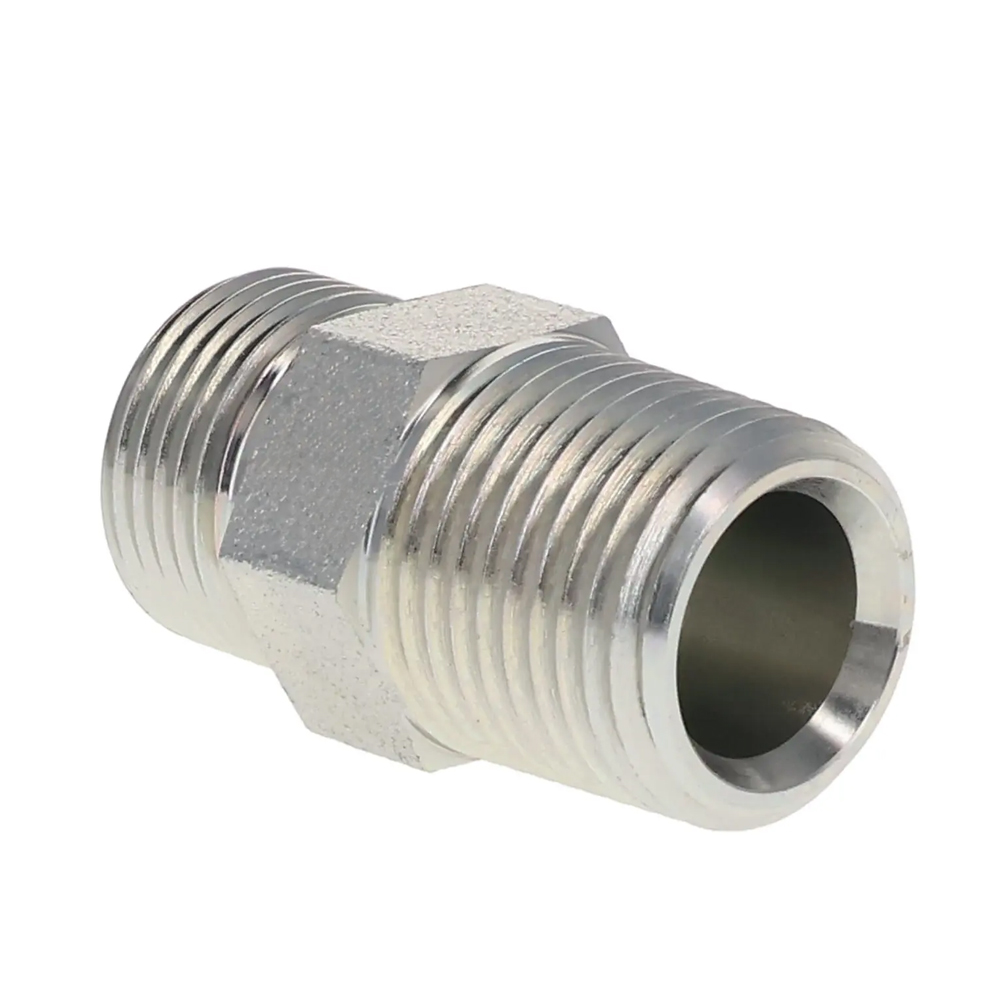

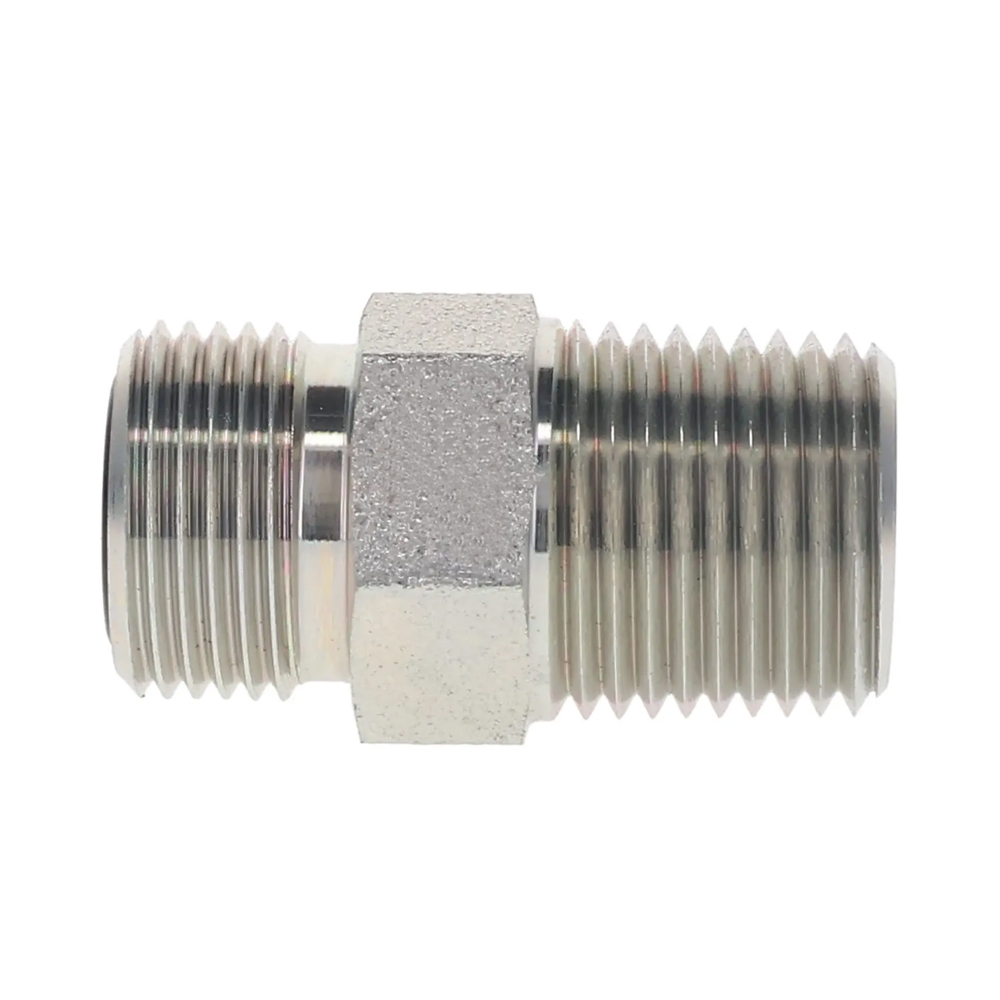

1FN SAE O-Ring Face Seal ORFS Male x NPT Male Adapter

Description:

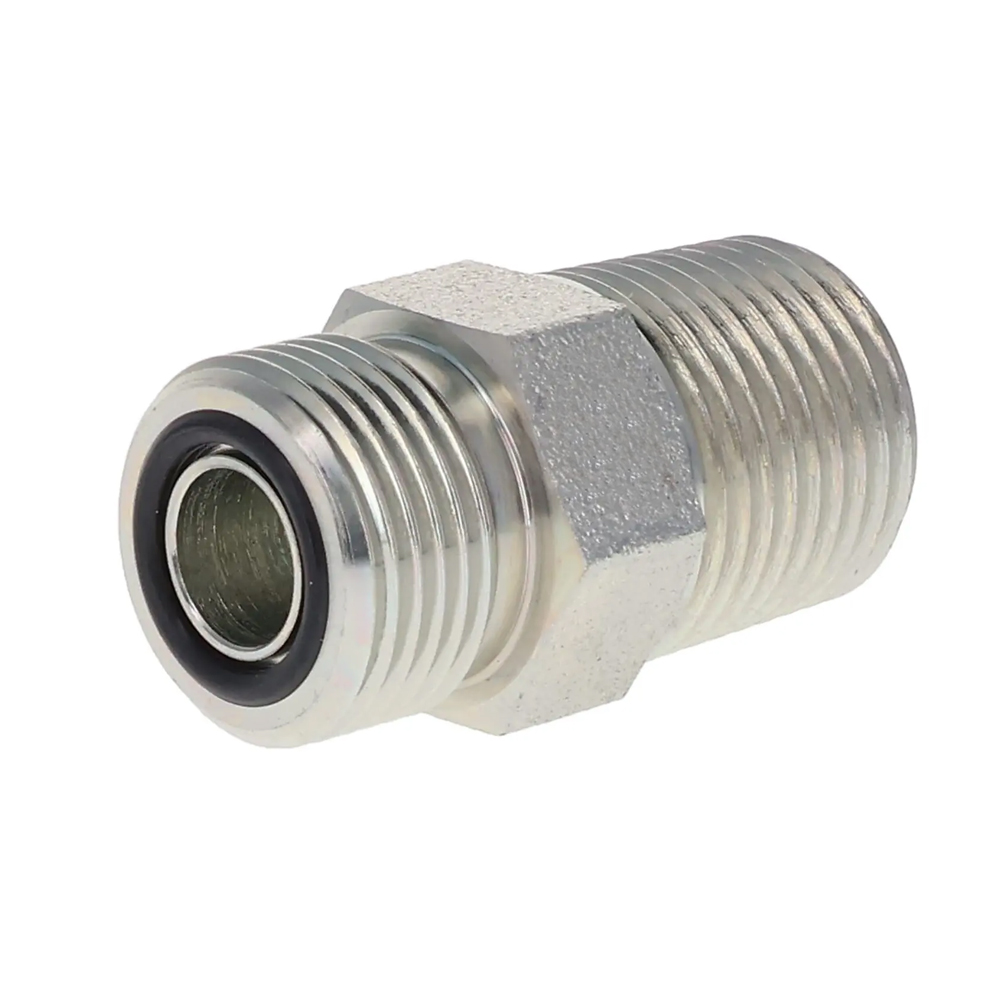

1FN ORFS to NPT hydraulic fitting is a male straight hydraulic hose fitting with an o-ring face seal and a male NPT thread.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

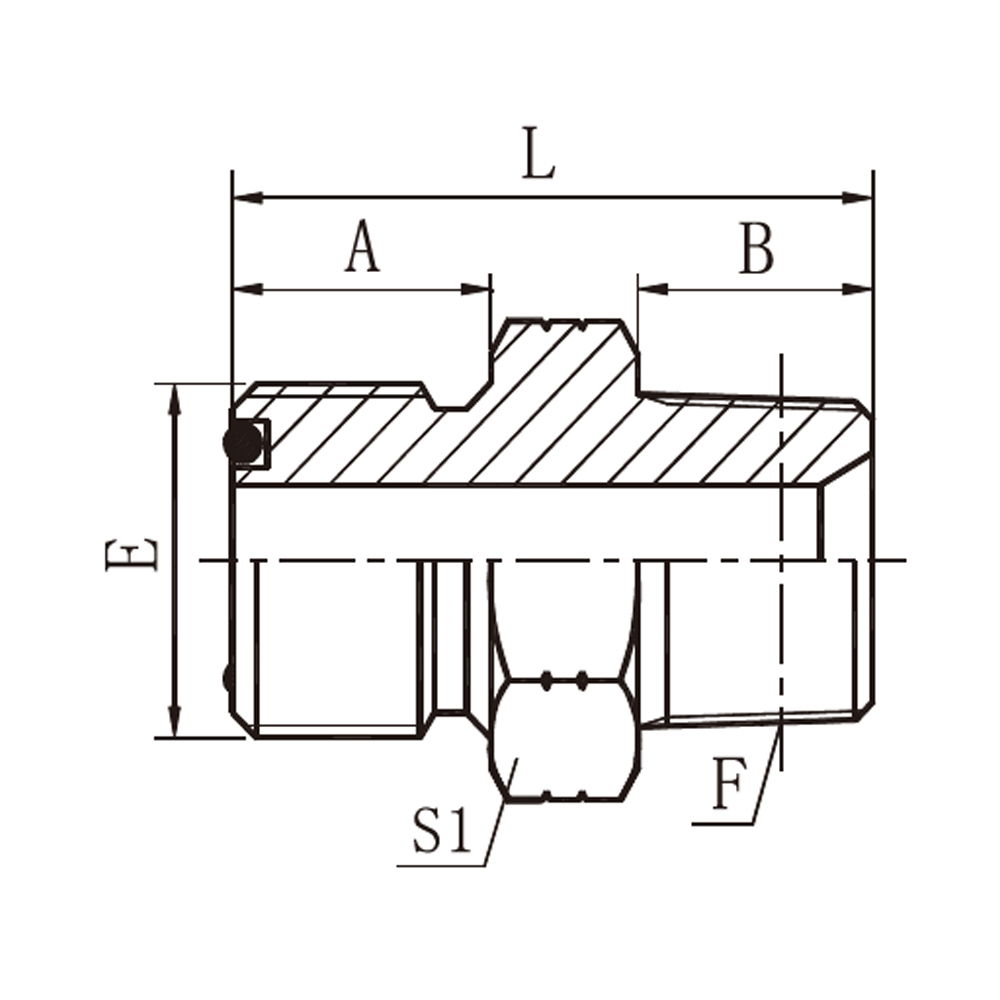

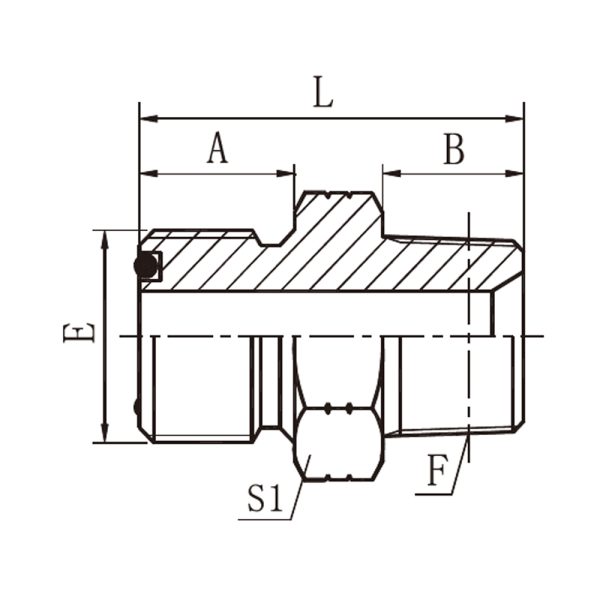

PART NO.	THREAD		O-RING	DIMENSIONS
PART NO.	E	F	E	A	B	L	S1
1FN-04-02	9/16″X18	Z1/8″X27	11	9.8	10.5	26.5	17
1FN-04	9/16″X18	Z1/4″X18	11	9.8	15	30.5	17
1FN-04-06	9/16″X18	Z3/8″X18	11	9.8	16	31.5	19
1FN-06-04	11/16″X16	Z1/4″X18	12	11.2	15	32	19
1FN-06	11/16″X16	Z3/8″X18	12	11.2	16	33.5	19
1FN-06-08	11/16″X16	Z1/2″X14	12	11.2	19.5	39	24
1FN-08-04	13/16″X16	Z1/4″X18	14	12.8	15	36	22
1FN-08-06	13/16″X16	Z3/8″X18	14	12.8	16	36.5	22
1FN-08	13/16″X16	Z1/2″X14	14	12.8	19.5	40	24
1FN-08-12	13/16″X16	Z3/4″X14	14	12.8	19.5	42.5	30
1FN-10-08	1″X14	Z1/2″X14	16	15.5	19.5	45	27
1FN-10-12	1″X14	Z3/4″X14	16	15.5	19.5	45	30
1FN-12-08	1.3/16″X12	Z1/2″X14	18	17	19.5	46.5	32
1FN-12	1.3/16″X12	Z3/4″X14	18	17	19.5	47	32
1FN-12-16	1.3/16″X12	Z1″X11.5	18	17	25.5	53.5	36
1FN-16-12	1.7/16″X12	Z3/4″X14	21	17.5	19.5	48	38
1FN-16	1.7/16″X12	Z1″X11.5	21	17.5	25.5	53.5	38
1FN-16-20	1.7/16″X12	Z1.1/4″X11.5	21	17.5	26.5	57	46
1FN-20-16	1.11/16″X12	Z1″X11.5	25	17.5	25.5	56	46
1FN-20	1.11/16″X12	Z1.1/4″X11.5	25	17.5	26.5	56.5	46
1FN-20-24	1.11/16″X12	Z1.1/2″X11.5	25	17.5	27.5	60	50
1FN-24	2″X12	Z1.1/2X11.5	29	17.5	27.5	61	55
