JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

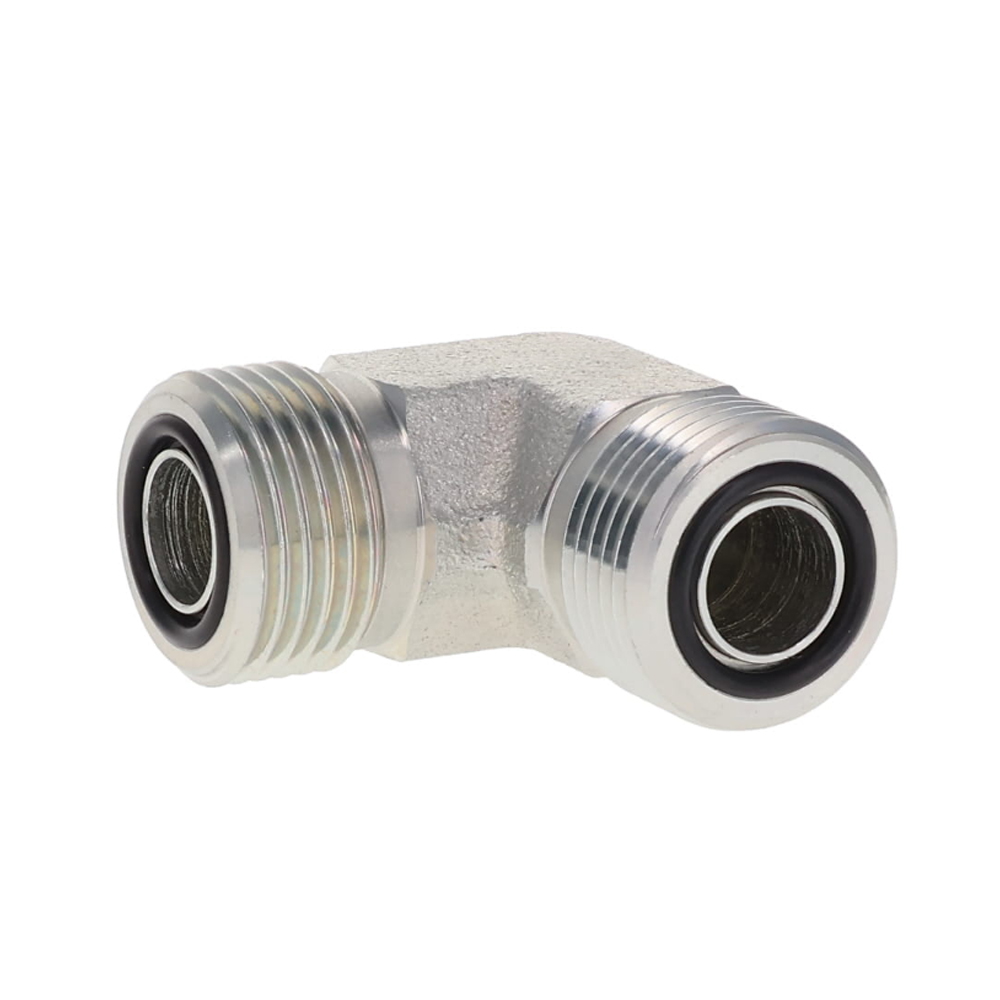

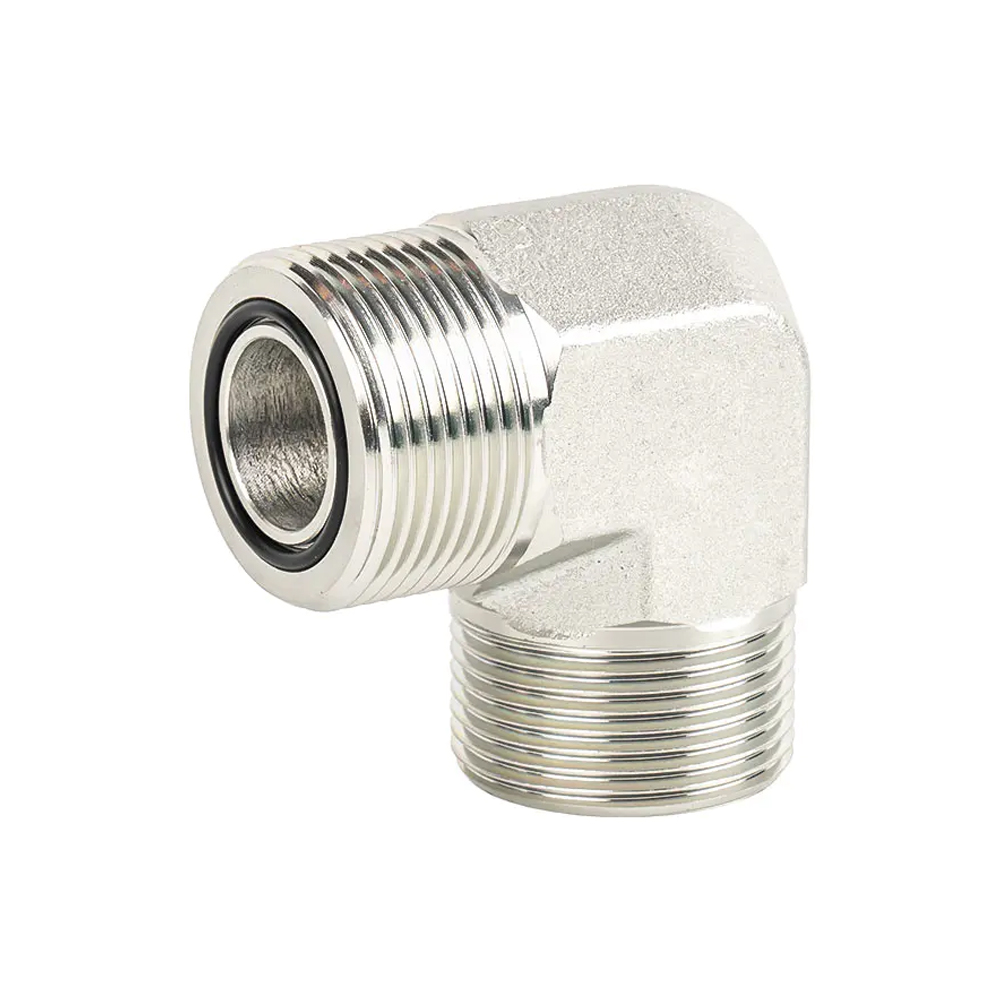

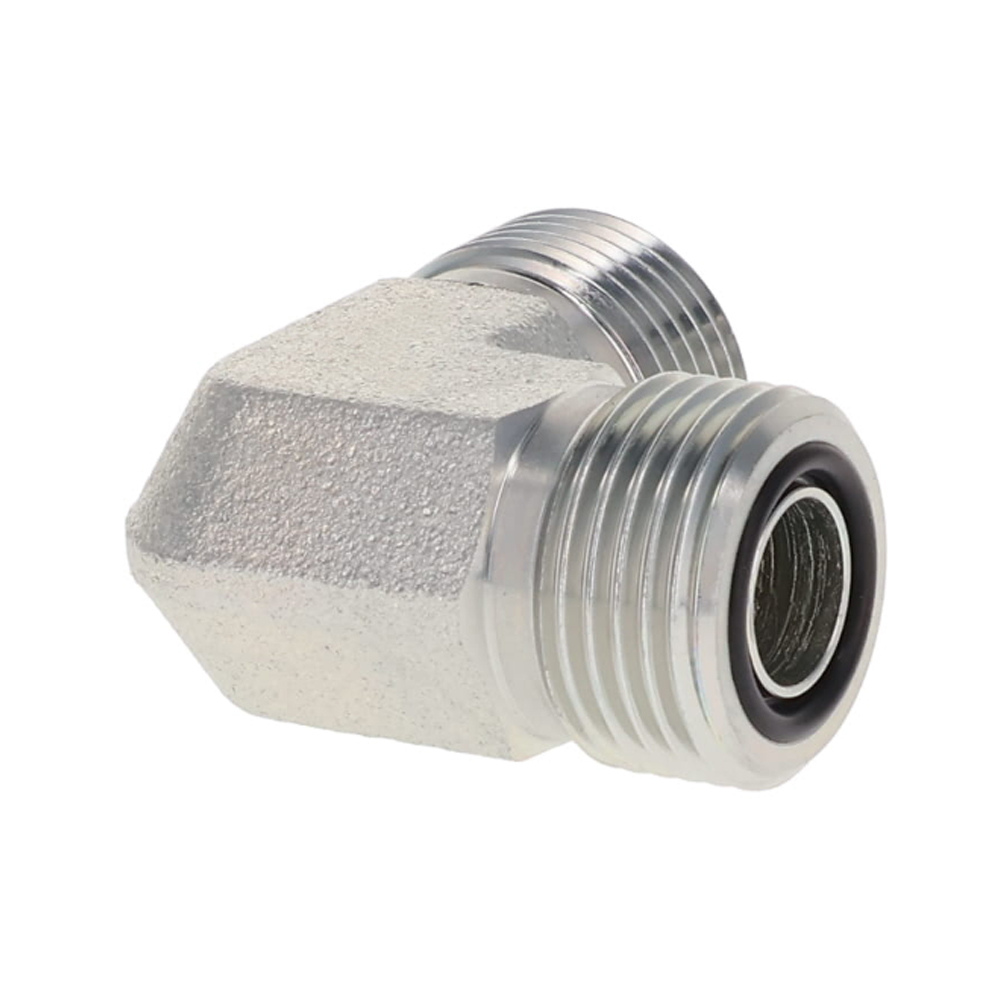

| PART NO. | THREAD | O-RING | DIMENSIONS | ||||
| E | F | E | F | A | B | S1 | |
| 1F9-04 | 9/16″X18 | 9/16″X18 | O011 | O011 | 23 | 23 | 14 |
| 1F9-04-06 | 9/16″X18 | 11/16″X16 | O011 | O012 | 25.5 | 27 | 19 |
| 1F9-06 | 11/16″X16 | 11/16″X16 | O012 | O012 | 27.5 | 27.5 | 19 |
| 1F9-06-08 | 11/16″X16 | 13/16″X16 | O012 | O014 | 29 | 31 | 22 |
| 1F9-08 | 13/16″X16 | 13/16″X16 | O014 | O014 | 31 | 31 | 22 |
| 1F9-08-12 | 13/16″X16 | 1.3/16″X12 | O014 | O018 | 35.5 | 40.3 | 30 |
| 1F9-10 | 1″X14 | 1″X14 | O016 | O016 | 36.5 | 36.5 | 27 |
| 1F9-12 | 1.3/16″X12 | 1.3/16″X12 | O018 | O018 | 41 | 41 | 30 |
| 1F9-16 | 1.7/16″X12 | 1.7/16″X12 | O021 | O021 | 44.5 | 44.5 | 36 |
| 1F9-20 | 1.11/16″X12 | 1.11/16″X12 | O025 | O025 | 47.5 | 47.5 | 41 |
