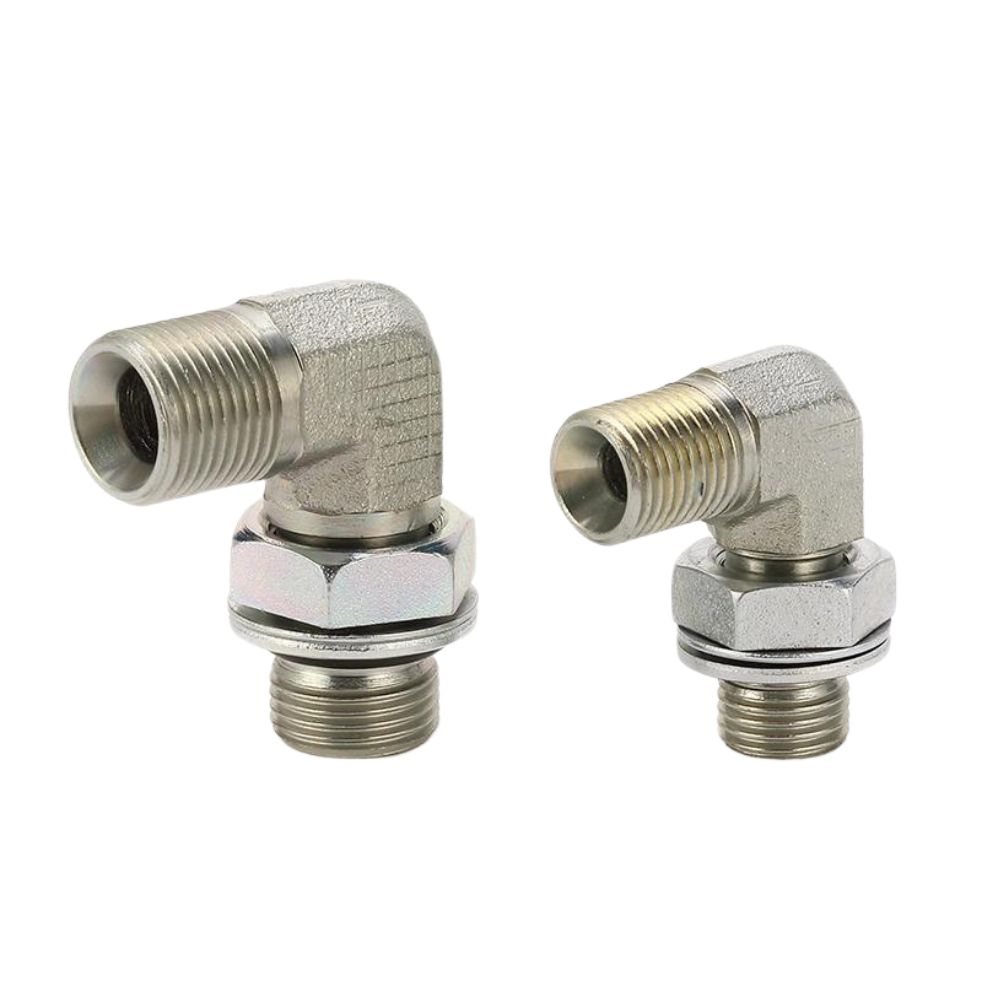

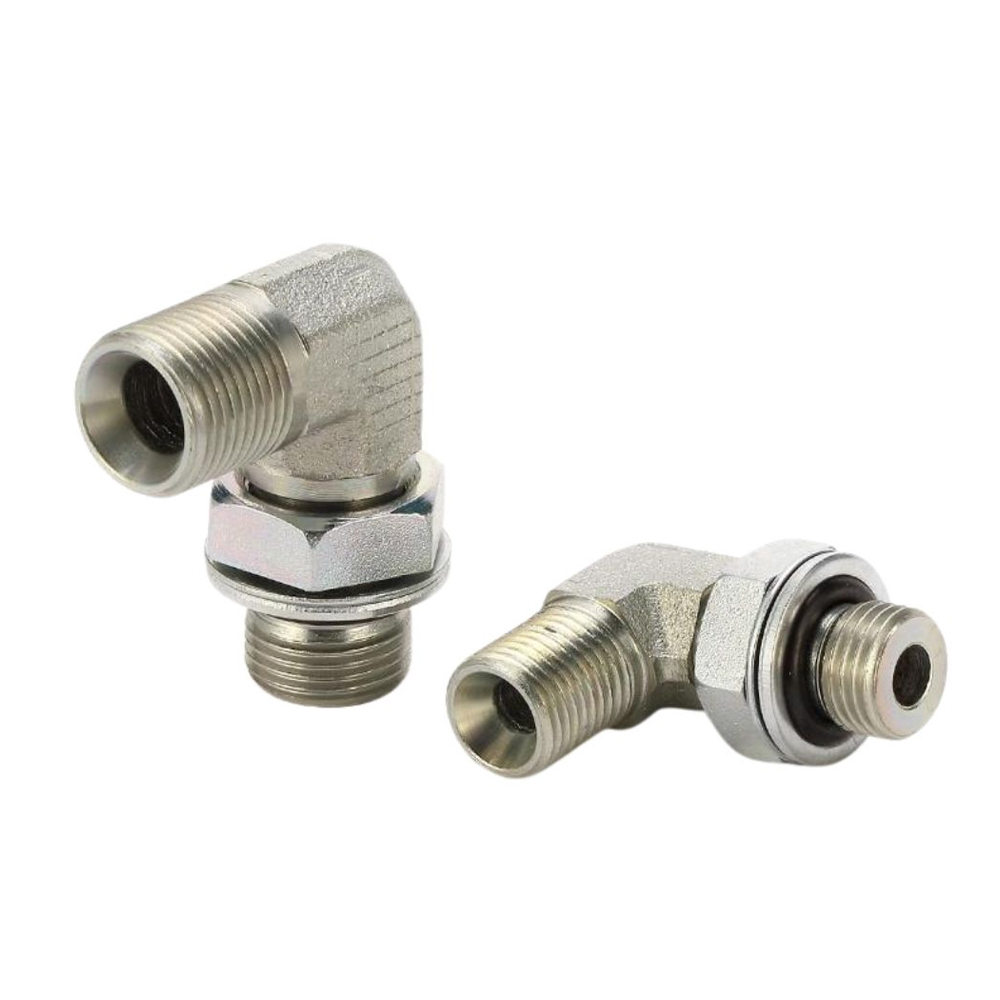

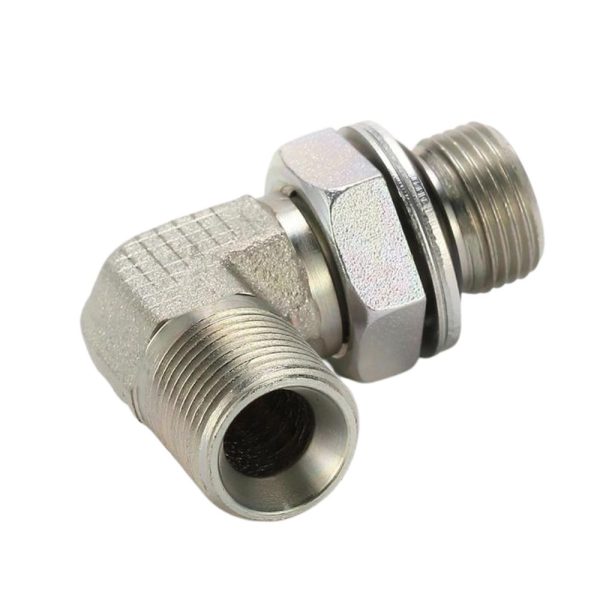

1CO9/1DO9 90° Elbow Metric O-ring Adapter

Description:

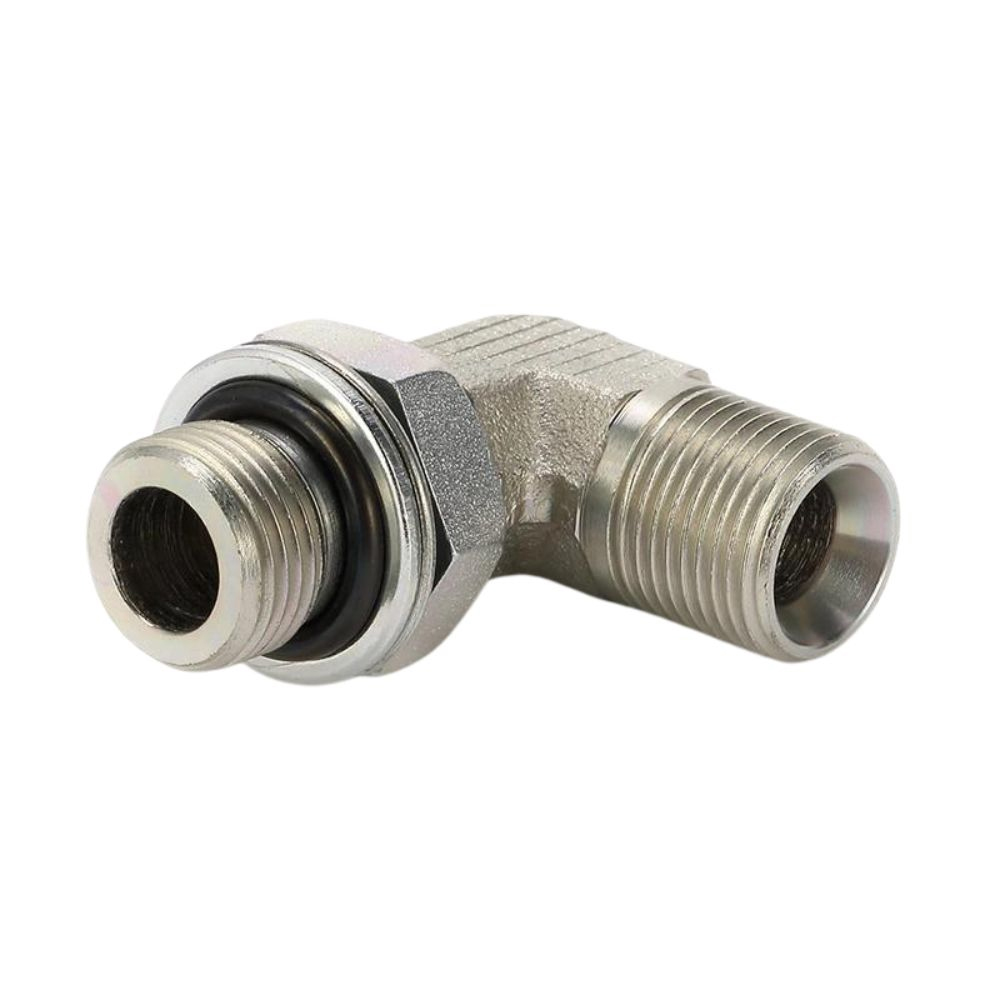

1CO9/1DO9 90° elbow metric o-ring adapter is a male adapter and the UNF ends with an o-ring sealing, which can provide a leak-free seal.

"*" indicates required fields

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	THREAD		TUBE O.D.	DIMENSIONS						MPa

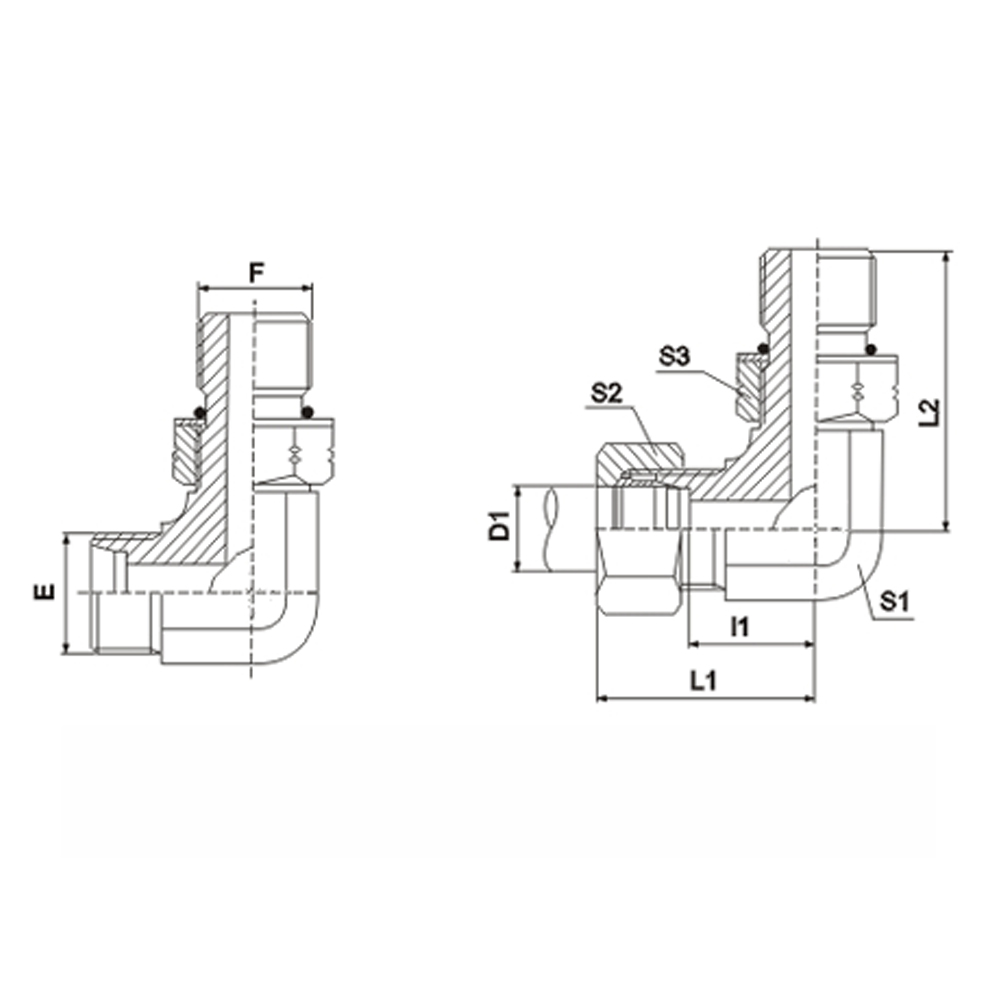

PART NO.	E	F	D1	I1	I1	L1	S1	S2	S3	MPa
1CO9-12-04OG	M12X1.5	7/16″X20	6	13	28	27.2	11	14	17	31.5 L series
1CO9-14-06OG	M14X1.5	9/16″X18	8	15.5	30.5	31.8	14	17	19
1CO9-16-06OG	M16X1.5	9/16″X18	10	17	32.5	33.3	16	19	19
1CO9-18-08OG	M18X1.5	3/4″X16	12	19	34	37.5	19	22	24
1CO9-22-10OG	M22X1.5	7/8″X14	15	22	37	44	22	27	27
1CO9-22-08OG	M22X1.5	3/4″X16	15	22	37	39.5	22	27	24
1CO9-26-12OG	M26X1.5	1.1/16″X12	18	25.5	42	52.5	27	32	32
1CO9-30-12OG	M30X2	1.1/16″X12	22	29.5	45.8	53.5	30	36	32	16 L series
1CO9-36-12OG	M36X2	1.1/16″X12	28	33.5	47.8	57.5	36	41	32
1CO9-36-16OG	M36X2	1.5/16″X12	28	33.2	49.8	57.5	36	41	41
1CO9-45-20OG	M45X2	1.5/8″X12	35	39	60.7	63	48	50	50
1CO9-52-24OG	M52X2	1.7/8″X12	42	40	63	64	50	60	55
1DO9-14-04OG	M14X1.5	7/16″X20	6	17.5	32.5	30	14	17	17	63 S series
1DO9-16-06OG	M16X1.5	9/16″X18	8	18.7	33.7	33.3	16	19	19
1DO9-18-06OG	M18X1.5	9/16″X18	10	19.5	36	33.5	19	22	19
1DO9-18-08OG	M18X1.5	3/4″X16	10	19.5	36	37.5	19	22	24
1DO9-20-08OG	M20X1.5	3/4″X16	12	19.5	36	37.5	19	24	24
1DO9-22-10OG	M22X1.5	7/8″X14	14	23	41	44	22	27	27
1DO9-24-10OG	M24X1.5	7/8″X14	16	24	42.5	46.5	24	30	27	40 S series
1DO9-30-12OG	M30X2	1.1/16″X12	20	28	49.8	53.5	30	36	32
1DO9-36-16OG	M36X2	1.5/16″X12	25	32.5	56.8	57.5	36	46	41
1DO9-42-20OG	M42X2	1.5/8″X12	30	36.2	62.7	59.5	41	50	50
1DO9-52-24OG	M52X2	1.7/8″X12	38	45.8	76.8	70.5	55	60	55	31.5 S series

Click to enlarge

Category: DIN Hose Adapters Tags: 1CO9, Carbon Steel, 90 Degree Elbow, O-ring, Metric, UNF

Description
Package& Shipping

Description

PART NO.	THREAD		TUBE O.D.	DIMENSIONS						MPa
PART NO.	E	F	D1	I1	I1	L1	S1	S2	S3	MPa
1CO9-12-04OG	M12X1.5	7/16″X20	6	13	28	27.2	11	14	17	31.5 L series
1CO9-14-06OG	M14X1.5	9/16″X18	8	15.5	30.5	31.8	14	17	19
1CO9-16-06OG	M16X1.5	9/16″X18	10	17	32.5	33.3	16	19	19
1CO9-18-08OG	M18X1.5	3/4″X16	12	19	34	37.5	19	22	24
1CO9-22-10OG	M22X1.5	7/8″X14	15	22	37	44	22	27	27
1CO9-22-08OG	M22X1.5	3/4″X16	15	22	37	39.5	22	27	24
1CO9-26-12OG	M26X1.5	1.1/16″X12	18	25.5	42	52.5	27	32	32
1CO9-30-12OG	M30X2	1.1/16″X12	22	29.5	45.8	53.5	30	36	32	16 L series
1CO9-36-12OG	M36X2	1.1/16″X12	28	33.5	47.8	57.5	36	41	32
1CO9-36-16OG	M36X2	1.5/16″X12	28	33.2	49.8	57.5	36	41	41
1CO9-45-20OG	M45X2	1.5/8″X12	35	39	60.7	63	48	50	50
1CO9-52-24OG	M52X2	1.7/8″X12	42	40	63	64	50	60	55
1DO9-14-04OG	M14X1.5	7/16″X20	6	17.5	32.5	30	14	17	17	63 S series
1DO9-16-06OG	M16X1.5	9/16″X18	8	18.7	33.7	33.3	16	19	19
1DO9-18-06OG	M18X1.5	9/16″X18	10	19.5	36	33.5	19	22	19
1DO9-18-08OG	M18X1.5	3/4″X16	10	19.5	36	37.5	19	22	24
1DO9-20-08OG	M20X1.5	3/4″X16	12	19.5	36	37.5	19	24	24
1DO9-22-10OG	M22X1.5	7/8″X14	14	23	41	44	22	27	27
1DO9-24-10OG	M24X1.5	7/8″X14	16	24	42.5	46.5	24	30	27	40 S series
1DO9-30-12OG	M30X2	1.1/16″X12	20	28	49.8	53.5	30	36	32
1DO9-36-16OG	M36X2	1.5/16″X12	25	32.5	56.8	57.5	36	46	41
1DO9-42-20OG	M42X2	1.5/8″X12	30	36.2	62.7	59.5	41	50	50
1DO9-52-24OG	M52X2	1.7/8″X12	38	45.8	76.8	70.5	55	60	55	31.5 S series
