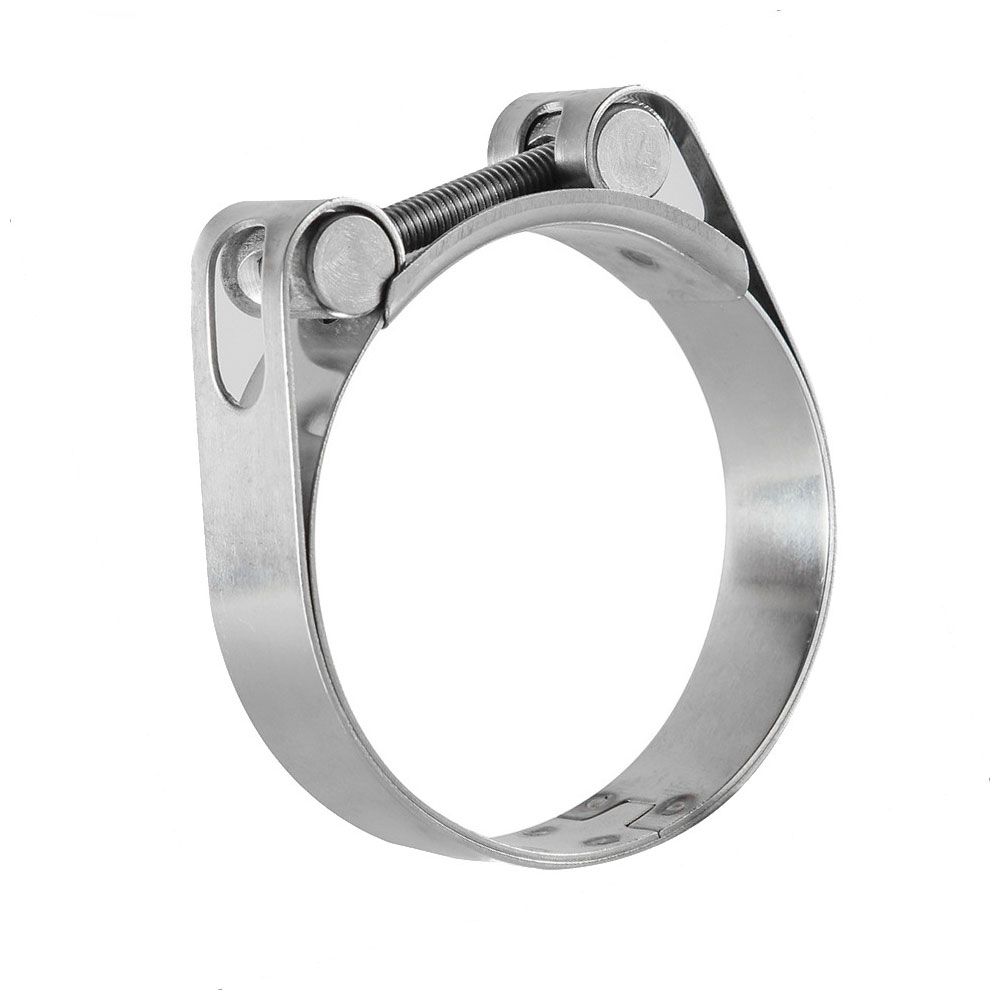

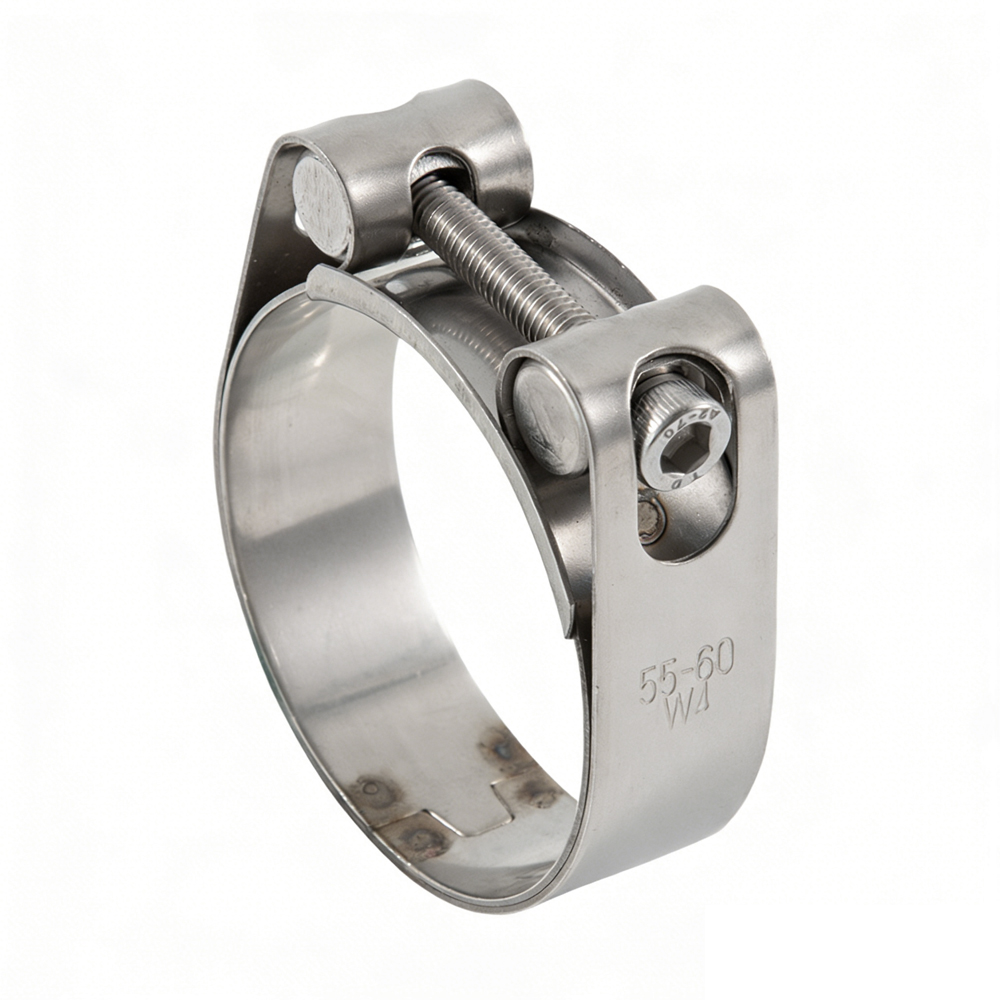

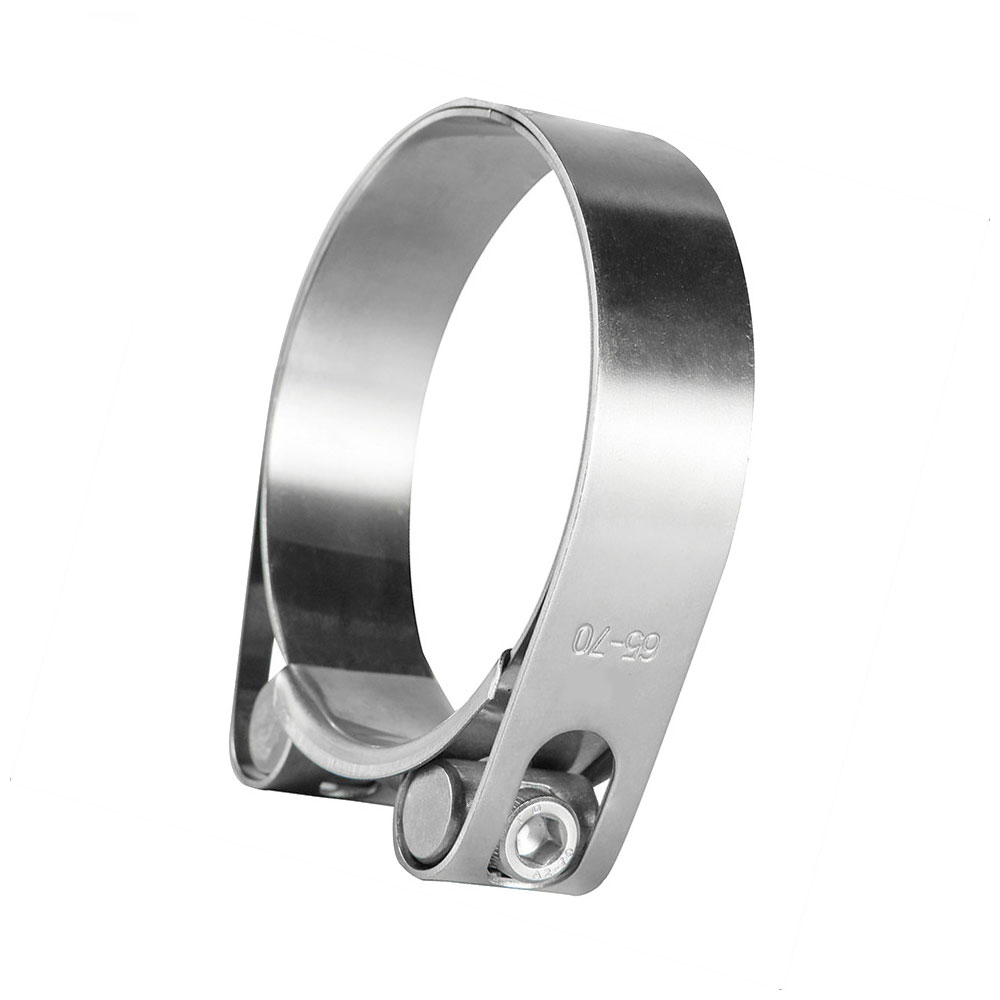

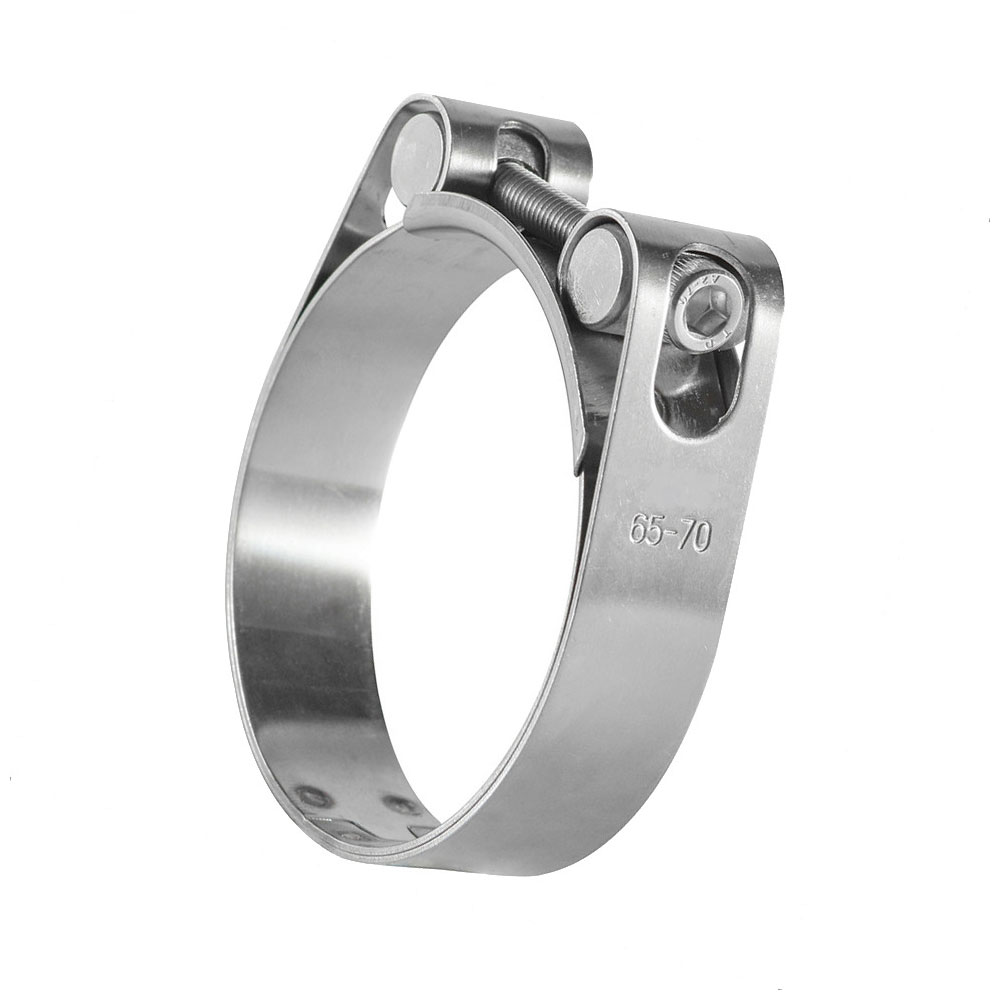

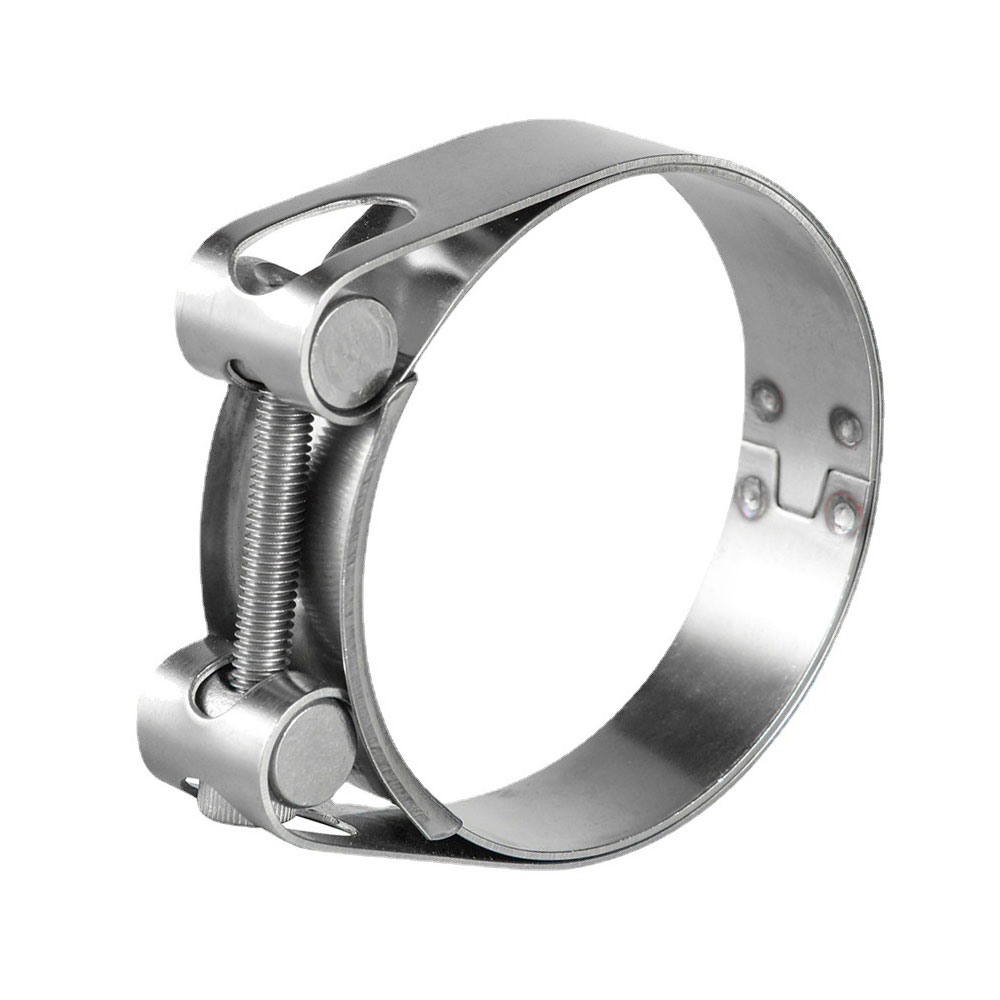

T Bolt Hose Clamps are heavy-duty fastening solutions engineered for high-pressure and high-vibration environments. With a reinforced band and a secure T-bolt locking mechanism, they deliver exceptional clamping force and a complete 360-degree seal, guaranteeing leak-proof connections for hoses and ducts. Suitable for a wide range of applications across automotive, industrial, marine, and agricultural sectors.
| Size | screw | Band Size (W1) |
Thickness | Install Torque | Pcs/CTN |
| mm | mm | mm | mm | Nm | |
| 35-40 | M6*45 | 20 | 1 | 9 | 50 |
| 40-45 | M6*45 | 20 | 1 | 9 | 50 |
| 45-50 | M6*45 | 20 | 1 | 9 | 50 |
| 50-55 | M6*45 | 20 | 1 | 9 | 50 |
| 55-60 | M6*45 | 20 | 1 | 9 | 50 |
| 60-65 | M6*45 | 20 | 1 | 9 | 50 |
| 65-70 | M6*45 | 20 | 1 | 9 | 50 |
| 70-75 | M6*45 | 20 | 1 | 9 | 50 |
| 75-80 | M6*45 | 20 | 1 | 9 | 50 |
| 80-85 | M6*45 | 20 | 1 | 9 | 50 |
| 85-90 | M6*45 | 20 | 1 | 9 | 50 |
| 90-95 | M6*45 | 20 | 1 | 9 | 50 |
| 95-100 | M6*45 | 20 | 1 | 9 | 50 |
| 100-105 | M6*45 | 20 | 1 | 9 | 50 |
| 105-110 | M6*45 | 20 | 1 | 9 | 50 |
| 110-115 | M6*45 | 20 | 1 | 9 | 50 |
| 115-120 | M6*45 | 20 | 1 | 9 | 50 |
| 120-125 | M6*45 | 20 | 1 | 9 | 50 |
| 125-130 | M6*45 | 20 | 1 | 9 | 50 |
| 130-135 | M6*45 | 20 | 1 | 9 | 50 |
| 135-140 | M6*45 | 20 | 1 | 9 | 50 |
| 140-145 | M6*45 | 20 | 1 | 9 | 50 |
| 145-150 | M6*45 | 20 | 1 | 9 | 50 |
| 150-155 | M6*45 | 20 | 1 | 9 | 50 |
| 155-160 | M6*45 | 20 | 1 | 9 | 50 |
Larger sizes are available according to customer’s requirement.
NOTE:
W1: All material Galvanized Carbon Steel, Zinc Plated Steel
W2: All material Stainless steel 201 or 301 or 304 with Galvanized Screw,
W4: All material Stainless steel 201,301,304,
W5: All material Stainless steel 316.
