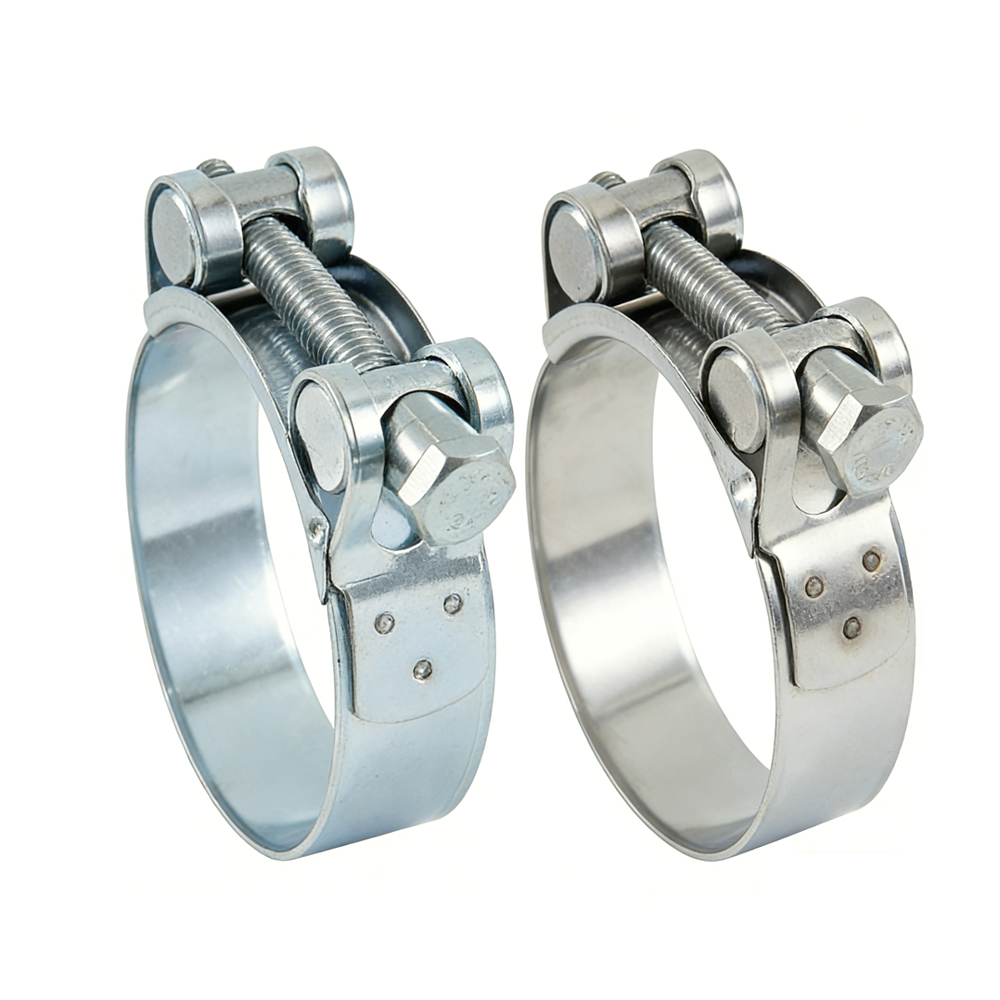

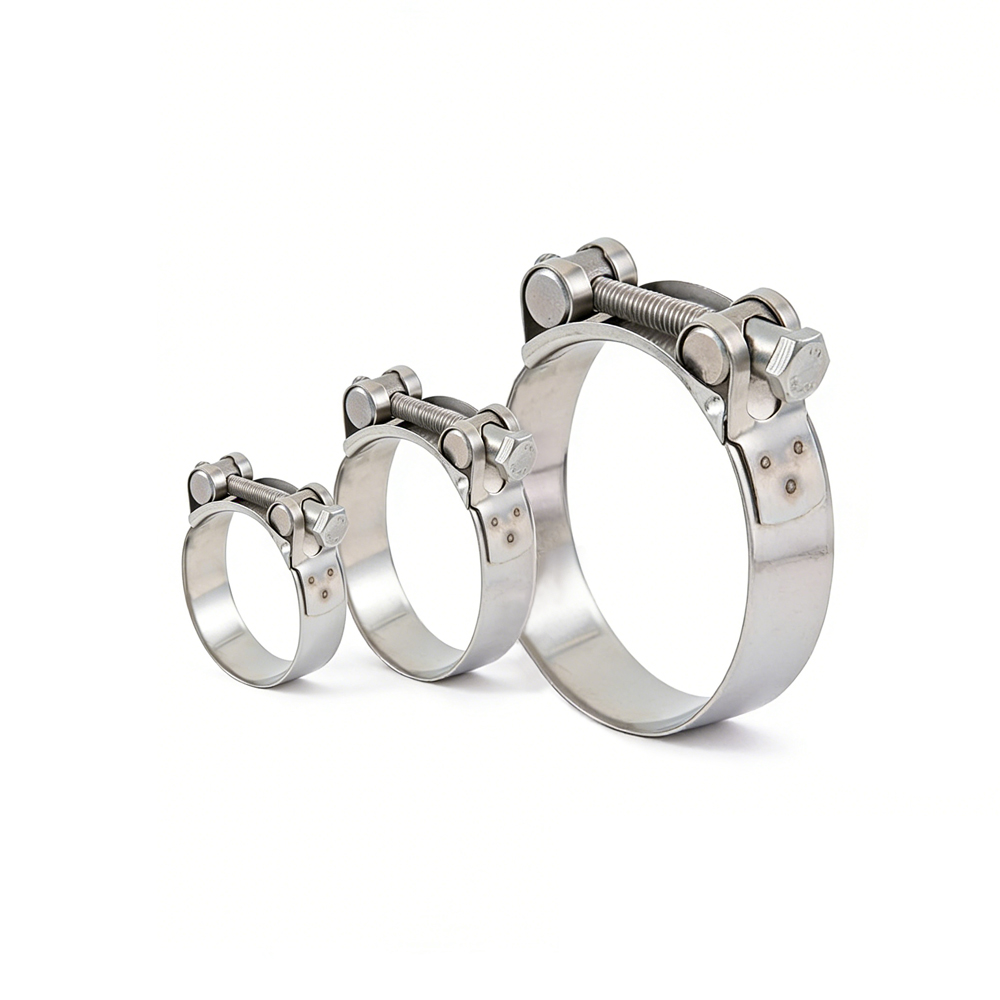

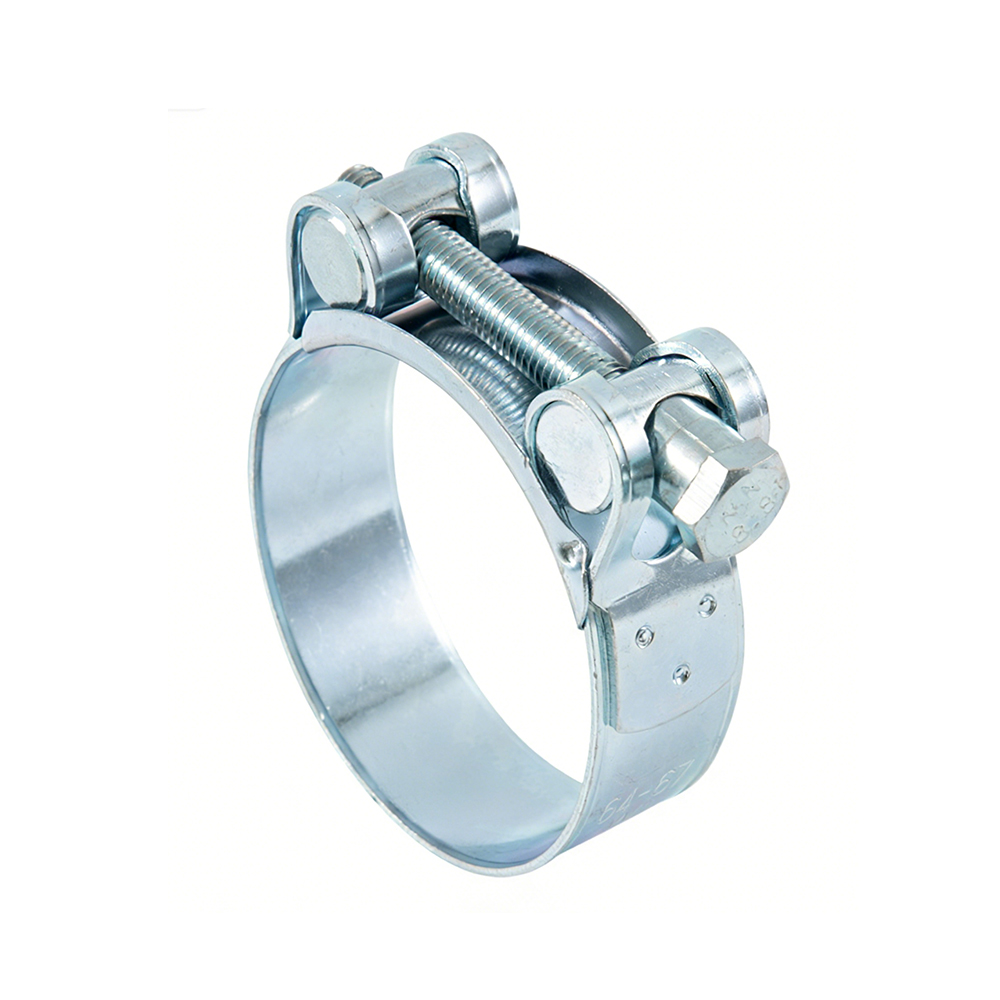

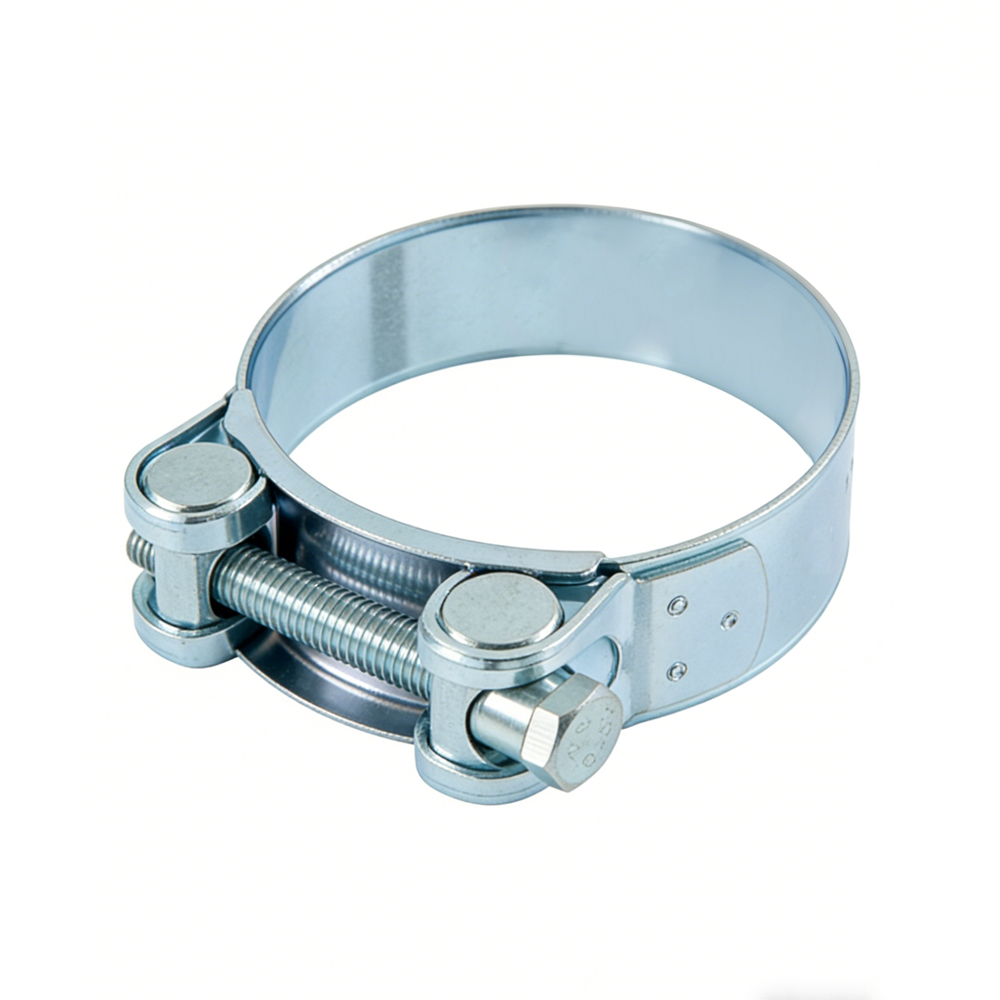

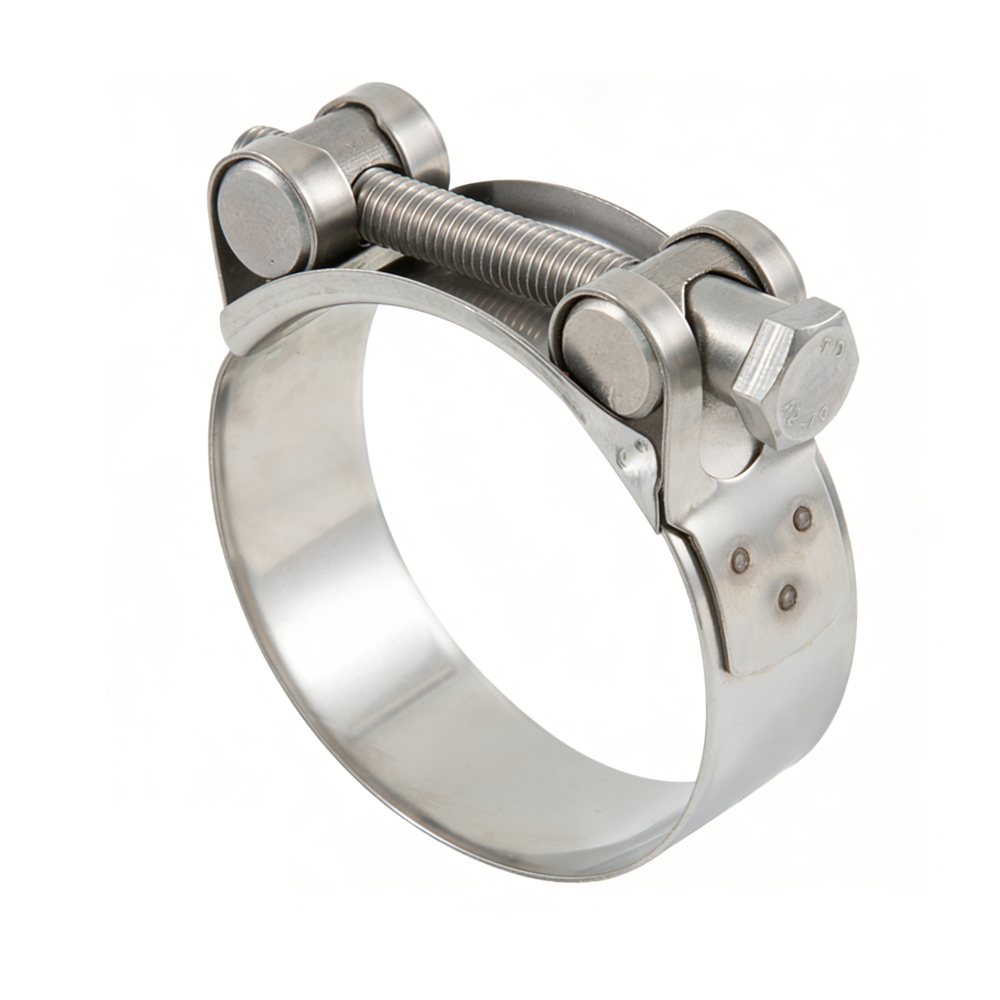

Heavy Duty W4 European Type Unitary Clamp

Material：W1, W2, W4, W5

Band Width: 18-26mm

"*" indicates required fields

T Bolt Hose Clamps are heavy-duty fastening solutions engineered for high-pressure and high-vibration environments. With a reinforced band and a secure T-bolt locking mechanism, they deliver exceptional clamping force and a complete 360-degree seal, guaranteeing leak-proof connections for hoses and ducts. Suitable for a wide range of applications across automotive, industrial, marine, and agricultural sectors.

Size	Screw	Band Size (W1)	Band Size (W2/24/W5)	Install Torque	Pcs/CTN
mm	mm	mm	mm	Nm	Pcs/CTN
17-19	M5×40	0.6×18	0.6×18	4.5	200
20-22	M5×40				200
23-25	M5×40				200
26-28	M5×40				200
29-31	M6×55	0.8×20	0.6×20	9	200
32-35	M6×55				200
36-39	M6×55				200
40-43	M6×55				100
44-47	M6×55	1.2×22	0.8×22		100
48-51	M6×55				100
52-55	M6×55				100
56-59	M6×55				100
60-63	M6×55				100
64-67	M8×70	1.5×22		18	100
68-73	M8×70	1.5×24	0.8×24		100
74-79	M8×70				50
80-85	M8×70				50
86-91	M8×70				50
92-97	M8×70				50
981-03	M8×70				50
104-112	M8×80				50
113-121	M8×80				50
122-130	M8×80				50
131-139	M10×90	1.7×26	1.0×26	29	50
140-148	M10×90				50
149-161	M10×110				50
162-174	M10×110				25
175-187	M10×110				25
188-200	M10×110				25
201-213	M10×110				25
214-226	M10×110				25
227-239	M10×110				25
240-252	M10×110				25

Larger sizes are available according to customer’s requirement.

NOTE:

W1: All material Galvanized Carbon Steel, Zinc Plated Steel

W2: All material Stainless steel 201 or 301 or 304 with Galvanized Screw,

W4: All material Stainless steel 201,301,304,

W5: All material Stainless steel 316.

Click to enlarge

Category: T-Bolt Clamps Tags: stainless steel w4, Unitary Clamps, T-bolt

Description
Package& Shipping

Description

Size	Screw	Band Size (W1)	Band Size (W2/24/W5)	Install Torque	Pcs/CTN
mm	mm	mm	mm	Nm	Pcs/CTN
17-19	M5×40	0.6×18	0.6×18	4.5	200
20-22	M5×40				200
23-25	M5×40				200
26-28	M5×40				200
29-31	M6×55	0.8×20	0.6×20	9	200
32-35	M6×55				200
36-39	M6×55				200
40-43	M6×55				100
44-47	M6×55	1.2×22	0.8×22		100
48-51	M6×55				100
52-55	M6×55				100
56-59	M6×55				100
60-63	M6×55				100
64-67	M8×70	1.5×22		18	100
68-73	M8×70	1.5×24	0.8×24		100
74-79	M8×70				50
80-85	M8×70				50
86-91	M8×70				50
92-97	M8×70				50
981-03	M8×70				50
104-112	M8×80				50
113-121	M8×80				50
122-130	M8×80				50
131-139	M10×90	1.7×26	1.0×26	29	50
140-148	M10×90				50
149-161	M10×110				50
162-174	M10×110				25
175-187	M10×110				25
188-200	M10×110				25
201-213	M10×110				25
214-226	M10×110				25
227-239	M10×110				25
240-252	M10×110				25

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
