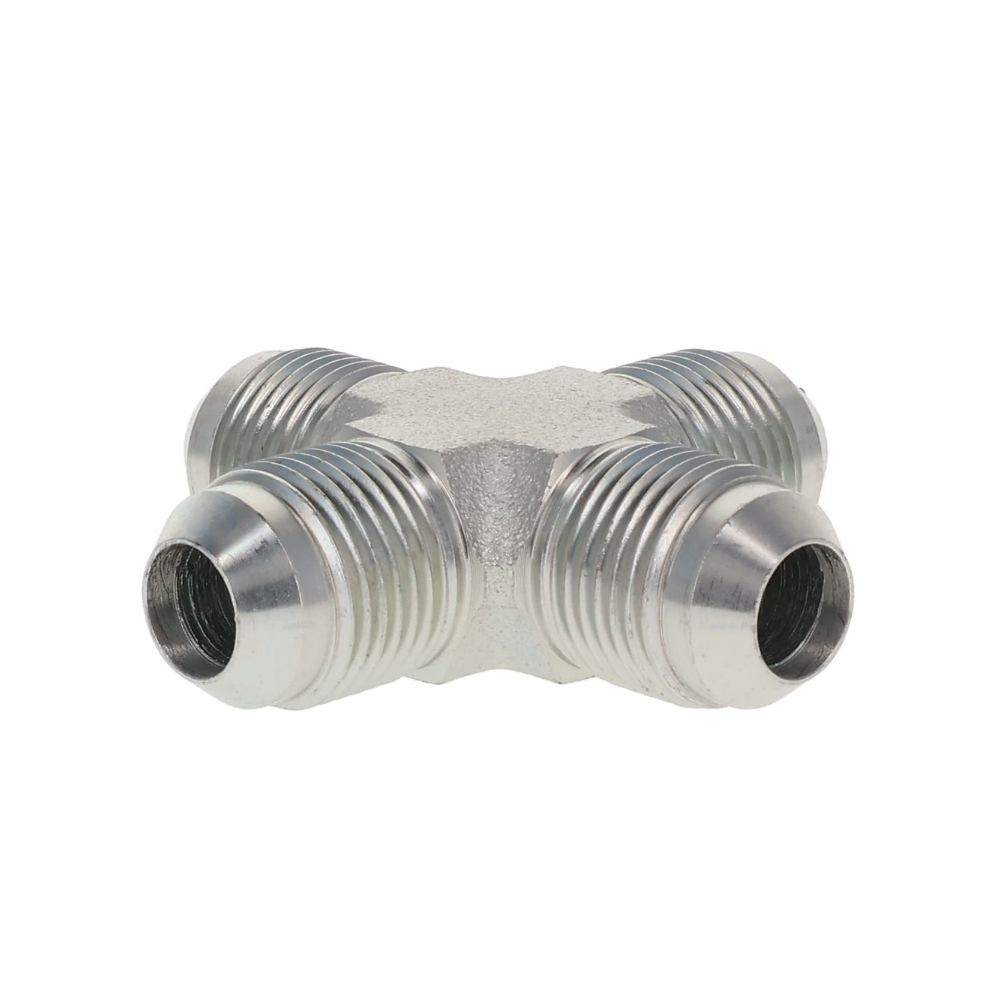

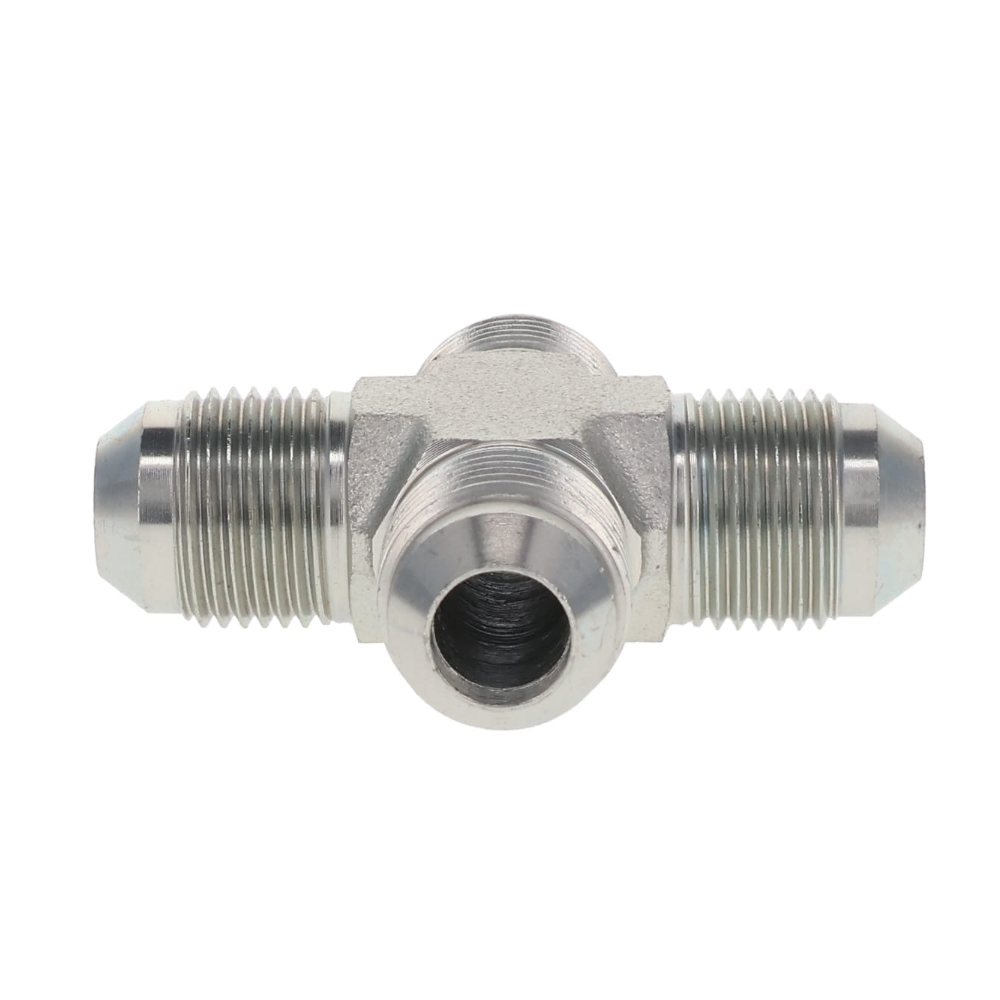

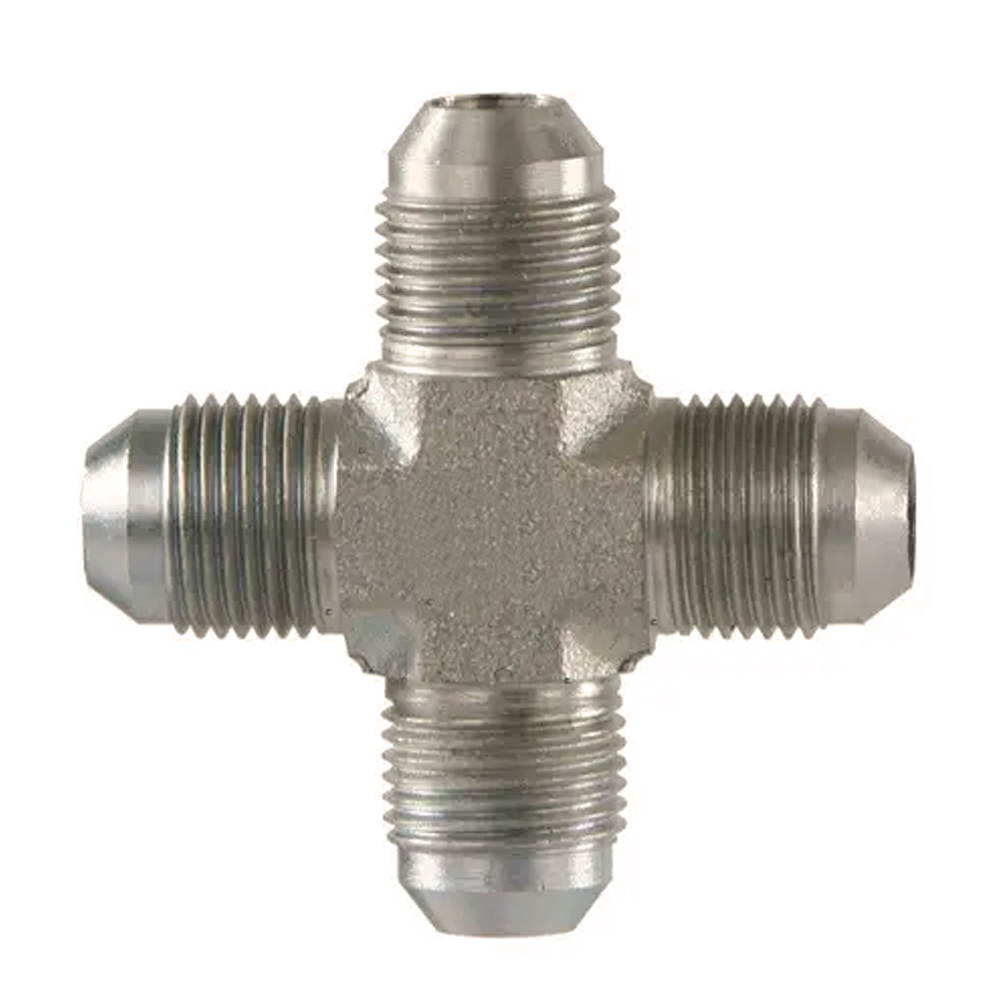

XJ JIC Flare Male 4 Way Cross

Description:

XJ-JIC hydraulic tee fitting is a 4-way hydraulic cross adapter with four male JIC threads. The cross-fitting has four male JIC 37 ° ends. They are used to connect hydraulic hoses and tubes to other components.

Category: JIC Flared Adapter Tags: Cross, Male, JIC, XJ

Description
Package& Shipping

Description

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

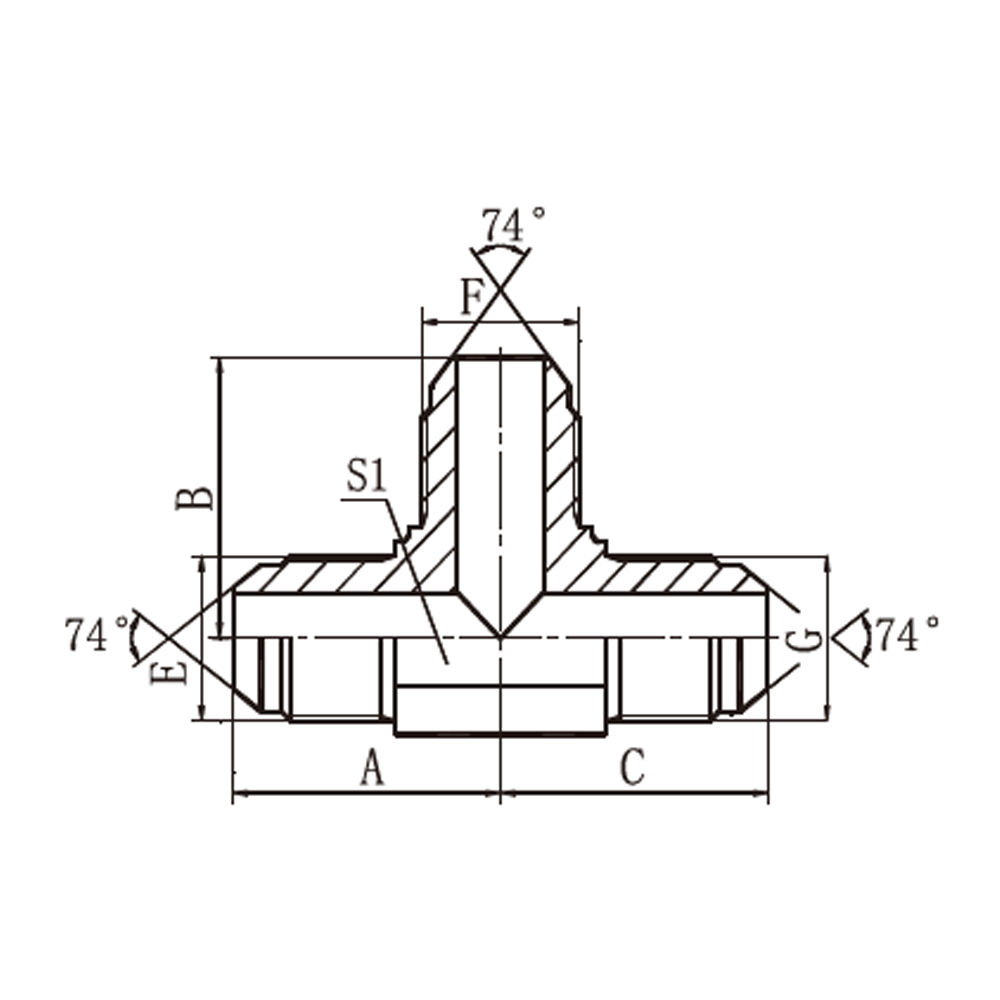

PART NO.	THREAD	DIMENSIONS
PART NO.	E,F,G,H	A,B,C,D	S1
XJ-04	7/16″X20	24.5	11
XJ-05	1/2″x20	26.5	14
XJ-06	9/16″X18	26.9	14
XJ-08	3/4″X16	32	19
XJ-10	7/8″X14	37.8	22
XJ-12	1.1/16″X12	44.2	27
XJ-16	1.5/16″X12	49	33

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

XJ JIC Flare Male 4 Way Cross

Package:

Delivery Time:
